Compatible: PC

User Manual

TECHNICAL FEATURES

1. Throttle

2. USB connector

3. USB selector

4. Rudder function via twisting handle

5. Rudder locking screw on handle

6. PRESET button (

to select

programming)

7. MAPPING button (for programming)

8. Allen key to install or separate the

throttle

9. Handle resistance adjustment dial

10. Rudder via rocking button (or 5th Axis)

11. Action buttons

12. HOME button with LED

13. Multidirectional "Point Of View" hat-

switch

2/12

GETTING TO KNOW YOUR HOTAS JOYSTICK

THROTTLE

Your joystick features a large throttle which you can use to easily control the acceleration of

your aircraft.

The throttle is detachable and may be positioned in 2 different ways, either:

-Detached and separated from the joystick

(to re-create authentic piloting conditions)

-Attached to the joystick

(for greater stability and to take up less space).

By default, the throttle comes detached from the joystick.

To attach the throttle to the joystick:

1. Turn both items upside down (the throttle and the joystick).

2. Take the Allen key (8) attached underneath the base of the joystick.

3. Position the throttle to the left of the joystick.

Insert the connecting tab on the left of the joystick's base into the opening on the right

hand side of the throttle.

4. Using the key, tighten the two Allen screws underneath the base

(located on the left-hand side of the joystick's base).

5. Wind up the throttle cable and thread it through the cable guide slot.

6. Put the Allen key back in its place so as not to lose it.

Carry out this procedure in reverse to detach the throttle from the joystick.

ADJUSTABLE HANDLE RESISTANCE

Depending on your style of gaming, you may wish to have an ultra-sensitive joystick, which

responds to the slightest touch, or you may prefer to have a firmer joystick, which offers

some resistance when you move it.

Your joystick's handle resistance is adjustable, in order to adapt to all players. To adjust it,

use the handle resistance adjustment dial (9) located underneath your joystick's base.

3/12

RUDDER FUNCTION

Your joystick features a rudder function, which in a plane corresponds to the pedals used by

the pilot to turn the steering, allowing the plane to pivot around its vertical axis (therefore

making the plane turn left or right). This rudder function is accessible on your joystick by

rotating the handle to the left or right.

This rudder function is accessible in two ways:

- on your joystick by rotating the handle (4) to the left or right.

- or via the rocking button (10)on the throttle.

If you are only using the rocking button (or if you are not using the rudder function), you can

disable the handle's rotation thanks to the locking screw (5)located on the base of the

joystick. Use a flat head screwdriver to change the screw’s position and thus lock/unlock the

rudder function.

Notes:

- in "4 axes" mode, the rocking button is combined with the handle's rotation.

- in "5 axes" mode, the rocking button is independent of the handle's rotation and therefore

provides an additional progressive axis.

MULTIDIRECTIONAL "POINT OF VIEW" HAT-SWITCH

Your joystick features a “Point Of View” hat-switch (13) which, as its name indicates, allows

you (in games which permit) to instantly view everything that’s going on around your plane.

To do so, simply go to your game’s configuration menu and program the different views (rear

view, left view, right view, and also external views) onto the directions of the “Point Of View”

hat-switch.

Of course, you can also use the “Point Of View” hat-switch for other functions instead (firing,

etc.).

4/12

INSTALLATION ON PC

1. Set your joystick’s USB selector (3) to the “PC” position.

2. Connect the USB connector (2) to one of your computer’s USB ports. Windows will

automatically detect the new device.

3. The drivers are installed automatically.

Follow the on-screen instructions to complete the installation.

4. Click Start/Settings/Control Panel and then double-click Game Controllers.

The Game Controllers dialog box displays the joystick’s name with OK status.

5. In the Control Panel, click Properties to configure your joystick.

Test device: Lets you test and view all of your joystick’s functions.

You are now ready to play!

2 AXIS MODES

On PC, your joystick features 2 axis modes:

•4 Axes mode (Red Home LED)

The rocking button is combined with the handle's rotation for the rudder function.

•5 Axes mode (Green Home LED)

The rocking button is independent and can be manually assigned with another

function.

To switch from one mode to the other, simply press the HOME button (12).

IMPORTANT NOTES FOR PC

- Your joystick’s USB selector (3)must always be set to the “PC” position before connecting

your joystick.

- When connecting your joystick: Leave the handle, rudder and throttle centered and do not

move them (to avoid any calibration problems).

5/12

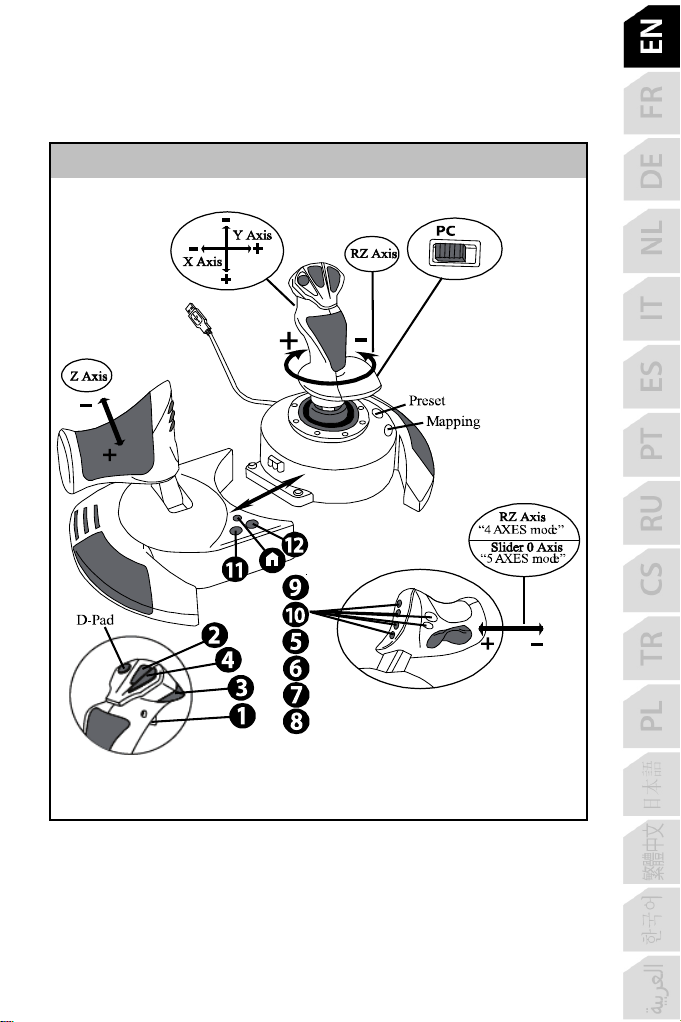

“AUTOMATIC PRESET” CONFIGURATION - PC

“AUTOMATIC PRESET” diagram on PC

RED HOME LED = 4 AXES MODE GREEN HOME LED = 5 AXES MODE

The "4 axes" mode preset corresponds to the default configurations for most aerial

simulation games on PC.

It will therefore allow you to start playing your game right away, without having to reconfigure

your joystick.

In "5 axes" mode, the function of the rocking button must be manually assigned in your

game's options.

6/12

ADVANCED FUNCTIONS

2 PROGRAMMING MODES

The PRESET button (6)and its LED allow you to view the type of programming selected:

-AUTOMATIC (preprogrammed)

-or MANUAL (programmed by yourself).

A single press of this button will allow you to switch from one programming mode to the

other, even during the course of a game.

•AUTOMATIC PRESET: LED IS OFF

This represents the default programming: the axes, positions of the buttons and of the hat-

switch are preprogrammed.

PLEASE REFER TO THE “AUTOMATIC PRESET” CONFIGURATION DIAGRAM.

•MANUAL PRESET: LED IS GREEN

This represents your own personal programming:

- The buttons, axes and the hat-switch can be switched between themselves.

- You can modify the programming to suit your taste and whenever you like.

- Programming is automatically saved in your joystick (even when it is disconnected).

- When your “MANUAL PRESET” is blank, it is identical to the “AUTOMATIC PRESET”.

EEPROM MEMORY

•Your joystick features an internal chip which saves all of your "MANUAL PRESET"

programming (even when your joystick is switched off or disconnected for a long period of

time).

•You can save a different "MANUAL PRESET" for each platform used:

- one for PC in 4 axes mode

- one for PC in 5 axes mode

7/12

PROGRAMMING/MAPPING

Your programming is carried out using the MAPPING button (7).

•Examples of possible applications:

- Switching the positions of buttons.

- Switching axes between themselves = directions of the handle, of the throttle or of the

rudder (in this case, you must map the 2 directions of the first axis to those of the

second.)

- Switching the 2 directions of the same axis.

- Switching buttons with a direction of an axis or of the hat-switch.

•Exception:

The HOME, MAPPING and PRESET buttons cannot be reprogrammed and moved.

8/12

PROGRAMMING PROCEDURE

SAVING A "MANUAL PRESET"

Steps

Action

PRESET LED

Enable MANUAL PRESET (6)

by pressing the button.

GREEN

2 Press and release the MAPPING button (7).

FLASHES GREEN

SLOWLY

3 Press and release the button or direction to program.

FLASHES GREEN

QUICKLY

Press and release the button or direction onto which you

wish to place your function.

GREEN

Your “MANUAL PRESET” is now enabled and up to date

(with your programming carried out).

ERASING A "MANUAL PRESET"

Steps

Action

PRESET LED

Enable your MANUAL PRESET (6)

GREEN

Press and hold the MAPPING button (7)

for 2 seconds.

FLASHES GREEN

2 SECONDS

Your “MANUAL PRESET” is now blank

(and once again identical to the “AUTOMATIC PRESET”).

RETURNING TO “FACTORY SETTINGS”

You can erase all of your programming or settings carried out (in 4 and 5 axes modes) with

a single step:

Step

Action

HOME LED

Simultaneously press the

MAPPING+ PRESET buttons

FLASHES GREEN/RED

3 SECONDS

All of your “MANUAL PRESETS” or settings are now blank.

Note: This operation will completely restart your joystick.

We therefore recommend that you do this outside of games.

9/12

TROUBLESHOOTING AND WARNINGS

•My joystick doesn’t function correctly or appears to be improperly calibrated:

- Switch off your computer or your console, disconnect your joystick, reconnect your joystick

and then re-launch your game.

- When connecting your joystick: Leave the handle, rudder and throttle centered and do not

move them (to avoid any calibration problems).

- Exit your game, disconnect your joystick, verify that the USB selector (3) is set to the

proper position, then reconnect your joystick.

•I can’t configure my joystick:

- In your game’s “Options / Controller / Gamepad or Joystick” menu: Select the most

appropriate configuration or completely reconfigure the controller options.

- Please refer to your game’s user manual or online help for more information.

- You can also use your joystick’s “MAPPING” function to resolve this type of problem.

•My joystick is too sensitive or not sensitive enough:

- Your joystick self-calibrates on its own after you have made a few movements on the

different axes.

- In your game’s “Options / Controller / Gamepad or Joystick” menu: Adjust the sensitivity or

dead zones for your controller (if this option is available).

- Adjust the handle resistance using the dial (9) located under your joystick’s base.

•The rudder function is too sensitive:

- Disable the handle's rotation using the locking screw (5) located on the base of the joystick

and use the rocking button for the rudder function.

Autres manuels pour T.Flight Hotas X

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Thrustmaster Manettes de jeux vidéo

Thrustmaster

Thrustmaster eSwapX 2 PRO Manuel utilisateur

Thrustmaster

Thrustmaster Ferrari GTE Wheel Add-On Manuel utilisateur

Thrustmaster

Thrustmaster Ferrari F1 Wheel Add-on Manuel utilisateur

Thrustmaster

Thrustmaster T-Wireless Black Manuel utilisateur

Thrustmaster

Thrustmaster Ferrari F458 Spider Manuel utilisateur

Thrustmaster

Thrustmaster GT Cockpit 458 Manuel utilisateur

Thrustmaster

Thrustmaster T Flight Stick X Manuel utilisateur

Thrustmaster

Thrustmaster T.Flight Hotas 4 Manuel utilisateur

Thrustmaster

Thrustmaster T.Flight Hotas One Manuel d'instructions

Thrustmaster

Thrustmaster FORZA MOTORSPORT 5 Manuel utilisateur

Thrustmaster

Thrustmaster Ferrari F430 Manuel utilisateur

Thrustmaster

Thrustmaster T.Flight Hotas One Manuel utilisateur

Thrustmaster

Thrustmaster 360 Modena Force GT Manuel utilisateur

Thrustmaster

Thrustmaster ADVANCE WIRELESS DUAL TRIGGER Manuel utilisateur

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 Manuel utilisateur

Thrustmaster

Thrustmaster Score-A Manuel utilisateur

Thrustmaster

Thrustmaster T-WIRELESS NW Manuel utilisateur

Thrustmaster

Thrustmaster T150 Manuel utilisateur

Thrustmaster

Thrustmaster universal challenge Instructions d'utilisation

Thrustmaster

Thrustmaster TCA Sidestick Airbus Edition Manuel utilisateur

Thrustmaster

Thrustmaster 360 modena Force GT Instructions d'utilisation

Thrustmaster

Thrustmaster TM Rally Wheel Add-on Sparco R383 Mod Manuel utilisateur

Thrustmaster

Thrustmaster TMX Force Feedback Manuel utilisateur

Thrustmaster

Thrustmaster F/A-18C HORNET Manuel utilisateur

Manuels Manettes de jeux vidéo populaires d'autres marques

Wasp

Wasp SL-6610 Manuel utilisateur

JKG

JKG JKG2022A Manuel utilisateur

Marvo

Marvo MG08 Manuel utilisateur

Belkin

Belkin F8GBPC001 Manuel utilisateur

GameSir

GameSir Z2 Manuel utilisateur

Laser

Laser PCO-AGAMEC-BK Manuel utilisateur

Cortex

Cortex VEXnet Manuel utilisateur

Gioteck

Gioteck HF-1 Manuel utilisateur

Nacon

Nacon DAIJA ARCADE STICK Manuel utilisateur

SHAKS

SHAKS S1+ Manuel utilisateur

YCCTEAM

YCCTEAM Joy Con Manuel utilisateur

Hyperkin

Hyperkin Smartboy Manuel utilisateur

Nerf

Nerf DuraGrip Manuel utilisateur

MoveMaster

MoveMaster MoveMaster Manuel utilisateur

WinWing

WinWing Super Libra J1 Manuel utilisateur

ECCI

ECCI Trackstar 6000 Series Manuel utilisateur

Logitech

Logitech 963291-0403 - Attack 3 Joystick Manuel utilisateur

Pelican

Pelican Afterglow PL-678 Manuel utilisateur
