THOMSON SpeedTouch 510 Guide de sécurité
SpeedTouch™
510/510i/530
Multi-User ADSL Gateways
Setup and User’s Guide
500
SERIES
3EC 37891 AAAA TCZZA Ed. 01
SpeedTouch™
510/510i/530
Setup and User’s Guide
3EC 37891 AAAA TCZZA Ed. 01
Status Released
Change Note PeckelbeenS
Short Title CD-UG ST510/530 R4.0 en
Copyright © 2002 THOMSON multimedia. All rights reserved. Passing on, and copying of this docu-
ment, use and communication of its contents is not permitted without written authorization
from THOMSON multimedia. The content of this document is furnished for informational
use only, may be subject to change without notice, and should not be construed as a commit-
ment by THOMSON multimedia. THOMSON multimedia assumes no responsibility or
liability for any errors or inaccuracies that may appear in this document.
3EC 37891 AAAA TCZZA Ed. 01 1
Contents
1 SpeedTouch™ Installation ............................................ 3
1.1 Getting Acquainted with the SpeedTouch™.................................................... 4
1.2 Setting up the SpeedTouch™............................................................................. 8
1.2.1. Local Ethernet Connection Setup...............................................................................................10
1.2.2. SpeedTouch™530 USB Connection Setup .............................................................................. 11
1.3 SpeedTouch™ Configuration Setup ................................................................ 13
1.3.1. Configuration Setup for MS Windows Operating Systems .................................................. 14
1.3.2. Configuration Setup for other Operating Systems.................................................................19
1.4 SpeedTouch™ Internet Connectivity .............................................................. 20
2 SpeedTouch™ Web Interface..................................... 23
2.1 Basic Topics Menu Links ................................................................................... 26
2.2 Advanced Topics Menu Links ........................................................................... 28
3 SpeedTouch™ System Software Upgrade ................ 33
3.1 The SpeedTouch™ Upgrade Wizard .............................................................. 34
3.2 Manual System Software Management via BOOTP Server ......................... 39
4 Troubleshooting ........................................................... 41
3EC 37891 AAAA TCZZA Ed. 01
2
1 SpeedTouch™ Installation
3EC 37891 AAAA TCZZA Ed. 01 3
1 SpeedTouch™ Installation
Introduction Thank you for purchasing the SpeedTouch™510/530 Multi-User ADSL Gateway!
With the SpeedTouch™510 or SpeedTouch™530 Multi-User Asymmetric Digital
Subscriber Line (DSL) Gateways, surfing the Internet will become a whole new experi-
ence.
In this Setup and User's
Guide
This User's Guide will assist you in getting acquainted with the SpeedTouch™510 and
SpeedTouch™530 Multi-User ADSL gateways and in getting connected quickly to the
Internet.
Terminology Generally, the SpeedTouch™510, SpeedTouch™510i and SpeedTouch™530 will be
referred to as SpeedTouch™in this Setup and User's Guide unless specifically indicated.
Safety instructions Prior to connecting the SpeedTouch™, read the SpeedTouch™ Quick Installation
Guide and Safety Instructions.
Documentation and
software updates
Due to the continuous evolution of DSL technology, existing products are regularly
upgraded.
For more information on the latest technological innovations, software upgrades, and
documents, please visit the SpeedTouch™ web site at:
•http://www.speedtouch.com
3EC 37891 AAAA TCZZA Ed. 01
1 SpeedTouch™ Installation
4
1.1 Getting Acquainted with the SpeedTouch™
Introducing the
SpeedTouch™
Prior to proceeding, please make sure to read first the SpeedTouch™Quick Installation
Guide. It provides important package content and safety information.
Check whether all items are present in your package.
In the event of damaged or missing items, please contact your local product dealer for
further information.
The SpeedTouch™510
and SpeedTouch™530
Your SpeedTouch™is presented in a slim line box:
Power on, power off The power on/off button is located on the SpeedTouch™ front panel:
To turn on the SpeedTouch™: press the button once shortly.
To turn off the SpeedTouch™: press the button until all LEDs turn off.
1 SpeedTouch™ Installation
3EC 37891 AAAA TCZZA Ed. 01 5

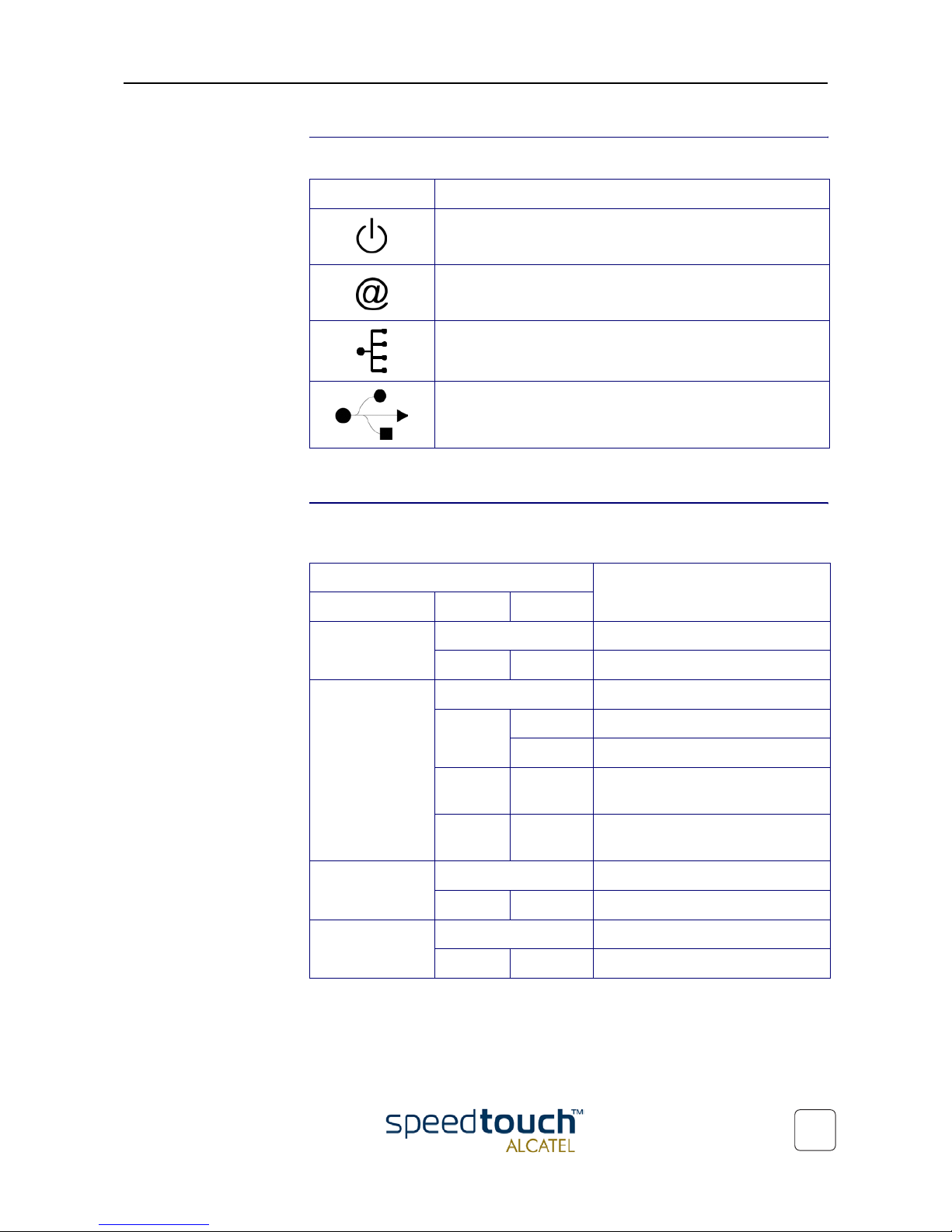

SpeedTouch™ LEDs A set of LEDs is provided to overview the SpeedTouch™status:
The USB LED is available on the SpeedTouch™530 only.
LED functionality during
normal operation
The functionality of the LEDs during normal SpeedTouch™ operation is described in
the table below:
LED logo Description
Power/System LED
DSL/WAN LED
LAN LED
USB LED
Indicator Description
Name Color Status
Power/System Off Power off
Green Solid Power on, normal operation.
DSL/WAN Off No DSL line.
Amber Flashing DSL line synchronization pending.
Solid DSL line synchronized.
Green/
Amber
Toggling DSL line synchronized and
end-to-end connection pending.
Green Solid DSL line synchronized and
end-to-end connection active.
LAN Off No Ethernet link.
Green Solid Ethernet link.
USB Off No USB link.
Green Solid USB link.
3EC 37891 AAAA TCZZA Ed. 01
1 SpeedTouch™ Installation
6
Alert condition LED
functionality
In addition to normal operation behavior, the Power/System LED may also indicate
following startup or error conditions:
(*) Power On Self Test (POST)
SpeedTouch™510 back
panel layout
Depending on the variant you purchased, your SpeedTouch™510 is equipped with:
•Asingle 10/100Base-T Ethernet port:
•AFour port 10/100Base-T Ethernet switch:
Indicator Description
Name Color Status
Power/System Off Power off.
Amber Flashing Power on, BOOTP status.
Solid Power on, POST(*) pending.
Red Solid Power on, POST(*) failed.
Green Flashing Power on, Back-to-Defaults status.
A Power inlet
B 10/100Base-T Ethernet port
CDSLlineport
A Power inlet
B 10/100Base-T Ethernet switch
CDSLlineport
A B CC
A B C
