THEVA231_THEVA236_UsersGuide_Rev.1.10_E
Copyright(C)2018 THine Electronics, Inc.
THine Electronics, Inc.
Security E

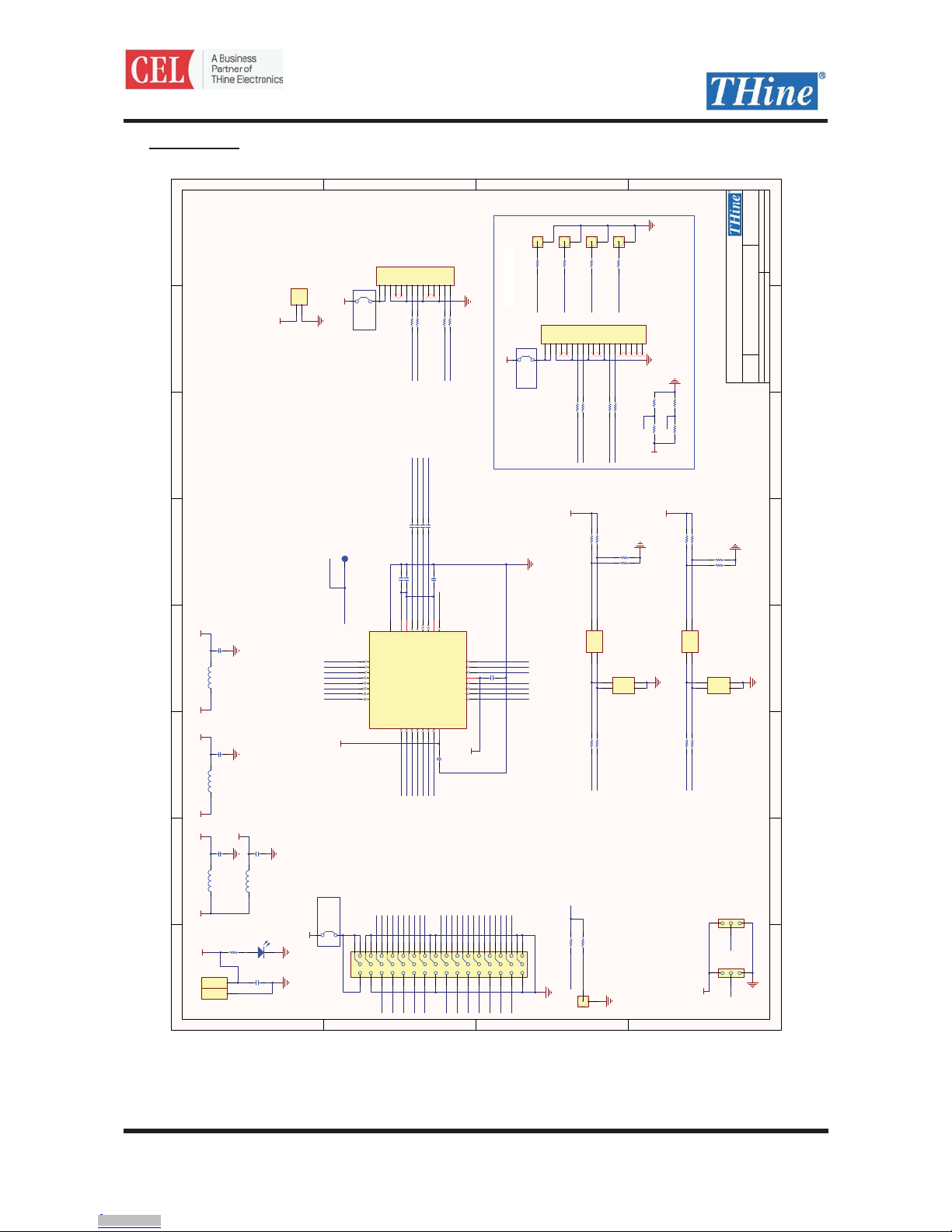

Table 5 THEVA236 Function Setting Description
Sub-Link power down control
H: Normal Operation, L: Power Down
Main-Link power down control
H: Normal Operation, L: Power Down
Color Space Converter and Data Width Setting(*1)(*2)
When PDN1=H, this pin must be Open.
Data Width Setting(*1)(*2)
When PDN1=H, this pin must be Open.
High Frequency mode select(*1)
H: Enable, L: Disable
When PDN1=H, this pin must be Open.
Low Frequency mode select
H: Enable, L: Disable
Main-Link Mode Setting(*1)
H: Sync Free Mode, L: V-by-One®HS Mode
When PDN1=H, this pin must be Open.
Sub-Link Mode Setting(*1)
H: Low Speed Data Bridge Mode, L: 2-wire serial I/F Mode
When PDN1=L, this pin must be Open.(*3)
Sub-Link Master/Slave Setting(*1)
H: Sub-Link Master side, L: Sub-Link Slave side
When PDN1=L, this pin must be Open.
Output Enable Control
H: LVCMOS output enable, L: LVCMOS output disable
Field BET Latch Select and Address Setting(*1) (*4)
When Sub
-Link Field BET Mode and MSSEL=H, this pin
PDN1=Hand MSSEL=H(Sub-Link Slave side)
CML Output Drive Strength Select and Address Setting(*1) (*4)
H: Normal, L: Weak
PDN1=Hand MSSEL=H(Sub-Link Slave side)
Internal Register Default Setting Select.
H: For THCV235, L: For THCV231
Permanent Clock Output Control(*1)
H: Enable, L: Disable
When PDN1=H, this pin must be Open.
Field BET Entry
H: Field BET Entry, L: Normal Operation
Input clock triggering edge select(*1)
H: Rising Edge, L: Falling Edge
When Sub-Link Field BET Mode, this pin must be Open.
(*1)A pin function changes by operation mode. Carry out appropriate control. (THCV231_THCV236_Rev.1.00_E.pdf and up)
(*2)Data Width Setting refers to data sheet for details.
(*3)HTPDN connection is option. Refer to data sheet for details.
(*4)Address Setting for 2-wire serial I/F
