Alert Signals The Thermo Scientific compact, low cost incubator has

been designed with function, reliability, and safety in

mind. t is your responsibility to install it in conformance

with local electrical codes. For safe operation, please pay

attention to the alert signals throughout the manual.

This manual contains important operating and safety

information. The user must carefully read and understand

the contents of this manual prior to the use of this equip-

ment.

The Thermo Scientific compact, low cost incubators are use-

ful for biochemical, bacteriological and hematological studies.

They provide a controlled environment for growing microor-

ganisms, as well as, for the study of chick and invertebrate

embryos.

All models have specially designed heaters to eliminate the

hazards of open-wire internal heaters. A pilot light indicates

when the heaters are activated. Solid, corrosion resistant alu-

minum chamber walls with 1-inch (2.5cm) fiberglass insulation

help to distribute heat evenly throughout the chamber.

Powder coated, durable, heavy gauge steel exteriors make

the units easy to clean and maintain. A bimetallic thermostat

controls temperature.

Models 105, 106, 125 and 126 have an acrylic outer door but,

otherwise, provide the same performance as the other units.

Models 150, 150JPN and 152 are Educational ncubators with

acrylic outer doors. These units are intended for egg incuba-

tion and are not to be used for clinical purposes.

OFF

HEAT

Power Switch Status Lamp

#440-359-00 #360-235-00 (Lens),

#360-233-01 (Lamp base)*

Front view

Left-side view

Thermostat

#920-273-00 (Thermostat),

#560-230-00 (Knob)*

*As listed on upcoming replacement parts list.

ntroduction

Power Requirements:

100, 100 DE, 105, 120, 125:

150:

150JPN:

101, 106, 121, 126:

152:

100JPN, 120JPN:

100-5JPN, 120-5JPN:

Temperature Range:

100, 100 DE, 100JPN, 101 105, 106:

120, 120JPN, 125, 126:

150, 150JPN, 152:

100-5JPN, 120-5JPN:

nterior Dimensions:

100( DE), 100JPN, 100-5JPN, 101, 105, 106:

120, 120JPN, 120-5JPN, 121, 125, 126:150,

150JPN, 152:

Exterior Dimensions:

100( DE), 100JPN, 100-5JPN, 101, 105, 106:

120, 120JPN, 120-5JPN, 121, 125, 126:

150, 150JPN, 152:

Chamber Volume:

100( DE), 100JPN, 100-5JPN, 101, 105, 106:

120, 120JPN, 120-5JPN, 121, 125, 126:

150, 150JPN, 152:

Shipping Weight:

100( DE), 100JPN, 100-5JPN, 101, 105, 106:

120, 120JPN, 120-5JPN, 121,125, 126:

150, 150JPN, 152:

Specifications

120VAC, 50/60 Hz, 100 Watts, 0.8 Amps

120VAC, 50/60 Hz, 150 Watts, 1.3 Amps

100VAC, 50/60 Hz, 104 Watts, 1.0 Amps

240VAC, 50/60 Hz, 100 Watts, 0.4 Amps

240VAC, 50/60 Hz, 150 Watts, 0.6 Amps

100VAC, 50/60 Hz, 70 Watts, 0.7 Amps

100VAC, 50/60 Hz, 100 Watts, 1.0 Amps

From slightly above ambient to 40ºC

From slightly above ambient to 60ºC

From slightly above ambient to 45ºC

From slightly above ambient to 65ºC

12"W x 12"D x 8"H (30 x 30 x 20 cm)

12"W x 12"D x 12"H (30 x 30 x 30 cm)

13-7/16"W x 13-11/32"D x 12-11/16"H (36 x 34 x 32 cm)

14-3/8"W x 13-11/32"D x 11-5/16"H (37 x 34 x 30 cm)

14-3/8"W x 13-11/32"D x 15-5/16"H (37 x 34 x 41 cm)

13-7/16"W x 13-11/32"D x 15-5/16"H (37 x 34 x 41 cm)

0.67 cubic feet (19 liters)

1.00 cubic feet (28 liters)

1.32 cubic feet (37 liters)

15 lbs. (7 kg)

27 lbs. (12 kg)

33 lbs. (15 kg)

Unitʼs Environmental Operating Conditions

Pollution Degree: 2

nstallation Category:

Altitude: 2000 meters MSL (Mean Sea Level)

Humidity: 80% maximum, non-condensing

Electrical Supply: 120VAC or 240VAC

Voltage Tolerance: ±10% of normal rated line

Temperature: 15°C to 40°C

Product Usage: This product is intended for use indoors only

SPECIFICATIONS

Shipping Carton

The shipping carton should be inspected upon delivery.

When received, carefully examine for any shipping dam-

age before unpacking. f damage is discovered, the

delivering carrier should both specify and sign for the

damage on your copy of the delivery receipt.

Open the carton carefully making certain that all parts are

accounted for before packaging materials are discarded.

After unpacking, if damage is found promptly report it to

the carrier and request a damage inspection promptly.

MPORTANT: Failure to request an inspection of damage

within a few days after receipt of shipment absolves the

carrier from any liability for damage. You must call for a

damage inspection promptly.

Location

Place the unit on a level table or bench where it will be

operated, away from drafts and wide variations in ambi-

ent temperature, near a power supply source that match-

es the unit nameplate requirements. Allow clearance

around the unit for free air convection, accessory attach-

ment and user convenience.

The incubator door opens from the left side.

Thermometer nstallation

The thermometer holder doubles as a vent fixture on the

top of the unit. Place the grommet in the hole at the top

of the thermometer holder. Push the thermometer, sup-

plied with the unit, through the grommet until 3-inches of

the thermometer (including the bulb) extends through the

holder. Push the holder into the vent on top of the cabinet

until about 1/4-inch of the holder is exposed.

The thermometer bulb should extend about 2-inches into

the chamber.

Turn the thermometer in its holder for easy reading.

Unpacking and nstallation

Note

t may be necessary to squeeze the

3 prongs of the thermometer holder

to install it more easily.

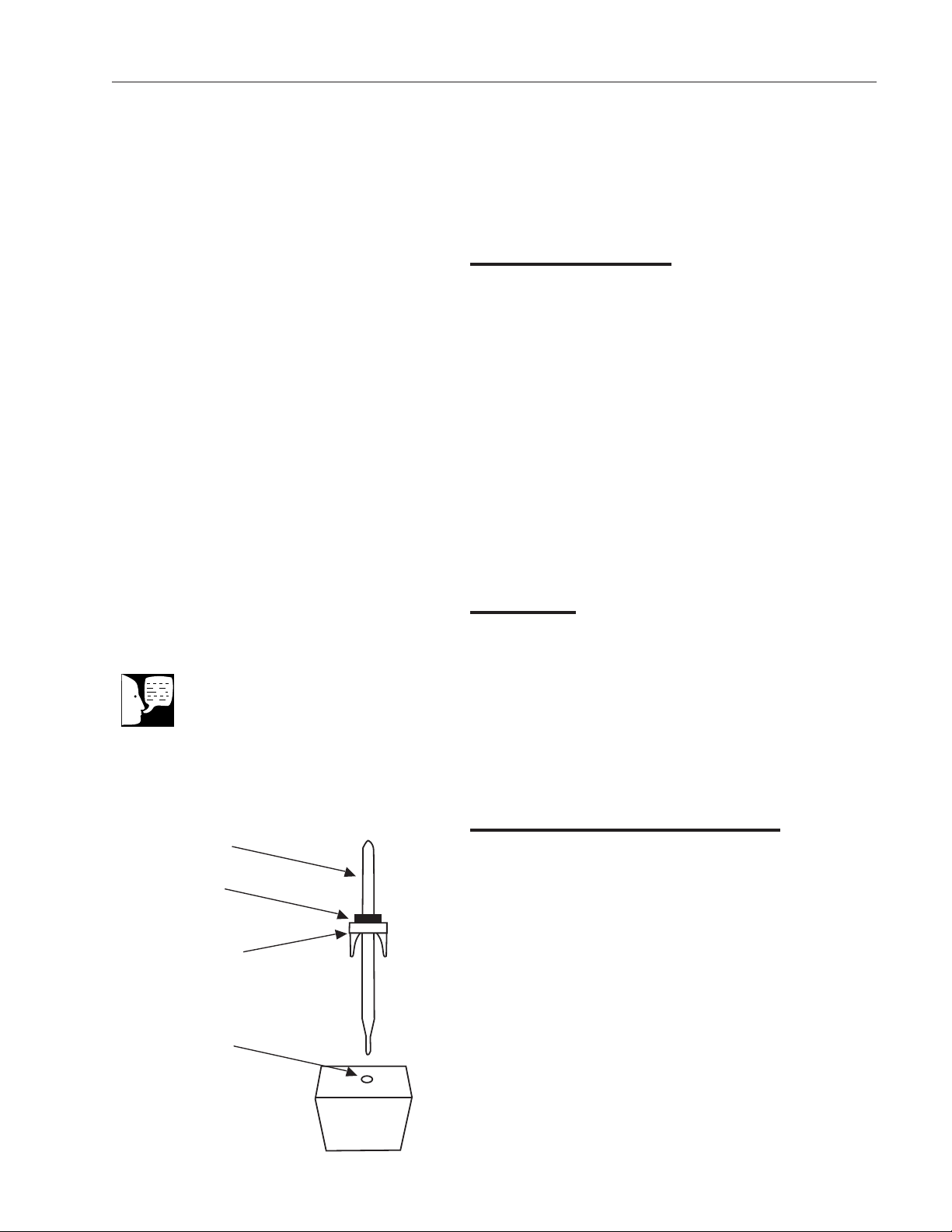

Thermometer

Holder Grommet

Thermometer Holder

Thermometer Vent

(Top of ncubator)

Shelf nstallation

100 series comes with 1 fixed shelf. 120 series units are

supplied with two aluminum shelves: one is fixed to the

bottom of the chamber, the other is placed on top. 150

series has two removable, nonadjustable, perforated alu-

minum shelves.

Electrical Requirements

• Use a properly grounded electrical outlet of cor-

rect voltage and current handling capacity.

• Do not remove or modify grounded power plug.

Use only properly grounded outlets to avoid

shock hazard.

Note

Leave unit disconnected when not in use.

UNPACKING AND INSTALLATION

Operation

Startup and Operation

1. When the cordset is plugged into an outlet, the

incubator is ready for use. Turn the power switch

ON. Note thermostat knob on lower right hand side

of incubator-rotate the thermostat knob clockwise to

increase the temperature, counterclockwise to

lower the temperature. The status lamp is lit when

the heaters are energized.

2. Allow one hour for the temperature inside the

chamber to stabilize; then check the thermometer.

3. Repeat Steps 1 and 2 until the desired setting is

obtained. The incubator is then ready to be loaded.

4. Load the incubator so that items or specimens are

spaced far enough apart to allow for proper air cir-

culation.

5. nsofar as possible, keep the incubator door closed

in order to reduce possibility of fungus growth start-

ing from airborne organisms entering the chamber.

Warning

Do not use in the presence of flamma-

ble or combustible materials or explo-

sive gases. Do not use in the presence

of pressurized or sealed containers –

fire or explosion may result, causing

death or severe injury.

Warning

Do not heat any substance above a

temperature which will cause it to emit

toxic fumes-death or severe injury may

result.

Routine Cleaning

Clean up any spills immediately. Remove the plug from its

outlet for a thorough cleaning between incubation periods.

The chamber interior and shelves can be cleaned with a

mild detergent or soap and water. Do not use abrasives or

metallic scouring pads on any part of the unit.

To clean the viewing door use a soft damp cloth. A regular

window cleaning solution can be used. Avoid scratching

the acrylic plastic.

Repairs and Servicing

Unplug the unit from its outlet before servicing. The ther-

mostat is easily accessible inside the chamber.

A heater is located under the floor of the chamber. Turn

the incubator upside down and remove 4 screws from the

bottom of the cabinet. Lift out the bottom and the insula-

tion covering the heater. Disconnect the heater leads and

remove 2 nuts that hold the heater to the floor of the

chamber.

Maintenance

Warning

Disconnect plug from electrical outlet

before attempting any maintenance or

repair of this unit.

Note

Make no attempt to service or repair a

Thermo Scientific product under war-

ranty before consulting your distribu-

tor. After the warranty period, such

consultation is still advised, especially

when the repair may be technically

sophisticated or difficult.

f assistance is needed beyond what

the distributor can provide, please call

the customer service department at 1-

800-553-0039. No merchandise, how-

ever should be returned without prior

approval.

Autres manuels pour Phadia 100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Thermo Scientific Accessoires

Thermo Scientific

Thermo Scientific 3110 Manuel utilisateur

Thermo Scientific

Thermo Scientific 3554-35A Instructions d'installation et d'entretien

Thermo Scientific

Thermo Scientific Lab-Line Imperial 3 Mode d'emploi

Thermo Scientific

Thermo Scientific 8000DH Series Mode d'emploi

Thermo Scientific

Thermo Scientific 2862 Mode d'emploi

Thermo Scientific

Thermo Scientific Steri-Cycle i160 CR Manuel utilisateur

Thermo Scientific

Thermo Scientific 3010 Mode d'emploi

Thermo Scientific

Thermo Scientific 61-12N-64P Manuel de service

Thermo Scientific

Thermo Scientific Precision 818 Mode d'emploi

Thermo Scientific

Thermo Scientific 8000DH Series Manuel utilisateur

Thermo Scientific

Thermo Scientific 60-12 Manuel de service

Thermo Scientific

Thermo Scientific IMP 180 Manuel utilisateur

Thermo Scientific

Thermo Scientific 370 Mode d'emploi

Thermo Scientific

Thermo Scientific IMH 60 Manuel utilisateur

Thermo Scientific

Thermo Scientific 30M Mode d'emploi

Thermo Scientific

Thermo Scientific Ramsey MINI CK100 Manuel de service

Thermo Scientific

Thermo Scientific Heracell 150i Manuel utilisateur

Thermo Scientific

Thermo Scientific Lab-Line 100 Mode d'emploi

Thermo Scientific

Thermo Scientific 61-12C Manuel de service

Thermo Scientific

Thermo Scientific RMI300S-9-A Mode d'emploi

Thermo Scientific

Thermo Scientific HERACELL VIOS 160i Manuel utilisateur

Thermo Scientific

Thermo Scientific 314 Manuel utilisateur

Thermo Scientific

Thermo Scientific 3950 Mode d'emploi

Thermo Scientific

Thermo Scientific 3110 Mode d'emploi

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
