Thermalright Macho Zero Manuel utilisateur

Thermalright

Macho Zero

× 1

× 2

× 4 × 1

× 4 × 4

× 7

× 5

× 4

Macho Zero

Assembly package

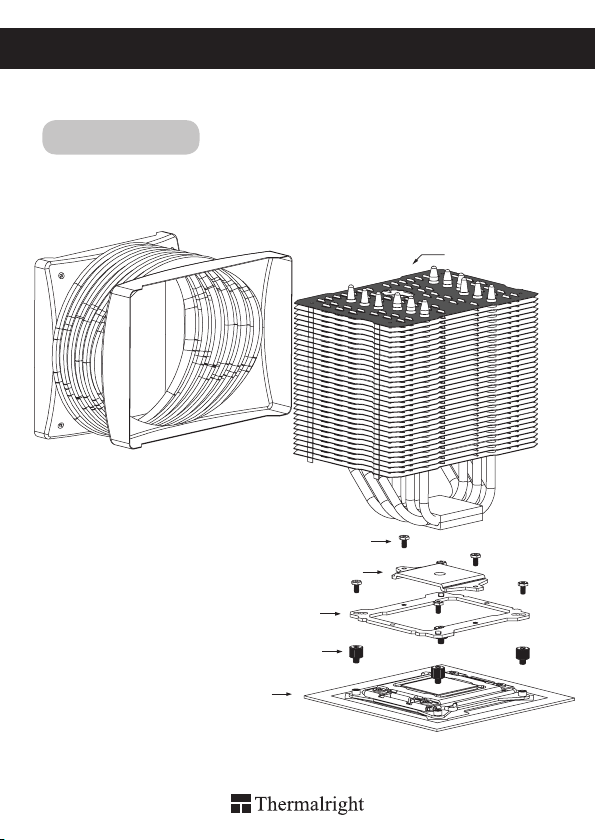

Macho Zero

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Intel 775/1150/1155/1156/1366

Screw Nut

Mounting Plate

M3L6 Screw

Anchoring Mount

Intel Washer (small)

Mylar Film

Metal Back Plate

Motherboard

M3L10 Screw

Heatsink Body

The Ultimate Cooling Solutions!

www.thermalright.com

Component

4 5 6

7 8

16 17

16 1715

1110

Macho Heatsink Body ×1

Ckill Factor III ×1 Screw driver ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Anti-Vibration Pad ×4

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4M3 L6 Screw ×7

Backplate cap ×1

4 5 76 8

LGA2011 Type B

Screw Pillars x4

Fan Clip ×2

Mylar Film ×1 white cotton gloves ×2

Installation Instructions:

Step 1:

Step 2:

Step 1 : Backplate Installation

Choose the platform (775/1150/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars go

through the Metal Back Plate and the Mylar lm from bottom towards top.And then place the Metal Back

Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.

- Please use the included gloves during installation to avoid nger prints on heatsink body.

Step 2 : 775 Back Plate Cap

Note: When installing on a 775 platform, please rst insert the Back Plate Cap into the opening on

the Back plate, make sure you have the Cap facing downwards. (Only for LGA775 platform, all other

platforms go directly to Step 3).

Step 3 : Place the motherboard on top of the

Back Plate. See the four Screw Pillars go

through the four holes around the processor

socket.Cap the four Screw Pillars with the four

Screw Nuts.Make sure the side with a washer is

facing the Back Plate.

1366

775

1150

1155

1156

Step 3:

Step 4:

Step 4 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Nuts.

Use the four M3L6 Screws to fix the Anchoring

Mount on to the Screw Nuts.

The Ultimate Cooling Solutions!

www.thermalright.com

Step 5: Step 6:

Step 7: Step 8:

Step 9: Step 10:

Step 8 : First, compress (squeeze it together) the

fan duct so that it can easily t between the Macho

heatsink and the system exhaust fan at the rear of

your case. Connect the end with the Thermalright

logo of the fan duct to the rear case exhaust fan.

Step 5 : Applying Thermal Paste

Apply the Thermal Paste to the base of the

Heatsink and the surface of the CPU evenly. (A

flat edge, like a business card or an old credit

card would be benecial in spreading the thermal

paste.)

Step 9 : by expanding the fan duct to connect the

back end to the Macho heatsink.

Step 10 : Installation completed.

Step 6: Mounting Plate Installation

Place the Heatsink Body on top of the CPU. Make

Mounting Plate go through the Heatsink Body.

And then use the two M3L6 screws to secure the

Mounting Plate, one side at a time in several turns

to ensure balanced mounting.

Step 7: Easy Access

Pass the supplied Screw

Driver through the central

hole of the Heatsink Body,

for easier access to the

M3L6 Screw underneath

the cooler.

Macho Zero

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Intel 2011

Mounting Plate

M3L6 Screw

Anchoring Mount

Motherboard

Heatsink Body

LGA2011 Type B Screw Pillars

The Ultimate Cooling Solutions!

www.thermalright.com

Component

4 5 6

7 8

16 17

16 1715

1110

Macho Heatsink Body ×1

Ckill Factor III ×1 Screw driver ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Anti-Vibration Pad ×4

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4M3 L6 Screw ×7

Backplate cap ×1

4 5 76 8

LGA2011 Type B

Screw Pillars x4

Fan Clip ×2

Mylar Film ×1 white cotton gloves ×2

Step 1:

Step 2:

Step 3:

Step 1 : Screw Pillar Installation

Place the motherboard (the processor installed) on top of the desk or a workbench. Fix the four included

LGA2011 Type B Screw Pillars into the heat-sink studs on the Intel ILM Assembly Frame around the

processor socket in a criss-cross pattern.

Step 2 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Pillars. Use the four M3L6 Screws to x the Anchoring Mount

on to the Screw Pillars, also in a criss-cross pattern to ensure balanced mounting.

Step 3 : Applying Thermal Paste

Apply the Thermal Paste to the base of the Heatsink and the surface of the CPU evenly. (A at edge,

like a business card or an old credit card would be benecial in spreading the thermal paste.)

Installation Instructions:

- Please use the included gloves during installation to avoid nger prints on heatsink body.
