Thecus N2800 Manuel utilisateur
V1.2
Mar 09, 2015
N2800/W2000
MB & DRAM assemble steps
All manuals and user guides at all-guides.com
all-guides.com
Remove top cover 4 screws 4304001111 背板螺絲 For BTN Board M3*4mm
Round Head,Ni Coating
All manuals and user guides at all-guides.com
Remove back panel 4 screws
4304007311 薄皿型頭 M3x5 screw M3*0.5,L=5mm,Flat Head,NI
All manuals and user guides at all-guides.com
Remove FAN cable
All manuals and user guides at all-guides.com

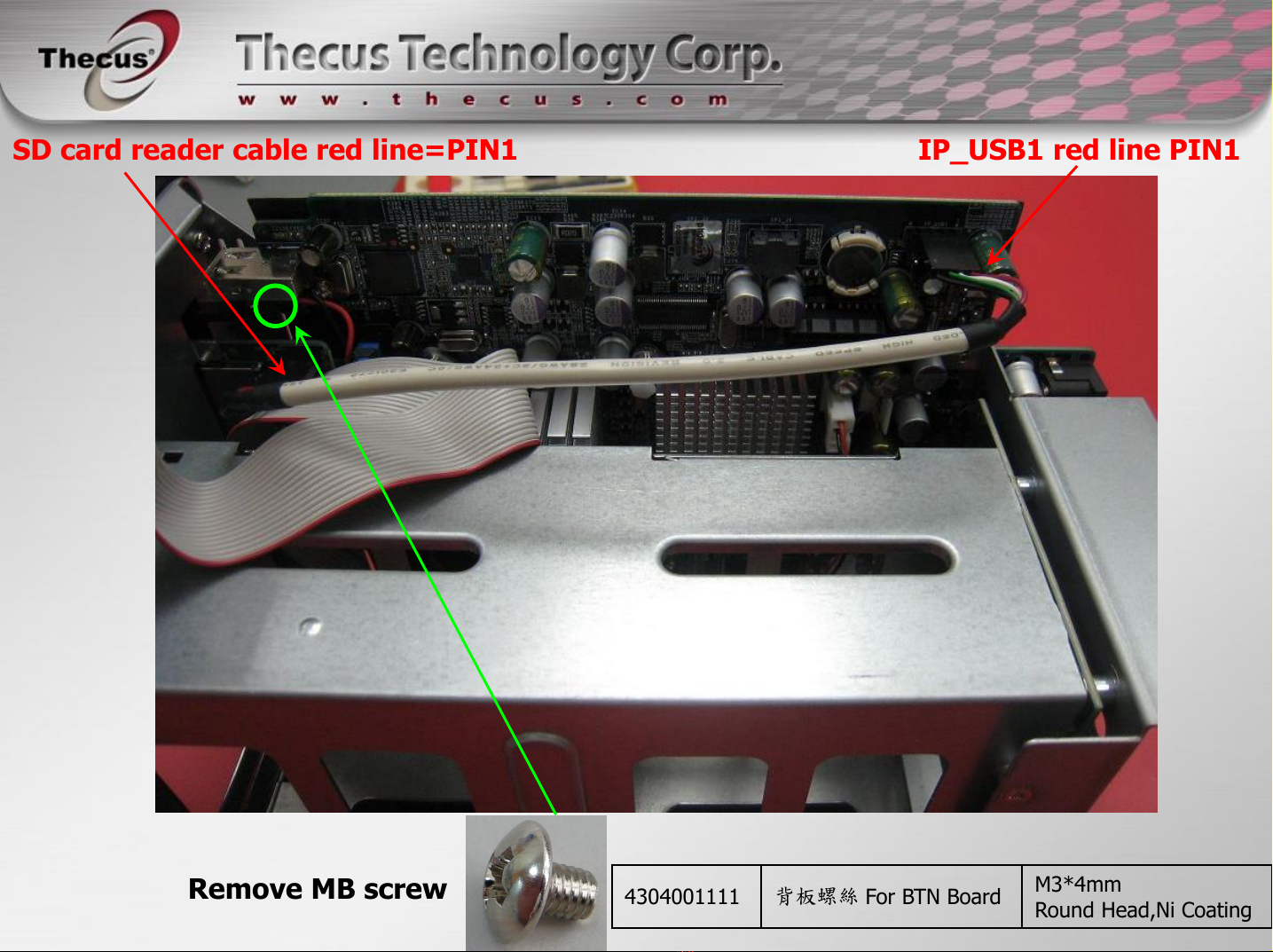

SD card reader cable red line=PIN1 IP_USB1 red line PIN1
4304001111 背板螺絲 For BTN Board M3*4mm
Round Head,Ni Coating
Remove MB screw
All manuals and user guides at all-guides.com
Remove ICON & LOGO board CABLE
(The cable red line=Pin1)
ICON CABLE
LED_J1
LOGO CABLE
LOGO_LED1
All manuals and user guides at all-guides.com
all-guides.com
Remove HDD BP 2 screws
4304007311 薄皿型頭 M3x5 screw M3*0.5,L=5mm,Flat Head,NI
All manuals and user guides at all-guides.com
Slide MB out and replace DRAM module
* If install single DRAM module, it is must install at upper DIMM slot.
All manuals and user guides at all-guides.com
After the MB is slid out, DRAM will be displayed.
Please note that DRAM is installed in the upper slot.
All manuals and user guides at all-guides.com
If replacing DRAM is needed, please spread out the DRAM lock latches.
So the DRAM will pops up.
Remove the original DRAM.
And then insert the new DRAM into the connection at an angle 45 degrees.
Press down on the DRAM so that it is secured with both memory lock latches.
All manuals and user guides at all-guides.com
