EVM User's Guide: BQ25756EVM
BQ25756 Evaluation Module
Description
The BQ25756EVM evaluation module (EVM) is a
complete evaluation system for the BQ25756 IC, a
buck-boost battery charge controller with a wide input
range of 4.2 V - 70 V, a wide output voltage range of
up to 70 V, and bi-directional capabilities.
The BQ25756EVM has a max input and output of 55
V and a max charge current of 10 A.
Get Started
1. Order the EVM on ti.com
2. Order the EV2400 to communicate with the EVM
3. Download the BQ25756 BQZ file
4. Download the BQ25756 EVM design files on
ti.com
Features
• Wide input voltage operating range: 4.2 V–55 V
• Wide output operating range: up to 55 V with
CC/CV support for:
– 2– to 13–Cell Li-Ion
– 2– to 14–Cell LiFePO4
• Synchronous buck-boost DC/DC charge controller
with NFET drivers
– Adjustable switching frequency from 200 kHz to
600 kHz
– Optional synchronization to external clock
– Optional gate driver supply input for optimized
efficiency
• Resistor-programmable standalone with added I2C
Mode
• Built in MPPT to maximize power from solar panel
arrays
• Power up from battery (reverse mode) output 4 V
to 55 V
• High safety integration
– Adjustable input overvoltage and undervoltage
protection
– Output Overvoltage and overcurrent protection
www.ti.com Description
SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
BQ25756 Evaluation Module 1
Copyright © 2023 Texas Instruments Incorporated
1 Evaluation Module Overview
1.1 Introduction
The BQ25756EVM can be evaluated for the full 240 W range of USB Extended Power Range (EPR) and up to
13 cell Li-Ion battery charging implementing CC/CV profile. Typical applications include USB-PD extended power
range applications, docking station, monitor, and dual-battery charging.
This EVM does not include the EV2400 or USB2ANY interface device and does not provide any electrical
isolation for the digital interfaces. EV2400 or USB2ANY must be ordered separately to evaluate the
BQ25756EVM and electrical safety considerations must be considered when interfacing between the PC and
the EVM board. When interfacing the EVM to the PC through the digital interfaces, digital isolators with isolation
boundary is recommended.
The BQ25756EVM has smaller clearance and creepage than normally used on high voltage boards as well as
not having an isolation boundary. If you apply high voltage to this board, all terminals must be considered high
voltage and hazardous live. Electric shock is possible when connecting the board to live wire. The board must be
handled with care by a professional. For safety, use of isolated test equipment with various protection features
(such as overvoltage and overcurrent) is recommended.
1.2 Kit Contents
This EVM kit includes:
• 1 BQ25756 EVM
1.3 Device Information
The BQ25756EVM evaluation module (EVM) is an evaluation system for the BQ25756 IC. The BQ25756 IC is a
buck-boost battery charge controller with a wide input range of 4.2 V - 70 V, a wide output voltage range of up to
70 V, and bi-directional capabilities.
The device offers high-efficiency battery charging over a wide voltage range with output CC-CV control. The
device integrates all the loop compensation for the buck-boost converter, thereby providing a high density
method with ease of use.
Besides the I2C host-controlled charging mode, the device also supports programmable hardware limits. Input
current, and output current regulation targets can be set with single resistor on the IIN, and IOUT pins,
respectively.
Evaluation Module Overview www.ti.com
2BQ25756 Evaluation Module SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
1.4 General Texas Instruments High Voltage Evaluation (TI HV EMV) User Safety Guidelines
WARNING
Always follow TI's set-up and application instructions, including use of all interface components within their
recommended electrical rated voltage and power limits. Always use electrical safety precautions to help verify
your personal safety and those working around you. Contact TI's Product Information Center http://ti.com/
customer support for further information.
Save all warnings and instructions for future reference.
WARNING
Failure to follow warnings and instructions can result in personal injury, property damage or death
due to electrical shock and burn hazards.
The term TI HV EVM refers to an electronic device typically provided as an open framed, unenclosed printed
circuit board assembly. It is intended strictly for use in development laboratory environments, solely for qualified
professional users having training, expertise and knowledge of electrical safety risks in development and
application of high voltage electrical circuits. Any other use and/or application are strictly prohibited by Texas
Instruments. If you are not suitably qualified, then you need to immediately stop from further use of the HV EVM.
1. Work Area Safety:
a. Keep work area clean and orderly.
b. Qualified observers must be present anytime circuits are energized.
c. Effective barriers and signage must be present in the area where the TI HV EVM and the interface
electronics are energized, indicating operation of accessible high voltages can be present, for the
purpose of protecting inadvertent access.
d. All interface circuits, power supplies, evaluation modules, instruments, meters, scopes, and other related
apparatus used in a development environment exceeding 50Vrms/75VDC must be electrically located
within a protected Emergency Power Off EPO protected power strip.
e. Use stable and non-conductive work surface.
f. Use adequately insulated clamps and wires to attach measurement probes and instruments. No
freehand testing whenever possible.
2. Electrical Safety:
a. As a precautionary measure, a good engineering practice to assume is that the entire EVM can have
fully accessible and active high voltages.
b. De-energize the TI HV EVM and all the inputs, outputs and electrical loads before performing any
electrical or other diagnostic measurements. Revalidate that TI HV EVM power has been safely de-
energized.
c. With the EVM confirmed de-energized, proceed with required electrical circuit configurations, wiring,
measurement equipment hook-ups and other application needs, while still assuming the EVM circuit and
measuring instruments are electrically live.
d. Once EVM readiness is complete, energize the EVM as intended.
WARNING
While the EVM is energized, never touch the EVM or the electrical circuits, as the electrical
circuits and EVM can be at high voltages capable of causing electrical shock hazard.
3. Personal Safety
a. Wear personal protective equipment e.g. latex gloves or safety glasses with side shields or protect EVM
in an adequate lucent plastic box with interlocks from accidental touch.
Limitation for safe use:
EVMs are not to be used as all or part of a production unit.
www.ti.com Evaluation Module Overview
SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
BQ25756 Evaluation Module 3
Copyright © 2023 Texas Instruments Incorporated
1.4.1 General Safety Information
The following warnings and cautions are noted for the safety of anyone using or working close to the BQ25758
EVM. Observe all safety precautions.
Warning. Caution
The BQ25758EVM circuit module can become hot during operation due to
dissipation of heat. Avoid contact with the board. Follow all applicable safety
procedures applicable to your laboratory.
CAUTION
Hot surface. Contact can cause burns. Do not touch!
Warning
The BQ25758EVM has smaller clearance and creepage than normally used on
high voltage boards as well as not having an isolation boundary. If the user applies
high voltage to this board, then all terminals are considered high voltage and
hazardous live. Electric shock is possible when connecting the board to live wire.
The board needs to be handled with care by a professional. For safety, use of
isolated test equipment with various protection features (such as overvoltage and
overcurrent) is recommended.
Warning
High voltages that can cause injury exist on this evaluation module (EVM). Please
verify all safety procedures are followed when working on this EVM. Never leave a
powered EVM unattended.
Warning High voltage can be present on board capacitors after power down. Properly check
and discharge all on-board energy reservoir after EVM power down.
!
Caution Do not leave EVM powered when unattended.
CAUTION
The communication interfaces are not isolated on the EVM. The use of digital isolators is
recommended. Verify all high voltage safety precautions are observed during testing.
CAUTION
Connections for rated current must be made at the terminal block. Test points are not rated for the
board current.
CAUTION
The circuit module can be damaged by over temperature. To avoid damage, monitor the temperature
during evaluation and provide cooling, as needed, for your system environment. Do not operate
beyond the current and voltage limits in the Section 2.3.
CAUTION
Test equipment can be damaged by application of external voltages. Check your equipment
requirements and use blocking diodes or other isolation techniques, as needed, to prevent damage
to your equipment.
CAUTION
The circuit module has signal traces, components, and component leads on the bottom of the board.
This can result in exposed voltages, hot surfaces or sharp edges. Do not reach under the board
during operation.
Evaluation Module Overview www.ti.com
4BQ25756 Evaluation Module SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
CAUTION
The default settings of the BQ25758 is possibly not designed for the user's application. Verify
the EVM settings are set appropriately for test setup before device power up. Set all protections
appropriately and limit current for safe operation.
CAUTION
The board has no fuse installed and relies on the external voltage source current limit to verify circuit
protection.
www.ti.com Evaluation Module Overview
SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
BQ25756 Evaluation Module 5
Copyright © 2023 Texas Instruments Incorporated
2 Hardware
2.1 Board Parameters
Table 2-1. Default board setup for BQ25756EVM
Description Value Unit
ACUV Input undervoltage 4.2 V
ACOV Input overvoltage 55 V
IIN Input current of the EVM 8 A
IOUT Output current of the EVM 10 A
FSW_SYNC Switching frequency of the power stage 250 KHz
Table 2-2. PCB and Mechanical Parameters
Value Unit
Board Size (X dimension, or length) 112 mm
Board Size (Y dimension, or width) 84 mm
IC + power stage max height 5 mm
Total Copper Layers 6 layer
Copper weight per layer 2 oz
Total board thickness 62 mil
2.2 IO and Jumper Descriptions
Table 2-3. Connector/Port Description
Jack Description
J1-VIN Input: positive terminal
J1-PGND Input: negative terminal (ground terminal)
J3-VOUT Connected to battery pack output
J3-PGND Ground
J4-EXT_I2C Communication port for the USB2ANY
J5-I2C Communication port for the EV2400
J6-EXT_DRV Connection for external gate drive
J7-Power Connector Connection for VAC and BAT
J8-Communication Port Connection for EXT_DRV, /INT, I2C, /PG, and 3.3 V
Hardware www.ti.com
6BQ25756 Evaluation Module SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Table 2-4. Jumper Description
Jumper Description Factory Default
JP1 Use JP1 to connect the default feedback resistor and set the charger to the default 7
cell battery Installed
JP2 Use JP2 to connect a new feedback resistor to program a different cell count Not installed
JP3 Use JP3 to connect external IOUT resistor. JP3 can be shorted to PGND to disable
hardware output current limiting.
Not installed
JP4 Shunt JP4 to use default IOUT resistor. By closing JP4, the default IOUT current is
set to 10 A.
Not installed
JP5 Shunt JP5 to bias TS. Installed
JP6 With JP5 shunted (REGN connected for voltage divider). Shunt JP6 to set TS status
to normal.
Installed
JP7 With JP5 shunted (REGN connected for voltage divider). Use JP7 to connect
external resistor to change TS status.
Not installed
JP8 Use JP8 to connect external FSW_SYNC resistor. Not installed
JP9 Shunt JP9 to use default FSW_SYNC resistor. By closing JP9, the default switching
frequency is set to 250 kHz.
Installed
JP10 Shunt JP10 to use default IIN resistor. By closing JP10, the maximum input current
is set to 8 A.
Installed
JP11 Use JP11 to connect external IIN resistor. JP11 can be shorted to PGND to disable
hardware input current limiting.
Not installed
JP12
Use JP12 to select the gate driver source. Shunt pin1 to pin2 to use IC internal
LDO REGN output. Shunt pin2 to pin3 to use external gate drive supply. Maximum
external gate drive supply can be up to 11 V.
Pin1 and pin2 shunted
JP13 Shunt JP13 to enable controller in forward mode. Open JP13 to disable controller.
The /CE pin can also be used as a general purpose indicator.
Installed
JP14 Shunt JP14 to connect /INT to a pullup rail. Installed
JP15 Shunt JP15 to connect STAT1 to a pullup rail. The STAT1 pin can also be used as a
general purpose indicator.
Installed
JP16 Shunt JP16 to generate on board 3.3-V pullup rail. Installed
2.3 Recommended Operating Conditions
Table 2-5. Recommended Operating Conditions for BQ25756EVM
Description MIN TYP MAX UNIT
VIN (J1) Input voltage to the EVM 4.2 55(1) V
VOUT (J3) Output voltage of the EVM 3.3 55(1) V
IIN (J1) Input current of the EVM 10(3) (4) A
IOUT (J3) Output current of the EVM 10(3) A
Regulator output power Output power of the EVM 400(3) W
EXT_DRV (J6) Voltage applied to DRV_SUP pin of the regulator 4 11 V
EVM Operating Ambient
Temperature (TA) 25(2) °C
(1) Due to the high di/dt and dv/dt electrical flow associated with switch-mode power supplies, nodes on the EVM can have high spike
above input voltage (in buck mode) or output voltage (in boost mode) level. Switch node voltage can swing up to "input or output +
inductive spike" level. High side gate drives can swing up to "switch node voltage + 11 V (DRV_SUP supply voltage dependent) + gate
drive inductive spike" level. Safety precautions must be observed at all times.
(2) Connectors, bump-ons, jumpers on the EVM are not a good choice for evaluation under temperature greatly deviated from room
temperature of 25°C. Please refer to BOM for temperature rating of board components.
(3) Thermal monitoring (for example, using a thermal camera) is recommended if power stage output current > 5 A or total output power >
100 W.
(4) Default EVM input current limit is set to 8 A through the IIN pin. The current limiting feature can be disabled by setting EN_IIN_PIN bit
to '0', changing IIN pin resistor, or shorting IIN pin to PGND through JP11.
www.ti.com Hardware
SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
BQ25756 Evaluation Module 7
Copyright © 2023 Texas Instruments Incorporated
2.4 Equipment
There are two recomended ways to test the EVM. The first and preferred way to test the EVM is to use a
four-quadrant power supply. The second is to use a electronic load in constant voltage mode. Testing with a
constant voltage load is covered in a later section. The following list of equipment is recommended when testing
with a four-quadrant power supply.
1. Power Supplies:
A power supply capable of supplying 40 V at 8 A is required. While this part can handle larger voltage and
current, larger power levels are not necessary for this procedure.
2. Load #1:
A Kepco load: BOP36-6M, DC 0 to ±36 V, 0 to ±6 A (or higher), or equivalent. When testing without a real
battery, connect 2000 uF of capacitance across the input.
3. Meters:
Six Fluke 75 multimeters, (equivalent or better) or: Three equivalent voltage meters and three equivalent
current meters.
4. Computer:
A computer with at least one USB port and a USB cable.
5. EV2400 Communication Kit:
6. Software:
Download and properly install bqStudio from https://www.ti.com/tool/BQSTUDIO.
2.4.1 Equipment Set Up

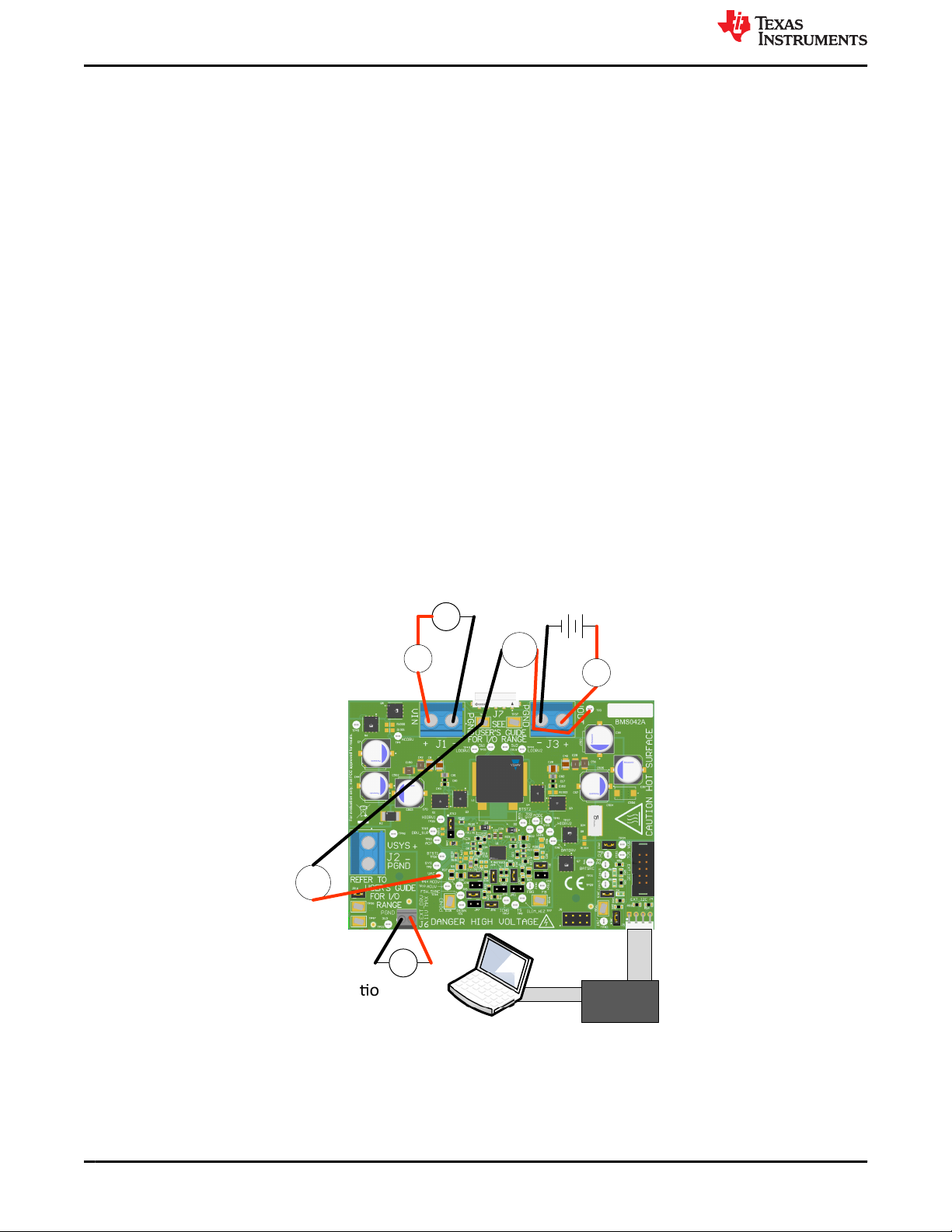

EV2400
USB
+
–
+
–
A
VAC
IAC
VBAT
IBAT
Op
onal Gate
Drive Supply
DMM
VAC
A
DMM
I2C
Use the following guidelines to set up the equipment:
1. Set power supply #1 for 23 V DC, 8 A current limit and then turn off the supply.
2. Connect the output of power supply #1 in series with a current meter to J1 (VIN and PGND).
3. Connect a voltage meter across J1 (VIN) and J1 (PGND).
4. Connect load #1 in series with a current meter to J3 (VBAT and PGND).
Hardware www.ti.com
8BQ25756 Evaluation Module SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
5. Connect a voltage meter across J5 (VBAT and PGND).
6. Set 23 V at KEPCO load output. Limit KEPCO to 6 A. Use load #2 to power EVM from the VOUT output.
7. Connect J5 to the EV2400. Connect J5 to the I2C PORT 2 on the EV2400.
8. Make sure the jumpers are installed as indicated in IO and Jumper Descriptions.

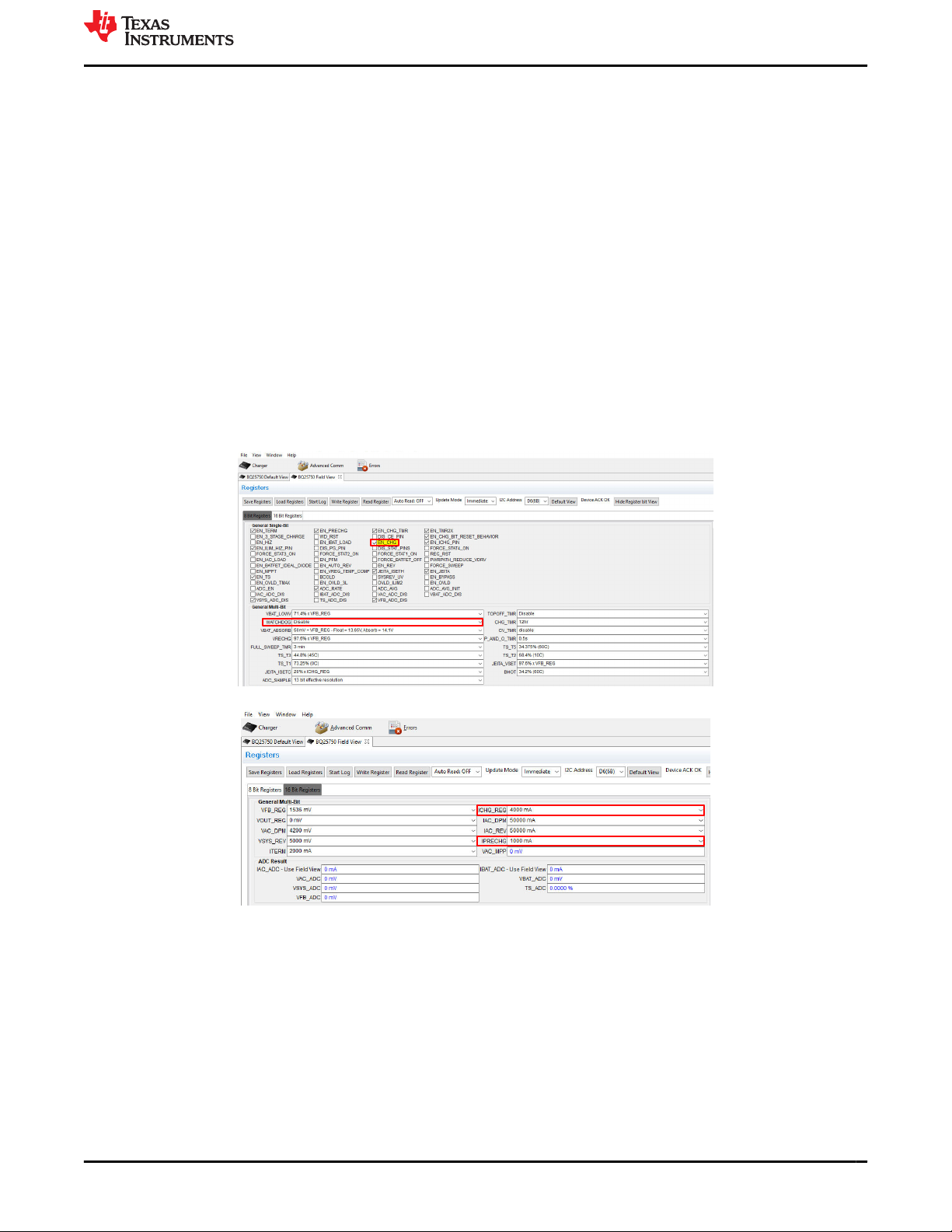

9. Turn on the computer and load #2. Open the bqStudio software.
a. Select Charger and click the Next button.
b. Select Charger_1_00_BQ25756.bqz on the Select a Target Page.
c. After selecting the target device, click Field View and then click the Read Register button.
10. Set WATCHDOG and EN_CHG to disabled.
11. In 16 Bit Registers, set ICHG_REG to 4000 mA and IPRECHG to 1000 mA.
12. Turn on power supply #1, measure
V(J1(VAC)) = 23 V ± 0.5 V
I(J1(IAC)) = 4.1 A ± 0.5 A
V(J3(VBAT)) = 23 V ± 0.5 V
I(J3(IBAT)) = 3.9 A ± 0.5 A
13. Set power supply #1 for 40 V, measure
V(J1(VAC)) = 40 V ± 0.5 V
I(J1(IAC)) = 2.4 A ± 0.5 A
www.ti.com Hardware
SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
BQ25756 Evaluation Module 9
Copyright © 2023 Texas Instruments Incorporated
V(J3(VBAT)) = 23 V ± 0.5 V
I(J3(IBAT)) = 3.9 A ± 0.5 A
14. Set power supply #1 for 19 V, measure
V(J1(VAC)) = 19 V ± 0.5 V
I(J1(IAC)) = 5.0 A ± 0.5 A
V(J3(VBAT)) = 23 V ± 0.5 V
I(J3(IBAT)) = 3.9 A ± 0.5 A
2.4.2 Equipment - Using a CV Load
The following list of equipment is recommended when testing with a constant voltage electronic load.
1. Power Supplies:
A power supply capable of supplying 40 V at 8 A is required. While this part can handle larger voltage and
current, larger power levels are not necessary for this procedure.
2. Load #1:
Kikusui PLZ164WA 0-150V, 0-33A When testing without a real battery, connect 2000 uF of capacitance
across the input.
3. Meters:
Six Fluke 75 multimeters, (equivalent or better) or: Three equivalent voltage meters and three equivalent
current meters.
4. Computer:
A computer with at least one USB port and a USB cable.
5. EV2400 Communication Kit:
6. Software:
Download and properly install bqStudio from https://www.ti.com/tool/BQSTUDIO.
Hardware www.ti.com
10 BQ25756 Evaluation Module SLUUCT7B – MAY 2023 – REVISED AUGUST 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Texas Instruments Carte mère
Texas Instruments
Texas Instruments ADS1263EVM-PDK Manuel utilisateur
Texas Instruments
Texas Instruments INA234EVM Manuel utilisateur
Texas Instruments
Texas Instruments ADC368 EVM Series Manuel utilisateur
Texas Instruments
Texas Instruments DS125BR820EVM Manuel utilisateur
Texas Instruments
Texas Instruments TMP461EVM Manuel utilisateur
Texas Instruments
Texas Instruments DS90UB95x-Q1 Manuel utilisateur
Texas Instruments
Texas Instruments TPS2378EVM-602 Manuel utilisateur
Texas Instruments
Texas Instruments CC2564MODN Manuel utilisateur
Texas Instruments
Texas Instruments PGA411-Q1 EVM Manuel utilisateur
Texas Instruments
Texas Instruments SWIFT TPS561201EVM-896 1-A Manuel utilisateur
Texas Instruments
Texas Instruments INA232EVM Manuel utilisateur
Texas Instruments
Texas Instruments DM814 Series Manuel utilisateur
Texas Instruments
Texas Instruments ADC161S626 Manuel utilisateur
Texas Instruments
Texas Instruments SN65LVCP22 Manuel utilisateur
Texas Instruments
Texas Instruments MSC1200EVM Manuel utilisateur
Texas Instruments
Texas Instruments SimpleLink CC3200MOD Manuel utilisateur
Texas Instruments
Texas Instruments DLPC4430EVM Manuel utilisateur
Texas Instruments
Texas Instruments TMUX-8RQX-EVM Manuel utilisateur
Texas Instruments
Texas Instruments TPS7A39EVM-865 Manuel utilisateur
Texas Instruments
Texas Instruments LMQ61460EVM-400K Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
