ADC128S102EVM Booster Pack User’s Guide
User's Guide
Literature Number: SNAU167
July 2014
Contents
1 ADC128S102 BoosterPack Components ................................................................................. 4
2 Software Installation............................................................................................................. 5
2.1 Graphical User Interface (GUI)............................................................................................. 5
2.2 Launchpad Firmware Upgrade............................................................................................. 6
2.3 Update USB Driver .......................................................................................................... 7
3 ADC128S102 BoosterPack Setup and Operation .................................................................... 10
3.1 Connections................................................................................................................. 10
3.2 Launching the Software ................................................................................................... 10
4 Board Layout..................................................................................................................... 14
5 Schematic ......................................................................................................................... 19
6 Bill of Materials .................................................................................................................. 20
2Contents SNAU167–July 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
www.ti.com
List of Figures
1-1. ADC128S102EVM Evaluation Board...................................................................................... 4
2-1. ADC12xS10x Installation Directory........................................................................................ 5
2-2. ADC12xS10x Installation Finish ........................................................................................... 6
2-3. USB Firmware Upgrade Window .......................................................................................... 7
2-4. Driver Not Installed .......................................................................................................... 8
2-5. Driver Authentication Warning ............................................................................................. 9
2-6. Driver Installed ............................................................................................................... 9
3-1. ADC128S102EVM Attached to MSP430................................................................................ 10
3-2. Part Select................................................................................................................... 11
3-3. Selectable Fields in GUI................................................................................................... 12
3-4. Testing the Part............................................................................................................. 13
4-1. Top Assembly Layer....................................................................................................... 14
4-2. Top Layer Routing ......................................................................................................... 15
4-3. Power Layer Routing ...................................................................................................... 16
4-4. Ground Layer Routing ..................................................................................................... 17
4-5. Bottom Layer Routing...................................................................................................... 18
5-1. ADC128S102EVM Schematic............................................................................................ 19
List of Tables
1-1. Device and Package Configurations ...................................................................................... 4
6-1. ADC128S102 Bill of Materials............................................................................................ 20
3
SNAU167–July 2014 List of Figures
Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated
Chapter 1
SNAU167–July 2014
ADC128S102 BoosterPack Components

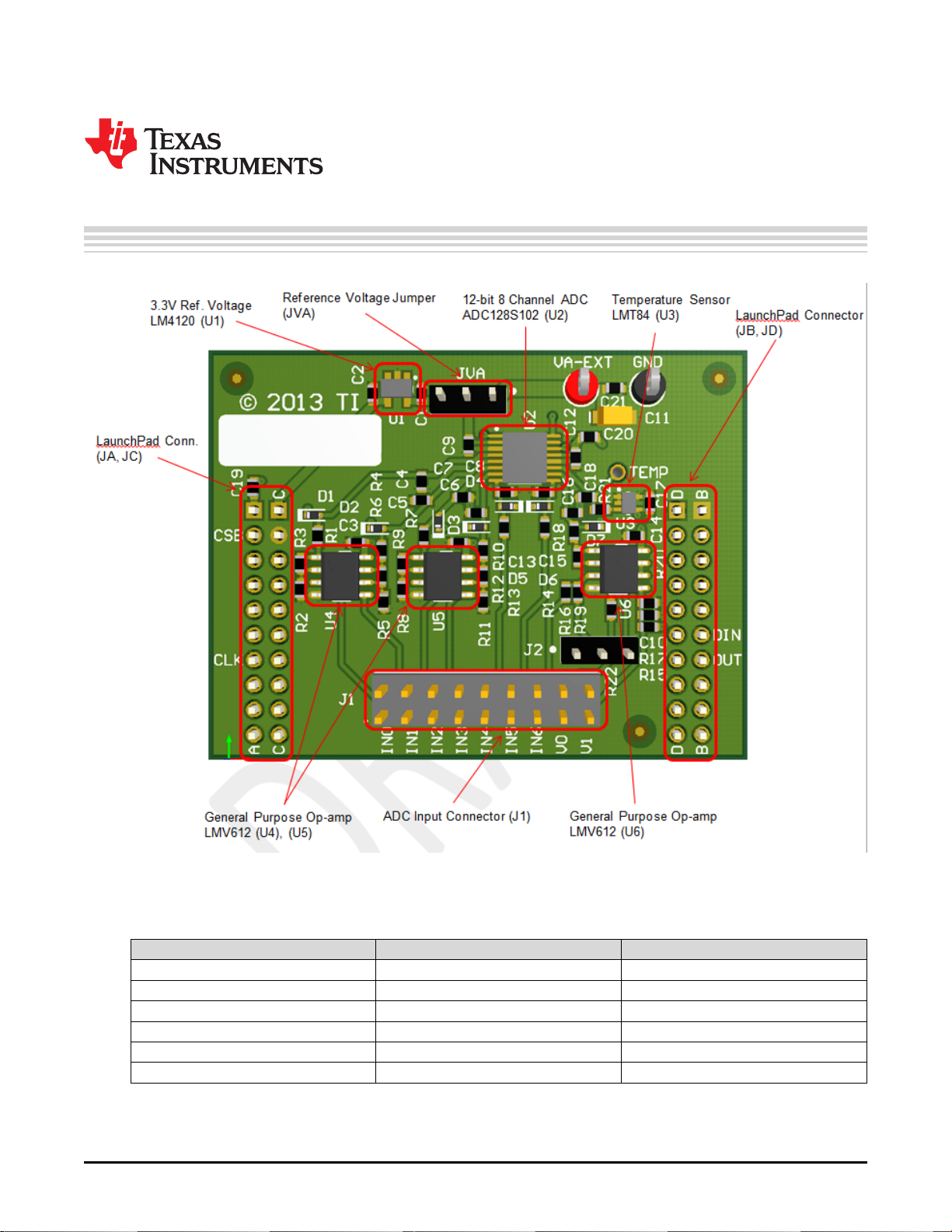

Figure 1-1. ADC128S102EVM Evaluation Board
Table 1-1. Device and Package Configurations
DEVICE IC PACKAGE
U1 LM4120IM5-3.3 SOT-23
U2 ADC128S102CIMT TTSOP
U3 LMT84DCK SC70
U4 LMV612MA SOIC-8
U5 LMV612MA SOIC-8
U6 LMV612MA SOIC-8
4ADC128S102 BoosterPack Components SNAU167–July 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
Chapter 2
SNAU167–July 2014
Software Installation
2.1 Graphical User Interface (GUI)
To use the ADC128S102EVM, install the ADC12xS10x software:
1. If the ADC128S102EVM came from an FAE, the software GUI is in a .zip file. Otherwise, click
http://www.ti.com/product/adc128s102, scroll down to the Software section, and download the latest
evaluation software.
2. Unzip the downloaded file into a known directory, and run the setup.exe file located in [Unzip
location]\ADC12xS10x\EVM_GUI\ADC12xS10x_Installer_v11.zip\ADC12xS10x_Installer
\Installer\Volume. Follow the pop-screen instructions by clicking the Next button to install the software.

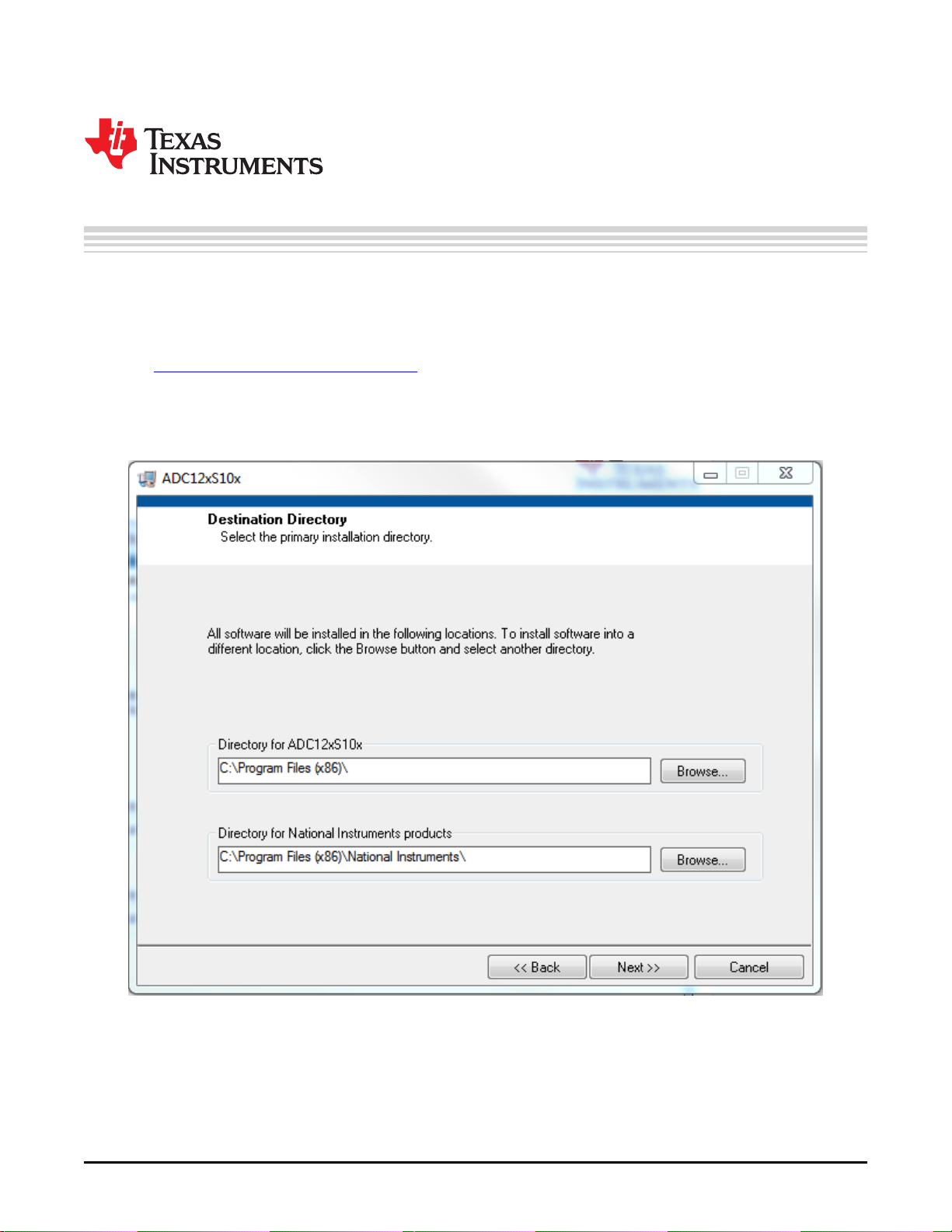

Figure 2-1. ADC12xS10x Installation Directory
3. When the installation is finished, click the Finish button.
5
SNAU167–July 2014 Software Installation
Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated
Launchpad Firmware Upgrade
www.ti.com

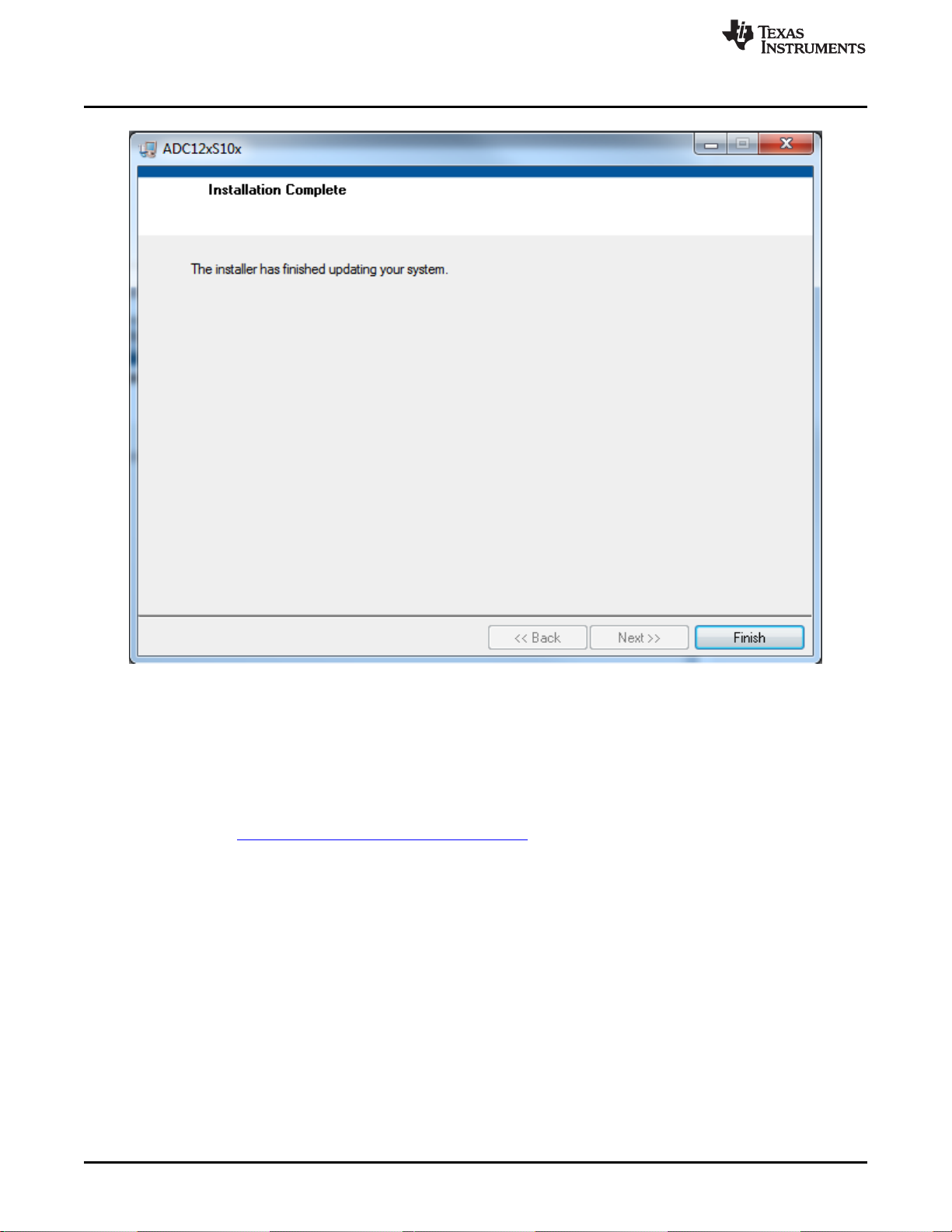

Figure 2-2. ADC12xS10x Installation Finish
2.2 Launchpad Firmware Upgrade
This section is only necessary for a brand new Launchpad. If the Launchpad is shipped with an
ADC128S102EVM, skip this section.
MSP430 firmware upgrade application installation:
1. Navigate to http://www.ti.com/tool/msp430usbdevpack and click Get Software.
2. Scroll down to the end of the page to find the USB Collateral Installers section.
3. Click on MSP430_USB_Firmware_Upgrade_Example-x-x-x-Setup.exe to download the tool; the page
redirects to a submission form.
4. Complete the information requested and submit the form; if approved, a download button appears.
5. Run the installation file and follow the on-screen instructions until completion. When asked about the
setup type, select Application Only. Click Finish when done.
Firmware upgrade:
1. If the ADC128S102EVM came from an FAE, the firmware is the text file adc12xs10x_fw-v0.92.txt.
2. Open the MSP430 USB Firmware Upgrade application. By default, the application launches from Start
> Programs > Texas Instruments > MSP430 USB Firmware Upgrade Example.
3. Click Next to proceed on the first prompt; read and accept the license agreement and click Next to
continue.
6Software Installation SNAU167–July 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
www.ti.com
Update USB Driver

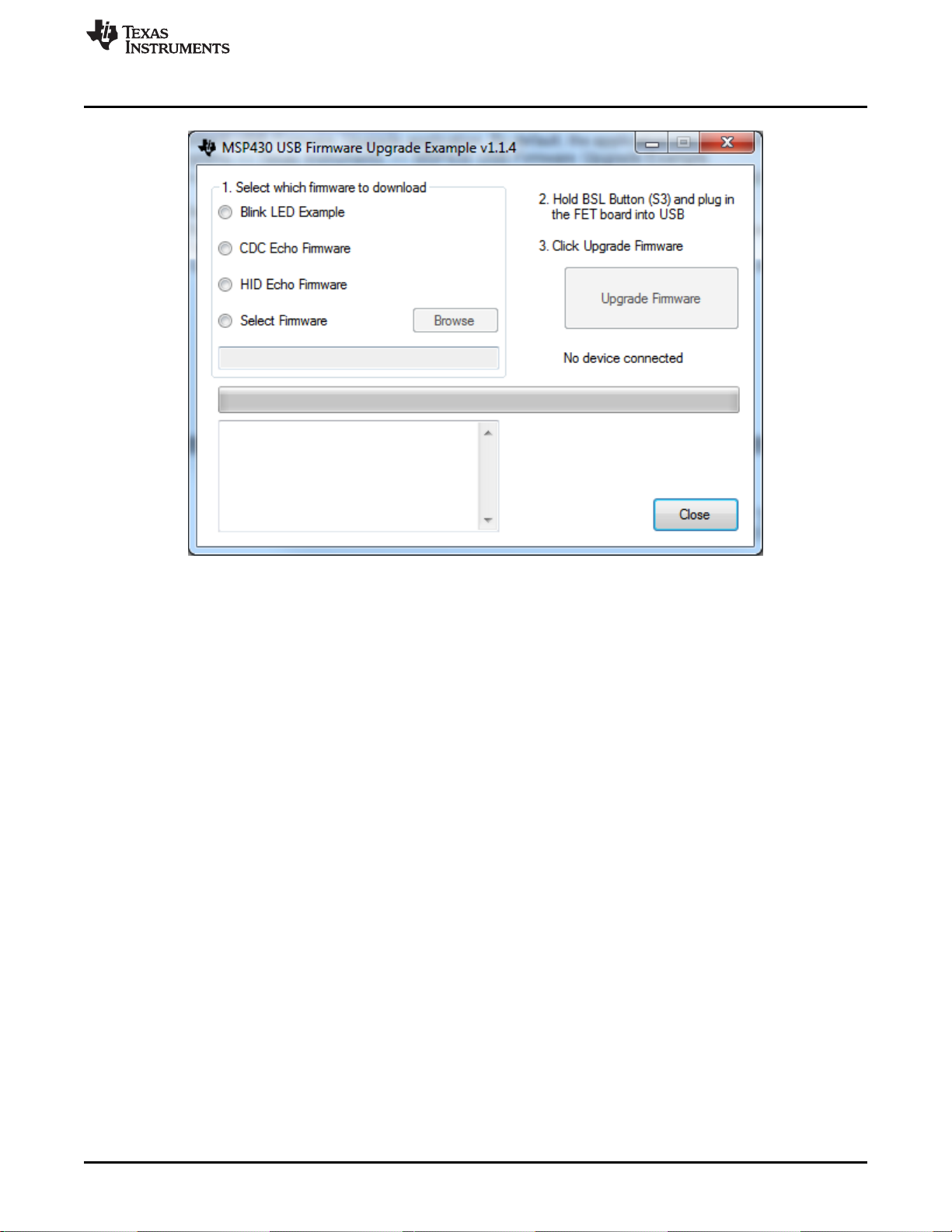

Figure 2-3. USB Firmware Upgrade Window
4. Enable the Select Firmware button and browse to open the downloaded firmware adc12xs10x_fw-
v0.92.txt.
5. Press the BSL button on the MSP430 LaunchPad and connect to the PC with a USB cable; if detected,
the text on the Firmware Upgrade tool changes from No device connected to Found 1 device.
6. Click on the Upgrade Firmware button to program the LaunchPad. Close the application when done.
2.3 Update USB Driver
1. Before launching the ADC12xS10x software, connect the ADC128S102EVM board to a USB port of
the PC. Go to Device Manager and find MSP43-USB Example. Right click and select Update Driver
Software.
7
SNAU167–July 2014 Software Installation
Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated
Update USB Driver
www.ti.com

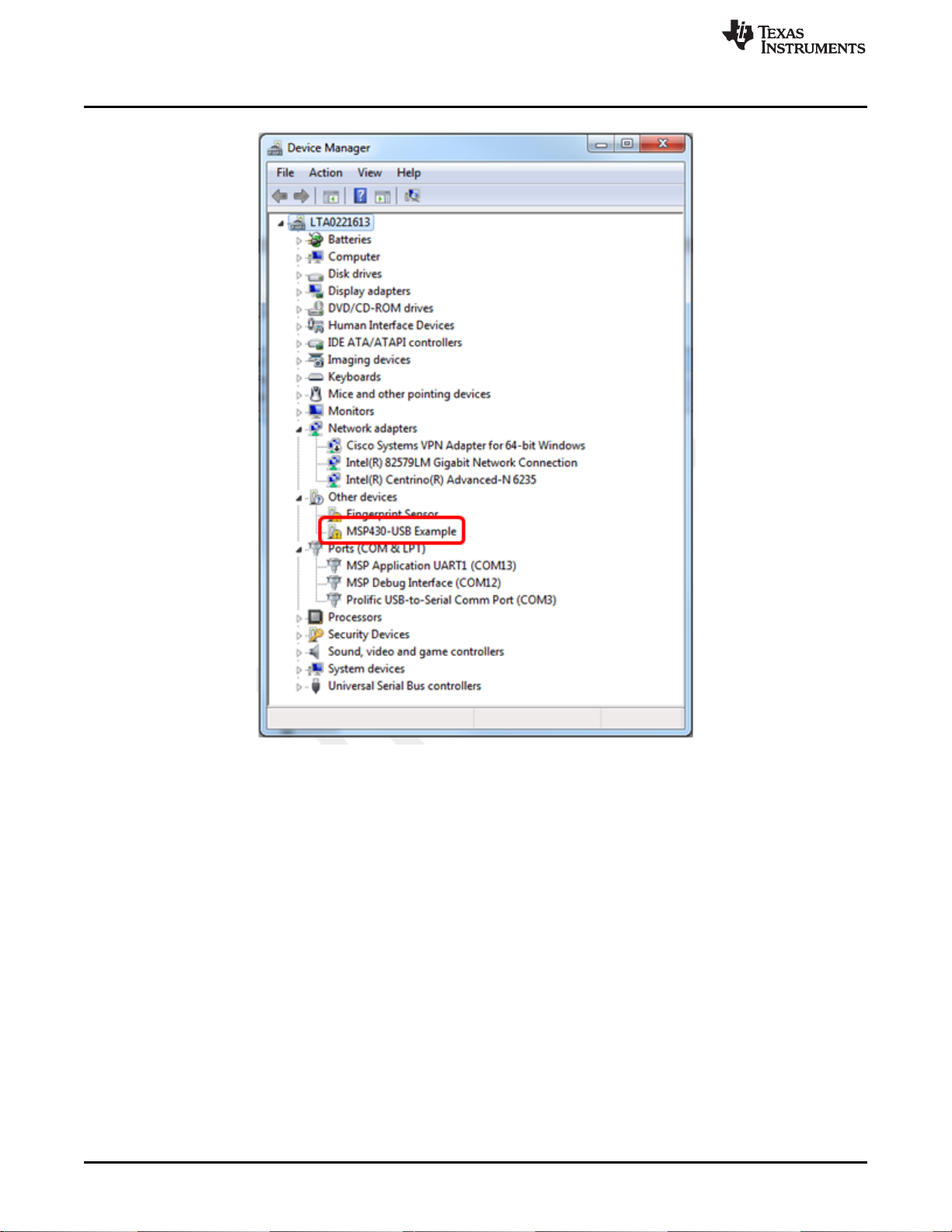

Figure 2-4. Driver Not Installed
2. On the next screen, select the Browse my computer for driver software option, go to the directory of
the install files, and select the MSP430_CDC_PID0x094e_ADC_DAC_EVMs.inf file.
3. If prompted with a warning window, select Install this Driver Anyway. Close the installation window
when done. The device manager should now display a TI_ADC_DAC_EVMs item followed by a COM
port number.
8Software Installation SNAU167–July 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
Chapter 3
SNAU167–July 2014
ADC128S102 BoosterPack Setup and Operation
3.1 Connections
1. Attach the ADC128S102EVM BoosterPack onto the MSP430 LaunchPad using connectors JA, JB, JC,
JD. Align the Launchpad and ADC128S102EVM so that the Launchpad rocket is in the upward
direction and the “2013 TI” is facing upwards.

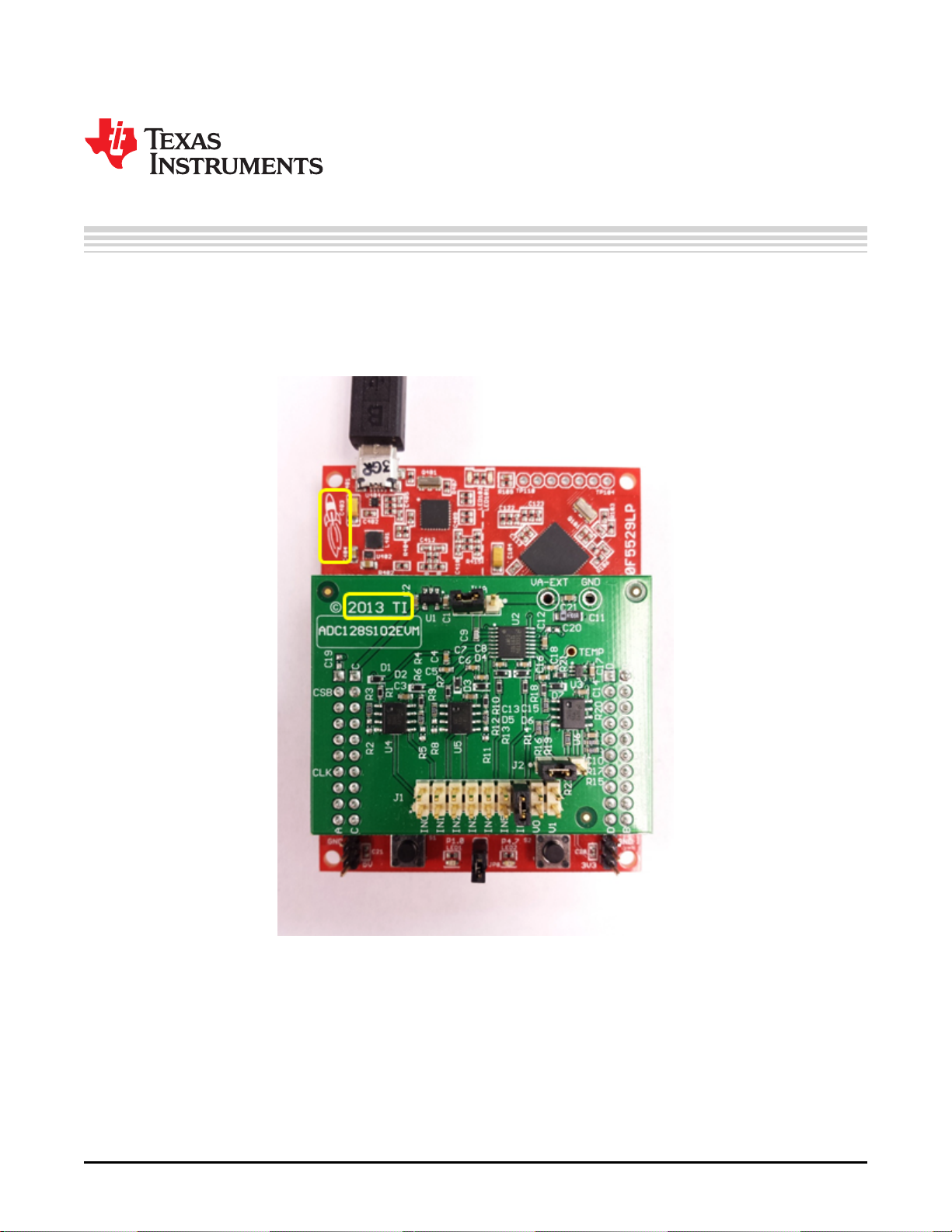

Figure 3-1. ADC128S102EVM Attached to MSP430
2. Connect the USB cable from the LaunchPad to the PC.
3.2 Launching the Software
1. The ADC12xS10x GUI software runs by clicking on Start > All Program > ADC12xS10x. After running
the GUI, select ADC128S102EVM.
10 ADC128S102 BoosterPack Setup and Operation SNAU167–July 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
