Teufel Ultima 20 Manuel utilisateur

Ultima 20

Stereo bookshelf speakers

Technical Description

and User Manual

2• Ultima 20

Contents

General Notes and Information ........ 3

For Your Safety................................... 4

Unpacking and Setup........................ 6

Care and Cleaning...........................10

Protecting the Environment ............11

Technical Data .................................11

Before operating the

speakers, please read

the safety notes and user

manual carefully. Only in this way,

you can ensure that all functions are

used in a safe and reliable manner.

Store the user manual in a safe place

and also be sure to pass it on to any

subsequent owner.

3• Ultima 20

General Notes and Information

Notice

The information in this document

may change without prior notice and

in no way constitutes any liability

on the part of Lautsprecher Teufel

GmbH.

No part of this user manual may

be reproduced in any form or be

broadcasted in any way electroni-

cally, mechanically, by photocopy or

recording without the written permis-

sion of Lautsprecher Teufel GmbH.

Version 3.0, July 2018

Original packaging

If you wish to exercise your eight-

week right of return, we ask that you

be absolutely sure to hold on to the

packaging. We can only accept the

return of the speakers WITH THE

ORIGINAL PACKAGING.

Empty boxes are not available!

Complaints

In case of a complaint we will need

the following information to process

your enquiry:

1. Invoice number

Can be found on the sales slip

(enclosed with the product) or on the

order confirmation received as a PDF

document, e.g. 4322543

2. Serial number or batch number

Located on the back side of

the device, e.g. serial no.:

KB20240129A-123.

Thank you for your support!

Contact

Please contact our customer service

with any questions, suggestions or

criticism:

Lautsprecher Teufel GmbH

BIKINI Berlin

Budapester Str. 44

10787 Berlin (Germany)

Phone 00800 - 200 300 40 (toll-free)

Fax: +49 (0)30 / 300 930 930

Service:

www.teufelaudio.com/service

Contact:

www.teufelaudio.com/contact

4• Ultima 20

For Your Safety

Proper use

The speakers are designed for the

playback of audio signals that are

transmitted by an external amplifier

via a speaker cable.

Only use the speakers as described

in this user manual. Any other use

will be deemed as not in accordance

with the instructions and may lead to

damage of property or even persons.

The manufacturer accepts no liability

for damage caused by improper use.

The speakers are intended for

domestic use.

Explanation of terms

You will encounter the following

signal terms in this user manual:

WARNING

This signal term indicates a

moderate risk, which, if not

avoided, may result in death

or severe injury.

CAUTION

This signal term indicates a

low risk, which, if not avoided,

may result in minor or

moderate injury.

NOTICE

This signal term warns you of

potential damage.

Safety notes

This chapter contains general safety

notes which you should always

observe to protect yourself and third

parties. Also observe the warning

notes in each chapter of this user

manual.

An unsuitable setup location may

result in injury and damage.

–If the speakers are not securely

mounted, do not use them in

vehicles, in unstable locations,

on wobbly tripods or furniture, on

underdimensioned brackets etc.

The speakers may tip or fall over

and cause injury to persons or be

damaged themselves.

–Place the speakers in such a way

that they cannot be knocked down

inadvertently and make sure that

the cables do not pose a tripping

hazard.

–Do not place the speakers near

heat sources (e.g. heaters, ovens,

other heat generating equipment

such as amplifiers etc.).

Children can become trapped in

the plastic wrapping when playing

and suffocate.

–Do not allow children to play with

the device or the plastic wrapping.

There is a danger of suffocation.

–Ensure that children do not remove

small parts from the unit or take

5• Ultima 20

them off of the unit (e.g. control

knobs or plug adapters). They

could swallow the parts and choke.

Extended listening at high volumes

may lead to hearing loss.

To avoid damage to health, avoid

extended listening at high volumes.

–When the volume is set high,

always keep a certain distance and

never hold your ears directly on the

speaker.

–If an amplifier is set to full volume,

this may produce very high sound

pressure. This may have psycho-

logical consequences and also

cause physical injury. Children and

pets are particularly at risk. Set the

volume control of your amplifier to

a low setting before you turn it on.

This product contains magnetic

material.

–If necessary, consult your physician

and ask for effects on implants

such as pacemakers or defibrilla-

tors.

If the speakers are subjected to

warm temperatures after being

cold – (e.g. after transport),

condensation may occur inside of

them.

–In this case, wait at least 2 hours

before you connect and activate

the speakers.

Improper handling of the speakers

may result in damage or fire.

–Do not place open flames such as

burning candles or similar on the

speakers.

–Ensure sufficient ventilation.

–Do not expose the speakers to

direct sunlight.

–Only use the speakers in indoor

areas.

–Do not use the speakers in wet

rooms and protect them against

dripping or spraying water. Make

sure that no vases or other liquid-

filled objects are located on or

near the speakers in order to

prevent liquid from penetrating the

housing.

If the amplifier is underdimen-

sioned, the amplifier may end up in

clipping operation at high volumes,

which could destroy the tweeters.

–Only connect your speakers to

amplifiers, which suit the output of

your speakers.

An overdimensioned amplifier can

destroy the bass speakers due to

excessive volume.

–If the music playback sounds

distorted, reduce the volume.

6• Ultima 20

Unpacking

• Carefully open the boxes, take out

the EPE foam parts and carefully

lift the speakers out of the box

without touching the diaphragms.

Due to differing customer

requirements, the Ultima20

speakers are shipped without

speaker cables. You can find

suitable cables in our webshop

(www.teufelaudio.com) in the

“Accessories” area.

NOTICE

–Check that all items have been

delivered and that nothing is

damaged. If you find any damage,

do not operate the device; instead

contact our customer service

department.

Location tips

– Select a stable, level base.

– Make sure that the environment is

clean and free from dust.

– Select a location away from heat

sources and direct sunlight.

– Lay the connector cords so that

they do not pose a tripping hazard.

– Do not place any heavy objects on

the cables or the speakers.

Unpacking and Setup

Positioning the speakers

The following data concern an

“ideal listening room”, in which the

listener sits in a central position at

a sufficient distance in front of the

speakers (see the graphic) and no

objects (tables or the like) are located

in between. Unfortunately, the room,

furnishings or other circumstances

do not always allow for optimum

arrangement.

Modern amplifiers offer a variety

of possibilities for electronically

compensating losses associated

with the arrangement. The following

general rule applies: You can always

experiment on what works best in

your listening room in terms of sound

and appearance based on our recom-

mendations. Let your ears (and eyes)

decide!

7• Ultima 20

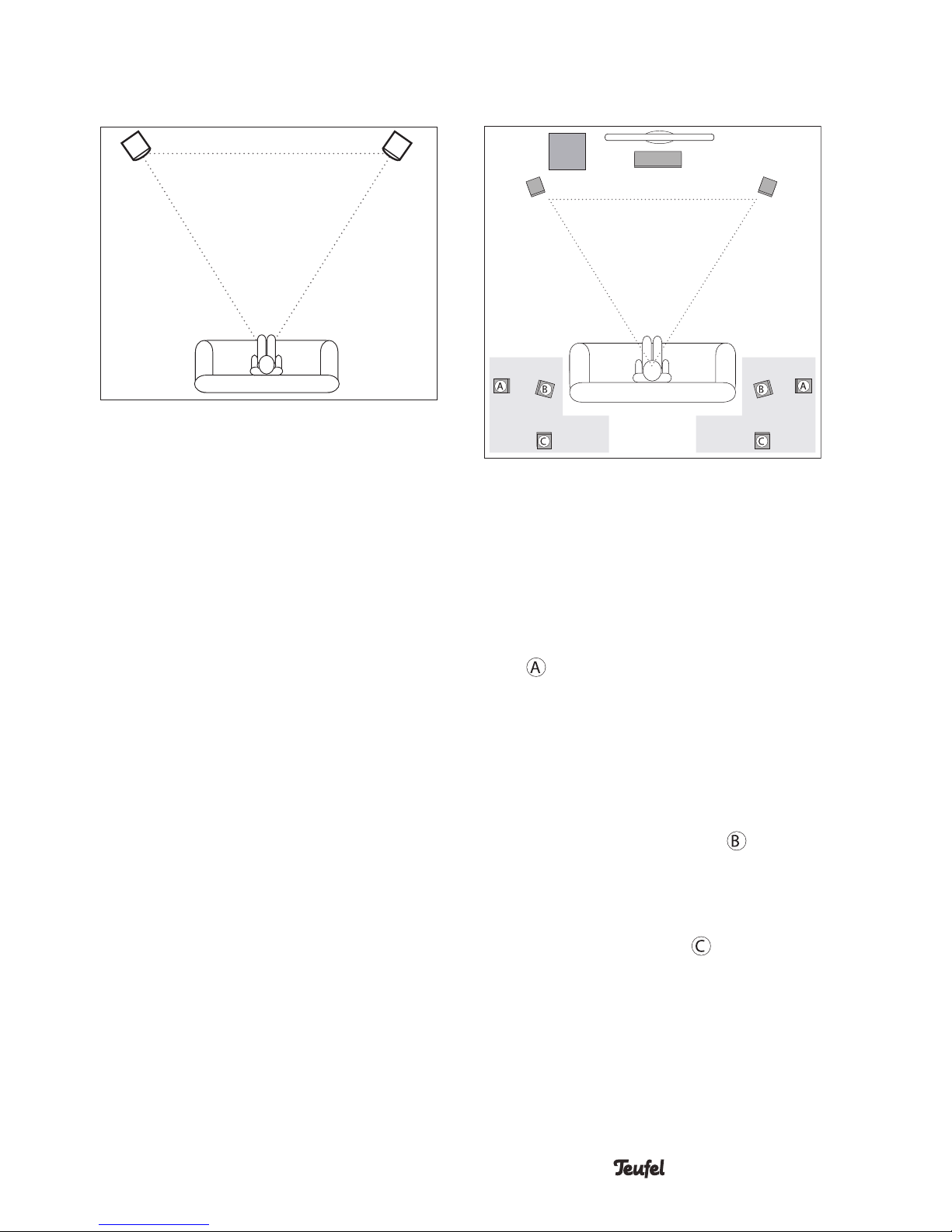

Use as rear speakers

Rear Rear

The rear speakers are set up or hung

to the side of or behind the listener at

a height of 1.20 m to 2.10 m (see the

grey areas in the graphic).

The ideal position is offset by approx.

20 degrees from the parallel position

to the listener on the left and right

side . It is generally recommended

that the distance of the rear speakers

to the hearer’s place exceeds one

metre. However, if you (need to) sit

closer, please ensure that the front

sides of the speakers is not directly

facing you. Rather, the speakers must

be angled towards the wall .

Alternatively, you can create a greater

distance by placing the speakers

higher than 1.20 m (e.g. also on the

ceiling) or further away .

Use as front speakers

Stereo

triangle

left speaker right speaker

The speakers should be situated

to the left and right of the listener

and if possible, form an equilat-

eral triangle with the listener – the

so-called stereo triangle (distance

from the listener = distance between

the speakers). The speakers should

project sound straight into the room

or be arranged slightly towards the

listener.

For example, shelves or sideboards

are very well suited as a setup loca-

tion for the speakers.

8• Ultima 20

Wall mounting

Wall mounting is also possible. For

this purpose appropriate holders

are available in our webshop (www.

teufelaudio.com) in the “Accessories”

area. They are mounted using the M6

threaded hole located in the speaker

base.

It also serves to fix corresponding

speaker stands, which you can also

purchase in our webshop.

Connecting

CAUTION

Risk of tripping!

–Lay the cables so that

they do not pose a tripping

hazard.

1. Switch your AV receiver or multi-

channel active subwoofer off.

2. Lay one speaker cable from your

AV receiver or multi-channel active

subwoofer to each speaker. Use a

high-quality double wire speaker

cable with marked strands for this.

The cross-section should amount

to at least 1.5 .

A connector terminal with two termi-

nals is located on the back of each

speaker; the speaker cable must be

attached to them.

The terminals are each marked red

(+) and black (-).

9• Ultima 20

NOTICE

Make sure the polarity is

correct!

–Connect each of the like

coloured terminals of your

speakers and your amplifier

with one another; other-

wise the sound quality will

suffer. To facilitate this, the

individual single wires of the

speaker cables are marked

with different colours or

shapes.

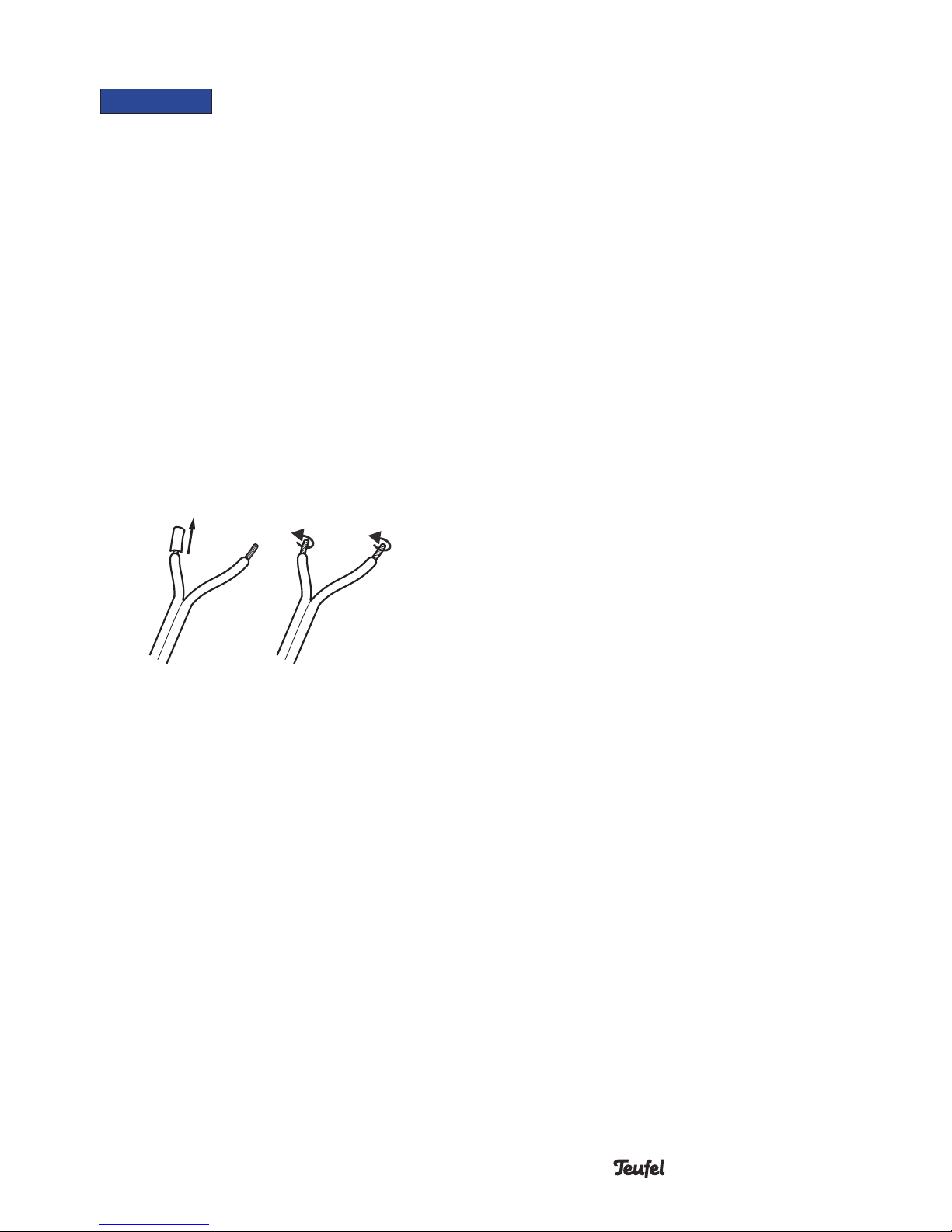

3. Split the single wire down by

approx. 30 mm on both ends and

remove approx. 10 mm of insula-

tion each.

4. Twist the stripped wire ends so

that no strands are protruding. Tin

coating is not necessary.

5. Turn the connector terminal coun-

terclockwise until loose. Run the

stripped cable end into the now

visible hole. Close the connector

terminal by turning them clockwise.

The cable has now been clamped

in place.

6. Connect the speaker cable to your

AV receiver or multi-channel active

subwoofer. You should be able to

find corresponding notes in the

user manual of your device.

Removing the protective

grids

You can take the protective grids off

of the speakers by carefully reaching

behind the protective grids and slowly

pulling them off to the front.

By removing the protective grid,

especially high frequencies will sound

clearer.

When putting the protective grids on,

please make sure that the installa-

tion pins slide directly into the corre-

sponding jacks on the speaker.

10 • Ultima 20

Care and Cleaning

The veneered surfaces of our

speakers have a protective surface

coat so they no wood polish is neces-

sary.

NOTICE

External influences may

damage or destroy the device.

–If possible, only use plain

water without any additives.

In case of stubborn marks,

a mild soap solution may be

used.

–Do not use caustic cleaning

products, white spirit,

thinners, petrol or similar

under any circumstances.

Such cleaning agents may

damage the delicate surface

of the housing.

• Ideally, you should remove dust or

small amounts of dirt with a dry,

smooth leather cloth.

• Rub off stubborn dirt with a damp

cloth. Make sure that no liquid

penetrates the speakers.

• Then immediately wipe the

surfaces dry with a soft cloth

without applying pressure.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Teufel Intervenants

Teufel

Teufel rockster xs Manuel utilisateur

Teufel

Teufel T 110 D Manuel

Teufel

Teufel H 600 CF Manuel utilisateur

Teufel

Teufel VT 12 Manuel utilisateur

Teufel

Teufel Concept C 2.1 USB Manuel utilisateur

Teufel

Teufel Effekt 2 Manuel utilisateur

Teufel

Teufel Definion 5S Manuel

Teufel

Teufel CS 35 C Manuel

Teufel

Teufel Concept B 20 Manuel

Teufel

Teufel ROCKSTER Manuel d'utilisation et d'entretien

Teufel

Teufel concept b 20 mk2 Manuel utilisateur

Teufel

Teufel ROCKSTER AIR 2 Manuel de la liste des pièces

Teufel

Teufel Motiv Go Manuel utilisateur

Teufel

Teufel Concept E 100 Control Manuel

Teufel

Teufel L 430 Manuel de la liste des pièces

Teufel

Teufel CS 35 FCR Manuel

Teufel

Teufel iTeufel Air Blue Manuel utilisateur

Teufel

Teufel Cinebar Pro Manuel de la liste des pièces

Teufel

Teufel T 500 D 16 Manuel de la liste des pièces

Teufel

Teufel CL 302 FCR Manuel

Teufel

Teufel T 500 Manuel utilisateur

Teufel

Teufel Reflect Manuel utilisateur

Teufel

Teufel BAMSTER Manuel de la liste des pièces

Teufel

Teufel RADIO ONE Manuel de la liste des pièces

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
