Introduction

Part No. 1308591GT GS™-1432m • GS™-1932m • GS™-1932m Lite 1

Intr od ucti o n

About this manual

Genie appreciates your choice of our machine for

your application. Our number one priority is user

safety, which is best achieved by our joint efforts.

This book is an operation and daily maintenance

manual for the user or operator of a Genie

machine.

This manual should be considered a permanent

part of your machine and should remain with the

machine at all times. If you have any questions,

contact Genie.

Product Identification

The machine serial number is located on the serial

label.

Serial label located in

charger tray

Serial number stamped on

chassis

Intended Use and Familiarization

Guide

The intended use of this machine is to lift

personnel, including tools, and materials to an

aerial work site. Before operating the machine, it’s

the operator’s responsibility to read and

understand this familiarization guide.

Each person must be trained to operate a

Mobile Elevating Work Platform (MEWP).

Familiarization with the MEWP must be given

to each person who is authorized, competent

and trained.

Only trained and authorized personnel should

be permitted to operate the machine.

The operator is responsible to read,

understand, and obey the manufacturer’s

instructions and safety rules provided in the

Operator’s Manual.

The Operator’s Manual is located in the

manual storage container, at the platform.

For specific product applications, see

Contacting The Manufacturer.

Operator's Manual First Edition • Third Printing

Introduction

2 GS™-1432m • GS™-1932m • GS™-1932m Lite Part No. 1308591GT

Platform controls symbology and related

machine movement:

Lift function enable button

Drive function enable button

Platform up/down (when lift function

selected)

Drive forward/reverse (when drive

function selected)

Steer right/left (when drive function

selected)

Area of operation, indoor use button

Area of operation, outdoor us

e button

Ground controls symbology and related

machine movement:

Lift function enable button

Platform up/down button

Sequential functions and movement:

•Drive and steer.

Interlocked functions:

•Elevated drive speed.

•Elevated drive in an off-level condition.

•All platform and ground controls.

Limitations of use:

•The intended use of this machine is to lift

personnel, including tools, and materials to an

aerial work site.

•Do not elevate the platform unless the machine

is on firm level ground.

First Edition • Third Printing Operator's Manual

Introduction

Part No. 1308591GT GS™-1432m • GS™-1932m • GS™-1932m Lite 3

Bulletin Distribution and Compliance

Safety of product users is of paramount

importance to Genie. Various bulletins are used by

Genie to communicate important safety and

product information to dealers and machine

owners.

The information contained in the bulletins is tied to

specific machines using the machine model and

serial number.

Distribution of bulletins is based on the most

current owner on record along with their

associated dealer, so it is important to register

your machine and keep your contact information

up to date.

To ensure safety of personnel and the reliable

continued operation of your machine, be sure to

comply with the action indicated in a respective

bulletin.

To view any open bulletins for your machine, visit

us on the web at www.genielift.com.

Contacting the Manufacturer

At times it may be necessary to contact Genie.

When you do, be ready to supply the model

number and serial number of your machine, along

with your name and contact information. At

minimum, Genie should be contacted for:

Accident reporting

Questions regarding product applications and

safety

Standards and regulatory compliance information

Current owner updates, such as changes in

machine ownership or changes in your contact

information. See Transfer of Ownership, below.

Transfer of Machine Ownership

Taking a few minutes to update owner information

will ensure that you receive important safety,

maintenance and operating information that

applies to your machine.

Please register your machine by visiting us on the

web at www.genielift.com or by calling us toll free

at 1-800-536-1800.

Operator's Manual First Edition • Third Printing

Introduction

4 GS™-1432m • GS™-1932m • GS™-1932m Lite Part No. 1308591GT

Danger

Failure to obey the instructions and

safety rules in this manual will result

in death or serious injury.

Do Not Operate Unless:

You learn and practice the principles of safe

machine operation contained in this operator’s

manual.

1 Avoid hazardous situations.

Know and understand the safety rules

before going on to the next section.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was intended.

You read, understand and obey the

manufacturer’s instructions and safety rules—

safety and operator’s manuals and machine

decals.

You read, understand and obey employer’s

safety rules and worksite regulations.

You read, understand and obey all applicable

governmental regulations.

You are properly trained to safely operate the

machine.

Safety Sign Maintenance

Replace any missing or damaged safety signs.

Keep operator safety in mind at all times. Use mild

soap and water to clean safety signs. Do not use

solvent-based cleaners because they may

damage the safety sign material.

Hazard Classification

Decals on this machine use symbols, color coding,

and signal words to identify the following:

Safety alert symbol

—

used to alert

you to potential personal injury

hazards. Obey all safe

messages that follow this symbol

to avoid possible injury or death.

Indicates a hazardous situation

which, if not avoided, will result in

death or serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in death or

serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in minor or moderate injury.

Indicates a property damage

message.

First Edition • Third Printing Operator's Manual

Symbol and Hazard Pictorials Definitions

Part No. 1308591GT GS™-1432m • GS™-1932m • GS™-1932m Lite 5

Symb ol and H az ar d Pict or i als De fi ni ti ons

Read the operator’s

manual

Read the service

manual

Crush hazard Crush hazard Collision hazard

Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard

Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard

Operator's Manual First Edition • Third Printing

Symbol and Hazard Pictorials Definitions

6 GS™-1432m • GS™-1932m • GS™-1932m Lite Part No. 1308591GT

Engage safety arm Keep away from

moving parts

Keep clear of tires Move machine to

level ground

Close chassis tray

Lower the platform. Platform overloaded Maintain required

clearance

Access by trained

and authorized

personnel only

Use a piece of

cardboard or paper

to search for leaks

Batteries used as

counterweights

Chock the wheels No smoking Grounded AC

3-wire only

Replace damaged

wires and cords

First Edition • Third Printing Operator's Manual

Symbol and Hazard Pictorials Definitions

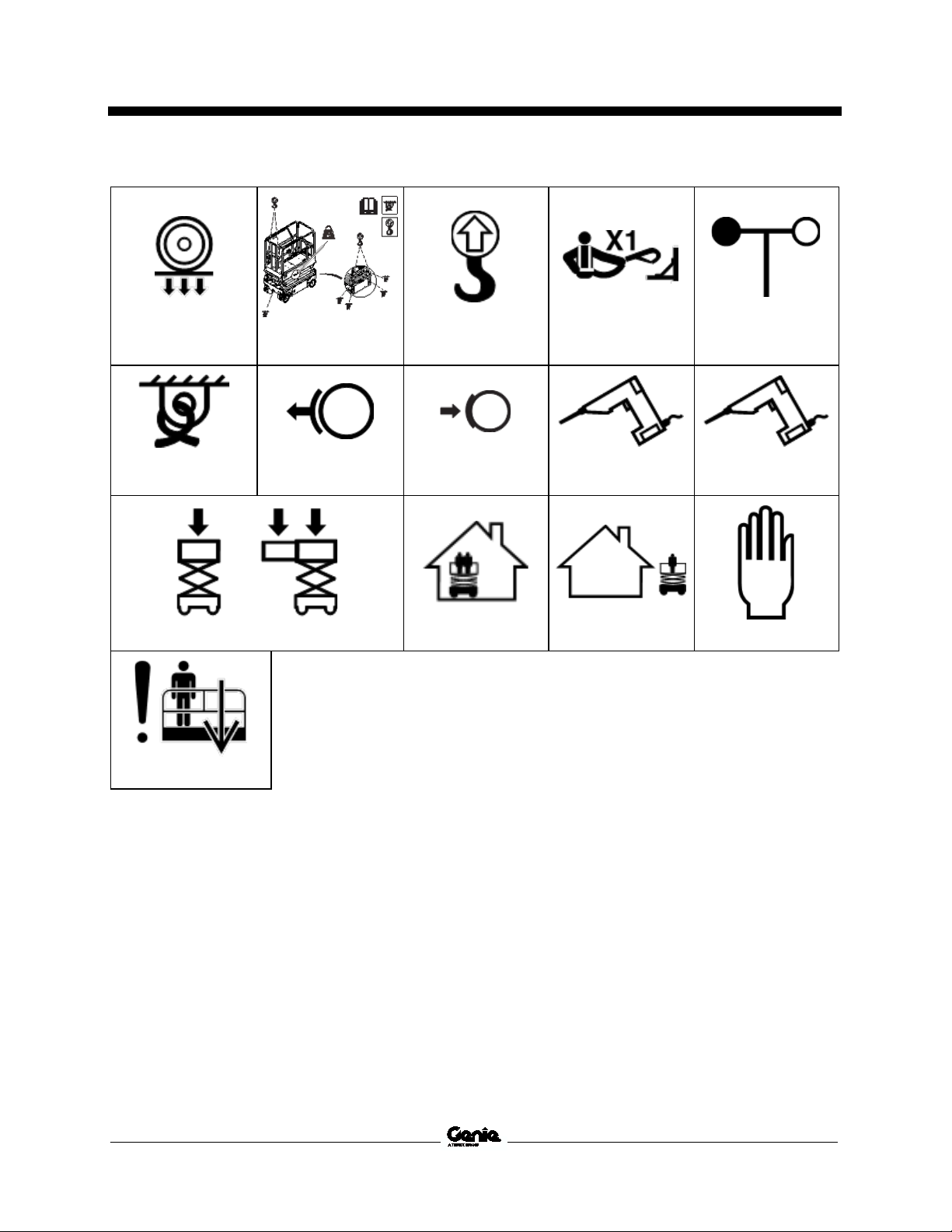

Part No. 1308591GT GS™-1432m • GS™-1932m • GS™-1932m Lite 7

Wheel load Lifting and tie down

instructions

Lifting point Lanyard anchorage

points

Wind speed

Tiedown Release brakes Engage brake Pressure rating for air

line to platform

Voltage rating for

power to platform

Maximum capacity Indoor Outdoor Manual force

Auxiliary lowering

Operator's Manual First Edition • Third Printing

General Safety

8 GS™-1432m • GS™-1932m • GS™-1932m Lite Part No. 1308591GT

Gener al Saf et y

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Terex Système de levage

Terex

Terex Genie GS-1432m Manuel utilisateur

Terex

Terex 43032 Manuel utilisateur

Terex

Terex Genie Z-45/25 DC Manuel d'installation et d'exploitation

Terex

Terex Genie Lift Tools Expo Installer Z-45/25 Manuel utilisateur

Terex

Terex Robot 5000 Manuel de service

Terex

Terex Genie Superlift Advantage Manuel utilisateur

Terex

Terex Genie Load Lifter Manuel utilisateur

Terex

Terex GS90D-4695 Manuel d'installation et d'exploitation

Terex

Terex Genie Superlift Advantage SL-5 Guide de démarrage rapide

Terex

Terex S-60 J Manuel utilisateur

Terex

Terex Genie Z-60 DC Manuel utilisateur

Terex

Terex Genie Lift Guard S-60 Manuel utilisateur

Terex

Terex MAC 25-4 SL Manuel utilisateur

Terex

Terex Genie SX-105 XC Manuel d'installation et d'exploitation

Terex

Terex Genie S-40XC Manuel d'installation et d'exploitation

Terex

Terex Genie GRC-12 Guide de configuration

Terex

Terex Genie GTH1215M-101 Manuel d'installation et d'exploitation

Terex

Terex Genie QS-12R Manuel utilisateur

Terex

Terex Genie GS-2669DC Manuel utilisateur

Terex

Terex Genie SHOV5DL15B-1001 Manuel utilisateur

Terex

Terex Z-30/20N Manuel utilisateur

Terex

Terex Genie SX-105 XC Manuel utilisateur

Terex

Terex HP-32 Manuel utilisateur

Terex

Terex Genie Z-45/25 Bi-Energy Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
