Tenda A301 Manuel utilisateur
A301 wireless N300 Universal Range Extender is
designed to optimize and extend your existing wireless
network to the furthest corner of your house. With
transmission rate up to 300Mbps, wall-mounted design,
smart signal indicator, 2 external antennas, you can
experience faster and farther WiFi easily. Wireless
coverage can be easily expanded at a push of range
extender button. The ethernet port allows the Extender
to function as a wireless adapter to connect wired
devices.A301 works with any standard WiFi router and
is ideal for HD video streaming & gaming. With Tenda
A301, you can enjoy Internet surfing even in the
backyard of a villa.
Ease Use
Easy Use

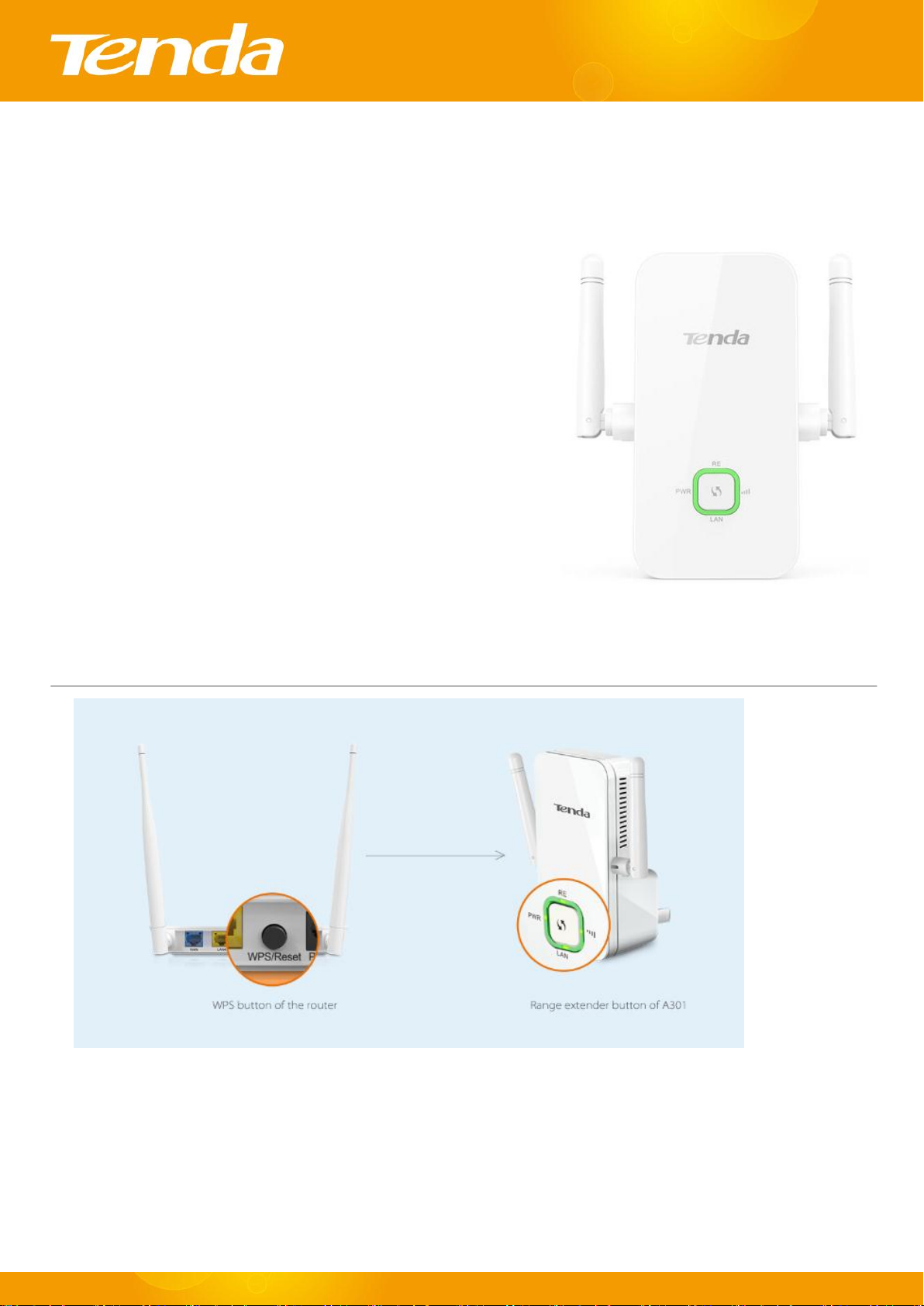

You can optimize and extend WiFi range just at a push of WPS button of the router and
range extender button of A301 within 2 minutes.
No longer need to worry about wires or cables.
A301
Wireless N300 Universal Range Extender
Optimal Coverage
2 external antennas help to maximize WiFi coverage.
Range Extender Mode boosts WiFi to the furthest corner of your house and gives you
performance where you need it most. You can play games even in the backyard of a villa.
Wall-mount design
Wall-mounted design makes it easy to deploy and move flexibly. As long as connected with an
existing router, you can plug A301 at any place as you want without configuration.
Just enjoy the ultimate surfing fun anytime anywhere.
Smart Signal Indicator
Smart Signal Indicator helps to find the most accurate location to place the range extender.
It is advisable that you choose a place where signal indicator is solid green.
Hardware Features
Wireless Standards
802.11n/g/b，IEEE 802.3/802.3u
Plug Type
EU、US、AU、UK
Interface
1*10/100M LAN
Antenna
External (2)
Button
Range Extender button
reset button
Power Supply
Input: AC:100～240V；50/60Hz
Output: 5.0V 0.7A
LEDs
Power, RE(Range Extender), Signal Strength indicator, LAN
Dimensions (L*W*H) mm
110mm*55mm*39mm
Wireless Features
Wireless Link Rate
Up to 300Mbps
Max EIRP to device
98mW
Max EIRP to router
58mW
Frequency Range (GHz)
2.412GHz-2.472GHz
Wrieless Security
Wireless Access Control
Wireless Security: Enable/Disable
WPA-PSK/WPA2-PSK, WPA-PSK, WPA2-PSK、WEP
Wireless Function
Wireless Radio: Enable/Disable
SSID Broadcast: Enable/Disable
Channel: 1-11
Domain Login Function
Software Features
Wireless Mode
Range Extender mode
Others
Package Contents
Wireless N300 Universal Range Extender
Ethernet cable
Quick Installation Guide
Resources CD
Temperature
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Humidity
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Default Settings
Default Access：http://re.tendacn.com
Login Password：admin
Certificates
CE; FCC; RoHS
Specifications
Shenzhen Tenda Technology Co., Ltd.6-8 Floor, Tower E3, No. 1001,
Zhongshanyuan Road, Nanshan District,
Shenzhen, China. 518052
Tel: (86 755) 2765 7180 Fax: (86 755) 2765 7178
Website: http://www.tendacn.com
