Teltonika Telematics FMM150 Guide d'installation

FMM150

Advanced tracker with CAN data

reading feature

Quick Manual v1.0

Quick Manual v1.0 // FMM150 2

Telematics

CONTENT

Know your device ..................................................................................................................................................................................................3

Pinout......................................................................................................................................................................................................................4

Wiring scheme .......................................................................................................................................................................................................5

Set up your device.................................................................................................................................................................................................6

PC Connection (Windows) ....................................................................................................................................................................................7

How to install USB drivers (Windows) ................................................................................................................................................................7

Conguration (Windows)......................................................................................................................................................................................8

Quick SMS conguration ................................................................................................................................................................................... 10

Mounting recommendations............................................................................................................................................................................ 12

Basic characteristics........................................................................................................................................................................................... 13

LED indications ................................................................................................................................................................................................... 13

Electrical characteristics .................................................................................................................................................................................... 17

Safety information ............................................................................................................................................................................................. 19

Certication and Approvals............................................................................................................................................................................... 20

Warranty .............................................................................................................................................................................................................. 21

Warranty disclaimer .......................................................................................................................................................................................... 21

Quick Manual v1.0 // FMM150 3

Telematics

KNOW YOUR DEVICE

2X6

SOCKET

STATUS

LED

CAN

LED

MICRO SIM

SLOT

BATTERY

SOCKET

NAVIGATE

LED

MICRO

USB

TOP VIEW TOP VIEW (WITHOUT COVER)BOTTOM VIEW (WITHOUT COVER)

Quick Manual v1.0 // FMM150 4

Telematics

Pin number Pin name Description

1VCC (10-30) V

DC (+)

Power supply (+10-30

V DC).

2DIN 3 / AIN 2

Analog input, channel

2. Input range: 0-30

V DC / Digital input,

channel 3.

3DIN2-N / AIN1

Digital input, channel 2

/ Analog input, channel

2. Input range: 0-30 V

DC /GND Sense input

4 DIN1 Digital input, channel

5CAN2L CAN LOW, 2nd line

6CAN1L CAN LOW, 1st line

7 GND (-) Ground pin. (10-30) V

DC (―)

8DOUT 1

Digital output, channel

1. Open collector

output. Max. 0,5 A DC.

9DOUT 2

Digital output, channel

2. Open collector

output. Max. 0,5 A DC.

10 1WIRE DATA Data for 1–Wire

devices.

11 CAN2H CAN HIGH, 2nd line

12 CAN1H CAN HIGH, 1st line

PINOUT

DOUT2

1WIRE DATA

CAN2H

GND

DOUT1

CAN1H

DIN2-N/AIN1

DIN1

CAN2L

DIN3/AIN2

+10...30 V DC

CAN1L

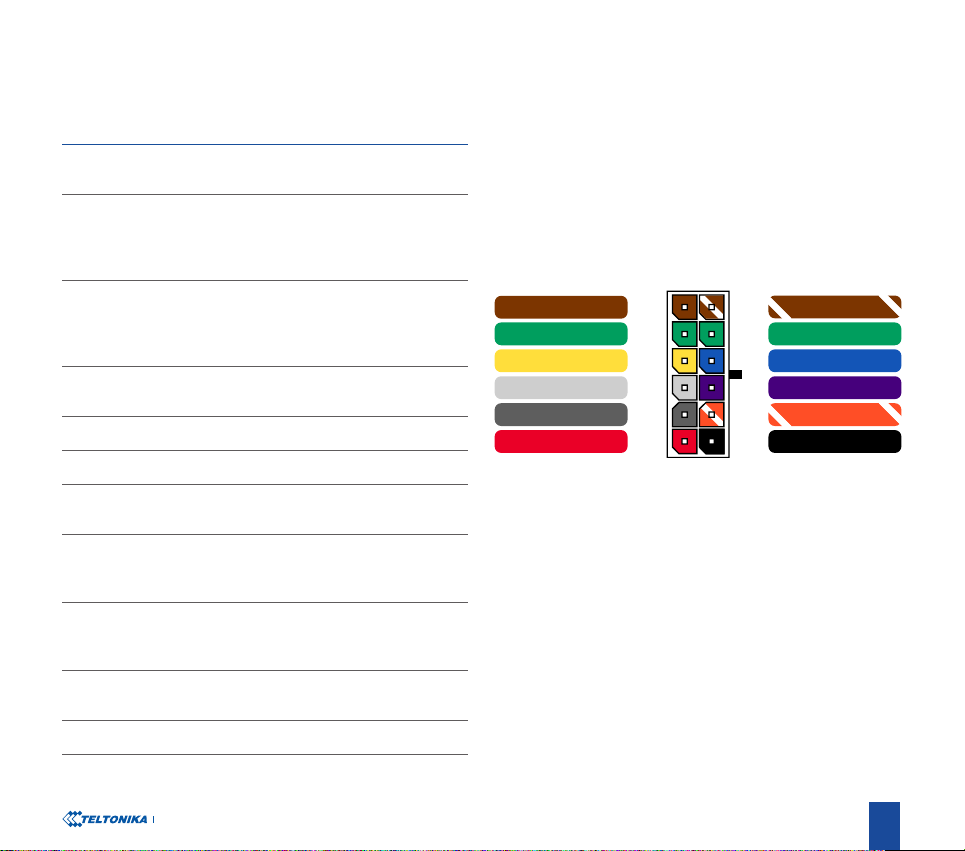

FMM150 2x6 socket pinout

Quick Manual v1.0 // FMM150 5

Telematics

WIRING SCHEME

BUZZER LED LIGHTS

8586

87a

IGNITION

DETECTION

FUEL GAUGE

RELAY

STARTER

IBUTTON

MULTIPLE

TEMPERATURE

SENSORS

CAN BUS

POWER SUPPLY

10 - 30V DC

ANALOG

LLS SENSOR

ALARM BUTTON

DOOR SENSOR

DOUT2

1WIRE DATA

CAN2H

GND

DOUT1

CAN1H

DIN2-N/AIN1

DIN1

CAN2L

DIN3/AIN2

+10...30 V DC

CAN1L

AIN2

DIN3

DIN2-N

DIN2

1WIRE PWR

Quick Manual v1.0 // FMM150 6

Telematics

SET UP YOUR DEVICE

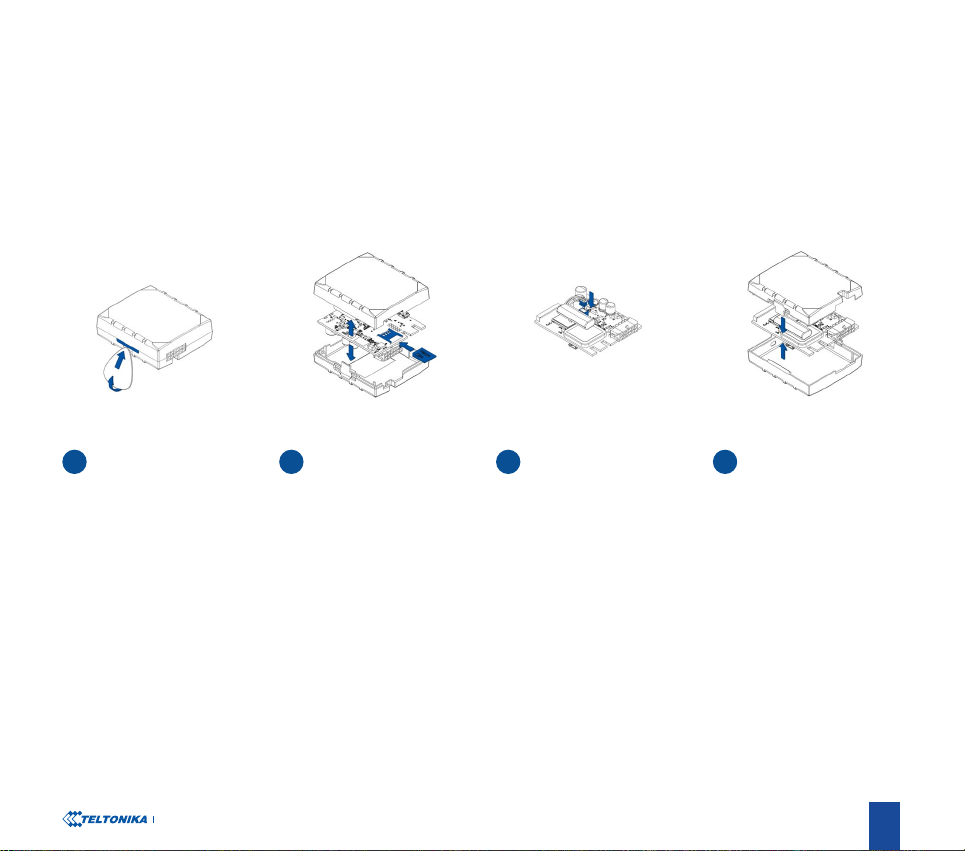

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

1COVER REMOVAL 3BATTERY CONNECTION

2MICRO-SIM CARD INSERT ATTACHING COVER BACK

Gently remove FMM150

cover using plastic pry tool

from both sides.

Insert Micro-SIM card as

shown with PIN request

disabled or read our Wiki1

how to enter it later in

Teltonika Congurator2.

Make sure that Micro-

SIM card cut-o corner is

pointing forward to slot.

1 wiki.teltonika-gps.com/index.

php?title=FMB140_Security_info

2 wiki.teltonika-gps.com/view/

Teltonika_Congurator

Connect battery as shown to

device. Position the battery

in place where it does not

obstruct other components.

After conguration, see “PC

Connection (Windows)”,

attach device cover back.

Quick Manual v1.0 // FMM150 7

Telematics

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 teltonika-gps.com/downloads/en/fmm150/TeltonikaCOMDriver.zip

1. Power-up FMM150 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see

“LED indications1”.

2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Micro-USB cable

• You will need to install USB drivers, see “How to install USB drivers (Windows)2”

• Using Bluetooth

• FMM150 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device

> Bluetooth. Choose your device named – “FMM150_last_7_imei_digits”, without LE in the end. Enter default password

5555, press Connect and then select Done.

3. You are now ready to use the device on your computer.

1 wiki.teltonika-gps.com/view/FMM150_LED_status

2 Page 7, "How to install USB drivers"

Quick Manual v1.0 // FMM150 8

Telematics

MS .Net requirements

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FMM150 device will have default factory settings set. These settings should be changed according to the users needs. Main

conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator

operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions

CONFIGURATION (WINDOWS)

Quick Manual v1.0 // FMM150 9

Telematics

Downloaded Congurator will be in compressed archive.

Extract it and launch Congurator.exe. After launch software

language can be changed by clicking 🌐in the right bottom

corner.

Conguration process begins by pressing on connected device.

FMM150

Various Status window1 tabs display information about GNSS2,

GSM3, I/O4, Maintenance5and etc. FMM150 has one user

editable prole, which can be loaded and saved to the device.

After any modication of conguration the changes need to

be saved to device using Save to device button. Main buttons

oer following functionality:

 Load from device – loads conguration from device.

 Save to device – saves conguration to device.

 Load from le – loads conguration from le.

 Save to le – saves conguration to le.

 Update rmware – updates rmware on device.

 Read records – reads records from the device.

 Reboot device – restarts device.

 Reset conguration – sets device conguration to

default.

Most important congurator section is GPRS – where all

your server and GPRS settings6 can be congured and Data

Acquisition7– where data acquiring parameters can be

congured. More details about FMM150 conguration using

Congurator can be found in our Wiki8.

After connection to Congurator Status window will be

displayed.

FMM150

1 wiki.teltonika-gps.com/view/FMM150_Status_info

2 wiki.teltonika-gps.com/view/FMM150_Status_info#GNSS_Info

3 wiki.teltonika-gps.com/view/FMM1501_Status_info#GSM_Info

4 wiki.teltonika-gps.com/view/FMM150_Status_info#I.2FO_Info

5 wiki.teltonika-gps.com/view/FMM150_Status_info#Maintenance

6 wiki.teltonika-gps.com/index.php?title=FMM150_GPRS_settings

7 wiki.teltonika-gps.com/index.php?title=FMM150_Data_acquisition_settings

8 wiki.teltonika-gps.com/index.php?title=FMM150_Conguration

Quick Manual v1.0 // FMM150 10

Telematics

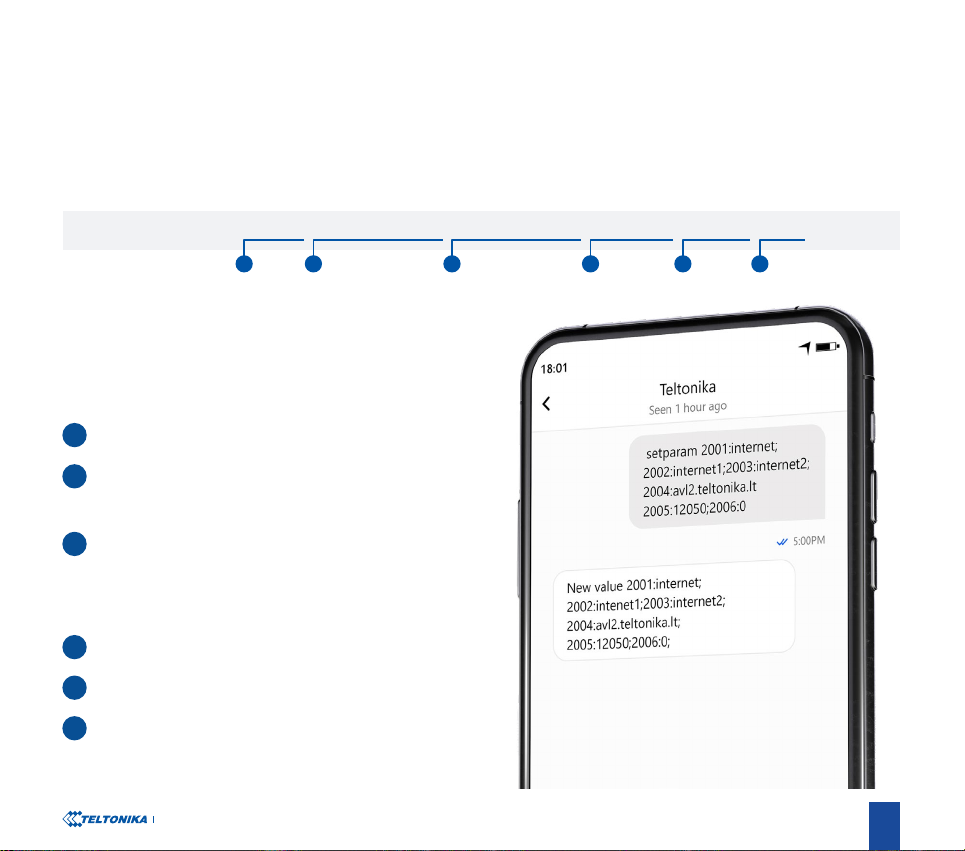

QUICK SMS CONFIGURATION

Default conguration has optimal parameters present to ensure best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

 2001 – APN

 2002 – APN username (if there are no APN username,

empty eld should be left)

 2003 – APN password (if there are no APN password,

empty eld should be left)

SERVER SETTINGS:

 2004 – Domain

 2005 – Port

 2006 – Data sending protocol (0 – TCP, 1 – UDP)

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

1 2 3 4 5 6
