Teltonika FMB122 Guide d'installation

Quick Manual

v1.6

Dual-SIM tracker with

external GNSS antenna

FMB122

FMB122 | Wiki

Table of Contents

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Wiring scheme................................................................................... 5

Set up your device......................................................................... 6

How to insert SIM card and connect the battery........................... 6

PC Connection (Windows)................................................................ 7

How to install USB drivers (Windows)............................................. 7

Configuration (Windows) ................................................................. 7

Quick SMS configuration.................................................................. 9

Mounting recommendations ..................................................... 10

LED indications............................................................................ 11

Characteristics............................................................................. 11

Basic characteristics ....................................................................... 11

Electrical characteristics ................................................................. 13

Safety information ...................................................................... 14

Certification and Approvals ....................................................... 15

Warranty ...................................................................................... 16

Warranty Disclaimer........................................................................16

FMB122 | Wiki

Know your device

Figure 1 FMB122 device view

FMB122 | Wiki

Pinout

Table 1 FMB122 2x6 socket pinout

PIN NUMBER PIN NAME DESCRIPTION

1 VCC (10-30) V DC (+) Power supply (+10-30 V DC).

2 AIN 1 Analog input, channel 1. Input range:

0-30 V DC.

3 AIN 2 / DIN 3 Analog input, channel 2. Input range:

0-30 V DC / Digital input, channel 3.

4 DIN 2 Digital input, channel 2.

5 DIN 1 Digital input, channel 1.

6 INPUT 6 TX EXT (LVCAN – TX).

7 GND (-) Ground pin. (10-30) V DC (―)

8 DOUT 1 Digital output, channel 1. Open

collector output. Max. 0,5 A DC

9 DOUT 2 Digital output, channel 1. Open

collector output. Max. 0,5 A DC

10 1WIRE POWER +3,8 V output for 1–Wire devices.

11 1WIRE DATA Data for 1–Wire devices.

12 INPUT 5 RX EXT (LVCAN - RX).

Figure 2 FMB122 2x6 socket pinout

FMB122 | Wiki

Figure 3 FMB122 Wiring scheme

Wiring scheme

1Automotive relay

FMB122 | Wiki

Set up your device

How to insert SIM card and

connect the battery

1. Gently remove FMB122 cover using plastic pry tool from both

sides.

2. Insert SIM card as shown with PIN request disabled or read

our Wiki how to enter it later in Teltonka Configurator. Make

sure that SIM card cut-off corner is pointing outward from slot.

SIM slot 1 is closer to PCB, SIM slot 2 is the top one.

3. Connect battery as shown to device. Position the battery in

place where it does not obstruct other components.

4. After configuration, see “PC Connection (Windows)”, attach

device cover back.

Figure 4 Cover removal Figure 7 SIM card insert Figure 5 Battery connection

Figure 6 Attaching cover back

FMB122 | Wiki

PC Connection (Windows)

1. Power-up FMB122 with DC voltage (10 – 30 V) power supply

using supplied power cable. LED’s should start blinking, see

“LED indications”.

2. Connect device to computer using Micro-USB cable or

Bluetooth connection:

•Using Micro-USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

•Using Bluetooth

▬FMB122 Bluetooth is enabled by default. Turn on

Bluetooth on your PC, then select Add Bluetooth or

other device > Bluetooth. Choose your device named –

“FMBxxx_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FMB122 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS .NET REQUIREMENTS

Operating

system

MS .NET Framework

version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2 32 and 64 bit www.microsoft.com

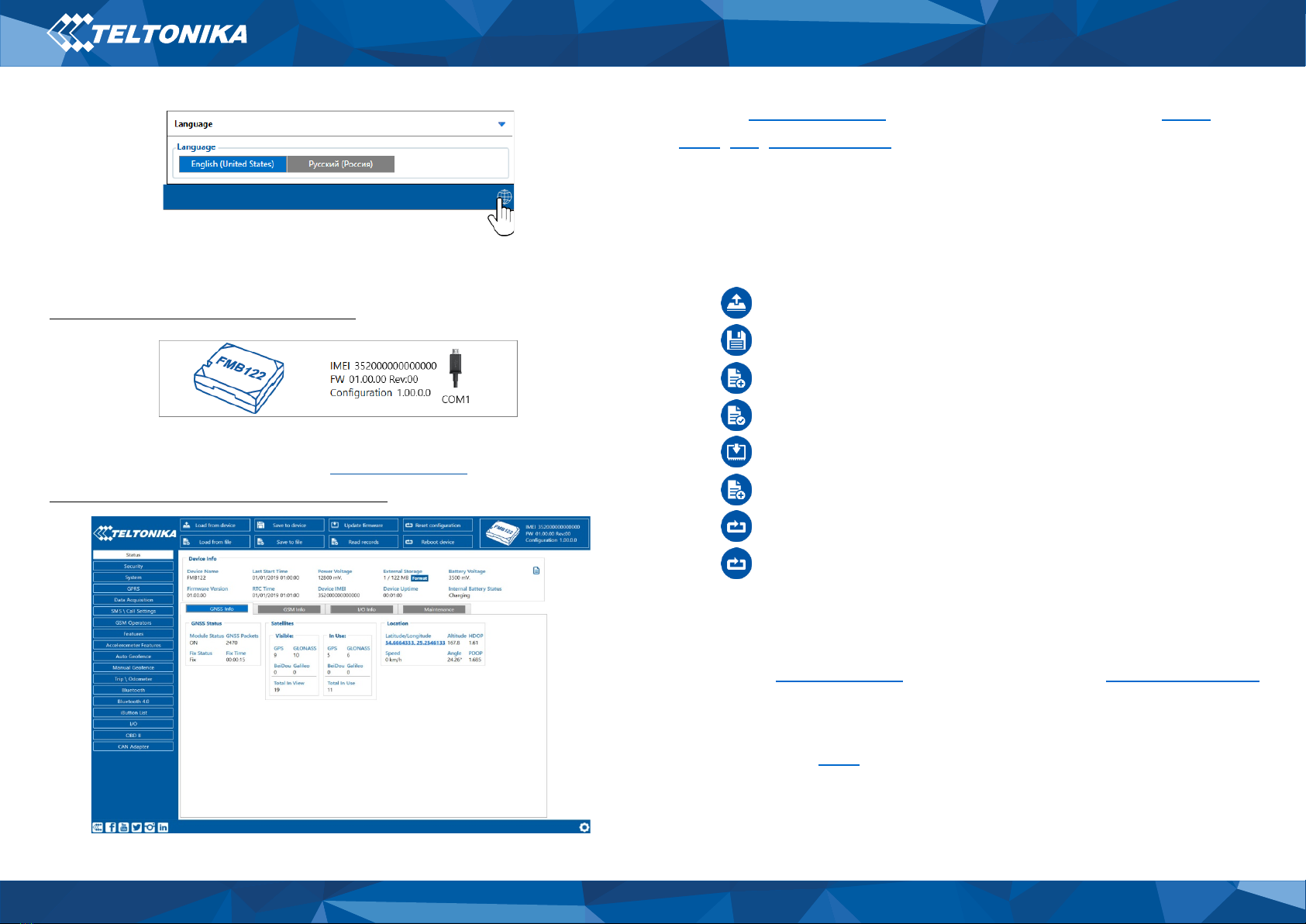

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 8

Language selection).

FMB122 | Wiki

Configuration process begins by pressing on connected device

(Figure 9 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 10 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. FMB122 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device – loads configuration from device.

2. Save to device – saves configuration to device.

3. Load from file – loads configuration from file.

4. Save to file – saves configuration to file.

5. Update firmware – updates firmware on device.

6. Read records – reads records from the device.

7. Reboot device – restarts device.

8. Reset configuration – sets device configuration to

default.

Most important configurator section is GPRS – where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FMB122 configuration using Configurator can

be found in our Wiki.

Figure 9 Device connected via USB

Figure 8 Language selection

Figure 10 Configurator Status window

FMB122 | Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

•2001 – APN

•2002 – APN username (if there

are no APN username, empty

field should be left)

•2003 – APN password (if there

are no APN password, empty

field should be left)

Server settings:

•2004 – Domain

•2005 – Port

•2006 – Data sending protocol

(0 – TCP, 1 – UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2

– 30 V

Device makes a record

On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record

On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is

sent to the

server every 120

seconds

After successful SMS configuration, FMB122 device will

synchronize time and update records to configured server.

Time intervals and default I/O elements can be changed by using

Teltonika Configurator or SMS parameters.

" setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0"

FMB122 | Wiki

Mounting recommendations

•Connecting wires

▬Wires should be connected while the module is not plugged

in.

▬Wires should be fastened to stable wires or other non-

moving parts. Any heat emitting and/or moving objects

should be kept away from the wires.

▬There should be no exposed wires. If factory isolation was

removed while connecting the wires, the isolation material

should be applied.

▬If the wires are placed in the exterior or in places where they

can be damaged or exposed to heat, humidity, dirt, etc.,

additional isolation should be applied and the wires should

not be loose.

▬Wires cannot be connected to the board computers or

control units.

•Connecting power source

▬Be sure that after the car computer goes to sleep mode,

power might be still available on the power wires.

Depending on the car model, this may happen in 5 to 30

minutes period.

▬When the module is connected, measure the voltage again

to make sure it did not decrease.

▬It is recommended to connect to the main power cable in

the fuse box.

▬3 A, 125 V external fuse shall be used.

•Connecting ignition wire

▬Be sure to check if it is a real ignition wire i. e. power does

not disappear after starting the engine.

▬Check if this is not an ACC wire (when key is in the first

position, most of the vehicle electronics are available).

▬Check if power is still available when you turn off any of

vehicles devices.

▬Ignition is connected to the ignition relay output. As

alternative, any other relay, which has power output when

ignition is on, may be chosen.

•Connecting ground wire

▬Ground wire is connected to the vehicle frame or metal

parts that are fixed to the frame.

▬If the wire is fixed with the bolt, the loop must be connected

to the end of the wire.

▬For better contact scrub paint from the spot where loop is

going to be connected.

Autres manuels pour FMB122

Table des matières

Autres manuels Teltonika GPS

Teltonika

Teltonika GH1200 Manuel utilisateur

Teltonika

Teltonika FMU125 Guide d'installation

Teltonika

Teltonika FM3200 Manuel utilisateur

Teltonika

Teltonika Telematics FMB150 Guide d'installation

Teltonika

Teltonika FMC920 Manuel utilisateur

Teltonika

Teltonika Telematics FMC880 Guide d'installation

Teltonika

Teltonika FM3001 Guide d'installation

Teltonika

Teltonika FMB964 Guide d'installation

Teltonika

Teltonika GH5200 Manuel utilisateur

Teltonika

Teltonika FMB900 Guide d'installation et d'utilisation

Teltonika

Teltonika FM3622 Manuel utilisateur

Teltonika

Teltonika FMB140 Manuel utilisateur

Teltonika

Teltonika Telematics FMM150 Guide d'installation

Teltonika

Teltonika FMB001 Guide d'installation

Teltonika

Teltonika FMM800 Guide d'installation

Teltonika

Teltonika FMA202 Manuel utilisateur

Teltonika

Teltonika FMC640 Guide d'installation

Teltonika

Teltonika FMB202 Guide d'installation

Teltonika

Teltonika TMT250 Manuel utilisateur

Teltonika

Teltonika TMT250 Guide d'installation et d'utilisation

Teltonika

Teltonika FMC130 Manuel utilisateur

Teltonika

Teltonika FMM920 Guide d'installation

Teltonika

Teltonika TMT250 Manuel utilisateur

Teltonika

Teltonika FMT100 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
