Telstra WI-FI 4G ADVANCED II Instructions de montage

GETTING TO

KNOW YOUR

TELSTRA WIFI

4G ADVANCED II

telstra.com/mbb

13 2200

visit a telstra store or partner

WHAT’S

INSIDE

03 Safety first

05 Let’s get started

13 Getting connected

19 Monitoring your data usage

21 Using the LCD touchscreen

29 Wi-Fi home page

33 Extra features

37 Problem solving

41 Extra bits you should know

LET’S GET THIS SHOW

ON THE ROAD

Your Telstra Wi-Fi 4G Advanced II has

been tested to the highest standards to

deliver you the best possible coverage

and speed experience on the network

without equal.

This guide will help you get connected

as quickly and as easily as possible.

It’ll get you started and run through

all the handy extra features that

are included.

If all goes to plan you’ll be up and running

in no time, so you can get connected

while you’re on the move.

SAFETY

FIRST

Please read all the safety notices before using this

device. This device is designed to be used at least

20cm from your body. Do not use the device near

fuel or chemicals or in any prescribed area such as

service stations, refineries, hospitals or aircraft.

Obey all warning signs where posted.

Radio frequency safety information

The device has an internal antenna. For optimum

performance with minimum power consumption

do not shield the device or cover it with any object.

Covering the antenna affects signal quality, may

cause the router to operate at a higher power level

than needed, and may shorten battery life.

Radio frequency energy

Your wireless device is a low-power radio

transmitter and receiver. When switched on it

intermittently transmits radio frequency (RF) energy

(radio waves). The transmit power level is optimised

for best performance and is automatically reduced

when there is good quality reception. Maximum

power is used only at the edge of network coverage

so under most circumstances the power output is

very low. Under poor network conditions the device

transmits at a higher power, may get hot and may

have a significantly shorter battery life.

Declaration of conformity –

specific absorption rate (SAR)

Your device is designed to be used at least 20cm

from the body. We declare that the product

detailed in this manual, and in combination with

our accessories, conforms with the essential

requirements of the Radio Communications

Standard (Electromagnetic IC Radiation Human

Exposure) 2003 and the Australian Communications

and Media Authority Section 376 of the

Telecommunications Act 1997 when used at a

distance of not less than 20cm from the body.

The worst case SAR test result for 10g tissue size

measured at 10mm distance is 0.55W/Kg.

ROHS declaration

(reduction of hazardous substances)

The manufacturer declares that your device is free

from hazardous materials and complies with EU

directive 2002/95/EC (commonly known as RoHS)

and the amendments.

N10947

Your package contains the following:

• Telstra Wi-Fi 4G Advanced II device and battery

• This getting started guide

• Micro USB cable

• Jump boost cable

• AC adapter

• Manufacturer’s warranty card

LET’S GET

STARTED

You can also purchase the following accessories:

• External antenna – improves performance in areas

with low signal strength. See your local Telstra

store or partner for assistance with picking the

best antenna option for you as well as help with

installation.

• AirCard Cradle – provides in-dock charging, an

Ethernet port connection, and can provide improved

performance in areas with poor coverage.

Information on accessories is available at

http://www.netgear.com/telstraaccessories

YOUR TELSTRA

WI-FI 4G ADVANCED II

1. LCD touchscreen

Capacitive touch screen with options to

manage device settings, data usage and

Wi-Fi network connections.

2. Status LED

Shows data connection status:

• Ready (slow blue blink)

• Transferring data (double blue blink)

• Not ready (slow amber blink)

3. AC adapter / Micro USB port

Recharge the battery faster by using the adapter.

4. External antenna connectors

Connections for an optional MIMO Dual TS-9 port

external antenna to boost your signal. Antennas are

available from selected Telstra stores and partners.

For information on the correct way to attach an

antenna, see page 33.

5. Power

Turn your device on or off – Press the key for

a few seconds. The LED blinks blue when your

device is ready.

• Wake your device and Wi-Fi radio – Press and

quickly release the Power key.

910

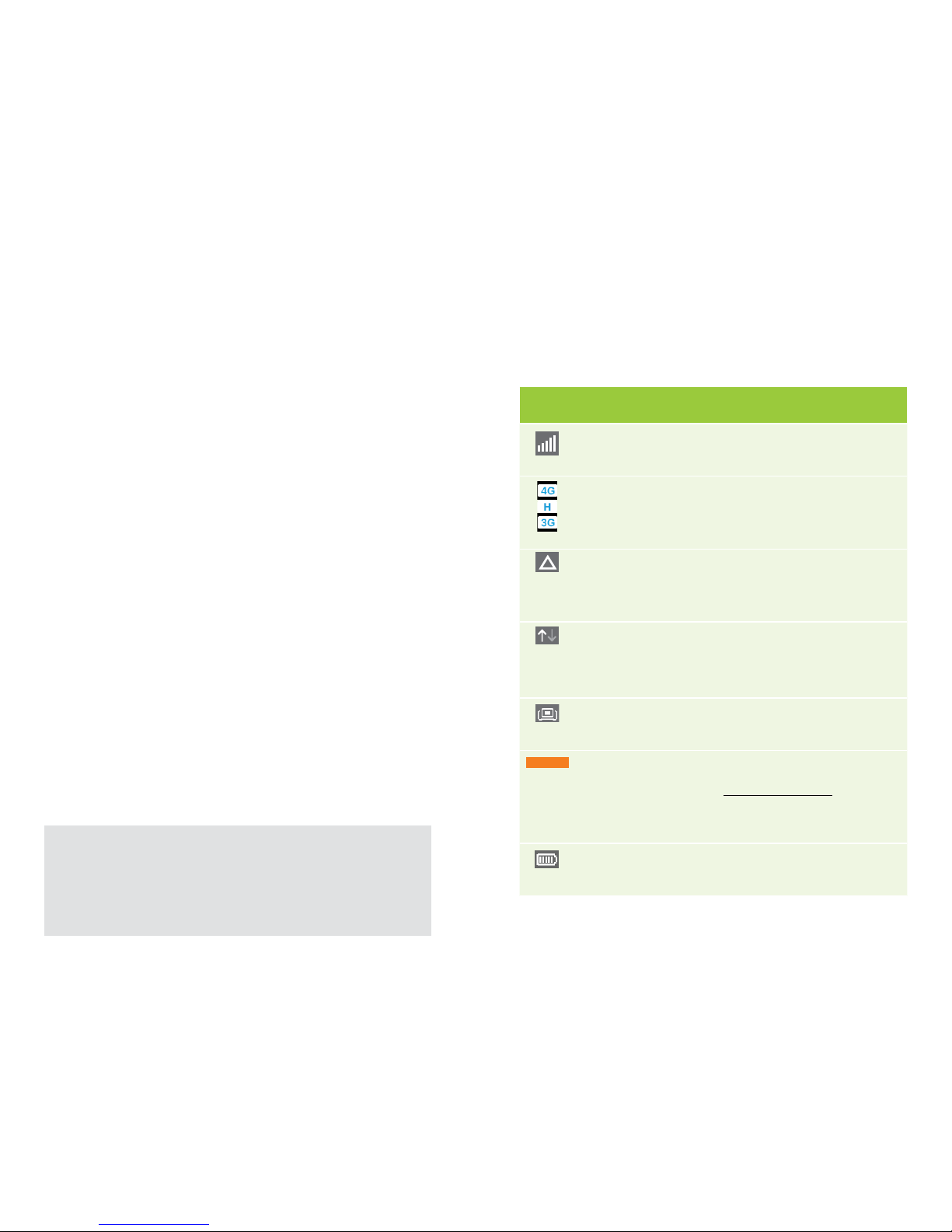

The device indicator panel shows you the status

of your new Telstra Wi-Fi 4G Advanced II. Icons

Signal

strength

1 bar – low level

5 bars – excellent

Network

type

HSPA+ /DC HSPA

Roaming Connected to a

network other

than Telstra’s

Traf fic Outline – Connected

Solid – Sending / receiving

None – Not connected

Hub Appears when docked in

a hub (sold separately)

Alert Go to the Wi-Fi home

page http://m.home to

view system alerts or

swipe down

Battery

level

5 bars – fully charged

1 bar – battery low

ALERTS (2)

You can also view alerts and notifications by

swiping downwards from the alert icon at

the top of the screen. Scroll across to view

multiple alerts.

11 12

Quick reference section

Default Wi-Fi name

(SSID)

Displayed on the front

screen of your device

when powered on and

under the battery.

Default Wi-Fi

password

(Security Key)

Case sensitive and is

displayed on the front

screen of your device

when powered on and

under the battery.

Wi-Fi home page http://m.home

Wi-Fi home page

password

admin

Restore defaults Tap Settings > More >

Factory Reset

Wi-Fi Name (SSID) and Wi-Fi Password

(Security Key)

You can change the Wi-Fi Name and Wi-Fi

Password to your own preferences by selecting the

Wi-Fi icon on your device screen or via the Wi-Fi

home page. See page 21 and 29 for more details.

You need the following information to log on

to your Telstra Wi-Fi 4G Advanced II.

1. Insert SIM card and battery (If you haven’t already)

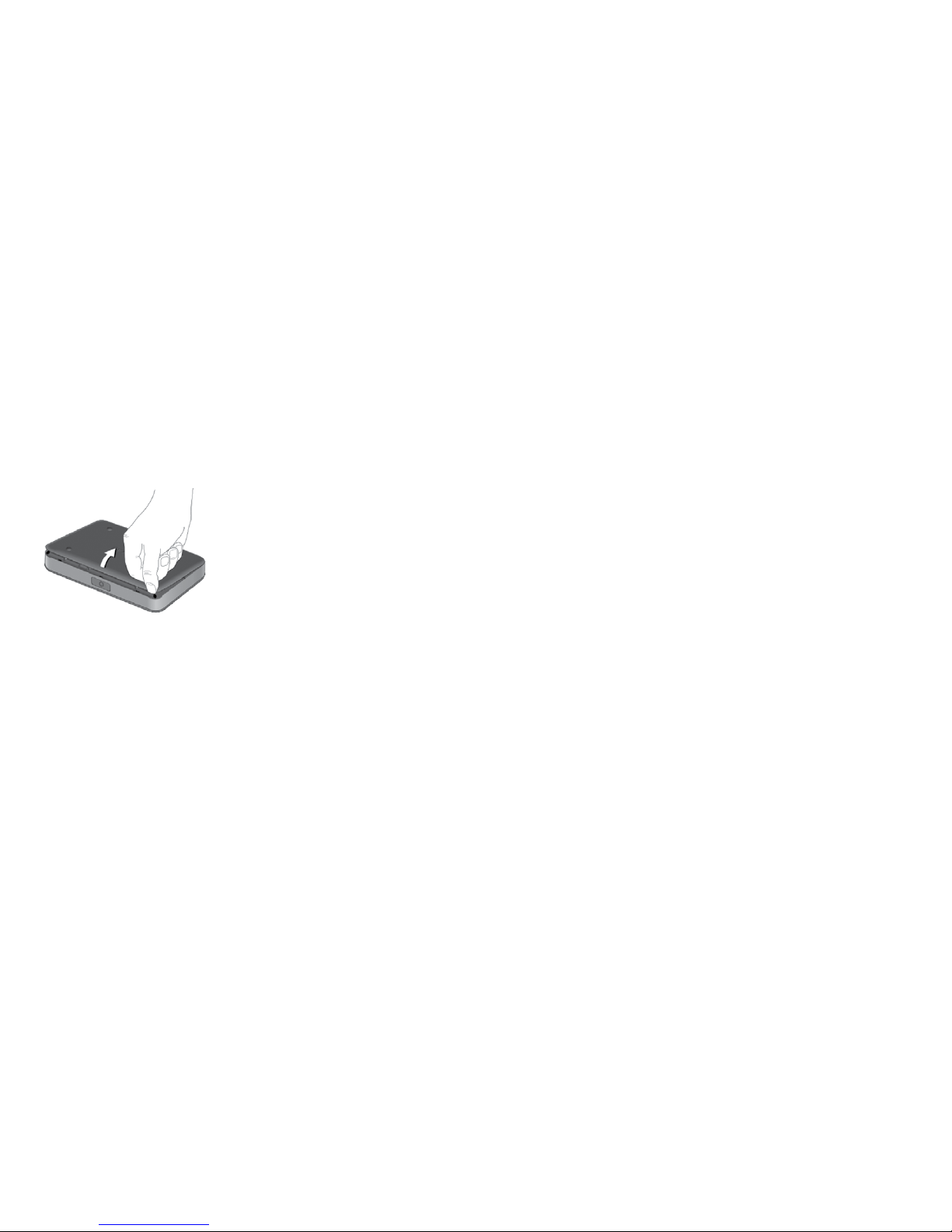

• Remove the back cover using thumb catch on

the bottom of the device and gently lift off.

2. Switch on your Telstra Wi-Fi 4G Advanced II

• Press and hold the Power key until the

screen lights up.

• To insert your micro SIM card (3FF), slide in as

shown with the chip facing down. Insert battery

and replace cover.

GETTING

CONNECTED

13 14

15 16

3. Search for wireless networks

• Check to make sure your computer or other device

has Wi-Fi enabled and search for wireless networks.

Refer to the following table or your Wi-Fi enabled

device manual for further details on searching for

wireless networks

• Select the Wi-Fi name displayed on your

device screen

• Enter the Wi-Fi password exactly as shown on the

screen. Note that your password is case sensitive

4. Ending your session

• Switch your device off, or disconnect via

your computer or other device

Searching for wireless networks

For Windows Click on the Internet Access

icon, usually found on the

very bottom right of your

screen. This should show

you available networks.

For Mac Go to the Wi-Fi menu and

select Network.

If you’re using an older

Mac OS version, you can

also access Network

Preferences in the

Apple menu.

For tablets Usually found in Settings.

17 18

Recharging your battery

Your battery comes partially charged.

When you need to recharge it:

• Plug in the micro USB cable to your device

• Plug the other end of the cable into the AC adapter

and plug the adapter into an electrical outlet, or plug

into the USB port on your computer

Connecting WPS (Wi-Fi Protected Setup)

enabled devices

WPS is a feature which acts as an additional

security measure when connecting to a Wi-Fi

network, available with compatible devices.

To connect with WPS, follow these instructions:

• Using the touch screen, tap the Wi-Fi icon,

then select WPS.

• Within 2 minutes, press the WPS button on the

device you want to connect to your Wi-Fi network

Telstra Wi-Fi 4G Advanced II and the other device

communicate with each other and establish

the connection.
