Tellur TLL331501 Manuel utilisateur

works with

Siri Voice

Installation guide and operation instructions

Ghid de instalare și instrucțiuni de funcționare

Guía de instalación e instrucciones de funcionamiento

Guide d’installation et mode d’emploi

Guida all'installazione e istruzioni per l'uso

Einbauanleitung und Bedienungsanleitung

Smart WiFi Water Valve

TLL331501

Thank you for choosing Tellur products!

To ensure an optimum performance and safety, please read this user

manual carefully before using the product. Keep this user manual safe

for future references.

1. GENERAL SAFETY INFORMATIONS:

1.1 WARNINGS

• We recommend that the installation be done by qualiﬁed personnel.

• Make sure to switch off the water and power supply before installing

or maintaining the product!

• Make sure you have prepared the necessary tools suitable for assem-

bly, disassembly.

• The valve size is DN20 (3/4”) standard with BSP thread. Check if you

have different standard and prepare adapters if needed (not included)

• Make sure that there is at least one control valve before the installa-

tion position in the direction of the water ﬂow.

• Respect the technical speciﬁcations of the product and do not use it

outside the declared operating parameters.

1.2 ATTENTION

• To avoid wiring damage or abrasion, do not expose the wire to edges

of metal or other sharp objects.

• Do not install the product in an installation that exceeds the maximum

pressure limit, 10 Bar.

• Don’t use the product if it is damaged in any way, shape, or form.

• Don’t attempt to repair, disassemble, or modify this product.

• Don’t place the product near any heat source or in direct sunlight.

1.3 NOTES

• The Smart Valve is powered by DC 5V 2A USB cable. In case of power

source cut off, if the valve is in open position, it will close automatically

to prevent any leakage.

• In case of power source cut off, using an alternative power source

with USB Output, like a portable battery, computer or generator, the

valve can be controlled locally through physical button.

1.4 IMPORTANT NOTES ABOUT WIFI SMART CONTROL WITH

TELLUR SMART APP

• Make sure you have an active 2.4GHz Wi-Fi internet network, and you

have access to Wi-Fi password.

• This device is compatible with 2.4GHz Wi-Fi networks only. 5GHz Wi-Fi

is not supported. If you don’t have 2.4GHz Wi-Fi network available, check

the router settings, contact a specialized technician or the internet

provider for support.

• The app does not support Wi-Fi 6 networks with 802.11ax standard.

Please set the 2.4GHz Wi-Fi network to 802.11b/g/n.

• No special gateway is required to remotely control the product via Wi-Fi.

• Wi-Fi passwords should not include special characters such as ~!

@#$%^&*().

• Make sure your Wi-Fi internet is stable and the signal is strong enough

in the installation location.

2. PRODUCT OVERVIEW

2.1 PRODUCT DIAGRAM

71mm

88mm

68mm

63mm

20mm

2.2 MAIN FUNCTIONS

• Safe, strong, and reliable construction, made with Stainless Steel for

pipe connector and valve, waterproof rating IP67.

• Multipurpose use, home, greenhouse, garden, ﬁre security systems

• Remote Control via the Internet, using Tellur Smart APP

• Voice Control Through Alexa, Google, Siri Shortcuts

• Precise adjustment of the required water ﬂow

• Time-of-use scheduling and automation

• Physical switch for fully open or fully close the valve manually.

• Power failure protection. The valve will close the water ﬂow automati-

cally in case of power supply cut-off.

• USB 5V power supply connector with 1.5 meters long cable. In case of

emergencies, it can work with portable power banks or other devices

that have USB output.

2.3 IN THE BOX

• Smart Wi-Fi Water Valve

• USB Power cable

• Installation guide and operation instructions

2.4 NOTES

For full technical speciﬁcations please check chapter 9

3. PRODUCT INSTALLATION

3.1 WARNING

Make sure to switch off the water and power supply before installing or

maintaining the product!

3.2 PREPARATIONS AND CHECKS BEFORE INSTALLATION

• We recommend that the installation be done by qualiﬁed personnel.

• Make sure you have prepared the necessary tools suitable for assem-

bly, disassembly.

• The valve size is DN20 (3/4”) standard with BSP thread. Check if you

have different standard and prepare adapters if needed (not included)

3.3 INSTALLATION/MOUNTING

• Mount the valve on the required pipe and make sure the connections

are secure and there are no water leaks.

• Power the valve to an outlet with a USB port

• Check if the manual button opens and closes the valve properly.

3.4 NOTES

For Troubleshooting please check chapter 8

4. PAIRING THE DEVICE WITH TELLUR SMART APP

4.1 ATTENTION

• This device only supports 2.4GHz frequency band router, does not

support 5GHz frequency band router.

• Mare sure your phone is connected to the 2.4GHz wireless network

and you have access to Wi-Fi password before you start the pairing

procedure.

• The app doesn’t support Wi-Fi 6 networks with 802.11ax standard.

Please set the 2.4GHz Wi-Fi network to 802.11b/g/n

• Wi-Fi passwords should not include special characters such as ~!

@#$%^&*().

• Make sure the Wi-Fi signal is strong enough in the area where the

device will be installed.

4.2 DOWNLOAD AND INSTALL THE TELLUR SMART APP

Available for either iOS or Android devices.

4.3 CREATE AN ACCOUNT

Once downloaded, the app will ask you to create an account (if you don’t

have any already). Enter your email, select the country you live in and

create a password for your Tellur Smart account.

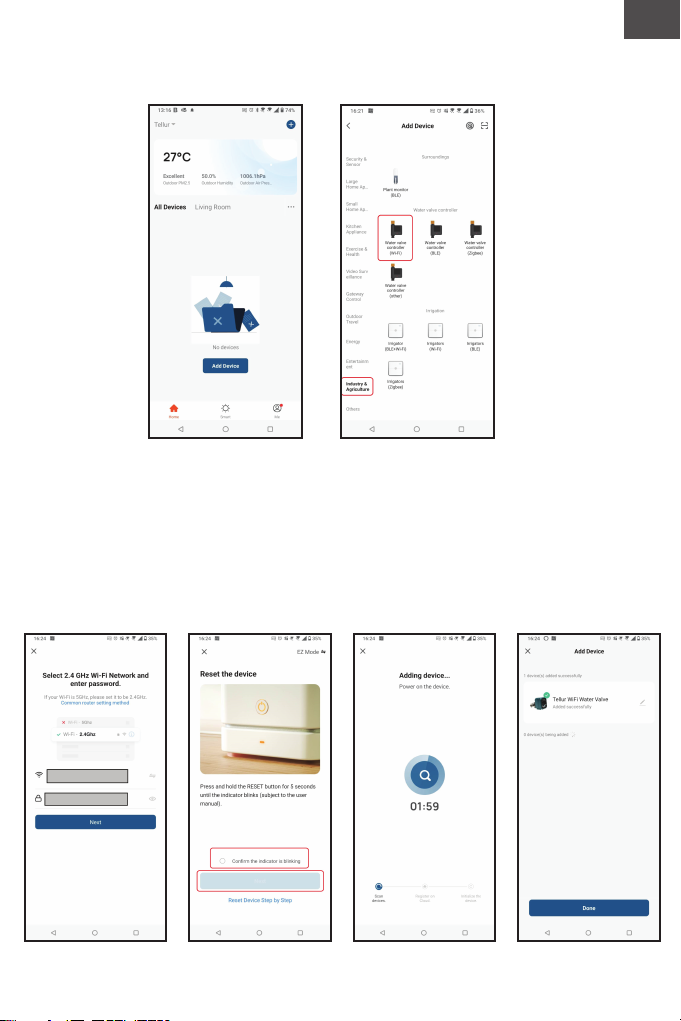

4.4 PRODUCT PAIRING

•Open the Tellur Smart app and click “Add device” or “+” and then

select “Industry & Agriculture” -> “Water valve controller (Wi-Fi)”.

• Power on the valve and wait until the Wi-Fi LED is ﬂashing quickly.

• If the LED doesn’t ﬂash, long press the manual switch button for about

5 seconds.

• Select the Wi-Fi network, input your Wi-Fi password and click "Next".

• Conﬁrm the LED is ﬂashing quickly in the app interface.

• Wait for the device to be added automatically. Tap “Done” when

ﬁnished and the device will appear in your list

4.5 NOTES

For Troubleshooting please check chapter 8

5. TELLUR SMART APP FEATURES

Main interface

1. Actual percentage of open valve status

2. Set ﬂow rate from 0% to 100%

3. OFF - close the valve to 0%

4. MAX - open the valve to 100%

5. Schedule

6. Countdown

• Schedule – You can set how

often, how long and at what ﬂow

rate should the valve stay open.

• Countdown – You can set a

precise amount of time for the

valve to stay open.

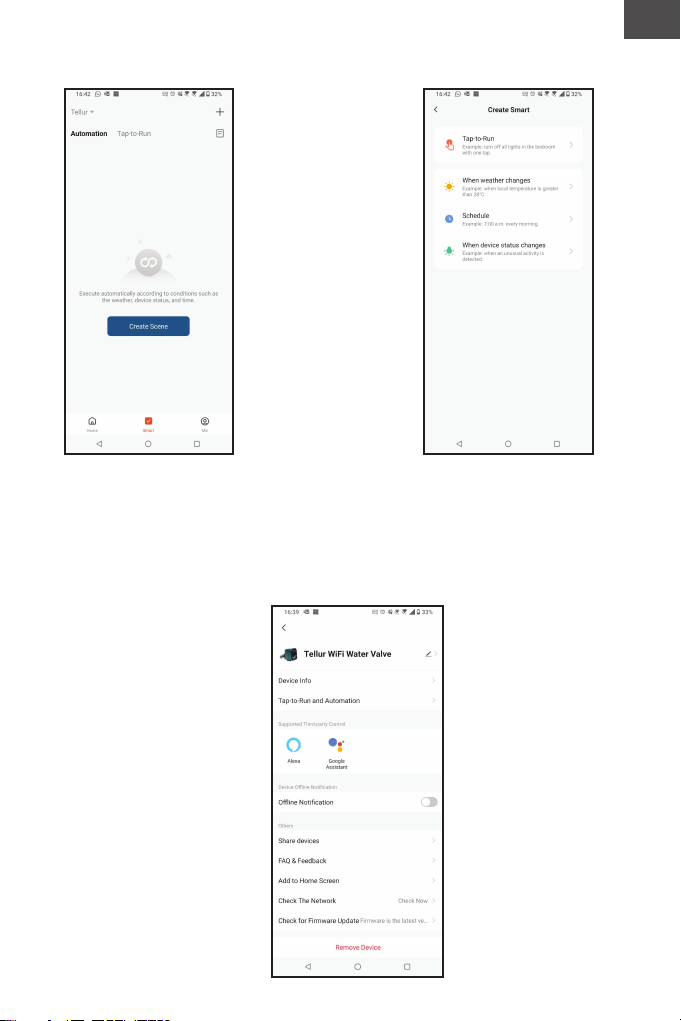

• Smart - Create various automations and scenarios using

weather changes, other devices behavior or schedules.

• Settings – You can share the device with others, check for ﬁrmware

updates, rename, remove device, get notiﬁcation if the device

becomes ofﬂine.

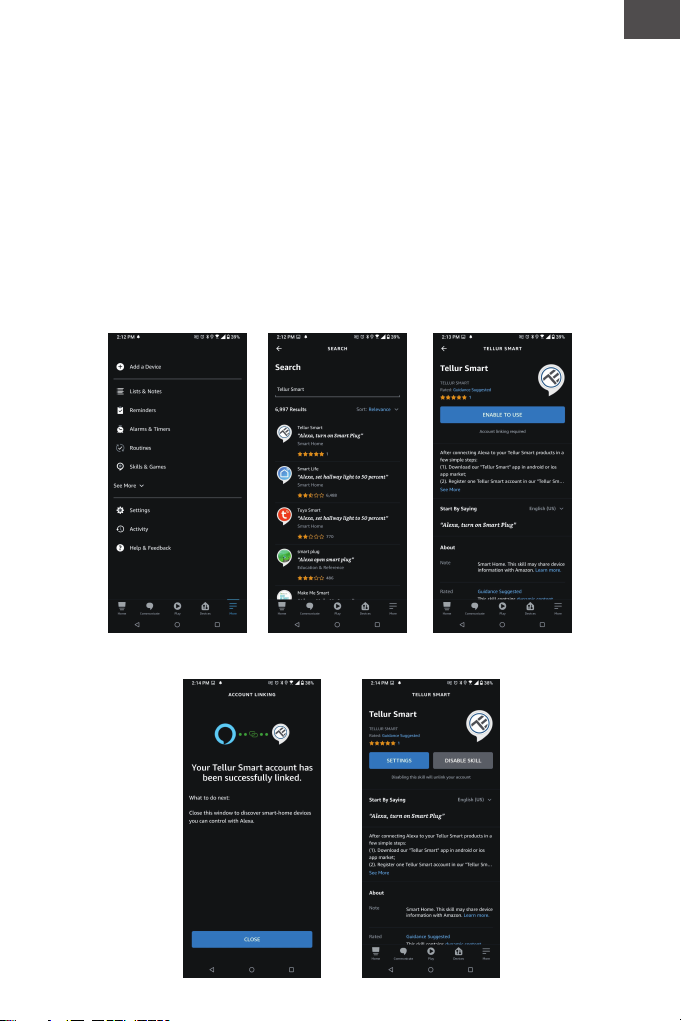

6. Amazon Alexa integration

1. Go to Home menu on Alexa app.

2. Select "Skills" / "Skills & Games".

3. Type Tellur Smart in the search bar.

4. Select Tellur Smart and click "Enable" to activate Tellur Smart.

5. Enter your Tellur Smart account and password. Now you have ﬁnished

the integration with Alexa.

Tellur Smart app is now skilled with Alexa, and you can vocally control

the devices added in Tellur Smart.

Remember - if you rename your smart devices, use a simple name that

Alexa can recognize.

1. 2. 3.

4. 5.

7. Google Home integration

Before using Google Home to control your devices, make sure you meet

the following conditions:

•You have a Google Home device or an Android device with Google

Assistant.

•You have the newest version of Google Home app.

•You have the newest version of Google app (Android only).

•The device display language is set to English US.

•You have the Tellur Smart app and a related account.

Add devices in Tellur Smart app (refer to app instructions) – you can skip

this part if you have already added some devices to your Tellur Smart

account. Make sure your devices' names are easily recognizable.

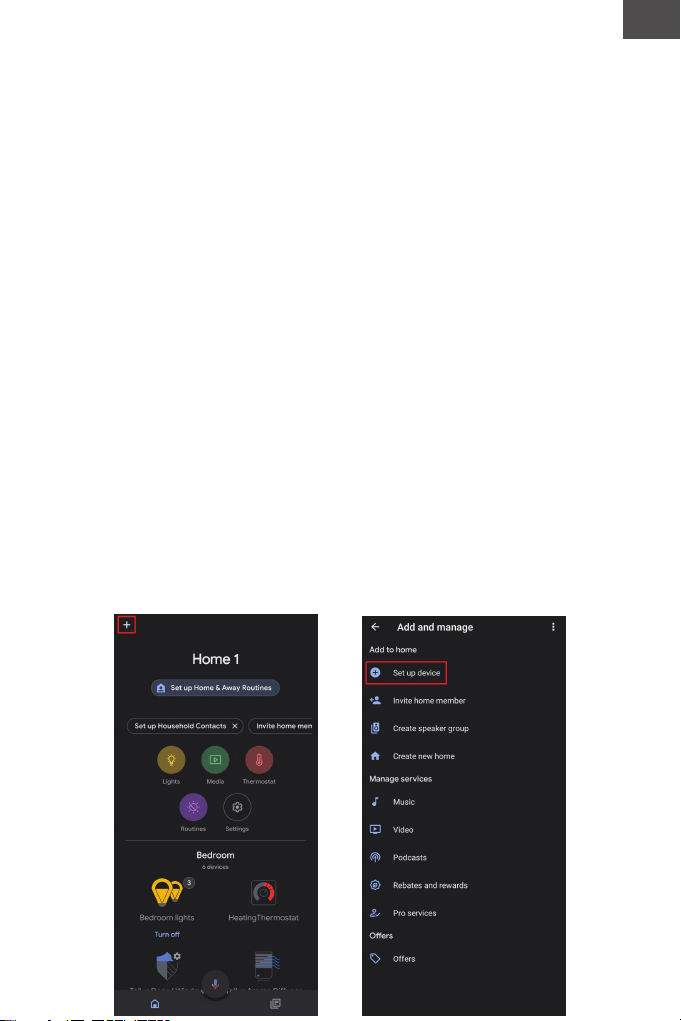

Link account in Home Control

1.Go to Google Home's homepage and tap "+".

To control your smart devices through Alexa, use simple and concise

voice commands. Here is an example for bedroom lighting:

“Alexa, turn off bedroom light”

“Alexa, turn on bedroom light”

“Alexa, dim bedroom light”

“Alexa, set bedroom light to red”
