Teledyne T3PM1006 Manuel utilisateur

T3PM1006

Digital Power Meter

User Manual

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Teledyne LeCroy company.

The information in this manual was correct at the time of printing.

However, Teledyne LeCroy continues to improve products and

reserves the rights to change specification, equipment, and

maintenance procedures at any time without notice.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

TABLE OF CONTENTS

Table of Contents

SAFETY INSTRUCTIONS .................................................. 5

GETTING STARTED........................................................ 10

Characteristics ............................................................11

Appearance.................................................................14

Set Up ........................................................................23

BASIC SETTING ............................................................. 26

Setting up measurement range ...................................27

Setting up measurement status ..................................31

Setting up System status ............................................41

MEASUREMENT AND OTHER FUNCTIONS .................... 46

Measurement function................................................47

Other functions ..........................................................50

Integration measurement function..............................52

REMOTE CONTROL ....................................................... 59

Configure Remote Control Interface ............................60

Return to Local Control...............................................63

COMMAND OVERVIEW ................................................. 64

Command Syntax ........................................................64

Command List ............................................................68

APPENDIX ....................................................................102

Specifications ...........................................................103

Dimensions ..............................................................108

Power measurement .................................................109

Introduction to IEC-62301.........................................111

EUP Directive Lot6 specifications .............................112

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

T3PM1006 User Manual

Connection Guide .....................................................113

CERTIFICATIONS ..........................................................115

EMC Compliance ......................................................115

Safety Compliance ....................................................117

Environmental Compliance .......................................118

RESTRICTION OF HAZARDOUS SUBSTANCES

(RoHS) .....................................................................118

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

T3PM1006 User Manual

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to ensure your safety and to keep

the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the T3PM1006

or to other properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

On (Supply)

Off (Supply)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

T3PM1006 User Manual

Safety Guidelines

General Guideline

CAUTION

Make sure that the voltage input level does not

exceed DC848V/AC600V.

Make sure the current input level does not

exceed 20A.

Do not place any heavy object on the

instrument.

Avoid severe impact or rough handling that can

lead to damaging the instrument.

Do not discharge static electricity to the

instrument.

Use only mating connectors, not bare wires, for

the terminals.

Do not block or obstruct the cooling fan vent

opening.

Do not perform measurement at the source of a

low-voltage installation or at building

installations (Note below).

Do not disassemble the instrument unless you

are qualified as service personnel.

Make sure that the COM terminal to earth is

limited to 300Vpk.

Remove all test leads before disconnecting the

mains power cord from the socket.

If the equipment is used in a manner not

specified by the manufacturer, the protection

provided by the equipment may be impaired.

The device should be placed in a way that the

plug connected to it can be removed easily.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

SAFETY INSTRUCTIONS

(Note) EN 61010-1:2010 specifies the measurement categories and

their requirements as follows. The T3PM1006 falls under category II

300V.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

Power Supply

WARNING

AC Input voltage: 100-240 VAC 50/60Hz

The power supply voltage should not fluctuate

more than 10%.

Connect the protective grounding conductor of

the AC power cord to an earth ground, to avoid

electrical shock.

Cleaning the

Instrument

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Temperature: 0°C to 40°C

Humidity: < 30°C: < 80%RH(non-condensing);

30°C~40°C:<70%RH(non-condensing);

>40°C: <50%RH (non-condensing)

Altitude: <2000m

(Note) EN 61010-1:2010 specifies the pollution degrees and their

requirements as follows. The T3PM1006 falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of

dielectric strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

T3PM1006 User Manual

by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

Storage

environment

Location: Indoor

Temperature: -40°C to 70°C

Humidity: <90%RH(non-condensing)

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

SAFETY INSTRUCTIONS

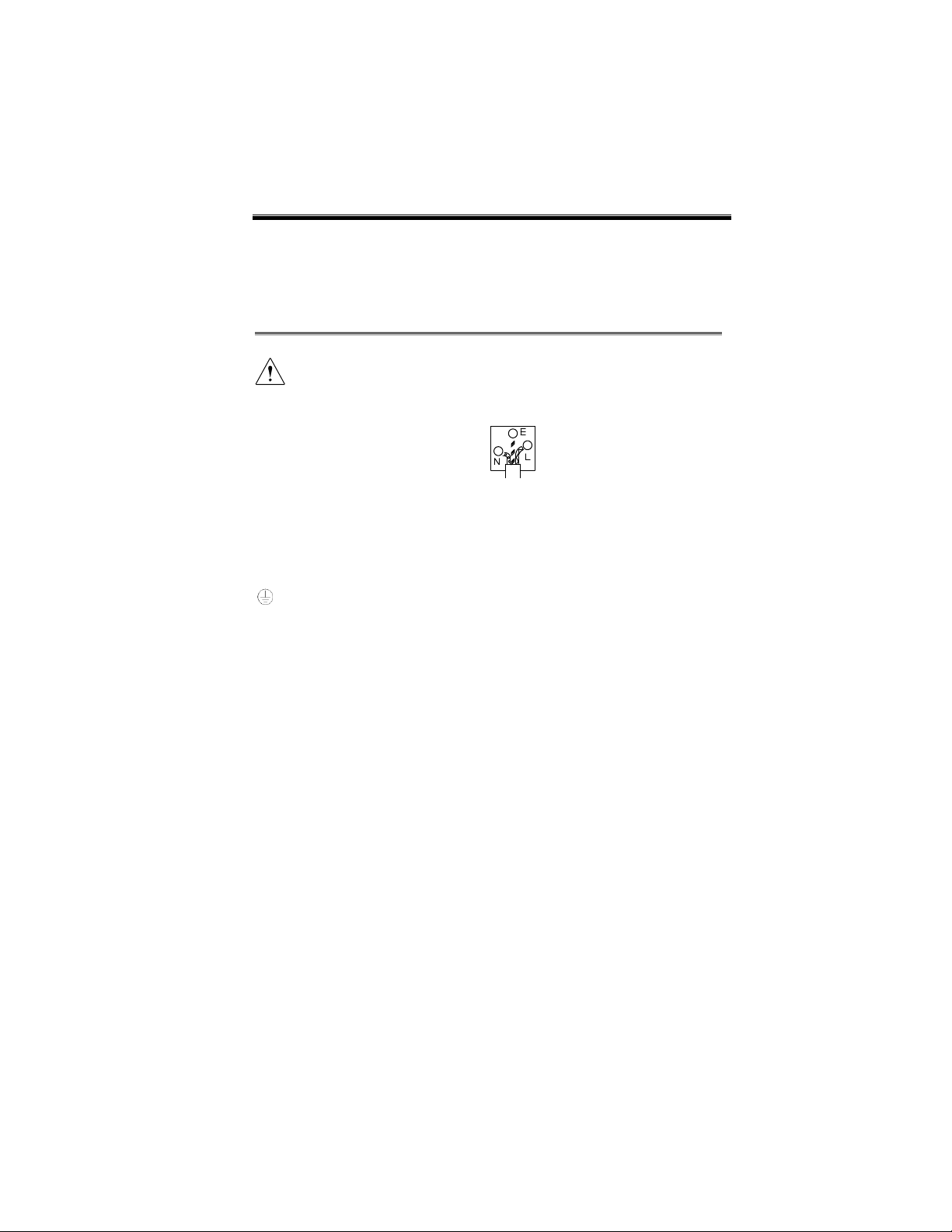

Power cord for the United Kingdom

When using the unit in the United Kingdom, make sure the power

cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the

following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed

as follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the

terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment

or contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable

of 0.75mm2should be protected by a 3A or 5A fuse. Larger

conductors would normally require 13A types, depending on the

connection method used.

Any exposed wiring from a cable, plug or connection that is

engaged in a live socket is extremely hazardous. If a cable or plug is

deemed hazardous, turn off the mains power and remove the cable,

any fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

T3PM1006 User Manual

GETTING STARTED

This chapter describes the T3PM1006, including

accessories, package contents, its main features

and front / rear panel introduction.

Characteristics ............................................................11

Accessories .............................................................................13

Package Contents ...................................................................13

Appearance .................................................................14

Front Panel..............................................................................14

Display Overview ....................................................................18

Rear Panel ...............................................................................21

Set Up.........................................................................23

Tilting the Stand......................................................................23

Power Up.................................................................................24

Connect the wires to the T3PM1006 ......................................25

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Teledyne Instrument de mesure

Teledyne

Teledyne HVG-2020A Manuel utilisateur

Teledyne

Teledyne IR7000 Manuel utilisateur

Teledyne

Teledyne TED 191 Manuel utilisateur

Teledyne

Teledyne 3000TA Guide d'installation et d'utilisation

Teledyne

Teledyne 465M Manuel utilisateur

Teledyne

Teledyne 1220 Manuel utilisateur

Teledyne

Teledyne Frontline Sodera Manuel utilisateur

Teledyne

Teledyne Sierra M6-2 Manuel utilisateur

Teledyne

Teledyne HASTINGS HFM-300 Manuel utilisateur

Teledyne

Teledyne T3SP Series Manuel utilisateur

Teledyne

Teledyne T200 Manuel utilisateur

Teledyne

Teledyne 514 Manuel utilisateur

Teledyne

Teledyne 200A Manuel utilisateur

Teledyne

Teledyne CEA 9001 Manuel utilisateur

Teledyne

Teledyne Everywhereyoulook T3PM1100 Manuel utilisateur

Teledyne

Teledyne First Responder CG Mode d’emploi

Teledyne

Teledyne T101 Manuel utilisateur

Teledyne

Teledyne 9110AH Manuel utilisateur

Teledyne

Teledyne 300M Manuel utilisateur

Teledyne

Teledyne TIENet 301 Mode d'emploi

Teledyne

Teledyne T200U Instructions d'installation et d'utilisation

Teledyne

Teledyne 4220 Mode d'emploi

Teledyne

Teledyne 4250 Mode d'emploi

Teledyne

Teledyne HASTINGS 200 Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
