Teledyne TED 191 Manuel utilisateur

TELEDYNEELECTRONICTECHNOLOGIES

AnalyticalInstruments

TED '

PORTABLE OXYGEN MONITOR

INSTRUCTION MANUAL

TYPE B EQUIPMENT: Equipment providing a particular degree of protec-

tion against electric shock, particularly regarding—

• allowable LEAKAGE CURRENT

• Reliability of the protective earth connection

(if present).

P/N TM0021

04/03/00

ECO # 00-0086

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

TELEDYNE ELECTRONIC TECHNOLOGIES – ANALYTICAL INSTRUMENTS

No part of this manual may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any other language or computer language in

whole or in part, in any form or by any means, whether it be electronic,

mechanical, manual, or otherwise, without the prior written consent of Teledyne

Electronic Technologies Analytical Instruments, 16830 Chestnut Street, City of

Industry, CA 91749-1580

Phone (626) 934-1500

FAX (626) 961-2538

Technical Support: (626) 934-1673

TWX (910) 584-1887 TDYANLY COID

or your local representative.

WARRANTY STATEMENT

The electronic control and display components of the TED 191 Portable Oxygen

Monitor are warranted against defective workmanship and materials for 24

months from date of shipment from Teledyne.

The class T-7 Micro-Fuel Cell is warranted for one year from the date of shipment

from Teledyne.

The liability of Teledyne, if any, shall be limited solely to the replacement and

repair of the goods, and shall not include shipping costs or other incidental

damages as defined in Section 2-715 of the U.S Uniform Commercial Code.

This warranty is null and void if any goods are subjected to misuse, negligence,

accident or repairs other than those performed by Teledyne or an authorized

service center.

Caution: Federal Law restricts this device to sale by or on the order of a

physician.

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

TABLE OF CONTENTS

SECTION TOPIC PAGE NUMBER

INTRODUCTION 4

APPLICATIONS 5

DESCRIPTIONS OF FUNCTIONAL ZONES:

FRONT PANEL 6

REAR PANEL 7

1. OPERATIONS:

1.1 SET-UP 8

1.2 INSTALL THE BATTERIES

1.3 INSTALL THE SENSOR 10

1.4 CALIBRATE THE INSTRUMENT 11

1.5 NORMAL OPERATION 12

1.6 SET THE ALARMS 13

2. ANAESTHETIC AGENTS 14

3. CLEANING 15

4. DO’S AND DON’T’S 16

5. ROUTINE MAINTENANCE .17

6. TROUBLESHOOTING 18

7. TECHNICAL SPECIFICATIONS 20

8. EFFECT OF PRESSURE 22

9. EFFECT OF HUMIDITY 23

10. EFFECT OF TEMPERATURE 24

11. DISCREPANCY IN READING 25

12. REPAIR SERVICE 26

SENSOR CELL REPLACEMENT LOG 27

TECHNICAL SERVICE LOG 28

GENERAL NOTES 29

SPARE PARTS LIST 30

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

INTRODUCTION

The TED 191 Portable Oxygen Monitor is an easy-to-use, portable instrument that provides fast

and accurate oxygen monitoring and audio-visual alarm capability. The TED 191 is designed to

monitor concentrations of up to 100% oxygen in medical gas mixtures.

The TED 191 Portable Oxygen Monitor is designed and manufactured in accordance with strict

performance and quality protocols and subject to ISO 9002 Quality System protocols. When used

correctly, this instrument will provide you with many years of trouble free service.

The TED 191 Portable Oxygen Monitor is a compact, self-contained unit, which is battery powered

by four (4) dry cell batteries (size AA/penlight).

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

APPLICATIONS

The instrument is designed for the measurement of oxygen concentrations in a variety of medical

gas mixtures. It is recommended that the instrument be used only as a secondary measuring

device to verify the concentration of oxygen in gas mixtures prepared using a gas blender or

similar apparatus. The use of this monitor as a primary or only means of preparing gas mixtures is

not advised.

The monitor is capable of verifying oxygen concentrations in gas mixtures used in:

•Anesthesia

•Neonatal Intensive care

•Adult Intensive care

•Respiratory / Oxygen Therapy

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

50 60

102

50 60

102

X21

TELEDYNE

% OXYGEN

OXYGEN MONITOR I O

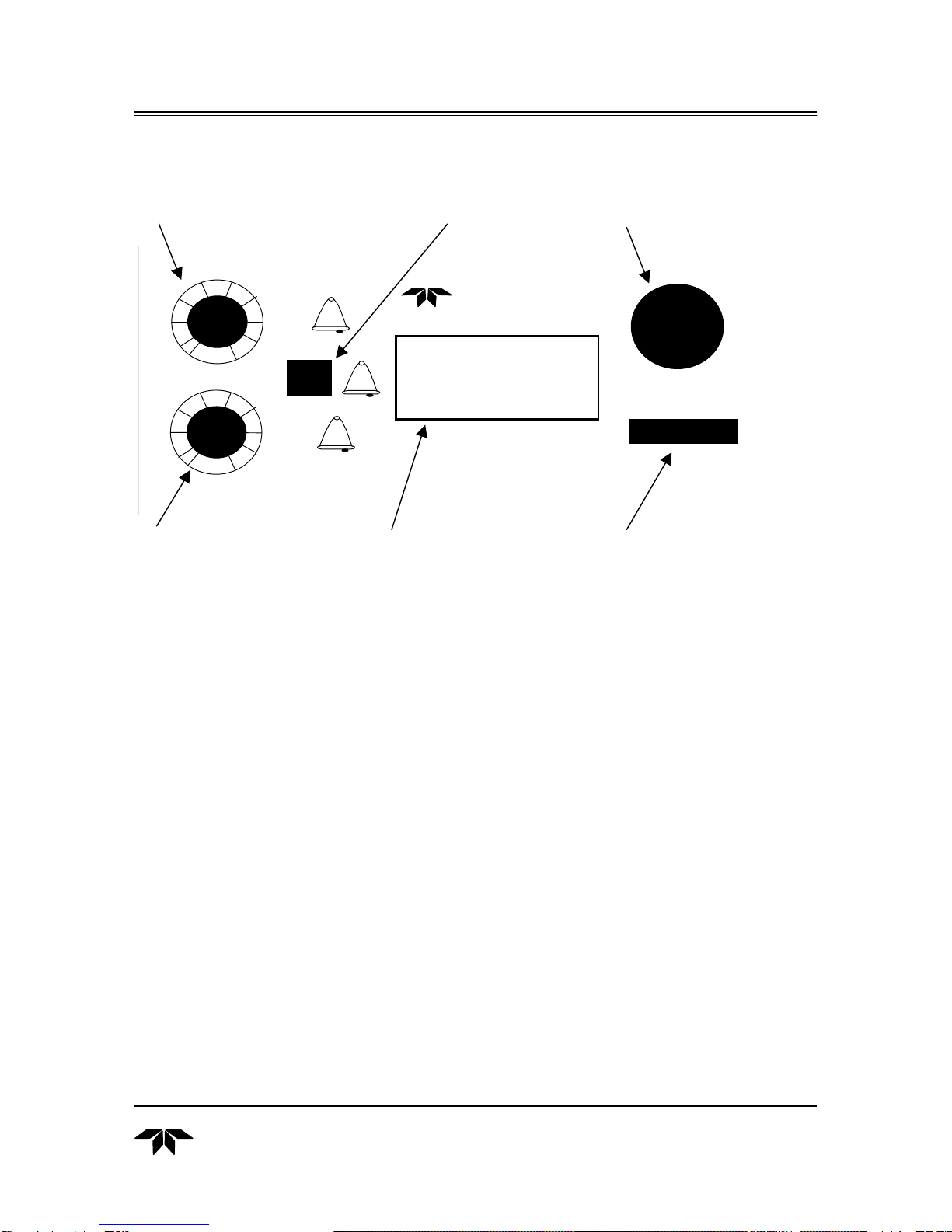

DESCRIPTION OF FUNCTIONAL ZONES

FRONT PANEL

On / Off Switch Allows the operator to turn the instrument on and off.

Alarm Mute Switch Allows the operator to “mute” the sound of the audible alarm

signal for ± 60 seconds. During this time, a red signal lamp will

flash, indicating a “muted” alarm condition is in force.

Calibration Control Allows the operator to calibrate the instrument to one primary set

point (usually 100%) in accordance with the designated calibration

protocol. This protocol is defined further in this manual and also.

Instructions in abbreviated form can be found on the top of the

monitor casing.

High Alarm Setting Allows the operator to define a high alarm threshold limit. Range

18% to 102% - if the actual measured value as displayed on the

LCD exceeds this set threshold, an audible and visual alarm

condition will be invoked.

Low alarm setting Knob Allows the operator to define a low alarm threshold limit. Range

18% to 100% - if the actual measured value as displayed on the

LCD falls below this set threshold, an audible and visual alarm

condition will be invoked.

Liquid Crystal Display Displays measured oxygen concentration, low battery condition

and provides a visual indication of either a high (+) or low (-) alarm

threshold violation.

Alarm Mute ButtonHigh Alarm Setting Knob Calibration Control

Liquid Crystal Display (LCD) On / Off Switch

Low Alarm Setting Knob

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

DESCRIPTION OF FUNCTIONAL ZONES

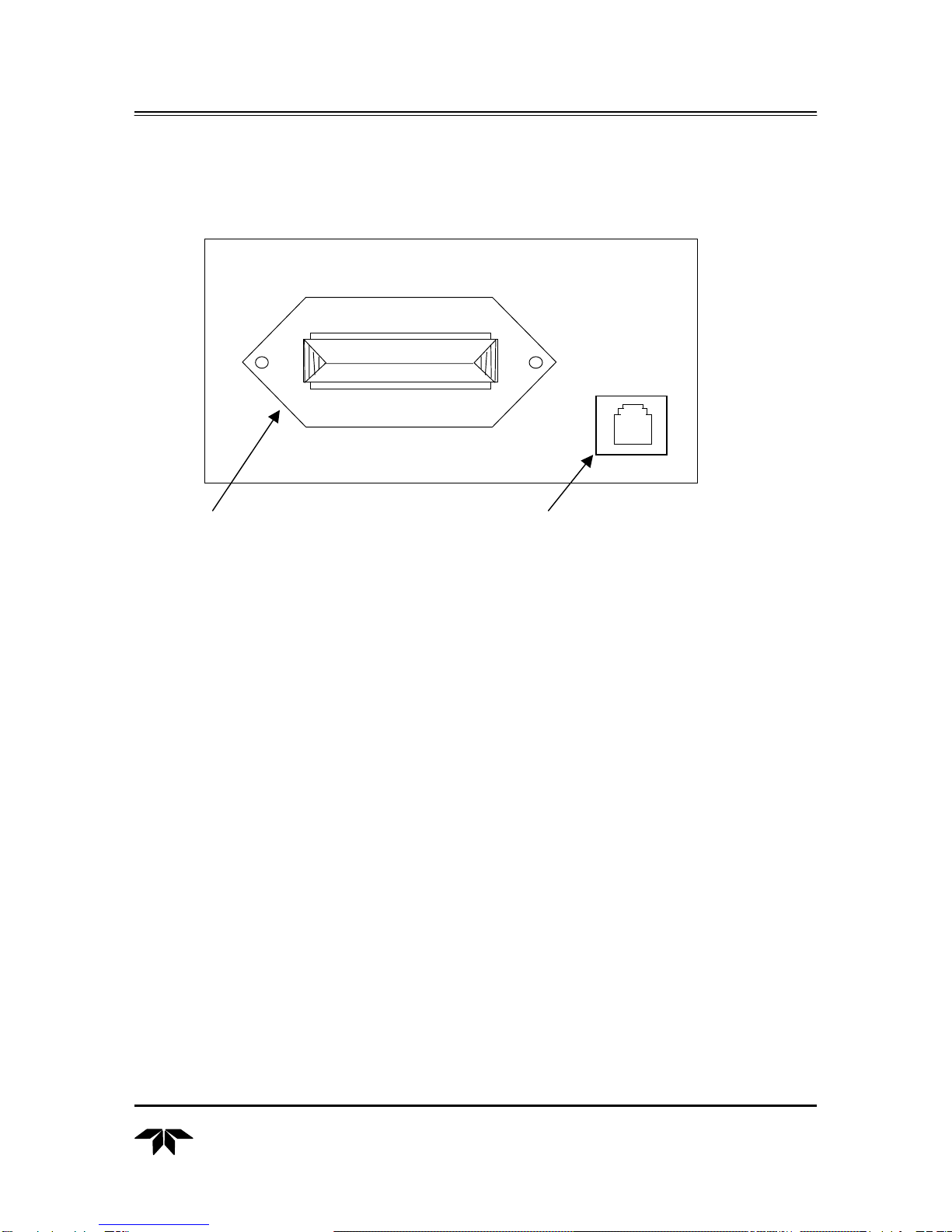

REAR PANEL

Battery Drawer The Battery Drawer contains 4 x AA (Penlight) batteries

required to power the instrument.

Sensor Cable Connector Plug The Oxygen Sensor Connector Cable is plugged into this

“one way” socket.

Battery Drawer Sensor Cable Connector Plug

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

SECTION ONE

OPERATIONS

Note : Upon receipt, inspect the entire unit and accompanying accessories for damage or broken

or loose parts. If damaged, do not use. Notify the Shipper, and consult Teledyne

Electronic Technologies Analytical Instruments

1.1 SET-UP

To set-up your TED 191 Portable Oxygen Monitor :

1.1.1 Install the Batteries

See 1.2 below for procedure

1.1.2 Install the Sensor

See 1.3 below for procedure

1.1.3 Calibrate the Instrument

See 1.4 below for procedure

1.1.4 Normal Operation

See 1.5 below for procedure

1.1.5 Set the Alarms

See 1.6 below for procedure

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

OPERATIONS

1.2 INSTALLING THE BATTERIES

Withdraw the battery drawer from the monitor casing, by grasping the side lugs located on

either side of the battery drawer, and, firmly pinching them inwards, simultaneously pull the

drawer outwards. When new, this action can be somewhat stiff and difficult to execute. Care

should be taken not to damage either the drawer or the casing of the monitor when

executing this procedure.

Fresh batteries must be inserted into the four battery recepticles located within the battery

drawer assembly. Care should be taken to ensure that the correct battery polarity is

maintained.

Caution : Improper installation of the batteries may result in heat damage to the

batteries.

Re-insert the battery drawer into the monitor casing, and close.

TELEDYNE ELECTRONIC TECHNOLOGIES

Analytical Instruments

OPERATIONS

1.3 INSTALLING THE OXYGEN SENSOR

The T-7 Oxygen Sensor must be installed before the instrument can be used.

Ensure that the monitor is switched off.

Remove the sensor from its protective bag. Inspect the sensor for damage or electrolyte

leakage. If the sensor is damaged obtain a replacement. Do not use the defective sensor as

it may be damaged.

Caution: the sensor electrolyte is caustic. Do not let it come into contact with skin. If it does,

immediately flush the affective area with water. Consult the Emergency First Aid procedures

as set out in the Material Safety Data Sheet for the sensor. Do not attempt to open or repair

the sensor. Leaking or exhausted sensors should be disposed of in accordance with local

regulations. Consult the Material safety Data Sheet supplied with the sensor.

Plug one end of the coiled cable into the telephone jack receptacle on the end of the

sensor. The jack will only fit one way, so if it does not fit, rotate it until it slides in easily.

Plug the other end of the coiled cable into the receptacle located on the right hand side of

the rear panel of the instrument. This jack will only fit one way, so do not force it.

Note : For sterilization procedures on the Oxygen Cell, see Section 3 on Page 15 below.

Caution : Do NOT autoclave the oxygen sensor
