Telco GW-482S Manuel utilisateur

MN100143 Rev B

EdgeGate 482S

VoIP Gateway

(GW-482S)

Installation Guide

GW-482S INSTALLATION GUID E

ii MN100143 Rev B

CERTIFICATION

Telco Systems certifies that this product met its published specifications at the time of shipment

from thefactory.

respective owners. No part of this documentation may be reproduced in any form or by any means

or used to make any derivative work (such as translation, transformation, or adaptation) without

permission from Telco Systems, Ltd.

Specificationsare subject to change without priornotice.

GW-482S INSTALLATION GUID E

iii MN100143 Rev B

Revision History

Revision Date Description

New October 2005 Created

B December 2005 Added supportfor GW-482S-LV-2-G and GW-482S-LV-4-G

GW-482S INSTALLATION GUID E

iv MN100143 Rev B

SAFETY CONSIDERATIONS

Please read these safety considerations before you begin installation. The instructions in this guide

are for use by qualifiedpersonnel only. To avoid shock, do not perform any procedures other than

those contained in the inst ructions.

EL ECTRIC SHOCK PREVENTION

Disconnect the product from the power line before removing the cover. Any adjustment and

maintenance of the opened device should be done only while the device is disconnected from its

source of power and should only beperformed by qualified personnel, authorized by Telco.

GROUNDING

Before connecting the product to the power line, make sure that the protective ground terminal of

thedevice isconnectedto the ground by astandard groundingconductor.

Any interruption of the protective (grounding) conductor or disconnection of the protective ground

terminal can makethe device unsafeto use. Intentional interruption is prohibited.

FUSES

Make sure that only UL recognized or listed fuses with the specified current rating and model

number or equivalent types are used for replacement. The use of repaired fuses and the short-

circuitingoffuseholdersisprohibited.

For all fuses, use 4A, 5mm x 20mm glass fuses, manufactured by Schurter, model 0034.3123, rated

250 V AC,or equivalent UL approved DC rated fuse.

LINEVOLTAGE

Before connecting the product to the power line, make sure the voltage of the power source

matches the requirements of the product, as marked on the label located near thepower connector.

vMN100143 Rev B

Table of Contents

INTRODUCTION............................................................................................................. 1

HOW TO GET HELP........................................................................................................... 1

BEFORE YOU INSTALL ...................................................................................................... 2

INSTALLING THE GW-482S............................................................................................ 5

MOUNTING THE CABINET.................................................................................................. 5

CONNECTING THE CABINET TOTHE GROUND......................................................................... 6

FIBEROPTICCABLE CONNECTION....................................................................................... 7

POWER CABLECONNECTION.............................................................................................. 8

CONNECTING THE ACPOWERCABLE................................................................................... 9

INSTALLING THEBATTERY................................................................................................10

CONNECTING ETHERNET AND PHONE CABLES.........................................................12

INSTALLATION INSTRUCTIONS FOR A UNIT SUPP LIED WITHOUT APATCH PANEL..........................12

INSTALLATION INSTRUCTIONS FOR UNIT SUPPLIEDWITHPATCH PANEL.....................................14

DIAGNOSTICS...............................................................................................................17

GATEWAY DIAGNOSTICS..................................................................................................17

SFP LINK ACTIVITY ........................................................................................................17

BATTERY CHARGER DIAGNOSTICS .....................................................................................18

SPECIFICATIONS..........................................................................................................19

APPENDIX A PATCH PANEL KIT INSTALLATION....................................................20

REQUIRED EQUIPMENT.....................................................................................................20

INSTALLATIONPROCEDURE ..............................................................................................20

APPENDIX B CABLE PINOUTS..................................................................................23

1MN100143 Rev B

Introduction

This guide provides installation instructions for the GW-482S family of VoIP Gateway systems.

The GW-482S is comprised of a VoIP gateway board, a battery backup and an AC/DC adaptor in

an outdoor cabinet. Figure1 shows the main components of the GW-482S system.

After completingthe installation, refer to EdgeGate VoIP Gateway H.323, MGCP, SIP User Guide

(MN100112)to configurethe EdgeGate VoIP Gateway system.

How to Get Help

Telco Systems ensures that the quality technical support you have come to expect for your Telco

productswill be maintained.

•Web Access

http://www.telco.com

•E-mail Access

E-mail your inquiry to: support@batm.co.il

•Telephone Access

Telco Systems Tech Support Hotline

800-227-0937 (U.S. and Canada)

GW-482S INSTALLATION GUID E

2MN100143 Rev B

Before You Install

Before you begin installation:

1.Please reviewthe packing list.

2. Familiarizeyourself with the equipment and unit(seepicturesbelow).

Packing List

•GW-482S Cabinet wit h EdgeGat e 482S VoIP Gateway Board.

•110/220 VAC/DCAdaptor + ACpower cable (not includedwith GW-482S-LV-X-G).

•Two wall mounting bars.

•Cardboard mountingtemplate.

•Set of four NF10-32 nuts, flat washers and spring washers.

•Set of flanges and Neoprenegaskets for attaching various diameter cable conduits.

•Set of accessories for attaching and positioning wires.

•EdgeGate consolecable.

Figure1:The GW-482S MainComponents

VoIP Gateway

Board

SFPTransceiver

Cage

LAN and

Phone Patch

Charger

Board

Battery

Compartment

110/220 AC/DC

Adapter and AC

Plug

DC Power Input for

GW-482-LVUnits

GW-482S INSTALLATION GUID E

3MN100143 Rev B

Figure 2: Mounting Bars and Accessories

Figure3:ConsoleCable

Mounting

bar

Flanges and Neoprene

gaskets Accessories forattaching

and positioning wires

Cardboard

mounting template

GW-482S INSTALLATION GUID E

4MN100143 Rev B

Console Grounding

The RS-232 cable must be connectedto a floating PC, i.e. laptop, to prevent

the unit from being permanently damaged.

NOTE

The console cable is provided for use by service personnel for configuring

the EdgeGate 482S VoIP Gateway, as described in theEdgeGate VoIP

Gateway H.323, MGCP, SIP User Guide (DocumentMN100112).

Figure 4: AC Connector (plug)

GW-482S INSTALLATION GUID E

5MN100143 Rev B

Installing the GW-482S

This section contains instructions for the installer. Precede according to the following installation

steps:

1. Mount the cabinet on a wall.

2. Connectthecabinet to ground.

3. Connectthefiber optic and power cables.

4. Connectthe ACpower cable.

5. Install the battery.

Mounting the Cabinet

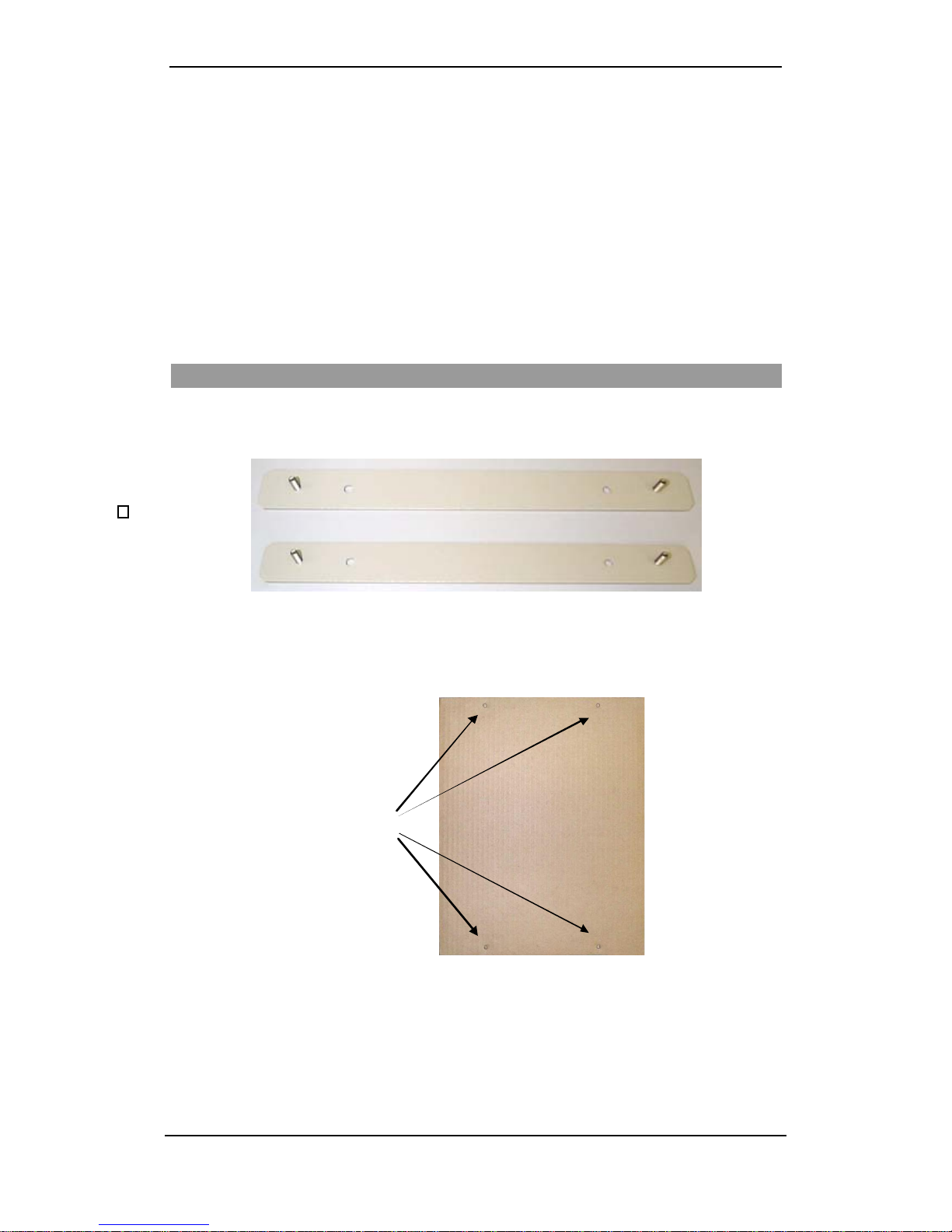

The following items are provided for mount ing the GW-482S cabinet on a wall:

•Two mounting bars with affixed screws.

Figure5: Cabinet Mounting Bars

•A cardboard mountingtemplate (PK000195) with drill-position marks.

Depressed drill-position

marks

Figure6: Cardboard Mounting Template

To mount the cabinet on a wall:

Important –The mounting wall must be at 90 degree angle to the ground. The cabinet must be

situated with all openingsfacingthe ground.
