Tektronix Phaser 140 Mode d’emploi

Release Note

Phaser

140

Color Printer

permission of Tektronix, Inc.

February 1995 Part Number 070-9069-IA

User Manual Release Note

Shipping your printer

Follow these instructions for shipping a printer for servicing. These

instructions replace those given in Appendix C of the

Phaser 140 Color Printer

User Manual

Does the printer power up?

Remove the interface cable.

Make sure the printer is turned on (if the printer powers up). If

the printer does not power up, remove the power cord now.

Park the carriage in the home position

Open the top cover.

Make sure that the carriage is in its home position (at the right

front of the printer). If not, move it to the home position by hand.

9069-63

Phaser 140 Color Printer

Remove all ink cartridges

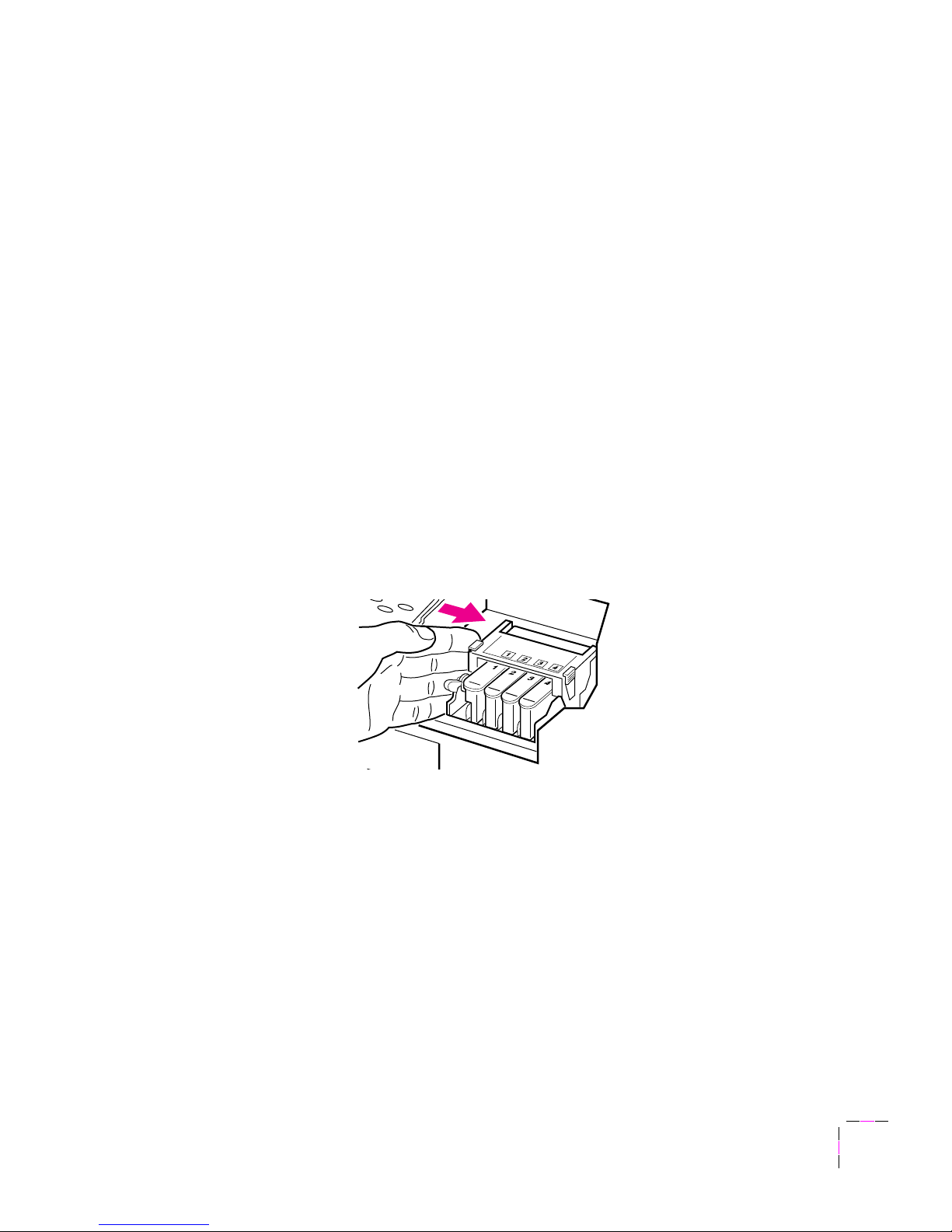

To remove an ink cartridge, lift the end of the cartridge, then pull

it out.

Store the cartridges individually in plastic bags to avoid spilling

ink.

Do not ship the ink cartridges with the printer

9069-41

User Manual Release Note

Clean the ink jets

If the front panel display is working, clean the ink jets as described in this

procedure. If the printer is damaged such that the ink jets cannot be cleaned,

go on to ÒRemove the print head.Ó

Close the top cover.

On the front panel, press the down arrow

(ß

) key until the front

panel displays this message:

CLEAN HEADS

Press the right arrow (

) key until the front panel displays this

message:

clean heads

Press the

SELECT

button. The printer cleans the ink jets. During

the cleaning process, you cannot display other menus or menu

choices. When the cleaning is complete, the front panel continues

to display the

clean heads

message.

Press the right (

) arrow key until the front panel displays this

message:

quit menu

Press the

SELECT

button; the front panel displays this message:

ready

Press the

POWER

button to turn off the printer.

SELECT

POWER

Phaser 140 Color Printer

Remove the print head

Note

Remove the printhead with the printer plugged in and the power

turned off via the

POWER

button. Otherwise, a printhead error

may occur.

Open the printerÕs cover. While pressing the tabs on either side of

the printhead compartment cover, lift open the cover until it stops.

Remove the printhead. Store the print head in a plastic bag.

not ship the print head with the printer

9069-48

9069-49

User Manual Release Note

Close the compartment cover by pressing down on the white

marks (

) until the coverÕs sides reach the upper part of the frame

sides (

9069-13A

Phaser 140 Color Printer

Pack the printer for shipment

If you have not already done so, remove the power cord.

Secure the carriage with tape.

Secure the top cover, the output tray, and the input tray with tape.

9069-64a

9069-61

User Manual Release Note

Place the printer in its original carton, making sure that it is well

cushioned with the packing materials.

To obtain the appropriate shipping address and procedure:

■

In the U.S.A. and Canada, call the Tektronix Customer Support

Hotline at

1-800-835-6100

■

Outside the U.S.A. and Canada, contact your local Tektronix dealer

or Tektronix sales representative.

9069-62

User Manual

Phaserª 140

Color Printer

First printing October 1994

070-9069-00

1994 by Tektronix, Inc., Wilsonville, Oregon. Printed in the United States of America.

Tektronix, Inc.

This product, in whole or in part, may be protected by one or more U.S. or foreign patents or patent

applications. Information provided upon request from Tektronix, Inc., P.O. Box 1000, Wilsonville, Oregon

97070-1000.

If acquired subject to FAR or DFARS, the following shall apply:

■

Unpublished Ñ rights reserved under the copyright laws of the United States.

■

Restricted Rights Legend Ñ Use, duplication, or disclosures by the U.S. government is subject to restrictions

as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS

252.227-7013, or in subparagraph (c) (2) of the Commercial Computer Software Ð Restricted Rights clause at

FAR 52.227-19, as applicable. Tektronix, Inc., P.O. Box 1000, Wilsonville, Oregon 97070-1000.

Tektronix

is a registered trademark of Tektronix, Inc. TekColorª, and Finepointª are trademarks of

Tektronix, Inc. Phaserª is a trademark of Tektronix, Inc. for color printers and related products.

Adobeª and PostScriptª are trademarks of Adobe Systems, Incorporated which may be registered in certain

jurisdictions.

Timesª, Helveticaª and Palatinoª are trademarks of Linotype-Hell AG and/or its subsidiaries.

Other marks are trademarks or registered trademarks of the companies with which they are associated.

PANTONE

Colors generated by the Phaser 140 are four-color process simulations and may not match

PANTONE-identiÞed solid color standards. Use current PANTONE Color Reference Manuals for accurate

colors.

PANTONE Color simulations are only obtainable on these products when driven by qualiÞed Pantone-licensed

software packages. Contact Pantone, Inc. for a current list of qualiÞed licensees.

Pantone, Inc.Õs check-standard trademark for color reproduction and color reproduction materials.
