Tektronix RSA6100B Series Manuel utilisateur

RSA6100B Series Real-Time Signal Analyzers and

RSA5100A Series Real-Time Signal Analyzers

Option 53 Memory Extension, 4 GB Acquisition Memory Total

Upgrade

ZZZ

Instructions

www.tektronix.com

*P071287901*

071-2879-01

or suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication

supersedes that in all previously published material. Speciﬁcations and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

In North America, call 1-800-833-9200.

Worldwide, visit www.tektronix.com to ﬁnd contacts in your area.

Table of Contents

Service Safety Summary........................................................................................... 1

Kit Description...................................................................................................... 2

Products......................................................................................................... 2

Kit Parts List ................................................................................................... 2

Installation Instructions ............................................................................................ 3

Minimum Tool and Equipment List ......................................................................... 3

Remove Cosmetic Top Cover ................................................................................ 3

Replace the Existing Acquisition Memory........... ...................... .................. ............... 5

Reinstall Cosmetic Top Cover................................................................................ 7

Option Key Installation ....................................................................................... 7

RSA6UP & RSA5UP Option 53 Upgrade i

Table of Contents

ii RSA6UP & RSA5UP Option 53 Upgrade

Service Safety Summary

Only qualiﬁed personnel should perform service procedures. Read this Service

Safety Summary and the General Safety Summary located in your instrument’s

Service manual ( the RSA6100B Service manual part number is 077-0648-XX and

the RSA5100A Service manual part number is 077-0522-XX) before performing

any service procedures.

Do Not Service Alone. Do not perform internal service or adjustments of this

product unless another person capable of rendering ﬁrst aid and resuscitation is

present.

Disconnect Power. To avoid electric shock, switch off the instrument power, then

disconnect the power cord from the mains power.

UseCareWhenServicingWithPowerOn. Dangerousvoltagesorcurrentsmay

exist in this product. Disconnect power, remove battery (if applicable), and

disconnect test leads before removing protective panels, soldering, or replacing

components.

To avoid electric shock, do not touch exposed connections.

RSA6UP & RSA5UP Option 53 Upgrade 1

Kit Description

This kit describes the installation of the Option 53 Memory Extension in an

RSA6100B Series or RSA5100A Series Real-Time Signal Analyzer.

Products

RSA6100B Series. All instruments

RSA5100A Series. All instruments

Kit Parts List

Quantity Part number Description

1 ea 071-2879-01 RSA5UP OPTION 53 UPGRADE

INSTRUCTIONS

1 ea 167–1473-XX IC, MEMORY, DRAM; 512MX64, DDR2,

667MHZ, MT16HTS51264HY-667A1, SODIMM

200

1ea NS 1DATA SHEET; SOFTWARE OPTION KEY

AUTHORIZATION CERTIFICATE, UPGRADE

KITS

1ea NS 1LABEL, MANUFACTURED; OPTION KEY

UPGRADE LABEL 2.100 X 2.700, SAFETY

CONTROLLED

1NS – Not saleable

2 RSA6UP & RSA5UP Option 53 Upgrade

Installation Instructions

This section contains all procedures needed to install Option 53 Memory

Extension (4 GB Acquisition Memory Total) in RSA6100B Series and RSA5100A

Series instruments.

Minimum Tool and Equipment List

The following tools are required to install the Option 53 upgrade. All tools are

standard tools that should be readily available.

Table 1: Tools required for installation

Item

no. Name Description

1Screwdriver

handle

(magnetic)

Torque driver handle. Accepts 1/4-in. hex-head driver tips

2T15 TORX

tip

TORX-driver tip for T15 size screws on the instrument covers

4T20 TORX

tip

TORX driver tip for T20 size screw heads

Optional: A torque wrench helps to ensure reliable connections to meet the

nominal torque values that may be listed in these instructions.

These instructions are for qualiﬁed service personnel who are familiar

with servicing the product. If you need further details for disassembling or

reassembling the product, refer to the product service manual. Service manuals

can be downloaded from the web at www.tektronix.com/manuals. Search by

model number to ﬁnd the service manual for your instrument.

Remove Cosmetic Top Cover

NOTE. Right-side or left-side references in these instructions assume you are

viewing the instrument from the front panel.

WARNING. To avoid electric shock which may result in injury or loss of life, switch

off the instrument power, then disconnect the power cord from the mains power.

1. Remove the power cord.

2. If it is installed, pull the front protective cover off the instrument.

RSA6UP & RSA5UP Option 53 Upgrade 3

Installation Instructions

3. Remove the two T15 TORX-driver screws that secure the plastic carrying

handle to the side of the instrument. (It is not necessary to remove the black

metal handles.) (See Figure 1.)

4. Remove four T15 screws along each side that secure the top and bottom

covers to the instrument, and remove two T20 screws near the front edge of

the top cover (next to the folding handles).

5. Remove the top cover (leave the bottom cover in place). Remove the top

cover by pulling straight back about 1 inch. Then pull the sides of the top

cover outward, ﬂexing them slightly to clear the instrument chassis, and pull

it away from the instrument.

6. Remove the 18 T15 screws that secure the top internal cover to the chassis,

and then remove the top internal cover from the instrument.

Figure 1: Removing the cosmetic top cover

4 RSA6UP & RSA5UP Option 53 Upgrade

Installation Instructions

Replace the Existing Acquisition Memory

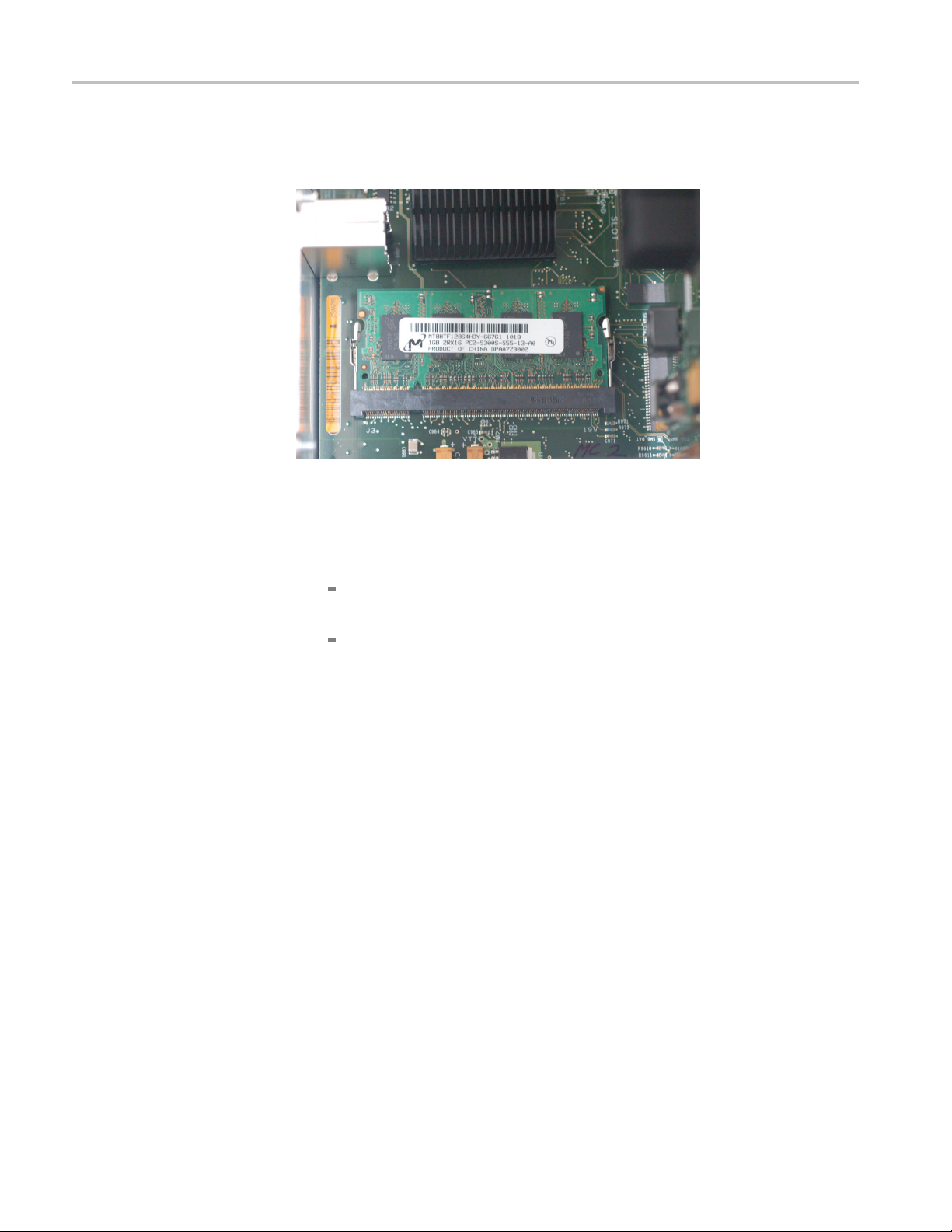

The acquisition memory is located near the rear panel, on the left side.

RSA6UP & RSA5UP Option 53 Upgrade 5

Installation Instructions

1. Use the ejector latches to release the existing 1 GB acquisition memory

module. Place the memory module into a static-shielded bag.

2. Insert the new memory module at an approximately 45° angle, making sure

the gold “ﬁngers” are fully seated. Then rotate the module down toward the

board until the latches click into place.

3. Reinstall the top internal cover. (See Figure 1 on page 4.)

Place the top internal cover onto the instrument, aligning the two

protrusions on the cover with the two slots in the chassis.

Replace the 18 T15 screws that secure the top internal cover to the chassis.

Torque these screws to 8.0 in/lb.

6 RSA6UP & RSA5UP Option 53 Upgrade
