Tektronix RSA5100A Series Manuel utilisateur

RSA5100A Series Real-Time Signal Analyzers

Option 52 Frequency Mask Trigger Upgrade

ZZZ

Instructions

www.tektronix.com

*P071285600*

071-2856-00

or suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication

supersedes that in all previously published material. Speciﬁcations and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

In North America, call 1-800-833-9200.

Worldwide, visit www.tektronix.com to ﬁnd contacts in your area.

Table of Contents

Kit Description...................................................................................................... 1

Products......................................................................................................... 1

Kit Parts List ................................................................................................... 1

Installation Instructions............................................................................................ 1

Updating the Instrument Application Software ............................................................ 1

Install Option Key ............................................................................................. 2

Installing the Option Key Label................. .............................................. .... ........... 4

RSA5100A Series Option 52 Upgrade i

Table of Contents

ii RSA5100A Series Option 52 Upgrade

Kit Description

This kit describes the installation of the Option 52 Frequency Mask Trigger

Upgrade in RSA5100A Series instruments.

Products

RSA5100A Series. All serial numbers

Kit Parts List

Quantity Part numberDescription

1 ea 071-2856-00 MANUAL, TECH: INSTALLATION, RSA5K

FREQUENCY MASK TRIGGER

1ea NS 1DATA SHEET; SOFTWARE OPTION KEY

AUTHORIZATION CERTIFICATE, UPGRADE

KITS

1ea NS LABEL, MANUFACTURED; OPTION KEY

UPGRADE LABEL 2.100 X 2.700, SAFETY

CONTROLLED

1NS — Not saleable

Installation Instructions

The software that performs Frequency Mask Triggering is included in all analyzers

running current application software version 2.5.0080 or higher. However, you

need an option installation key to activate it. To activate the Frequency Mask

Trigger capability, you must enter the new option installation key supplied with

this kit into the analyzer application. If your analyzer is running an earlier version

of the application software, you will have to download and install the latest

software before you can enter the option key that enables the Frequency Mask

Trigger capability.

Updating the Instrument Application Software

Select Help > About from the analyzer software menu bar to check the version of

your analyzer’s software. The software version appears at the top-right corner of

the About box. If your analyzer is not running version 2.5.0080 or later software,

you must download and install the latest version of the application software. If

your analyzer is running version 2.5.0080 or later software, proceed to Install

Option Key.

RSA5100A Series Option 52 Upgrade 1

Installation Instructions

To install the latest version of the analyzer application software:

1. Use your Web browser to go to: www.tektronix.com/software.

2. Enter your instrument model number in the Search by keyword text box

and click Go.

3. Follow the link for the analyzer software and download the software.

4. Follow the instructions on the Web page to install the software.

Install Option Key

To activate the Frequency Mask Trigger option:

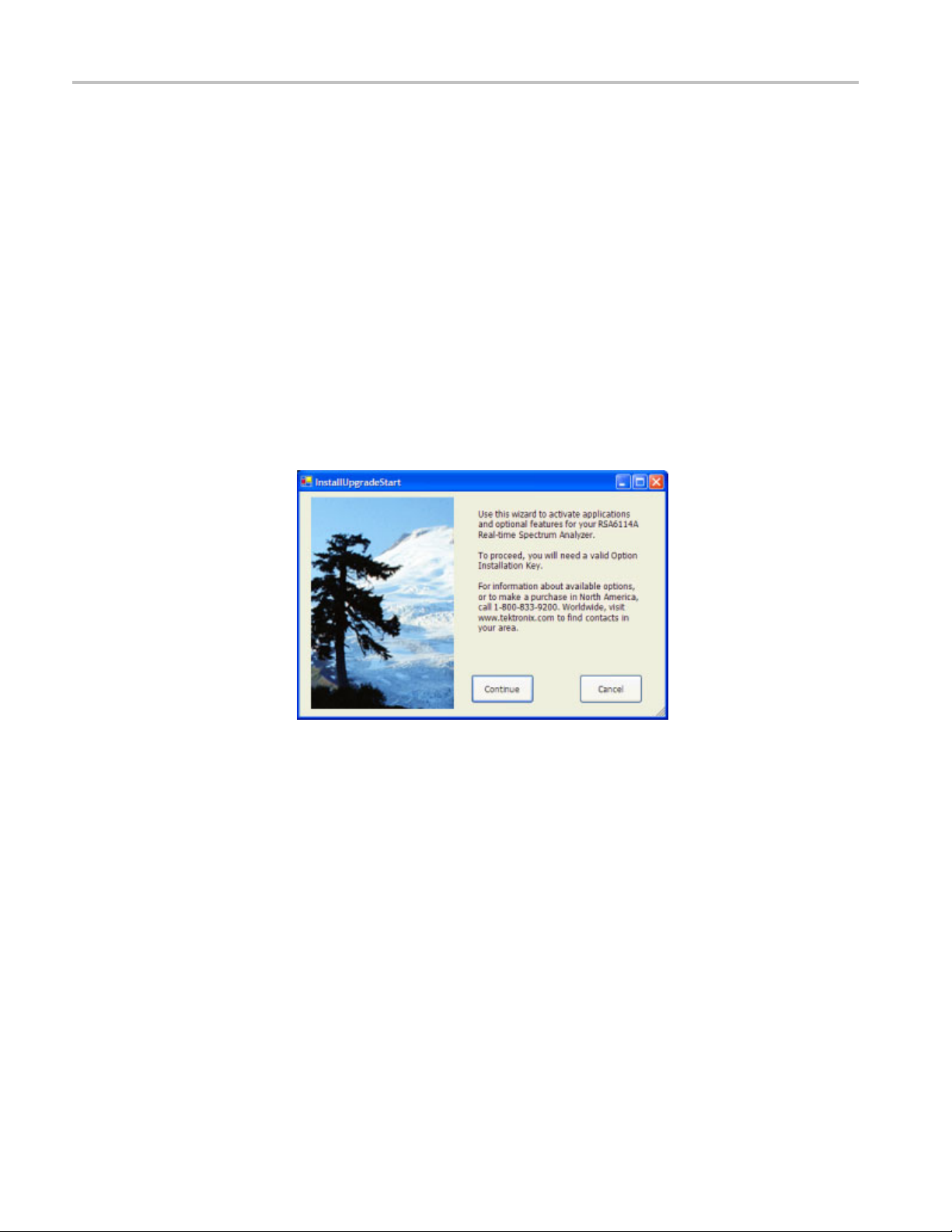

1. In the analyzer application, select Tools >Install Upgrades.TheInstall

Upgrade wizard will start. Click Continue.

The Install Upgrade Enter Key screen appears.

2 RSA5100A Series Option 52 Upgrade

Installation Instructions

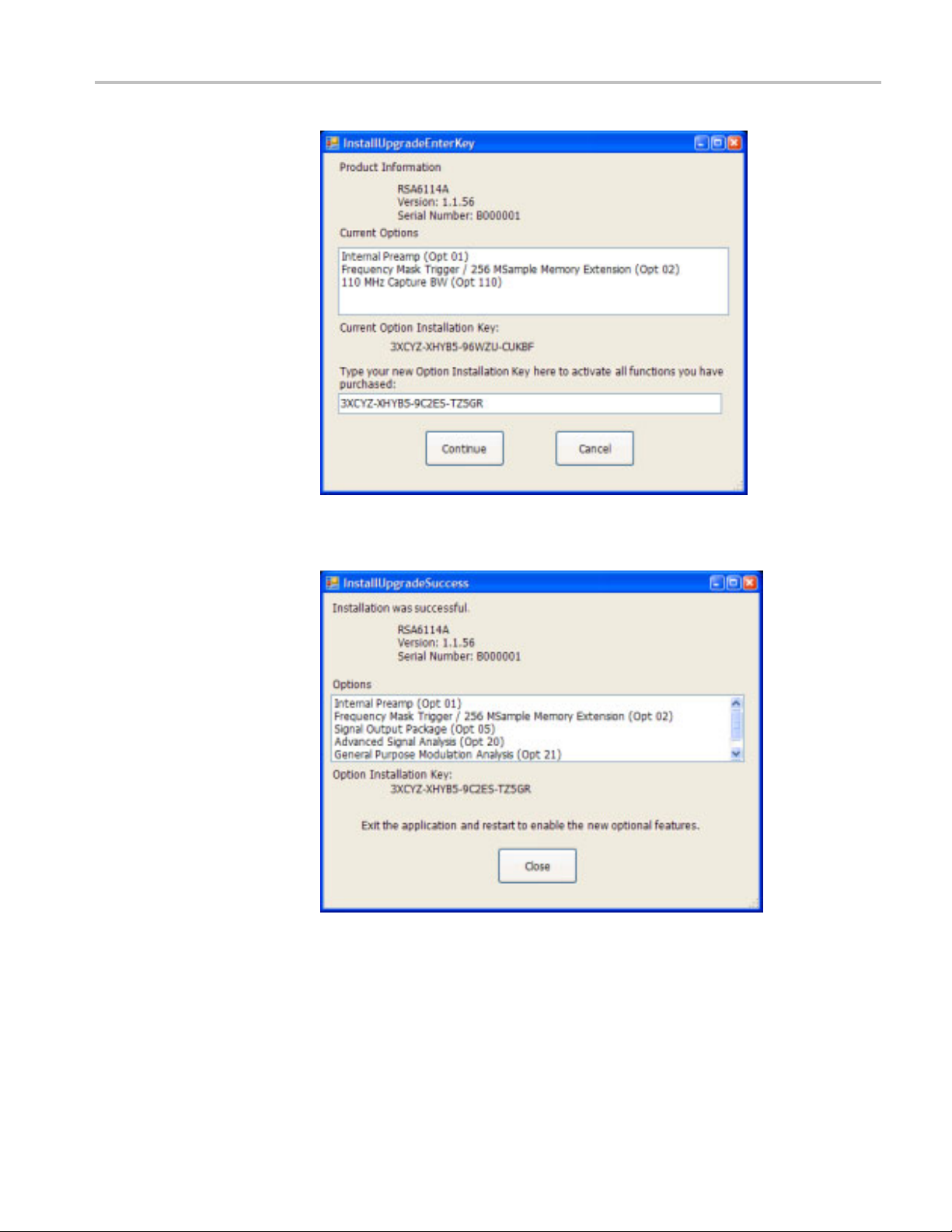

2. Type the option installation key into the empty text box and click Continue.

An Install Upgrade Success dialog box opens.

3. Click Close. Exit and restart the analyzer application to enable the new

feature.

4. In the Help menu, select About Tektronix Real-Time Analyzer.

5. Look in the Installed Options listing and verify that Frequency Mask

Trigger (Opt 52) appears in the listing.

RSA5100A Series Option 52 Upgrade 3

Installation Instructions

Installing the Option Key Label

Place the new option key label over the existing label on the instrument rear panel.

This completes the installation of the Option 52 Frequency Mask Trigger upgrade

kit.

■End of Document ■

4 RSA5100A Series Option 52 Upgrade
