Tektronix MTS4EA Manuel utilisateur

Instructions

MTS4EAUP

License Upgrade for

MTS4EA Compressed Video ES Analyzer

075-0894-00

*P075089400*

075089400

www.tektronix.com

suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes

that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14200 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

HIn North America, call 1-800-833-9200.

HWorldwide, visit www.tektronix.com to find contacts in your area.

MTS4EA License Upgrade Instructions 1

Kit Description

This document describes how to perform the following upgrades on the software

key (dongle) for the Tektronix MTS4EA Compressed Video ES Analyzer:

HPermissions upgrade (add options to existing software)

HFloating license upgrade (add users to existing floating license)

HNode-locked to floating license upgrade (upgrade from single machine

license to single floating license)

An overview of the upgrade process is described on the following page.

Kit Parts List

Quantity Part number Description

1EA 075-0894-00 INSTRUCTIONS; MTS4EAUP LICENSE UPGRADE

1EA N/A FLOPPY DISKETTE, 3.5 INCH DOUBLE SIDED, 1.44 MB;

MTS4EA LICENSE UPGRADE

Kit Description

2MTS4EA License Upgrade Instructions

Upgrade Process Overview

Listed below are the high-level actions required for the various MTS4EA

upgrade scenarios. If you have upgrade problems, refer to Troubleshooting the

License Upgrade Process on page 15.

To upgrade from MTS4EA v3.0 to v4.0 or higher, perform the steps described in

Options Permissions Upgrade Procedure startingonpage3.

To upgrade from MTS4EA v4.0 to v4.x or higher, perform the steps described in

Options Permissions Upgrade Procedure startingonpage3.

To upgrade from a node-locked license (single license for a single machine) to a

single-user floating license, do the following:

HPerform the steps described in Options Permissions Upgrade Procedure

startingonpage3.

HRead the upgrade process described in User License Upgrade starting on

page 5.

HPerform the steps described in Node-locked to Floating License Upgrade

Procedure startingonpage10.

NOTE. If you want to upgrade from a node-locked license to a multiple-user

floating license, you must first upgrade your node-locked license to a single-user

floating license. After you upgrade to a single-user floating license, you can then

upgrade to a multiple-user floating license.

To upgrade from a single-user floating license to a multiple-user floating license,

do the following:

HPerform the steps described in Options Permissions Upgrade Procedure

startingonpage3.

HRead the upgrade process described in User License Upgrade starting on

page 5.

HPerform the steps described in Floating License Upgrade Procedure starting

on page 6.

Upgrading from v3.0

to v4.0 or Higher

Upgrading from v4.0 to

v4.x or higher

Upgrading from

Node-locked License to

Single-user Floating

License

Upgrading from

Single-user Floating

License to Multiple-user

Floating License

MTS4EA License Upgrade Instructions 3

Options Permissions Upgrade

These instructions are for personnel who are familiar with servicing the product.

If you need further details refer to the appropriate product manual. Contact your

nearest Tektronix, Inc., Service Center for installation assistance.

NOTE. Each MTS4EA software key (dongle) contains two sets of permissions:

one for the enabled MTS4EA options, and another for the user licenses. Since

separate processes are used to upgrade the options permissions and the user

licenses stored in the dongle, you can upgrade the options permissions and the

user licenses in any order.

Options Permissions Upgrade Procedure

The software key (dongle) stores the permissions for the enabled MTS4EA

options. The options permissions are upgraded using an update program and an

encrypted data file. Tektronix provides these files either by floppy disk or

CD-ROM with this kit, or by email.

Perform the following steps to upgrade the MTS4EA options permissions:

CAUTION. To prevent an upgrade failure, your computer or Tektronix MPEG

instrument must have the associated MTS4EA software key (dongle) installed.

Be sure that the dongle you are updating is the one you specified in the upgrade

order. The upgrade data file can be applied to the dongle only one time and it

will work only with the dongle specified at the time you ordered the upgrade.

1. If you received your upgrade files via email proceed to step 2. Otherwise,

insert the floppy disk or CD-ROM supplied with this kit into the appropriate

drive on your computer or Tektronix MPEG instrument.

2. Copy the upgrade files from the floppy disk or CD-ROM, or from the email,

to any directory on your computer or Tektronix MPEG instrument.

Options Permissions Upgrade

4MTS4EA License Upgrade Instructions

CAUTION. If the DESkey server is installed and running on the computer or

Tektronix MPEG instrument, you must stop the server service before you run the

executable file in step 3 below. If you do not stop the service, you will get an

error message when you attempt to run the file.

To stop the server service, open the Control Panel (Windows Start > Settings >

Control Panel) and select the DESkey icon, which opens the DESkey Configura-

tion dialog box. In the dialog box, select the Networking tab. Click the Stop

button if the server service is running. The server button will say Start when the

service is not running.

3. From the directory where you copied the upgrade files, run the following

executable file: remoteupdate.exe. The executable file will then use the

accompanying data file to securely change the contents of the dongle

memory to include any new options.

4. If necessary, remove the floppy disk or CD-ROM from the computer or

Tektronix MPEG instrument.

MTS4EA License Upgrade Instructions 5

User License Upgrade

The instructions on the following pages describe how to perform the license

upgrades listed below:

HFloating License Upgrade. Adds more user licenses to an existing floating

license.

HNode-locked to Floating License Upgrade. Converts a node-locked (single

machine) license to a single-user floating license.

User License Upgrade Process

The activities listed below are required to perform the user license upgrade:

1. You create a Customer Update Request File (CURF) and send that file to

Tektronix. The CURF is specific to the dongle on your existing product.

NOTE. The instructions for creating the CURF are described in Generating a

Customer Update Request File (CURF) starting on page 12.

2. Tektronix uses the CURF to create a License Upgrade File (LUF).

3. Tektronix sends you the LUF either on floppy disk or CD-ROM, or by

email.

NOTE. When you receive the upgrade files from Tektronix, you must copy the files

to a single directory on the hard drive of the client machine containing the

installed MTS4EA Compressed Video ES Analyzer used to create the CURF.

4. You apply the LUF to the dongle using the DESkey configuration utility.

NOTE. The instructions for applying the LUF are described in Floating License

Upgrade Procedure starting on page 6.

When the dongle has been upgraded, the LUF will become obsolete.

User License Upgrade

6MTS4EA License Upgrade Instructions

Floating License Upgrade Procedure

Perform the following steps to add user licenses to an existing floating license

dongle:

1. If necessary, copy the upgrade files from the floppy disk or CD-ROM, or

from the email, to a single directory on the hard drive of the client machine.

NOTE. The client machine must contain the installed MTS4EA Compressed Video

ES Analyzer that was used to create the CURF.

2. Ensure that the dongle is installed on the License Server.

3. From the client machine, open the control panel (Start > Settings > Control

Panel).

4. Open DESkey application. In the DESkey Configuration dialog box, select

the Networking tab. The server machine should be listed in the upper panel.

5. Verify that the server service is running. As shown below, the server button

will say Stop when the service is running. If the server button says Start,

click the button to start the service.

User License Upgrade

MTS4EA License Upgrade Instructions 7

6. Select the Monitor button to display the DK2 Network Server Remote

Monitor dialog box.

7. Highlight the server machine in the server list (upper panel) and click the

Admin button. Enter the required password. The default is “deskey”.

8. If the password is correct, the DK2 Network Server dialog box is displayed.

Select the License Request tab.

User License Upgrade

8MTS4EA License Upgrade Instructions

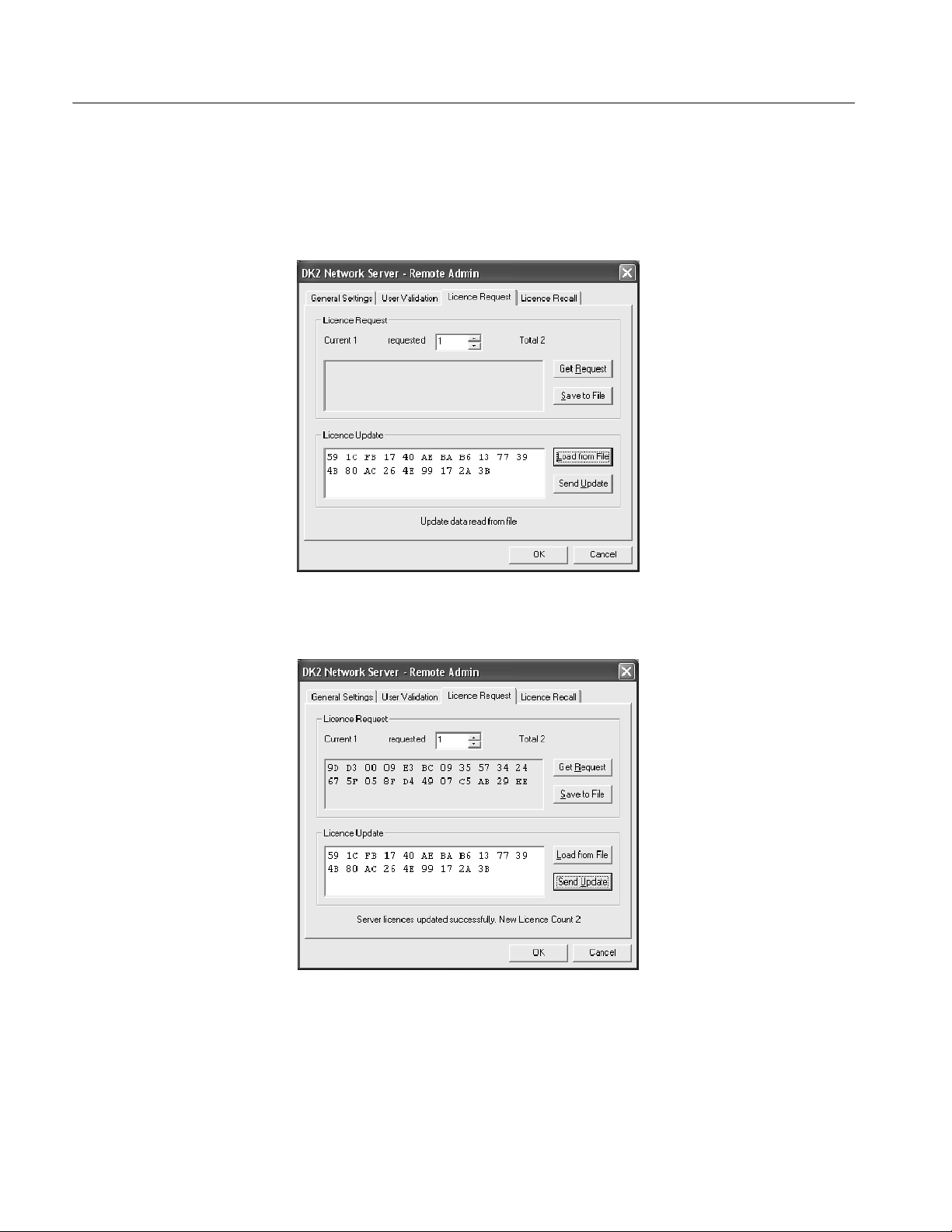

9. Press the Load from File button and locate the License Upgrade File (LUF)

on the hard disk. The upload is complete when data is displayed in the

License Update window.

10. Press the Send Update button to send the LUF to the server.
