TEFAL RK6011TH Manuel utilisateur

Mini Spherical Pot Rice Cooker

www.tefal.com

Fig.1 Fig.2 Fig.3aFig.3b

Fig.4 Fig.5 Fig.6 Fig.7

Fig.12Fig.13Fig.14Fig.15

Fig.16 Fig.18

Fig.8 Fig.9 Fig.10Fig.11

Fig.17

MAX.

4 cups

MAX.

Preset

Timer

Start

KeepWarm

Cancel

1 5 6

Fig.1 Fig.2 Fig.3aFig.3b

Fig.4 Fig.5 Fig.6 Fig.7

Fig.12Fig.13Fig.14Fig.15

Fig.16 Fig.18

Fig.8 Fig.9 Fig.10Fig.11

Fig.17

MAX.

4 cups

MAX.

Preset

Timer

Start

KeepWarm

Cancel

1 5 6

CONTROL PANEL

DESCRIPTION

1 Steam basket

2 Graduation for water and rice

3 Removable pot

4 Measuring cup

5 Rice spoon

6 Soup spoon

7 Lid

8 Removable inner lid

9 Micro pressure valve

10 Lid opening button

11 Handle

12 Control panel

a “Preset” pictogram

b “Preset” key

c “Keep Warm/ Cancel”

pictogram

d “Keep Warm/ Cancel” key

e “ <“ key

f “Menu” key

g “>” key

h “Timer” pictogram

i “Timer” key

j “Start” pictogram

k “Start” key

l “Preset” indicator

m “Cooking time” indicator

n “Rice” indicator

o “Congee” indicator

p “Porridge” indicator

q “Soup” indicator

r “Steam” indicator

s “Baby food” indicator

13 Housing

14 Power cord

12c

12b

12p

12o

12n

12l

12a

12d

12e 12f

12i

12h

12q

12r

12s

12m

12g

12j

12k

IMPORTANT SAFEGUARDS

SAFETY INSTRUCTIONS

Read and follow the instructions for use. Keep

them safe.

• This appliance is not intended to be operated by

means of an external timer or a separate remote-

control system.

• This appliance can be used by children aged

from 8years and above if they have been given

supervision or instruction concerning use of the

appliance in a safe way and if they understand the

hazards involved.Cleaning and user maintenance

shall not be made by children unless they are

older than 8 years and supervised. Keep the

appliance and its cord out of reach of children

aged less than 8years.

• Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved.

• Children shall not play with the appliance.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they

do not play with the appliance.

• As this appliance is for household use only, it is

not intended for use in the following applications

and the guarantee will not apply for:

– Staff kitchen areas in shops, offices and other

working environments

– Farm houses

– By clients in hotels, motels and other residential

type environments

– Bed and breakfast type environments

• If your appliance is fitted with a removable

power cord: if the power cord is damaged, it must

be replaced by a special cord or unit available

from a authorised service centre.

• If your appliance is fitted with fixed power

cord: a if the power supply cord is damage,

it must be replaced by the manufacturer, the

manufacturer’s after-sales service department

or similarly qualified person in order to avoid any

danger.

• The appliance must not be immersed in water or

any other liquid.

• Use a damp cloth or sponge with diswashing liquid

to clean the accessories and parts in contact with

the aliments. Rince with a damp cloth or sponge.

Drying accessories and parts in contact with food

with a dry cloth.

• If the symbol is marked on the appliance, this

symbol means “Caution: surfaces may become

hot during use”.

• Caution: the surface of heating element is subject

to residual heat after use.

• Caution: risk of injury due to improper use of the

appliance.

• Caution: if your appliance has a removable power

cord, do not spill liquid on the connector.

• Always unplug the appliance:

– immediately after use

– when moving it

– prior to any cleaning or maintenance

– if it fails to function correctly

• Burns can occur by touching the hot surface of

the appliance, the hot water, steam or the food.

• During cooking, the appliance gives out heat and

steam. Keep face and hands away.

• Do not get face and hands close to the steam

outlet. Do not obstruct the steam outlet.

• For any problems or queries please contact our

Customer Relations Team or consult our web site.

• The appliance can be used up to an altitude of

4000m.

• For your safety, this appliance complies with the safety regulations and

directives in effect at the time of manufacture (Low-voltage Directive,

Electromagnetic Compatibility, Food Contact Materials Regulations,

Environment…).

• Check that the power supply voltage corresponds to that shown on the

appliance (alternating current).

• Given the diverse standards in effect, if the appliance is used in a country

other than that in which it is purchased, have it checked by an approved

service centre.

CONNECTING TO THE POWER SUPPLY

• Do not use the appliance if:

– the appliance or the cord is damaged

– the appliance has fallen or shows visible damage or does not work

properly

– In the event of the above, the appliance must be sent to an approved

Service Centre. Do not take the appliance apart yourself.

• Do not leave the cord hanging

• Always plug the appliance into an earthed socket.

• Do not use an extension lead. If you accept liability for doing so, only

use an extension lead which is in good condition, has an earthed plug

and is suited to the power of the appliance.

• Do not unplug the appliance by pulling on the cord.

USING

• Use a flat, stable, heat-resistant work surface away from any water

splashes.

PROTECT THE ENVIRONMENT

• Your appliance has been designed to run for many years. However,

when you decide to replace it, remember to think about how you can

contribute to protecting the environment.

• Before discarding your appliance you should remove the battery from

the timer and dispose of it at a local civic waste collection centre

(according to model).

Environment protection first!

Your appliance contains valuable materials which can be recovered or

recycled.

Leave it at a local civic waste collection point.

• Do not allow the base of the appliance to come into contact with water

• Never try to operate the appliance when the bowl is empty or without

the bowl.

• The cooking function/knob must be allowed to operate freely. Do not

prevent or obstruct the function from automatically changing to the

keep warm function.

• Do not remove the bowl while the appliance is working.

• Do not put the appliance directly onto a hot surface, or any other source

of heat or flame, as it will cause a failure or danger.

• The bowl and the heating plate should be in direct contact. Any object or

food inserted between these two parts would with the correct operation.

• Do not place the appliance near a heat source or in a hot oven, as

serious damage could result.

• Do not put any food or water into the appliance until the bowl is in

place.

• Respect the levels indicated in the recipes.

• Should any part of your appliance catch fire, do not attempt to put it

out with water. To smother the flames use a damp teatowel.

• Any intervention should only be made by a service centre with original

spare parts.

BEFORE THE FIRST USE

Unpack the appliance

• Remove the appliance from the packaging and unpack all the accessories

and printed documents.

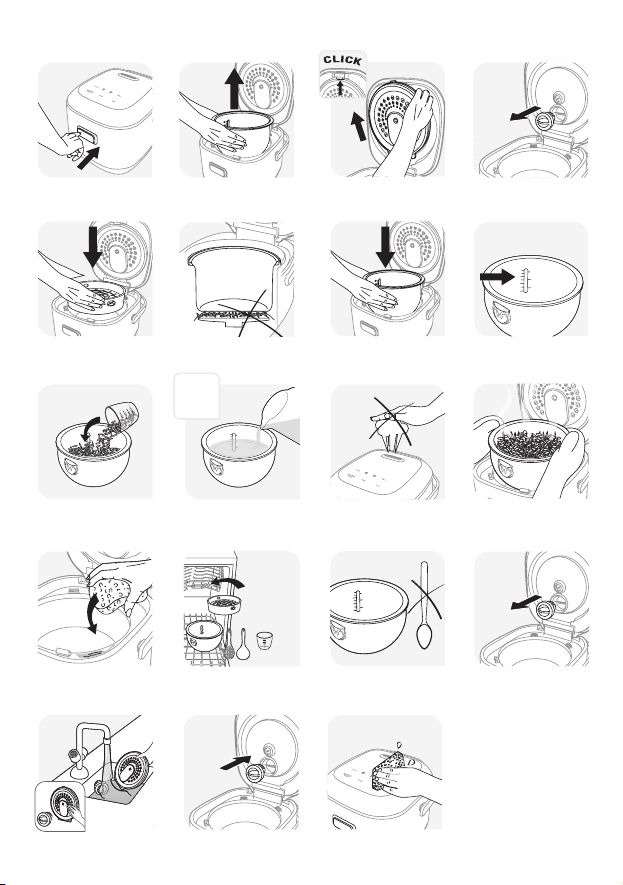

• Open the lid by pushing the opening button on the housing – fig.1.

Read the Instructions and carefully follow the operation method.

Clean the appliance

• Remove the pot – fig.2, the inner lid and the pressure valve – fig.3a and

3b.

• Clean the pot, the valve and the inner lid with a sponge and washing

up liquid.

• Wipe the outside of the appliance and the lid with a damp cloth.

• Dry off carefully.

• Put all the elements back in their original position. Install the inner lid

in the right positions on the top lid of machine. Then, put the inner

lid behind the 2 ribs and push it on the top until it’s fixed. Install the

detachable cord into the socket on the cooker base.

FOR THE APPLIANCE AND ALL FUNCTIONS

• Carefully wipe the outside of the pot (especially the bottom). Make sure

that there are no foreign residues or liquid underneath the pot and on

the heating element – fig.5.

• Place the pot into the appliance, making sure that it is correctly

positioned – fig.6.

• Make sure that the inner lid is correctly in position.

• Close the lid in place with a sound of “click”.

• Install the power cord into the socket of the multicooker base and then

plug into the power outlet. The appliance will ring a long sound “Bip”,

all the indicators on the control box will light up for an instant. The rice

cooking mode is set the default cooking program.

• Do not touch the heating element when the product is plugged or after

cooking. Do not carry the product in use or just after cooking.

• This appliance is only intended for indoor use.
