TEFAL Mecha Spherical Manuel utilisateur

www.tefal.com

Mecha Spherical

1.8L

CUP

Rice

COOK WARM

12b12a

12c

1.8L

CUP

Rice

1 2

COOK WARM

WARM

Rice

1.8L

CUP

910 11

1.8L

CUP

Rice

1.8L

CUP

Rice

1.8L

CUP

13 14 15

1.8L

CUP

Rice

5 6

3 4

COOK WARM

COOK

Control box

1.8L

CUP

Rice

COOK WARM

12b12a

12c

1.8L

CUP

Rice

1 2

COOK WARM

WARM

Rice

1.8L

CUP

910 11

1.8L

CUP

Rice

1.8L

CUP

Rice

1.8L

CUP

13 14 15

1.8L

CUP

Rice

5 6

3 4

COOK WARM

COOK

1 Steam basket

2 Graduation for water and rice

3 Removable Non Stick bowl

4 Measuring cup

5 Rice spoon

6 Power cord

7 Lid opening button

8 Lid Handle

9 Micro pressure valve

10 Lid

11 Condensation collector

12 Control panel

a Cooking indicator light

b Keep warm indicator light

c Control switch

13 Hotplate

14 Sensor

DESCRIPTION

IMPORTANT SAFEGUARDS

SAFETY INSTRUCTIONS

Read and follow the instructions for use. Keep

them safe.

• This appliance is not intended to be operated by

means of an external timer or a separate remote-

control system.

• This appliance can be used by children aged

from 8years and above if they have been given

supervision or instruction concerning use of the

appliance in a safe way and if they understand the

hazards involved.Cleaning and user maintenance

shall not be made by children unless they are

older than 8 years and supervised. Keep the

appliance and its cord out of reach of children

aged less than 8years.

• Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved.

• Children shall not play with the appliance.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they

do not play with the appliance.

• As this appliance is for household use only, it is

not intended for use in the following applications

and the guarantee will not apply for:

– Staff kitchen areas in shops, offices and other

working environments

– Farm houses

– By clients in hotels, motels and other residential

type environments

– Bed and breakfast type environments

• If your appliance is fitted with fixed power

cord: a if the power supply cord is damage,

it must be replaced by the manufacturer, the

manufacturer’s after-sales service department

or similarly qualified person in order to avoid any

danger.

• The appliance must not be immersed in water or

any other liquid.

• Use a damp cloth or sponge with washing up

liquid to clean the accessories and parts in contact

with food. Rinse with a damp cloth or sponge. Dry

carefully.

• If the symbol is marked on the appliance, this

symbol means “Caution: surfaces may become

hot during use”.

• Caution: the surface of heating element is subject

to residual heat after use.

• Caution: risk of injury due to improper use of the

appliance.

• Caution: if your appliance has a removable power

cord, do not spill liquid on the connector.

• Always unplug the appliance:

– immediately after use

– when moving it

– prior to any cleaning or maintenance

– if it fails to function correctly

• Burns can occur by touching the hot surface of

the appliance, the hot water, steam or the food.

• During cooking, the appliance gives out heat and

steam. Keep face and hands away.

• Do not obstruct the steam outlet.

• For any problems or queries please contact our

Customer Relations Team or consult our web site.

• The appliance can be used up to an altitude of

2000m.

• For your safety, this appliance complies with the safety regulations and

directives in effect at the time of manufacture (Low-voltage Directive,

Electromagnetic Compatibility, Food Contact Materials Regulations,

Environment…).

• Check that the power supply voltage corresponds to that shown on the

appliance (alternating current).

• Given the diverse standards in effect, if the appliance is used in a

country other than that in which it is purchased, have it checked by an

approved service centre.

CONNECTING TO THE POWER SUPPLY

• Do not use the appliance if:

– the appliance or the cord is damaged

– the appliance has fallen or shows visible damage or does not work

properly

– In the event of the above, the appliance must be sent to an approved

Service Centre. Do not take the appliance apart yourself

• Do not leave the cord hanging

• Always plug the appliance into an earthed socket.

• Do not use an extension lead. If you accept liability for doing so, only

use an extension lead which is in good condition, has an earthed plug

and is suited to the power of the appliance.

• Do not unplug the appliance by pulling on the cord.

USING

• Use a flat, stable, heat-resistant work surface away from any water

splashes.

• Do not allow the base of the appliance to come into contact with water

• Never try to operate the appliance when the pot is empty or without

the pot.

• The cooking function/knob must be allowed to operate freely. Do not

prevent or obstruct the function from automatically changing to the

keep warm function.

• Do not remove the pot while the appliance is working.

• Do not put the appliance directly onto a hot surface, or any other

source of heat or flame, as it will cause a failure or danger.

• The pot and the heating plate should be in direct contact. Ensure that

no food or liquid is inserted between the pot and heating plate.

• Do not place the appliance near a heat source or in a hot oven, as

serious damage could result.

• Do not put any food or water into the appliance until the pot is in place.

• Respect the levels indicated in the recipes.

• Should any part of your appliance catch fire, do not attempt to put it

out with water. To smother the flames use a damp teatowel.

• Any intervention should only be made by a service centre with original

spare parts.

• Always disconnect the appliance from the supply if it is left unattended

and before assembling, disassembling or cleaning.

PROTECT THE ENVIRONMENT

• Your appliance has been designed to run for many years. However,

when you decide to replace it, remember to think about how you can

contribute to protecting the environment.

• Before discarding your appliance you should remove the battery from

the timer and dispose of it at a local civic waste collection centre

(according to model).

Environment protection first!



Your appliance contains valuable materials which can be

recovered or recycled.

Leave it at a local civic waste collection point.

Unpack the appliance

• Remove the appliance from the packaging and unpack all the

accessories and printed documents.

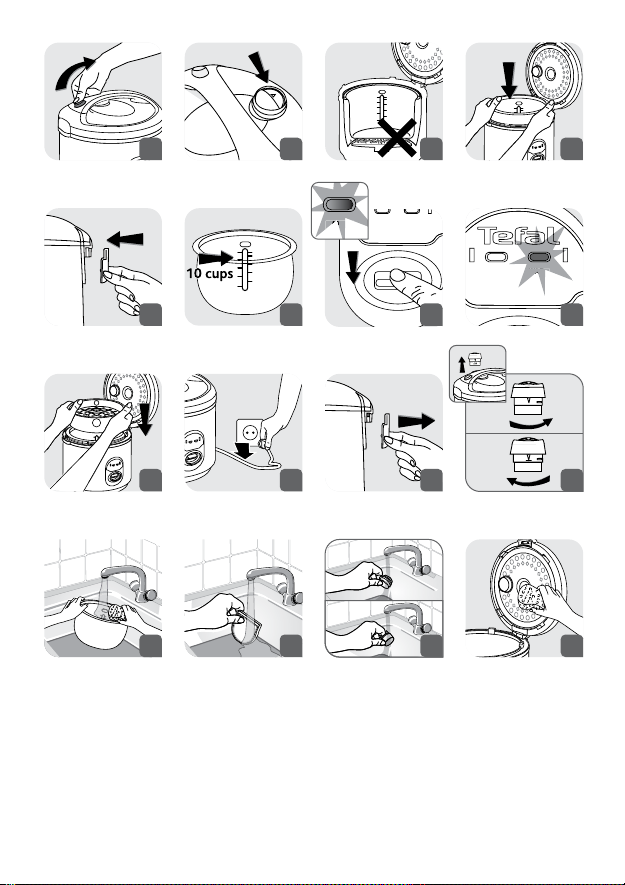

• Open the lid by pressing the opening button located on the handle - fig. 1.

• Install the spoon support: insert the plastic hook of the support in the

hole located under product ring, and slide it downwards - fig. 5.

Read the instructions and carefully follow the operating method.

BEFORE THE FIRST USE

Clean the appliance

• Remove the spherical pot and the micro pressure valve.

• Clean the pot and the micro pressure valve with a sponge and washing-

up liquid. Wipe the outside of the appliance and the metal parts of the

lid with a damp cloth.

• Dry carefully.

• Make sure the micro pressure valve is correctly placed in position - fig. 2.

• Carefully wipe the outside of the bowl (especially the bottom). Make

sure that there are no foreign residues or liquid underneath the bowl

and on the hotplate - fig. 3.

• Place the bowl into the appliance - fig. 4, making sure that it is correctly

positioned.

• Slightly rotate the bowl in both directions, so as to ensure good contact

between the bottom of the bowl and the hotplate.

• Check that the condensation collector is correctly placed in position, if

not, please install it by pushing firmly into the groove - fig. 5.

• Close and lock the lid.

• Plug in the appliance.

• Do not switch on the appliance until all of the above stages have been

completed.

• Do not start the appliance with an empty cooking bowl.

• Do not touch the heating plate when the product is plugged in.

Never place your hand on the steam vent during cooking, as there is

a danger of burns. Never use the lid handle to transport the product

when it is full.

Only use the inner pot provided with the appliance. Do not pour water

or put ingredients in the appliance without the bowl inside.

USING YOUR RICE COOKER

• The graduated markings on the inside of the bowl are given in liters

and cups, these are used for measuring the amount of water when

cooking rice - fig. 6.

• The plastic cup provided with your appliance is for measuring rice and

the table states the quantity of rice required for the number of servings.

1 level measuring cup of rice weighs about 150 g.

• The table below gives a guide to cooking different kinds of rice. For best

results, we recommend using ordinary rice rather than ‘easy cook’ type

of rice which tends to give a stickier rice and may adhere to the base.

With other types of rice, such as brown or wild rice, the quantities of

water need adjustment check the table below.

• To cook only 1 cup of white rice (serves 2 small or 1 large portion)

because there isn’t the mark of 1 cup in the cooking pot, you should

use 1 measuring cup of white rice and then add 1 1/2 measuring cup of

water. With some types of rice it is normal for a little rice to stick on the

base when cooking 1 cup of rice. To cook other quantity of white rice,

refer to cooking guide below.

• The maximum quantity of water + rice should not exceed the 5.5 or 10

cup mark (depending on model) inside the bowl (depending on model)

- fig. 6. Depending on the type of rice, quantities of water may need

adjustment. See the table below.

MEASURING RICE AND WATER

COOKING GUIDE FOR WHITE RICE -10 CUPS

Measuring cups of

white rice

Weight of white

rice

Water level in the

bowl ( + the rice) Serves Approximative

cooking time*

2 300 g 2 cup mark 3per.-4per. 20-26mins

4 600 g 4 cup mark 5per.-6per. 29-34mins

6 900 g 6 cup mark 8per.-10per. 37-43mins

8 1200 g 8 cup mark 13per.-14per. 40-46mins

10 1500 g 10 cup mark 16per.-18per. 45-51mins

Rinse the rice thoroughly before cooking.

* The rice cooker will automatically determine the exact cooking time

depending on the quantity of water and rice placed in the bowl.

Table des matières

Langues :

Autres manuels TEFAL cuiseur vapeur électrique

TEFAL

TEFAL VC502D Manuel utilisateur

TEFAL

TEFAL STEAMER AQUATIMER Manuel utilisateur

TEFAL

TEFAL EASY STORE Manuel utilisateur

TEFAL

TEFAL 6168 Manuel utilisateur

TEFAL

TEFAL AQUA TIMER STEAMER Manuel utilisateur

TEFAL

TEFAL MAGICLEAN 1000 Manuel utilisateur

TEFAL

TEFAL Vitacuisine Compact Manuel utilisateur

TEFAL

TEFAL VITAMIN PLUS Manuel utilisateur

TEFAL

TEFAL Steam N'Light Manuel utilisateur

TEFAL

TEFAL VITACUISINE Manuel utilisateur

TEFAL

TEFAL Vitacuisine VS4001 Manuel utilisateur

TEFAL

TEFAL VS400370 Manuel utilisateur

TEFAL

TEFAL VC101416 Manuel utilisateur

TEFAL

TEFAL Steam Cuisine VITAMIN PLUS Manuel utilisateur

TEFAL

TEFAL STEAM CUISINE 900 TURBO DIFFUSION Manuel utilisateur

TEFAL

TEFAL Vitacuisine VS4001 Guide rapide

TEFAL

TEFAL VS400170 Manuel utilisateur

TEFAL

TEFAL CONVENIENT DELUXE Series Manuel utilisateur

TEFAL

TEFAL ULTRA COMPACT STEAMER Manuel utilisateur

TEFAL

TEFAL CONVENIENT Series Manuel utilisateur

TEFAL

TEFAL Vitacuisine Compact Manuel utilisateur

TEFAL

TEFAL STEAM CUISINE Manuel utilisateur

TEFAL

TEFAL Panduan Pengguna Manuel utilisateur

TEFAL

TEFAL VITACUISINE GOURMAND VS700131 Manuel utilisateur

Manuels cuiseur vapeur électrique populaires d'autres marques

Eloma

Eloma Joker B Manuel d'instructions

Clatronic

Clatronic DG 3547 Manuel utilisateur

Heaven Fresh

Heaven Fresh NaturoPure HF 8333 Manuel utilisateur

Memco

Memco 6625B Manuel

Braun

Braun 3216 Manuel utilisateur

Kooper

Kooper 2165306 Manuel utilisateur

Morphy Richards

Morphy Richards FS48751MEE Manuel utilisateur

Cuisinart

Cuisinart STM1000AR Manuel utilisateur

Hastings

Hastings DIRECT GAS FIRED ELECTRIC STEAM Guide rapide

Galantine

Galantine SILVER Style SC-5003B Manuel utilisateur

Cleveland

Cleveland SteamChef 22CET3.1 Manuel utilisateur

Cleveland

Cleveland Enodis 24-CDM Manuel utilisateur

Oster

Oster 5711 Manuel utilisateur

Back to Basics

Back to Basics NUTRI STEAMER L5725A 01/09 Manuel utilisateur

Gallet

Gallet CUV 968 Colmar Manuel utilisateur

Rasonic

Rasonic RSB-B1CR Manuel utilisateur

Basilico

Basilico K047 Manuel utilisateur

Cuisinart

Cuisinart Cook & Steam Manuel utilisateur
