Basic documentation
9
1. DESCRIPTION AND PARAMETERS
The IC-7702 module includes optionally 2 32bit counters with 5 inputs or 4 32bit counters
with 3 inputs for connection of pulse signals or signals from incremental position encoders.
Timers, conditionally switched counters or signal period measurement are other available
optional functions. Input signals can be bipolar, 24 V DC with the common plus or minus pole,
or 5 V DC with the common minus pole, the direct inputs with the fast response are designed for
24 V DC, 2 A with the common plus pole. The outputs are realized by semiconductor switches
equipped with overcurrent and thermal protection. These protection equipment is a part of
module diagnostics. The outputs can be used for the two-state drives control to set the position
of moving axes of machines, with the possibility of slow down points or with outputs in timer

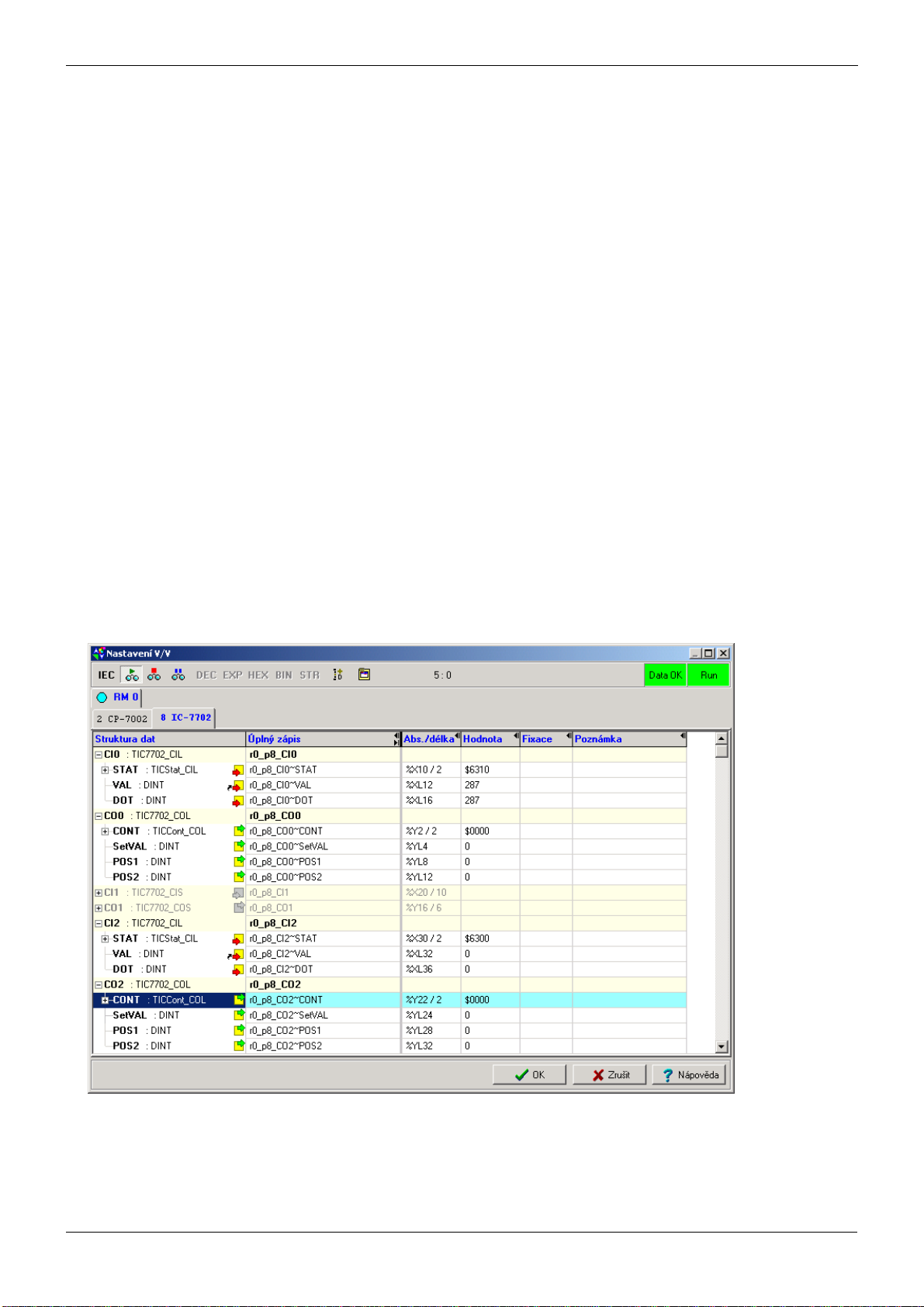

functions. Values setting and observation is performed by user program.
The connector for input and output signal connecting with 20 terminals is delivered separately
(it is not included in the module delivery). The following variants can be use:
• screwless, with spring terminals TXN 102 30 (mounted in the axe of conductor)
• with screw terminals TXN 102 31 (the screw is in the axe of conductor)
• with screw terminals TXN 102 32 (the screw is at the right angle to the conductor)
The connectors are described in documentation TXV 102 30 or in the handbook for designing
TXV 001 08.01.
1.1 BASIC PARAMETERS
Product standard ČSN EN 61131-2
Protection class of electrical object
ČSN 33 0600 III
Connection screwless terminals, max. 2.5 mm
2
conductor per
terminal
Type of equipment built-in
Coverage (after installation into rack ) IP20 ČSN EN 60529
Dimensions 137 x 30 x 198 mm
1.2 OPERATIONAL CONDITIONS
Class of ambient influence - ČSN 33 2000-3
normal
Operating temperatures range 0 °C to + 55 °C
Permissible temperatures during transport -25 °C to +70 °C
Relative humidity 10 % to 95 % without condensation
Atmospheric pressure min. 70 kPa (< 3000 m over the see level)
Degree of pollution - ČSN EN 61131-2 2
Overvoltage category of installation -
ČSN 33 0420-1 II
Working position vertical
Type of operation continuous
Electromagnetic compatibility
Emissions - ČSN EN 55022* class A
Immunity table 16, ČSN EN 61131-2
Vibration resistance (sinusoidal vibrations)
Fc according to ČSN EN 60068-2-6 10 Hz to 57 Hz amplitude 0,075 mm,
57 Hz to 150 Hz, acceleration 1G
* This is a product of class A. In indoor conditions (i.e. such conditions, where using of radio
and TV sets can be supposed in a distance of 10 m from the mentioned equipment), the product
can cause radio disturbances. It might be required in such cases that the user takes necessary
measures to avoid this.
