TECO TK3000 Manuel utilisateur
TK GUIDES
Controller
RESET
MODELS :
TK3000 – TK3000H
TK6000 – TK6000H
TK9000 – TK9000H
www.tecoonline.com | www.tecous.com
EQUIPMEMT
www.tecoonline.com | www.tecous.com

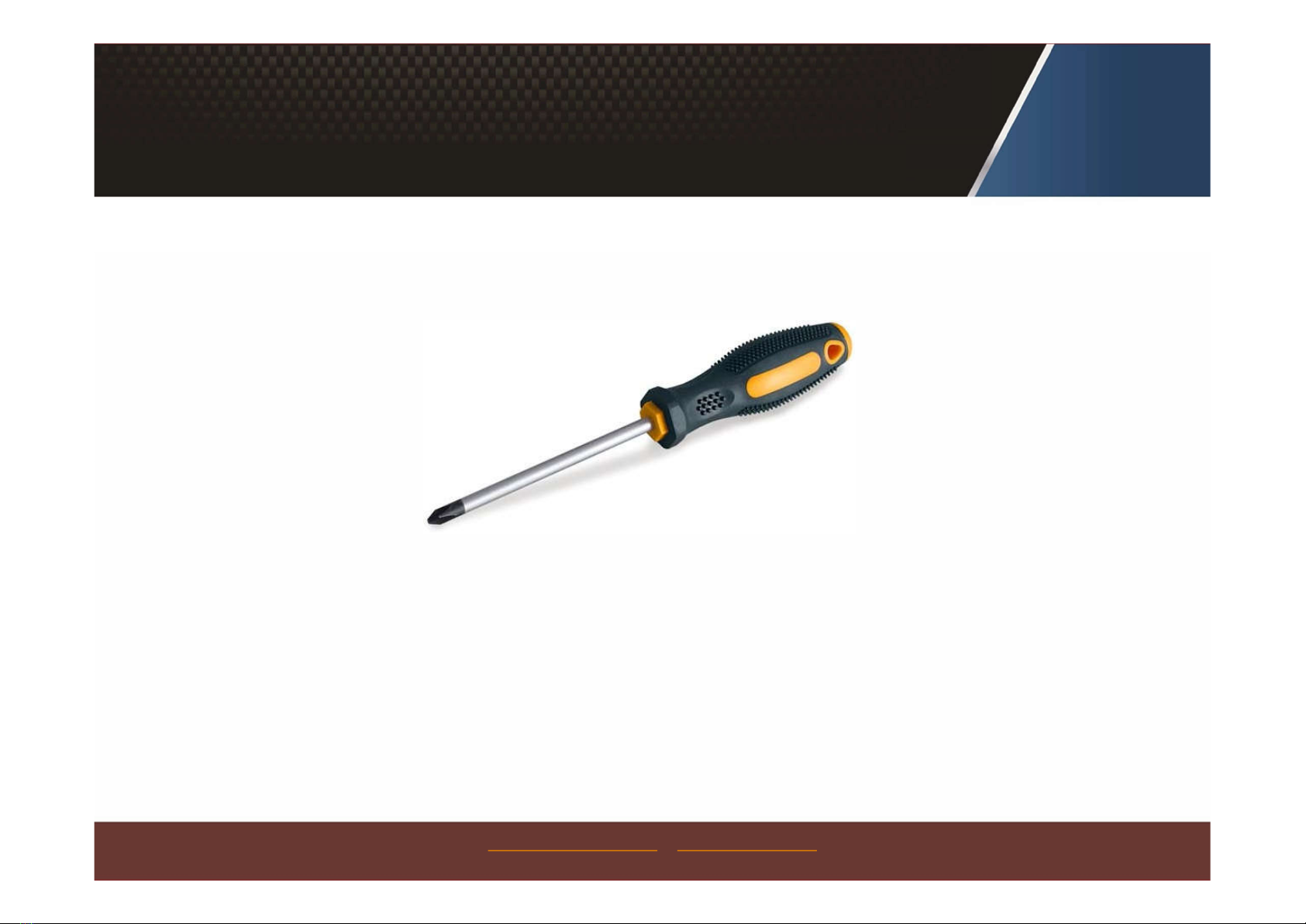

Screw-driver
WARNING
www.tecoonline.com | www.tecous.com
WARNING! Parts replacement and reparation may be carried out only by
qualified persons. If this are not performed properly, they can cause electric
shock, burns and fires
WARNING! TECO S.r.l. decline any responsibility in case of damages
caused by a wrong installation
Disconnect the chiller from power supply. Never touch internal part or
dismount chiller when it is connected to power supply to avoid potential
electric shock.
STEP n.
1
-Using the screw-driver, remove the screws indicated in the
picture here below (n°16 screws)
www.tecoonline.com | www.tecous.com
STEP n.
2
www.tecoonline.com | www.tecous.com
Disconnect ground
wire from the cover
Remove the cover
STEP n.
3
www.tecoonline.com | www.tecous.com
Find on PCB the RESET pins
Take a picture of “reset”, “uv” and “heater”pins (the same
as below) in order to remember how jumpers were placed
STEP n.
4
www.tecoonline.com | www.tecous.com
Remove the jumper from “Heater” or “UV” pins
Place the jumper on RESET
pins
STEP n.
5
www.tecoonline.com | www.tecous.com
Reassemble the chiller: place the metal cover of the chiller in its
own place and don’t foget to connect ground wire to metal fairing
Connect chiller to power supply
Turn on the chiller for 5 seconds, then turn it off
Disconnect the chiller from power supply
Dismount the metal cover (step 1 and 2)
Move the jumper from Reset pins to its original position (you took
a picture in step.3 to rmemeber jumper position).
Reset pins will be free (without jumper).
STEP n.
6
www.tecoonline.com | www.tecous.com
Reassemble the chiller: place the fairing in its own place.
Don’t foget to connect ground wire to metal fairing
ATTENTION: Connect chiller to power supply when metal
fairing is already placed and when water is already circulating
