Tecnosicurezza MiniTech TSMINI-4 Manuel

Setup and audit your MiniTech!

Choose your conﬁguration!

User or combination of users who can immediately block the lock (max 31

days). !

User or combination of users who can immediately unblock the lock. !

If the option disabled is selected it will not be possible to unblock until set

time and date.!

Master enables,

disables and deletes

the Manager!

Last option forces the

Manager to access

users management,

audit and time delay

functions in dual

mode!

Set keypad language

after setup!

Always: keypad can

be changed when

lock is closed!

Never: keypad can’t

be changed when

lock is closed!

RTC recovery (Master

and Manager)!

RTC auto calibration!

If pin option is not

selected the keypad

must have dallas

reader.!

If closing code is

selected keypad

must have aux

cable connected to

lock bat port!

Set lock users!

Set time lock!

Weekly time lock: 4 periods each

day!

Closing periods: 30 events (max 14

days)!

Opening periods: 30 events (max 14

days)!

Installed – deleted – blocked!

Code !

Code + dallas key!

Time lock!

Write a setup key!

Open MiniTech setup PC software!

Connect the USB interface to the dallas reader and to

the PC!

Connect dallas key to the reader!

Press “Write setup key”!

Write a reset key!

Open MiniTech setup PC software!

Connect the USB interface to the dallas reader and

to the PC!

Connect dallas key to the reader!

Press “Write reset key”!

MiniTech setup software - USB interface N42180/T - Dallas reader N42170/D -

Dallas key N1996!

Tools you need…!

Set your MiniTech!

Connect MiniTech lock to the keypad!

Write a setup key!

Connect the setup key to the dallas reader !

Switch on the keypad, press and hold 2!

Connect the reader to the keypad jack connector!

Check time and date!

Wait for the upload to be completed!

Dallas reader N42170/J - Setup dallas key N1996!

Tools you need…!

Wrong conﬁguration? Reset your lock…!

Connect keypad and lock !

Connect the reset box to the BAT connector of the lock!

Write a reset key!

Connect the reset key to the dallas reader!

Switch on the keypad, press and hold 2!

Connect the reader to the jack connector of MiniTech keypad!

The system will be reset in few seconds – press 1 to open!

Dallas reader N42170/J - Setup dallas key N1996 – Reset Box L4002/RB!

Tools you need…!

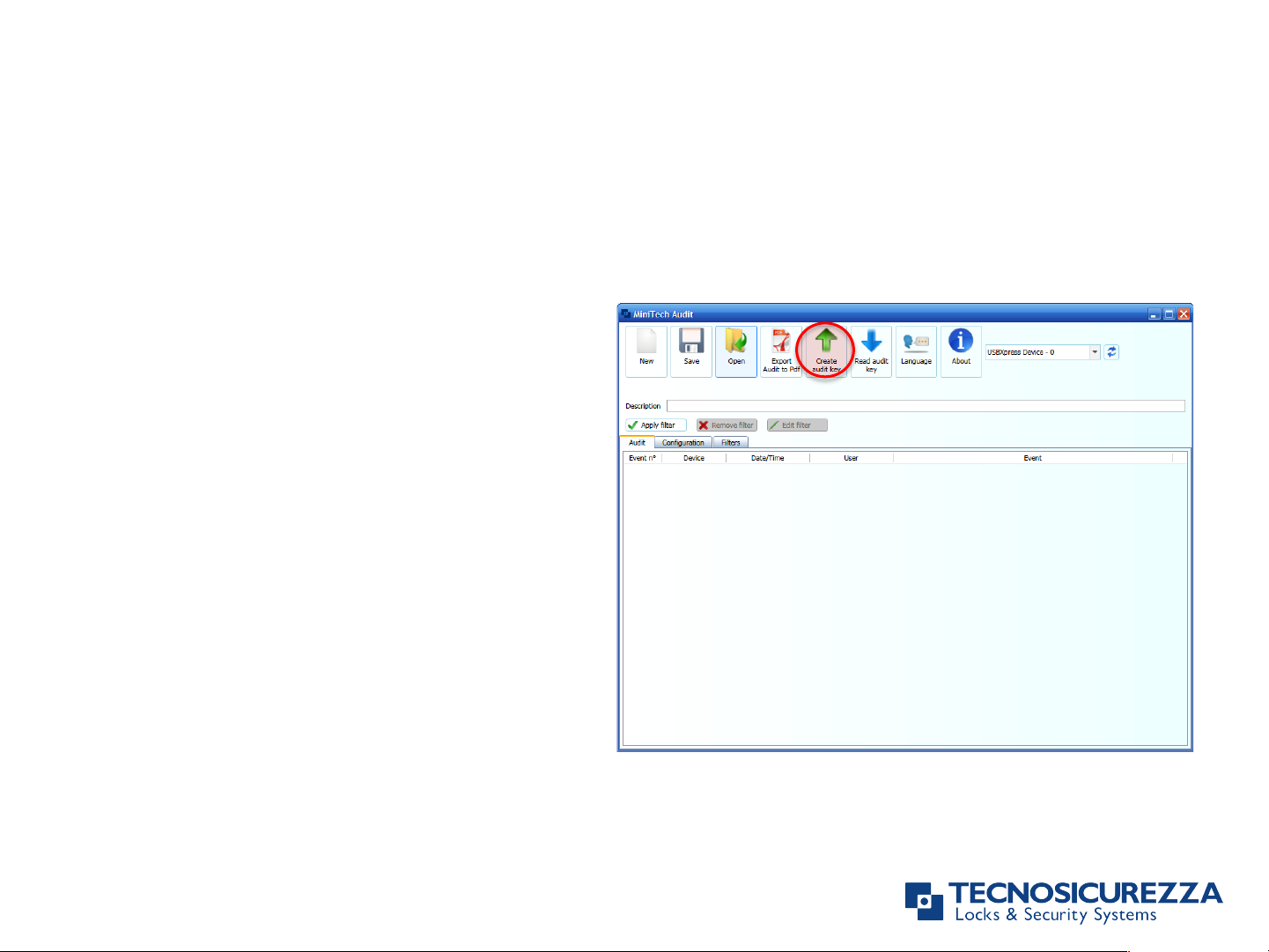

Set your audit key!

Open MiniTech audit PC software!

Connect the USB interface to the dallas reader and to

the PC!

Connect dallas key to the reader!

Press “Create audit key”!

MiniTech audit software !

USB interface N42180/T !

Dallas reader N42170/D !

Dallas key N1996!

Tools you need…!

Audit your MiniTech!

Connect the audit key to the dallas reader!

Access audit function!

Connect the reader to the keypad jack connector!

Wait for the download to be completed!

Dallas reader N42170/J!

Setup dallas key N1996!

Tools you need…!

MiniTech audit software - USB interface N42180/T - Dallas reader N42170/D -

Dallas key N1996!

Tools you need…!

Read your audit!

Open MiniTech audit PC software!

Connect the USB interface to the dallas reader and to

the PC!

Connect the audit key to the reader!

Press “Read audit key”!

Wait for the upload to be completed!

Filter, save or export events to pdf!
