7. COMPONENT DISASSEMBLY/REASSEMBLY AND PRODUCT

CHANGES

ATTENTION: for the details, see the video “Disassembly instructions - Skillmill”

available on the e-learning platform.

The disassembly instructions refer to the European version of Skillmill.

Before beginning to disassemble the parts, disconnect the equipment from the power supply.

Front part

Rear part

RH sideLH side

Figure 55 - Equipment reference

Skillmill:

Technical Service Guide - Rev. 3.5

Page 97email: [email protected]

Skillmill

Technical Service Guide - Rev. 3.5

email: [email protected]

2 S0WR01167AC BATTERY Console Skillmill 3 1

3 S0Z000826AA SCREW 4x8 Zn U8112 (Ph) 3 2

4SPEED SENSOR See table: SH0005583 9 1

5TREAD BELT See table: H0010698 9 1

6BRAKE See table: H0010724_BATTERIA-H0012201 9 1

7UPRIGHT See table: H0010744 9 1

8ROLLER CONVEYOR See table: H0010780 9 1

9UPPER CASING See table: H0010997 9 1

10 LOWER CASING See table: H0011000 9 1

11 HANDLEBAR See table: H0011161 9 1

12 SENSOR ANGLE See table: H0011204 9 1

13 FRAME See table: H0011714-10697 9 1

14 SW0008201AB DISPLAY Skillmill Console 1 1

15 SMARTPHONE SUPPORT See table: H0011741-11200 9 1

16 ROLLER See table: H0011862 9 1

17 ST0001156AB LOW KIT / 1 qa1 1

Pos Code Technical Specifications C N Q.ty

1 VELCRO 3M DUAL LOCK SJ3550 (25x25) 3 2

S0K001139AA

7.1 TOOLS

• Medium-sized Phillips screwdriver

• Permanent marker

• Ratchet

• Cuing nippers

• Socket wrench - 8 mm, 10 mm and 17 mm

• Hexagonal adapter, 8 mm

• Pliers

• Hexagonal wrenches: 2.5 mm, 3 mm, 4 mm, 5 mm 6 mm, 8 mm

• Gauge

• Grip pliers

• Pliers for snap ring

• Open-end wrenches: 8 mm, 10 mm, 2 x 13 mm, 17 mm

• Rubber mallet

• Long articulated T-handle wrench, 8 mm

7.2 DISASSEMBLING THE DISPLAY

1. Disconnect the power supply plug.

2. Remove the (interlocked) rear guard from the display.

3. Disconnect the two connectors.

4. Remove the 4 screws that x the rear of the display to the plate.

5. Remove the display.

6. Remove the 2 screws that x the display support guard to the plate.

7. Remove the display support guard.

7.3 DISASSEMBLING THE NFC BOARD

1. Remove the smartphone support on the left-hand side of the equipment, as detailed in the

video “Disassembly instructions - Skillmill” available on the e-learning platform.

2. Disconnect the connector. It is now possible to remove the smartphone support from the

equipment.

3. Remove the 5 screws on the rear of the smartphone support.

4. Remove the NFC board.

Skillmill

Technical Service Guide - Rev. 3.5

Page 98 email: [email protected]

7.4 DISASSEMBLING THE CENTRAL HANDLEBAR

1. Remove the left hand guard, next to the handlebar.

2. Disconnect the two connectors.

3. Remove the screws fastening the handlebar (left side).

WARNING: leave a screw loosely aached, to support the handlebar.

4. Remove the right-hand guard, next to the handlebar.

5. Remove the screws fastening the handlebar (right side).

6. Remove the handlebar, also removing the screw that had just been loosened (left side).

7.5 DISASSEMBLING THE SIDE HANDLEBARS

1. Disassemble the central handlebar as described in paragraph “7.4 Disassembling the central

handlebar”.

2. Remove the upper angular side guard (the outer part of the equipment).

3. Remove the upper angular side guard (the inner part of the equipment). ATTENTION: there

are a number of hidden screws to remove.

4. Remove the 2 upper screws from the side handlebar.

5. Loosen the grub screw on the lower part of the side handle.

6. Remove the side handlebar.

When the handlebar has been removed, recover the pawl.

7.6 DISASSEMBLING THE UPRIGHT

1. Disassemble the side handlebars as described in paragraph “7.5 Disassembling the side

handlebars”.

2. Remove the front tread belt footboard.

Mark the screws according to their size.

3. Remove the guard next to the upright, on the inner side of the equipment.

4. Remove the (interlocked) side covering from the lower part of the upright, on the outer side

of the equipment.

Skillmill:

Technical Service Guide - Rev. 3.5

Page 99email: [email protected]

5. Remove the guard located under the side covering.

6. Remove the front guard.

7. Remove the right-hand front side guard.

8. Disconnect the brake cable.

9. Remove the upright.

7.7 BRAKING SYSTEM

7.7.1 DISASSEMBLING THE BRAKE LEVER ASSEMBLY

1. Remove the circular guard from the brake lever assembly.

2. Remove the guard located under the circular guard of the brake lever assembly.

3. Remove the brake lever.

4. Remove the guard.

5. Remove the brake lever assembly components and take the brake cable out of its seat.

7.7. 2 DISASSEMBLING THE BRAKE CABLE

1. Disassemble the braking system as explained in paragraph “7.7.1 disassembling the brake

lever assembly”.

Before replacing the brake cable: make sure the stop screw is adjusted correctly and that its position

does not change when the cable is replaced. To be safe, mark the position of the stop screw as a

reference. The stop screw is positioned correctly if the screw touches the frame slightly when

the lever is pulled back completely. This means that the screw is resting up against the

frame, with less than one 180° degree turn to fully tighten it.

Before replacing the brake cable, check and mark the cable path. Take the two references as shown

below.

Skillmill

Technical Service Guide - Rev. 3.5

Page 100 email: [email protected]

Table des matières

Autres manuels Technogym Équipement de fitness

Technogym

Technogym Selection Abdominal Crunch Manuel utilisateur

Technogym

Technogym Kinesis Station Manuel utilisateur

Technogym

Technogym BIOSTRENGTH LINE Manuel utilisateur

Technogym

Technogym GROUP CYCLE Manuel utilisateur

Technogym

Technogym UNICA Manuel utilisateur

Technogym

Technogym Personal Selection TUV Manuel utilisateur

Technogym

Technogym EXCITE+ VARIO Comment utiliser

Technogym

Technogym Element+ Manuel utilisateur

Technogym

Technogym element leg extension Manuel utilisateur

Technogym

Technogym Kinesis Station Manuel utilisateur

Technogym

Technogym Unica Evolution Manuel utilisateur

Technogym

Technogym MyRun Manuel utilisateur

Technogym

Technogym Cable Stations Manuel utilisateur

Technogym

Technogym MA05 Manuel utilisateur

Technogym

Technogym Selection Delts Machine Manuel utilisateur

Technogym

Technogym MYWELLNESS KIOSK Manuel utilisateur

Technogym

Technogym Element+ Manuel utilisateur

Technogym

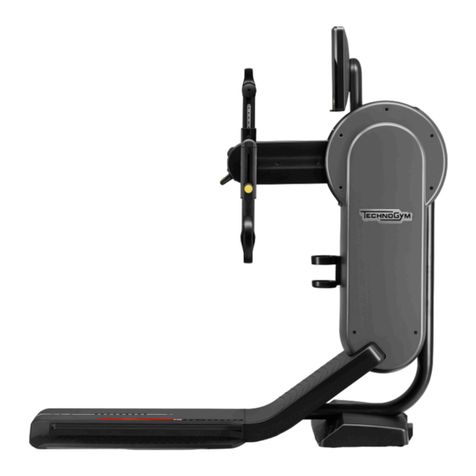

Technogym TOP EXCITE LIVE Manuel utilisateur

Technogym

Technogym MyRun Manuel utilisateur

Technogym

Technogym MYWELLNESS KIOSK Manuel utilisateur

Technogym

Technogym Element+ Leg Press Manuel utilisateur

Technogym

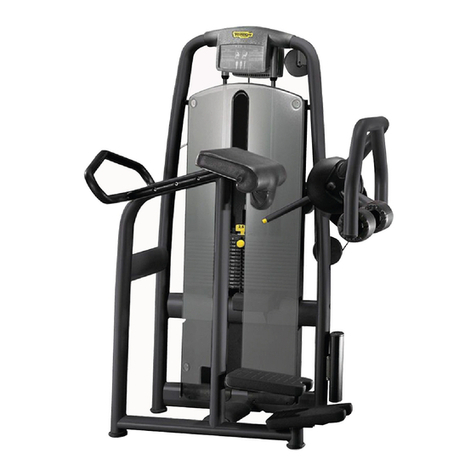

Technogym Selection Glute Manuel utilisateur
