Technogym Selection Manuel utilisateur
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
1
Adjustable Bench
User manual
All equipment
2
Adjustable Bench
Contents
Identification of the manufacturer and equipment ........................... 3
Description of the equipment............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Place of installation ........................................................................... 7
Lifting and moving the equipment..................................................... 8
Routine maintenance ....................................................................... 9
Replacing the padded parts............................................................ 10
Technical Service............................................................................. 11
Storage............................................................................................ 12
Disposal........................................................................................... 13
Using the equipment ....................................................................... 14
User manual ...................................................................................... 1
Contents............................................................................................ 2
3
D
E
A
B C F
Adjustable Bench

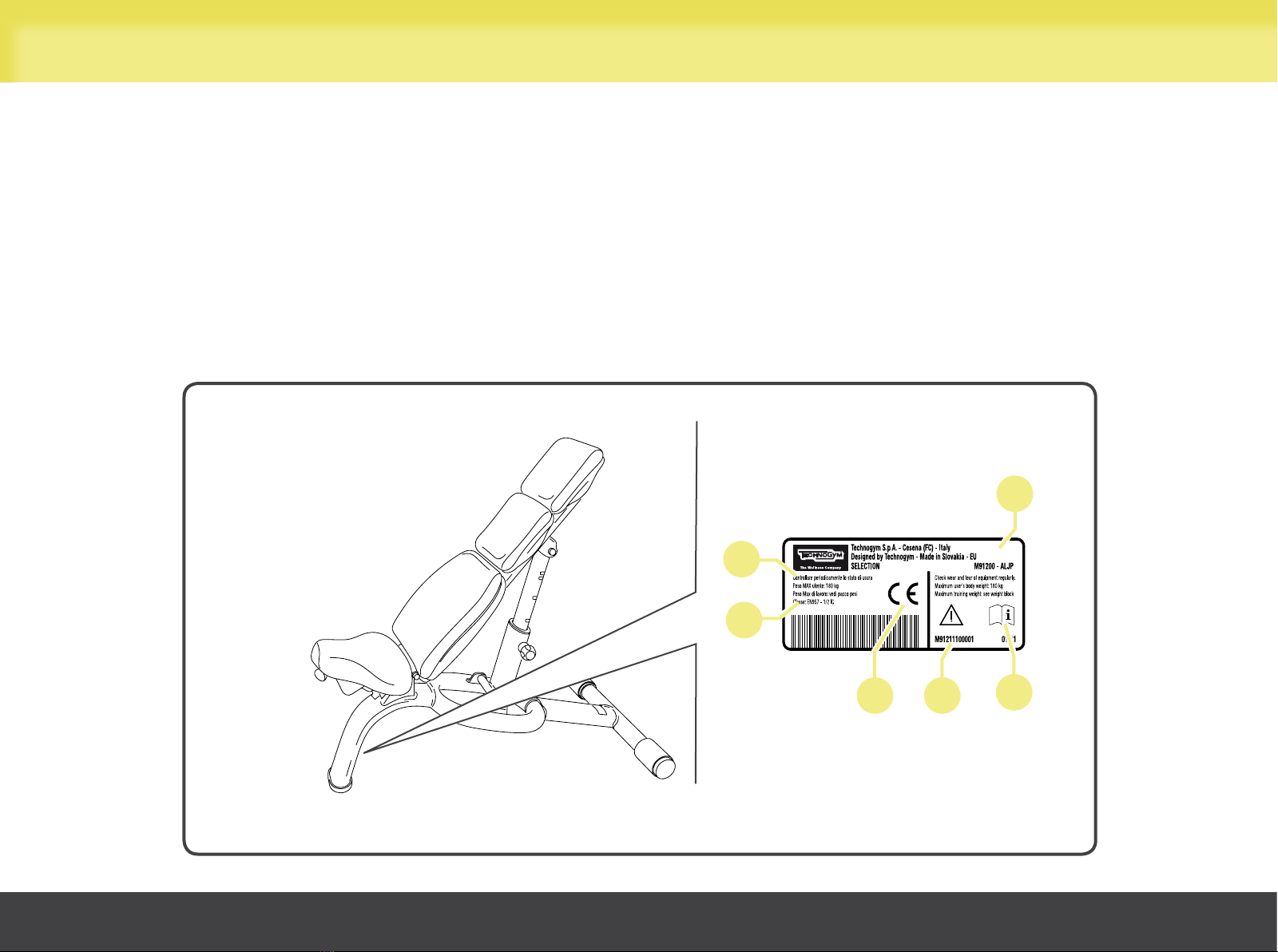

Identification of the manufacturer and equipment
The identification plate of the equipment and manufacturer, affixed on the inside of the frame, under the seat, gives the following details:
AManufacturer's name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classification
FConsultation of user manual required
4
A
B
D
C
Adjustable Bench
Description of the equipment
A Seat: where the user sits to perform the exercise. Its position can be adjusted using the lever (C).
B Backrest: supports the back while exercising. Its position can be adjusted using the knob (D).
5
697 mm
(27")
1171 mm
(47")
37 kg (82 lb)
526 mm
(20")
1337mm
(53")
Adjustable Bench
Technical data
6
Adjustable Bench
Safety devices and warnings
The maximum user weight is 180 kg.
The equipment does not have any sharp corners.
All the parts which come into contact with the body are adequately protected with rubber coverings or padding.
This symbol accompanies safety warnings. It is used to draw attention to potential risks
of personal injury. Pay attention to all safety warnings accompanied by this symbol to avoid
possible injury.
WARNINGS
During all operations involving transport, maintenance and cleaning, pay attention to
any part of the equipment where body parts may become trapped.
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
7
Adjustable Bench
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommended that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.
8
Adjustable Bench

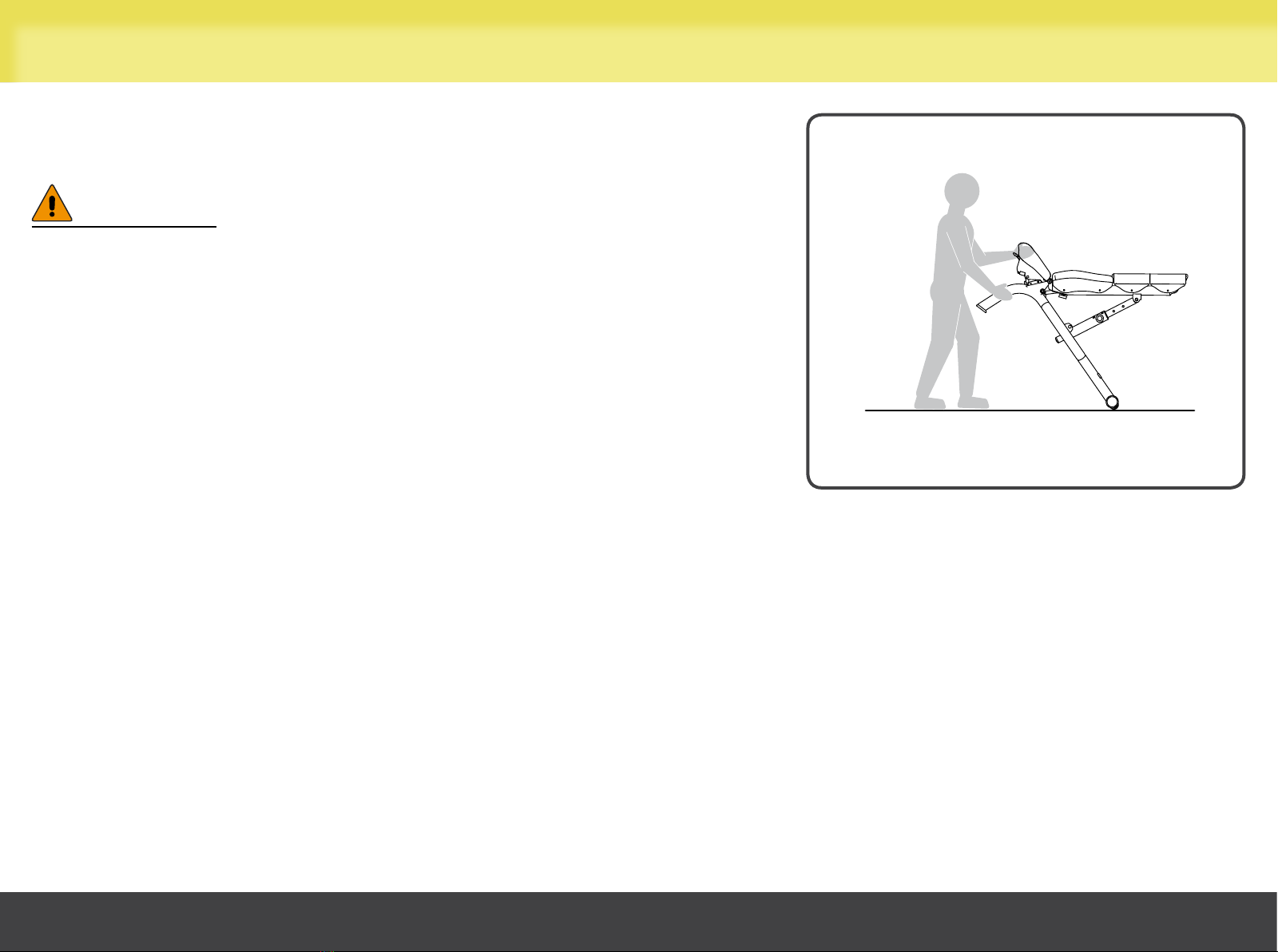

Lifting and moving the equipment
The equipment comes with two castors. To move, lift the side without castors
slightly by gripping the padding or frame and push forward or backward.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.
9
Adjustable Bench
Routine maintenance
WARNINGS
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs
of damage and/or wear.
Replace defective and worn components immediately, or alternatively remove the equipment from service.
The equipment should always be kept clean and free of dust, in compliance with good hygiene practice, especially if it is used in a
gym or by more than one person.
Use a moist cloth or a sponge and mild soap to clean the padded parts.
Wipe the outside of the equipment every week using a damp sponge.
Do not use chemicals or solvents.
WARNING
Be careful not to rub too hard on the drawings and instructions shown on the labels.
Call in the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual.
10
Adjustable Bench
Replacing the padded parts
If any of the padding shows signs of wear, especially in the interests of hygiene,
we recommend replacing them completely.
To replace seats and backrests loosen the screws on the opposite side to the
padding.
