Technogym Selection Multi Hip Manuel utilisateur

S E L E C T I O N

T H E S T R E N G T H E V O L U T I O N

Multi Hip

User manual

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Selection etic_ser tracciato.eps

Multi Hip

Contents Identiﬁcation of the manufacturer and equipment

The identiﬁcation plate of the equipment and manufacturer, afﬁxed behind the central frame,

gives the following details:

AName and address of the manufacturer

BCE Mark

CSerial number

DWarning

EEquipment classiﬁcation

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Multi Hip

Contents Description of the equipment

A Platform: where the user stands to perform the exercise.

B Lever: operated by the user by means of the roller (C); before starting to exercise, or

between one set and the next, the starting position can be adjusted so as to modify the

range of motion by using the ROM device.

D ROM device: system for adjusting the Range of Motion and the starting position of the

roller (C). Adjustments are made by pulling the knob (L).

E Front handgrip: it is ﬁxed to the frame (O) and does not follow the adjustments of the

central frame (I).

F Weight stack: the lever (B), operated by the user, moves the weights along two guides

by means of a cable. A pin (G) is used for selecting the load, to adjust the exercise effort

level. The cursor (H) is used to vary the selected workload by 2,5 kg.

cont.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Multi Hip

Contents Description of the equipment

I Central frame: supports the ROM (D) and the handgrips (M). The position of the central

frame is height-adjustable by pulling knob (N). This adjustment makes it possible to adapt

the height of handgrips (M) and of the roller (C) to the height of the user.

M Handgrips: the user must hold them for increased correctness whilst exercising. They are

height-adjustable, together with the roller (C), by pulling the knob (N).

O Main frame: load-bearing structure of the equipment.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Multi Hip

Contents Technical data

264 kg (583 lb)

95 kg (190 lb)

294 kg (649 lb)

125 kg (250 lb)

1220 mm

(48")

1530 mm

(61")

1110 mm

(44")

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

99834109

01083019

99834109

Multi Hip

Contents Accessories

The equipment’s standard outﬁt comprises:

- User manual

- Warranty certiﬁcate

Optional accessories are the wheels (A)

for moving the equipment (A0000015), the

Basic Box service kit (B) (A0000010) and

the number holder (C) (H0000369) to be

assembled between the top and the weight

stack guides.

Warning

There may be only one or two castor

wheels, depending on the type of

equipment.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

99834154

Multi Hip

Contents Assembling the number holder

The number holder must be assembled

immediately underneath the top: standing

facing the equipment, afﬁx the number holder

on the left tube supporting the guide, so that

it is ﬂush with the rubber stop of the guide.

The number holder is divided into two pieces:

the larger section (A) goes on the front, while

the crescent closure (B) goes on the back of

the equipment.

Insert the two screws (M5x6 Z) from the front

of the equipment, mating them with the two

M5 cap nuts at the rear; then lock down using

the appropriate spanners.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

04194016_targ_schiacciamento

Multi Hip

Contents Safety labels and devices

The equipment does not have any sharp corners.

All the parts which come into contact with the body are adequately protected with rubber

coverings or padding.

The weight stack is enclosed in protective panels.

Warning

It is important to pay attention to the labels afﬁxed to the equipment, as they

provide information about possible risks and hazards.

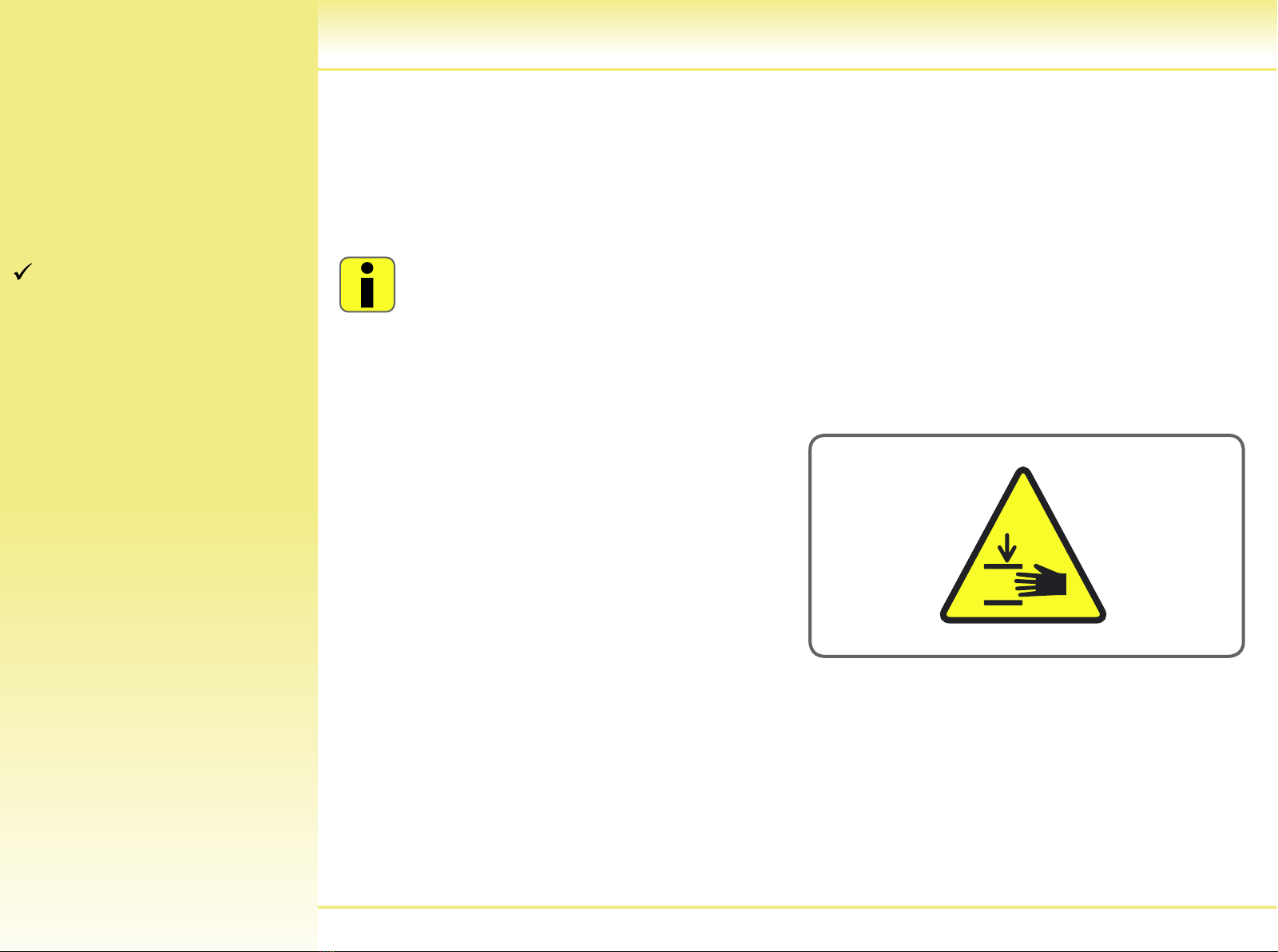

Pay particular attention to the parts of the

equipment with labels indicating “DANGER

OF SQUASHING”.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

imballo

Multi Hip

Contents Packing

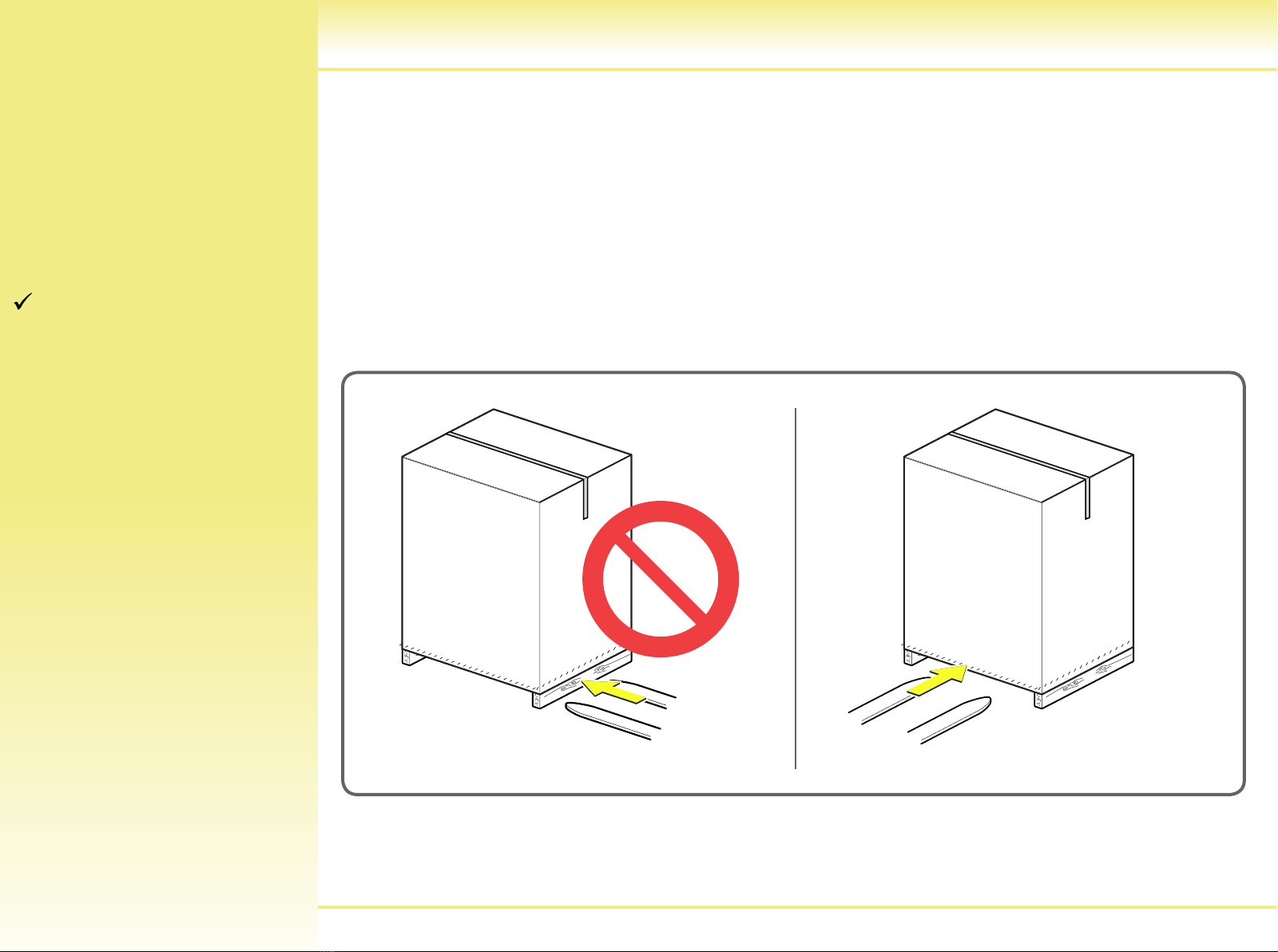

The equipment is supplied partially assembled, protected by cellophane and carton and

secured to a pallet.

The equipment can be lifted and handled using normal lifting machine.

In order to ensure the safety of persons and property, carefully determine the lifting and

handling machine used as a function of the place of installation.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Multi Hip

Contents Place of installation

To guarantee safe, comfortable and effective use of the equipment, the place of installation

must comply with certain speciﬁc requirements; in particular, before choosing where to install

the equipment it is recommended to check the following:

- the temperature is between +10°C and +25°C;

- sufﬁcient ventilation to maintain a humidity level between 20% and 90%, when the

equipment is in use;

- the lighting is good enough to make the area safe and relaxing place to exercise in;

- sufﬁcient clearance on all sides of the equipment, taking into account its maximum

dimensions during the movements, necessary for safety reasons;

- a ﬂat, stable and vibration-free ﬂoor surface, with adequate carrying capacity for the

equipment’s weight.

If the equipment is to be installed in a public recreation area, the place of installation must

comply with all binding regulations.

Warning

The equipment must be installed and used in a place whose access and supervision

are speciﬁcally controlled by the owner.

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Autres manuels pour Selection Multi Hip

Table des matières

Autres manuels Technogym Équipement de fitness

Technogym

Technogym Selection Manuel utilisateur

Technogym

Technogym TEAMBEATS Manuel utilisateur

Technogym

Technogym element+ Chest Press Manuel utilisateur

Technogym

Technogym Step 500i SP Manuel utilisateur

Technogym

Technogym PLURIMA Manuel utilisateur

Technogym

Technogym PURESTRENGTH LOW ROW Instructions de fonctionnement

Technogym

Technogym Selection Cable Jungle Manuel utilisateur

Technogym

Technogym Element+ Leg Press Manuel utilisateur

Technogym

Technogym MyRun Manuel utilisateur

Technogym

Technogym Synchro Forma Manuel utilisateur

Technogym

Technogym WAVE EXCITE+ Manuel utilisateur

Technogym

Technogym Plurima MF30 Comment utiliser

Technogym

Technogym lower back bench Instructions de fonctionnement

Technogym

Technogym Recline 500SP Manuel utilisateur

Technogym

Technogym CLIMB EXCITE LIVE Manuel utilisateur

Technogym

Technogym MH67E Manuel utilisateur

Technogym

Technogym element leg extension Manuel utilisateur

Technogym

Technogym Selection Abdominal Crunch Manuel utilisateur

Technogym

Technogym SELECTION PRO Manuel utilisateur

Technogym

Technogym Excite Live DF Series Manuel utilisateur

Technogym

Technogym Selection Multi Hip Manuel utilisateur

Technogym

Technogym TOP 600 XT PRO Manuel utilisateur

Technogym

Technogym Selection Abdominal Crunch Manuel utilisateur

Technogym

Technogym Selection Chest Incline Manuel utilisateur

Manuels Équipement de fitness populaires d'autres marques

NSD

NSD PB-188P Manuel utilisateur

Performance

Performance HyperVibe Manuel utilisateur

Scalamobil

Scalamobil S27 Manuel utilisateur

Precor

Precor Experience Series Manuel utilisateur

FYTTER

FYTTER RedMIUM BENCH BE-T6R Manuel utilisateur

Taurus

Taurus TF-RK1312 Manuel utilisateur

Nustep

Nustep T5 Manuel utilisateur

Precor

Precor CW-507 Manuel utilisateur

Movement

Movement BICEPS Idea Manuel utilisateur

Kegel8

Kegel8 V For Men Manuel utilisateur

Skandika

Skandika Styrke II Manuel utilisateur

BLK BOX

BLK BOX 21-0122-0B Manuel utilisateur

Stamina

Stamina aeropilates premier 299 Manuel utilisateur

SPORTSTECH

SPORTSTECH PBX300 Manuel utilisateur

ParaBody

ParaBody Serious Steel 877102 Manuel utilisateur

Weslo

Weslo Gym 650 Manuel utilisateur

Rebel

Rebel ACTIVE RBA-1011 Manuel utilisateur

4iiii

4iiii FLiiiight Manuel utilisateur
