TechniSat TechniCorder ISIO STC Manuel utilisateur

DiSEqC 1.2

Quick Start Manual

TechniCorder ISIO STC

Digital Multituner HD Receiver

with Internet Access

With CONAX cardreader and an interface

for recording from two CI/CI+ modules

and a DVR recording function via the optional internal hard drive,

the USB interface or the home network.

For reception of free-to-air and encrypted

(e.g. VIACCESS, CONAX, IRDETO, etc.)

HD satellite channels.

Dear Customer,

Congratulations on your decision to purchase the TechniCorder ISIO STC.

The operating manual supplied is intended to help you to utilise the comprehensive functions

of your new digital receiver to the fullest extent. We have kept the operating instructions as

brief as possible and have used terminology that everybody can understand.

The range of functions of your receiver is constantly being expanded by means of software

updates. This means that additional steps in the operation may be added that are not yet

described in this operating manual, or the operation of existing functions may be changed.

For this reason you should occasionally visit the TechniSat homepage to download the lat-

est version of the operating manual.

We wish you many years of viewing pleasure with your TechniCorder ISIO STC!

Your

TechniSat Team

TechniSat hereby declares that the TechniCorder ISIO STC device complies with the funda-

mental requirements and any other relevant stipulations of Directive 1999/5/EC. The decla-

ration of conformity can be viewed online at: http://www.technisat.de/konformitaet/

technicorderisiostc.pdf

The unit also bears the CE mark.

This unit is designed for use in all countries of the European Union and in Switzerland,

Norway, Liechtenstein and Iceland. Operation in the 5150 MHz - 5350 MHz frequency range

is only permissible in closed rooms.

HDMI, the HDMI-Logo and High Definition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

This product contains technologies which are protected by copyright, by US patents and by

other rights for the protection of the intellectual property of the Rovi Corporation. Reverse

engineering and disassembly are prohibited.

This item incorporates copy protection technology that is protected by U.S. patents and

other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly

are prohibited.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

1 Illustrations

Remote control code

On/Stand-by

Sound on/off

Numeric keypad keys

Recording

EPG

Page up

Back

TV/Radio mode

Rewind

Info

Fast forward

Channel +/- Volume +/-

Menu Zoom/Format

Function keys

Stop / DVR

Arrow keys Pause / playback

Options selection

Function selection

Page down

WWW

Sleep Timer

Audio channel

PiP/PaP

HDMI

Teletext

Freeze frame /

Jogshuttle

Timer

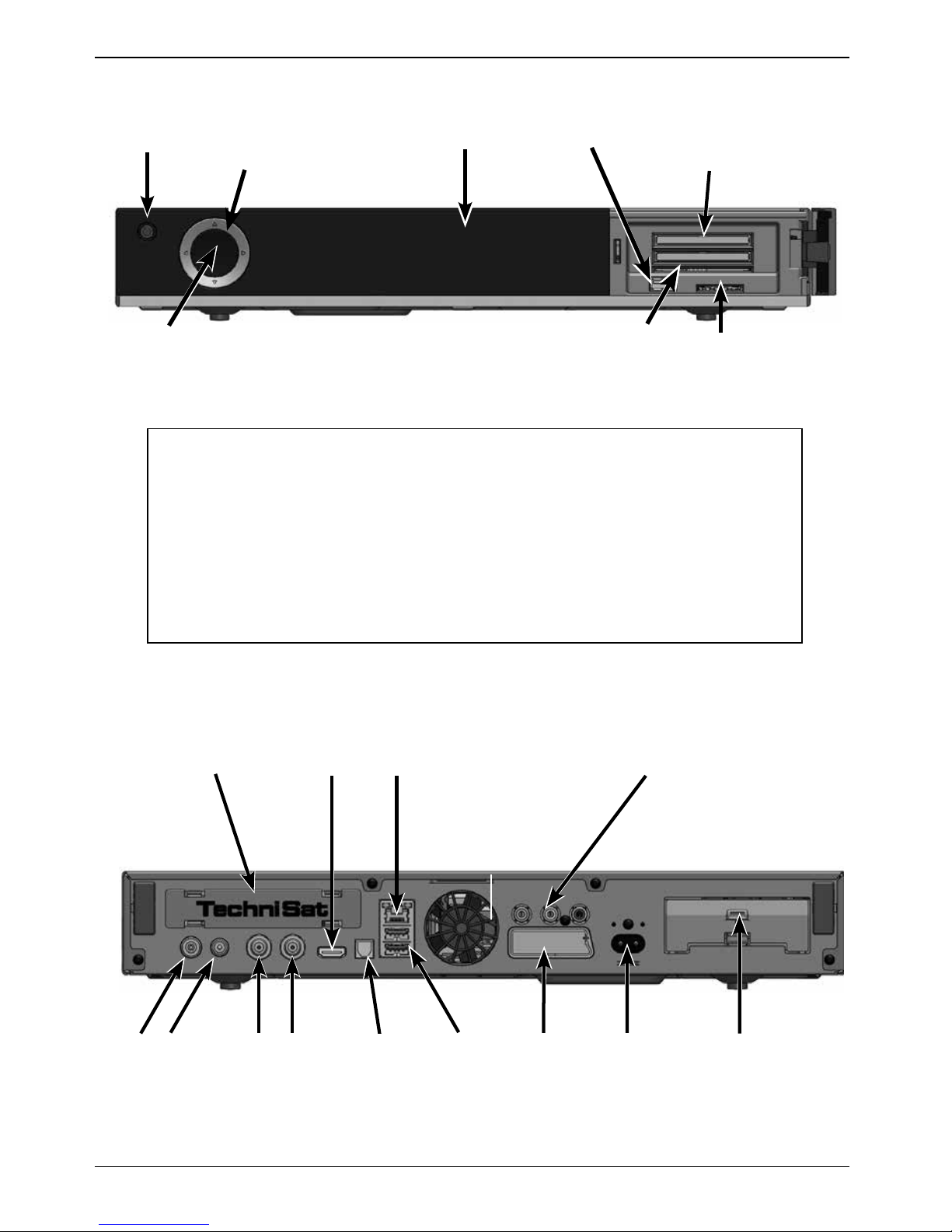

Front of unit

Rear of unit

LNB 1

input

LNB 2

input

Loop

out

RF in

Audio outputs

analogue/digital

Tuner slot

Mains power

connection

USB

ports

HDMI

output

SCART

socket

Network

port

S/PDIF

out

Hard drive

drawer

Arrow

keys

On/Stand-by Display USB port

SD/MMC

card reader

Smartcard

card reader

socket

CI modules

Einlegen der CONAX Smartcard:

> Push the CONAX Smartcard (gold chip face down and aligned in the direc-

tion of insertion) into the Smartcard reader as far as the stop.

Inserting the CI/CI+ modules:

> Please refer to the CI/CI+ module and card manufacturer’s instructions.

> Insert the Smartcard you want into the relevant CI module.

> Now carefully insert the CI module into the slot.

2 Please read this first

Before connecting and using the device, first check that everything has been supplied

and familiarise yourself with the safety instructions.

The delivery includes:

1 digital receiver, 1 Quick Start Manual, 1 CD-ROM,

1 remote control, 1 mains cable, batteries (2 x 1.5V microcells)

2.1 Safety advice

For your own protection you should read the safety precautions carefully before using your

new receiver.

The manufacturer accepts no liability for damage caused by inappropriate handling, or by

non-compliance with the safety precautions.

Function-related discharge current may occur with electrical equipment. This

is acceptable and poses no risk, even if it is experienced as a slight tingling.

To prevent these discharge currents, mains operated devices (receivers, TVs etc.)

must always be installed or connected with the power switched off, i.e. devices must

be disconnected from the mains power supply.

- Only operate the receiver in a temperate climate.

- To ensure adequate ventilation, place the receiver on a flat, horizontal surface and

do not place any objects on top of it. There are ventilation slots here to allow heat to

be dissipated from the interior of the unit.

- Never place any burning objects, such as lit candles, on top of the unit.

- Do not expose the receiver to water droplets or water spray, and do not place any

objects filled with liquid, such as vases, on top of it. If water gets into the unit, imme-

diately disconnect the mains plug and inform the service department.

- Do not operate any sources of heat near to the unit which may also heat it up.

- Do not obstruct the ventilation slots.

- Never open the receiver housing under any circumstances!! You risk

receiving an electric shock. Any necessary repairs to the receiver should only

be carried out by qualified service personnel.

In the following circumstances you should disconnect the device from the mains

power and consult an expert:

> the power cable or mains plug is damaged

> the unit has been exposed to moisture or liquid has got into it

> there are significant malfunctions

> there is severe external damage.

2.2 Periods of non-use

During a storm or lengthy period of non-use (e.g. holiday), the receiver should be discon-

nected from the mains and the antenna cable removed.

Before you disconnect the receiver from the mains, you should first switch it to standby

mode and wait until the time appears in the display or the red LED light is displayed.

2.3 Important notes on operation

Operation of the digital receiver is simplified through the use of so-called "On Screen

Displays" (OSD). This also means that the number of keys on the remote control unit is

reduced.

All functions are displayed on screen, and can be controlled by means of a few control but-

tons.

Functions that are logically related are combined into a "MENU". The selected function will

be highlighted.

The red, yellow, blue and green function keys are indicated by coloured bars at the bottom

of the screen. In the various menus, these coloured bars represent different functions, which

can be implemented by pressing the appropriately coloured keys (multi-function keys) on the

remote control. The function keys are only activated when a brief description is displayed in

the appropriate field.

The button identifications and terms that appear in the OSD menu are shown in bold type

in this operating manual.

Help: Where available, press the blue function key in the menus to display help text and

press again to close the help window.

2.4 Important information on data security

Before handing your receiver over to your supplier for maintenance purposes, we recom-

mend that you remove all storage media or data carriers.

Restoring data is not part of maintenance or repair work. TechniSat accepts no responsibility

for the loss of, or damage to, data during repair work.

2.5 Remote control/Changing the battery

> Open the cover on the battery compartment at the rear of the remote control by press-

ing gently on the point indicated and pushing in the direction of the arrow.

> Insert the supplied batteries, ensuring that the poles are the right way around (indica-

tor visible in battery compartment).

> Close the battery compartment again.

2.6 Disposal advice

The packaging material used for your receiver consists entirely of recyclable materials.

Please sort the components appropriately, and dispose of them in line with your local waste

disposal regulations.

At the end of its useful life span, this receiver may not be disposed of with your regular

household waste. It must be taken to a recycling collection point for electrical and electronic

equipment.

This is indicated by the symbol on the product, the operating manual or the packaging.

The materials used can be re-used in accordance with their labelling.

By ensuring that valuable raw materials in old equipment are re-used, you can make a valu-

able contribution towards protecting our environment.

Please contact your local authority for the location of the nearest recycling point.

Please ensure that dead batteries from the remote control and electronic waste items are

not sent to your regular household refuse site, but are correctly disposed of (either in special

bins for problem waste, or at collection points at specialist dealers).

3 Optional Hardware

Your DVB receiver can also be equipped with optional hardware, such as various tuner

modules and an internal 2.5” hard drive.

3.1 Installing the optional internal hard drive

Your DVB receiver can also be equipped with an internal 2.5” hard drive or SSD for DVR

recording functionality:

a. Disconnect the unit from the mains power supply. Please also note section 2.2 (peri-

ods of non-use).

b. Now press the handle of the hard drive drawer together to release the lock and care-

fully remove the drawer from the housing.

c. Insert your 2.5” hard drive or SSD in the drawer with the contact strip pointing towards

the open end of the drawer.

d. Now carefully click in the securing hook of the drawer first on one side of the 2.5” disc

drive and then on the other. If this is not possible with light pressure, remove the hard

drive from the drawer and reposition it. Depending on the disk drive being used, the

underside may need to face upwards to allow it to engage.

e. Now slide the drawer into the unit until you feel slight resistance. Now carefully push

the drawer further in using slight pressure to connect the disk drive with the unit. If it is

not possible to push in the drawer as far as the stop using slight pressure or until the

drawer engages, repeat the procedure starting from section b.) and check that the disk

drive is positioned correctly.

f. After successfully installing the tuner module, continue with section 3.2 (Using an

optional tuner module) or section 4 (Connecting the DVB receiver).

3.2 Inserting the optional tuner module

Your DVB receiver can also be equipped with an additional tuner module:

a. Disconnect the unit from the mains power supply. Please also note section 2.2 (peri-

ods of non-use).

b. Press the securing hooks on the protective cover together and remove the cover.

c. Note the printing on the tuner module to ensure that it turns in the correct position and

insert the tuner module with the contact strip facing forwards into the slot which is now

open.

d. Now slide the tuner module into the unit until you feel slight resistance. Now carefully

push the tuner module further in using slight pressure to connect the tuner with the

unit. If it is not possible to push in the tuner module as the stop using slight pressure,

remove the tuner module and start again from section c.).

e. Now screw in the tuner module using the screws provided.

f. After successfully installing the tuner module, continue with section 4 (Connecting the

DVB receiver).

Table des matières

Autres manuels TechniSat Récepteur

TechniSat

TechniSat DIGIT MF4-K Manuel utilisateur

TechniSat

TechniSat TECHNISTAR S6 Guide d'installation et d'utilisation

TechniSat

TechniSat DIGITRADIO 1980 Manuel utilisateur

TechniSat

TechniSat HDFS Manuel utilisateur

TechniSat

TechniSat TechniBox VIACAM Manuel utilisateur

TechniSat

TechniSat VIACCESS DigiBox VIACCESS Manuel utilisateur

TechniSat

TechniSat DigiCorder S1 Manuel utilisateur

TechniSat

TechniSat EC 4004 Manuel utilisateur

TechniSat

TechniSat DigiBox CRYPTOWORKS Manuel utilisateur

TechniSat

TechniSat DigiPlus STR 1 Manuel utilisateur

TechniSat

TechniSat DigiCom 1A Manuel utilisateur

TechniSat

TechniSat DigiBox CRYPTOWORKS Manuel utilisateur

TechniSat

TechniSat DigitMod S1 Manuel utilisateur

TechniSat

TechniSat HDFV Manuel utilisateur

TechniSat

TechniSat ST 6002 S Manuel utilisateur

TechniSat

TechniSat DIGIT Series Supplément

TechniSat

TechniSat HDFS Manuel utilisateur

TechniSat

TechniSat DigiCorder HD series Manuel

TechniSat

TechniSat HD-S 261 Manuel utilisateur

TechniSat

TechniSat DiGYBOXX HD CX Manuel utilisateur

TechniSat

TechniSat DIGITRADIO UP 55 Manuel utilisateur

TechniSat

TechniSat DIGIT ISIO STC Manuel d'instructions

TechniSat

TechniSat DIGIT MF4-S Manuel utilisateur

TechniSat

TechniSat TECHNISTAR S6 Guide d'installation et d'utilisation

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
