TechniSat HDFS Manuel utilisateur

TechniSat HDFS

Satellite HD Digital Receiver

Quick Start Guide

1 Contents List

The following items should be in your freesat receiver box:

> freesat receiver

> Remote control and batteries

> HDMI lead

> Mains lead

> Owner’s Manual

> Quick Start Guide

2 Setup – connection of AV

a. Mains connection.

b. Connection between

the satellite dish LNB

and the receiver LNB

input.

c. HDMI connection

between the receiver

and the TV.

d. Optional SCART con-

nection between the

receiver and the TV.

e. Optional SCART con-

nection between the

receiver and a VCR.

f. Optional connection of

the receiver audio out-

put to a Hi-Fi or sur-

round sound system.

2.1 Connection (a)

> After you have made all connections in accordance with the fol-

lowing information, connect the freesat receiver using the en-

closed power cable to a mains socket. Never connect or discon-

nect the antenna input when the freesat receiver is switched on.

2.2 External input (b)

> Connect the satellite cable from the external antenna to the LNB

input on the freesat receiver

2.3 Connection to a TV (c) & (d)

> Connect the freesat receiver HDMI output to the TV HDMI input

using the supplied HDMI cable. Select the HDMI AV channel on

the TV.

Alternatively:

> Use a SCART cable to connect the receiver ‘TV SCART’ to the

SCART socket on your TV. If your TV is appropriately equipped,

it will automatically switch to AV, and thus to satellite operation,

when the freesat receiver is switched on.

2.4 Connection to a Video cassette recorder (VCR) or DVD Re-

corder (e)

Connect the VCR or DVD recorder to the ‘VCR SCART’ on the re-

ceiver. During playback, the VCR or DVD recorder applies a sig-

nal voltage via the SCART to the freesat receiver. This allows the

audio and video to automatically reach the ‘VCR SCART’ (not via

the HDMI output) and hence the TV, provided this is connected via

SCART. If your equipment does not support this signalling, use the

AV button to switch your freesat receiver to the external VCR input.

Pressing this button again will allow you to revert to normal opera-

tion.

2.5 Connection of audio output to Hi-Fi or surround sound sys-

tem (f)

> Connect either the analogue or digital audio output from the re-

ceiver to the appropriate input on a Hi-Fi or surround sound

system.

3 Power Up

1. Connect the power lead to a mains socket.

2. The unit will now be powered and in standby.

3. Power on by pressing the red standby key on the remote control

or the standby button on the front of the freesat receiver (identi-

ed by a red surround).



4. The power button surround will now illuminate blue to indicate

that it is operational.

4.1 Welcome and start-up

Press the OK key on the re-

mote control to begin the in-

stallation.

4.2

Antenna conguration

For a standard installa-

tion, accept the default an-

tenna conguration. For

advanced installations, se-

lect ‘Modify’ and follow the

instructions in conjunction

with the Owner’s Manual.

4.3 Software update

The receiver will automati-

cally check for software

updates. If none is found, it

will report that your receiver

has the latest software ver-

sion and will continue with

the installation.

4 Initial installation

When powering on the satellite receiver for the rst time an automatic

installation process will start.



4.4 AV Output

Using the arrow keys, se-

lect the AV output that is

connected to the TV, then

press OK to continue.

4.5 Screen format

The Screen format step al-

lows you to set your TV

screen format (aspect ratio)

to either normal 4:3 or 16:9

widescreen format.

4.6 Postcode Entry

Enter your postcode with

the arrow and number

keys, including the space

and then press green to ac-

cept and start the channel

search.

4.7 Channel search

When all the channels have

been found press the OK

key to nish the installation.

5 EPG and Genre selection

The EPG shows an 8 day programme schedule for all channels and

provides various ways to view this information.

> Press the ‘guide’ key on the remote control to display the EPG

initial screen which identies the available genres.

Use the up/down arrow keys and the OK key to select a channel genre.

> The EPG grid will be displayed.

> Press the blue key to show a menu to change viewing options.

> To set a reminder to change channel when a programme is about

to start, highlight the programme in the grid and press the red key

and select ‘New channel change timer’.

Refer to the Owner´s Manual for further details of the EPG features.



6 Channel list

The Channel List gives you a quick way of viewing and selecting new

channels.

> Press the OK key to view the Channel List.

> Use arrow keys to view channels and press OK to switch to the

selected channel.

7 Extended features and functions

> Press the ‘i’ key to show the information banner.

> The banner displays the current channel and programme.

> Use the left/right keys to see what is on next and later.

> Use the up/down arrow keys to see what programmes are show-

ing on the other channels.

> Press the ‘i’ key while the banner is displayed to access infor-

mation about the current programme.

> For full details of the extended features and functions, please

refer to the Owner´s Manual.

8 Service and support

If you need technical support please use the following contact details:

Tel: 0845 467 1935

Opening Hours: Monday to Friday 09:00 to 17:00.

Email: [email protected]

Website: www.technisat.co.uk

2233630000900

Autres manuels pour HDFS

Table des matières

Autres manuels TechniSat Récepteur

TechniSat

TechniSat TechniBox VIACAM Manuel utilisateur

TechniSat

TechniSat HDFV Manuel utilisateur

TechniSat

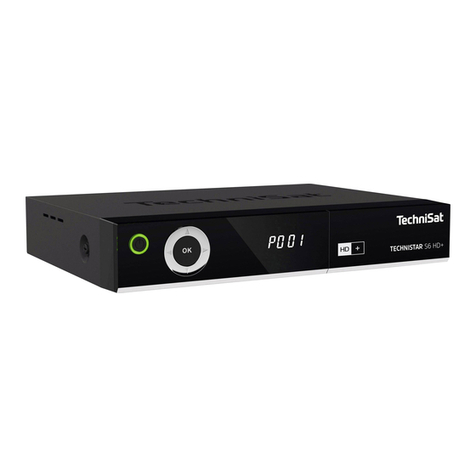

TechniSat TECHNISTAR S6 Manuel d'instructions
