Technetix DBC-1200 Manuel utilisateur

customer.service.vdl@technetix.com

technetix.com

+31 318 58 59 59

10/2021-EN/V12

User manual

DBC-1200 Lite

2DBC-1200 Lite_User Manual

Contents

Safety 3

Intended audience 3

Tools list 3

Installing the conﬁguration software 4

Plug-in modules available for the DBC-1200 Lite 5

Chapter 1 Overview of the DBC-1200 Lite 6

Chapter 2 RF ampliﬁer 7

Chapter 3: Installing the DBC-1200 Lite 8

3.1 Housing mounting 8

3.2 Installing coaxial ( RF ports) 9

3.3 Closing ampliﬁer lid 10

3.4 Power supply 11

3.5 Powering up the ampliﬁer 11

3.6 Output diplexer shield transfer for the DBC-1200 Lite 12

3.7 Hardware and plug-in installation 13

3.8 Programming and alignment 16

3technetix.com

The DBC-1200 Lite User Manual is intended for network engineers and technicians

responsible for planning, conﬁguring, installing and testing the Technetix DBC-1200 Lite

ampliﬁer. Installers should have a working knowledge of coaxial cable systems and

cabling practices.

Tools list

The following tools and supplies are required when installing a DBC-1200 Lite:

!6 mm hex key for the lid bolts

!Torque (6 Nm) limiting spanner (wrench) with hex-bit holder

!For exchanging diplex ﬁlters: DBx diplex removal tool DBGB-A-1 (19011053)

!Appropriate bolts/screws/washers for mounting the DBC-1200 Lite

(see Chapter 3: Installing the DBC-1200 Lite)

!Appropriate USB cable and application for the setup of the DBC-1200 Lite

PRODUCT INFORMATION: USB cables and interfaces available:

SAFETY

Caution: This symbol indicates that AC voltages:

35-65 VAC sine wave and 42-90 VAC

square wave and 110/230 VAC may be

present when power is connected to the

DBC-1200 Lite. Please observe all notes

and cautions in this user guide.

Caution: This symbol indicates a protective

ground terminal.

i19005966 USB A micro OTG (10cm – micro USB) for use with BLA

19010840 USB A-male to A-male 5M for use with BLL

19011053 DBx diplex removal tool

4DBC-1200 Lite_User Manual

Installing the conﬁguration software

!Conﬁguring with Windows laptop:

!Install BLL application

!Connect PC and ampliﬁer with USB A male to USB A male

!Conﬁguring with Android phone or tablet:

!Connect phone and ampliﬁer with above USB cable and with USB OTG adapter

(connected to a phone)

!Conﬁguring with t-box (WiFi communication):

!Appropriate USB cable is provided with t-box

The software required to conﬁgure a DBC-1200 Lite is dependent on the device used to connect

to the modules within the ampliﬁer:

!Laptop – BLL software. This software requires the Windows OS. The latest BLL software can be found

on our website: www.technetix.com

Installation requires a password that can be obtained from your sales representative.

For detailed installation and use of the BLL software refer to the BLL user manual.

!Android – BLA software. The software requires Android version 4.1 or higher and USB host.

The latest BLA app can be found on our website: www.technetix.com

Installation requires a password that can be obtained from your sales representative.

For detailed installation and use of the BLA app refer to the BLA user manual.

Optional t-box allowing wireless conﬁguration using a laptop , Android device or IOS.

DBC-1200 Lite ordering information

Item code Description

19012464 DBC-1200 lite 1.2 GHz, 44 dB, 230 VAC 85/102 MHz diplex split

19012462 DBC-1200 lite 1.2 GHz, 44 dB, 65 VAC 85/102 MHz diplex split

19012463 DBC-1200 lite 1.2 GHz, 44 dB, 65 VAC 204/258 MHz diplex split

For speciﬁc conﬁgurations, please contact your sales representative.

5technetix.com

Plug-in modules available for the DBC-1200 Lite

A wide range of plug-in modules and diplex ﬁlters are available to accommodate current and future network needs

( 65/85, 85/102, 204/258)

Item code Legacy item no. Description

19008513 DBDIP-01-W DBx wide diplexer ﬁlter module 65/85 MHz

19008514 DBDIP-02-W Diplex module 85/105 MHz DBE and strand mount ampliﬁer

19008515 DBDIP-03-W DBx wide diplexer ﬁlter module 204/258 MHz

19012967 DBDIP-05-5-W 85-102 MHz diplexer ﬁlter wide – 5 dB

19009966 DBDIP-05-W Diplex module 85/102 MHz module wide

19005718 PI-SPL-2W-12G Splitter 2 way, 3.5/3.5 dB, 1.2 GHz

19005719 PI-DC-08-12GO Directional coupler, 8 dB, 1.2 GHz (output location)

19005720 PI-DC-12-12GO Directional coupler, 12 dB, 1.2 GHz (output location)

For the auxiliary plug-in locations we can provide a range of plug-in components:

!JXP attenuators 1 inch values up to 30 dB

!Cable simulators 1.2 GHz (JXP style, 4mm thick)

!Cable equalisers 1 GHz and 1.2 GHz (JXP style, 4mm thick)

!Coaxial connectors and adapters

6DBC-1200 Lite_User Manual

Chapter 1_Overview of the DBC-1200 Lite

The Technetix DBC-1200 Lite ampliﬁer is a cost eective end-ampliﬁer solution for locations where modularity is not

a necessity. This is a single active output, non modular version of the DBC-1200 end ampliﬁer which uses the same

management software.

The ampliﬁer provides reverse path transmission with a hybrid ampliﬁcation stage.

Forward and return path attenuation can be adjusted with electronic attenuators. Electronic equalisers are available

for forward and return path equalisation. Coax cable simulation is provided by a JXP plug-in device. This can be

installed in the location AUX DS.

The DBC-1200 Lite has a highly ecient long-life switch-mode power supply available in local and remote powered

version. The remote powered version supports both sine and block wave.

Beneﬁts of the DBC-1200 Lite ampliﬁer:

!Full digital control and set-up

!Improved intermodulation distortion performance - innovative GaN technology operates to 1218 MHz

!Energy ecient hybrid technology provides more gain without increasing the power consumption

!Technetix CPD Safe® technology and surge protection means fewer reported faults, improved

customer service and a reduction in truck rolls.

!Based on the outstanding technology of the DBC-1200 ampliﬁer

!Has very low power consumption while providing optimal performance.

7technetix.com

Chapter 2_RF ampliﬁer

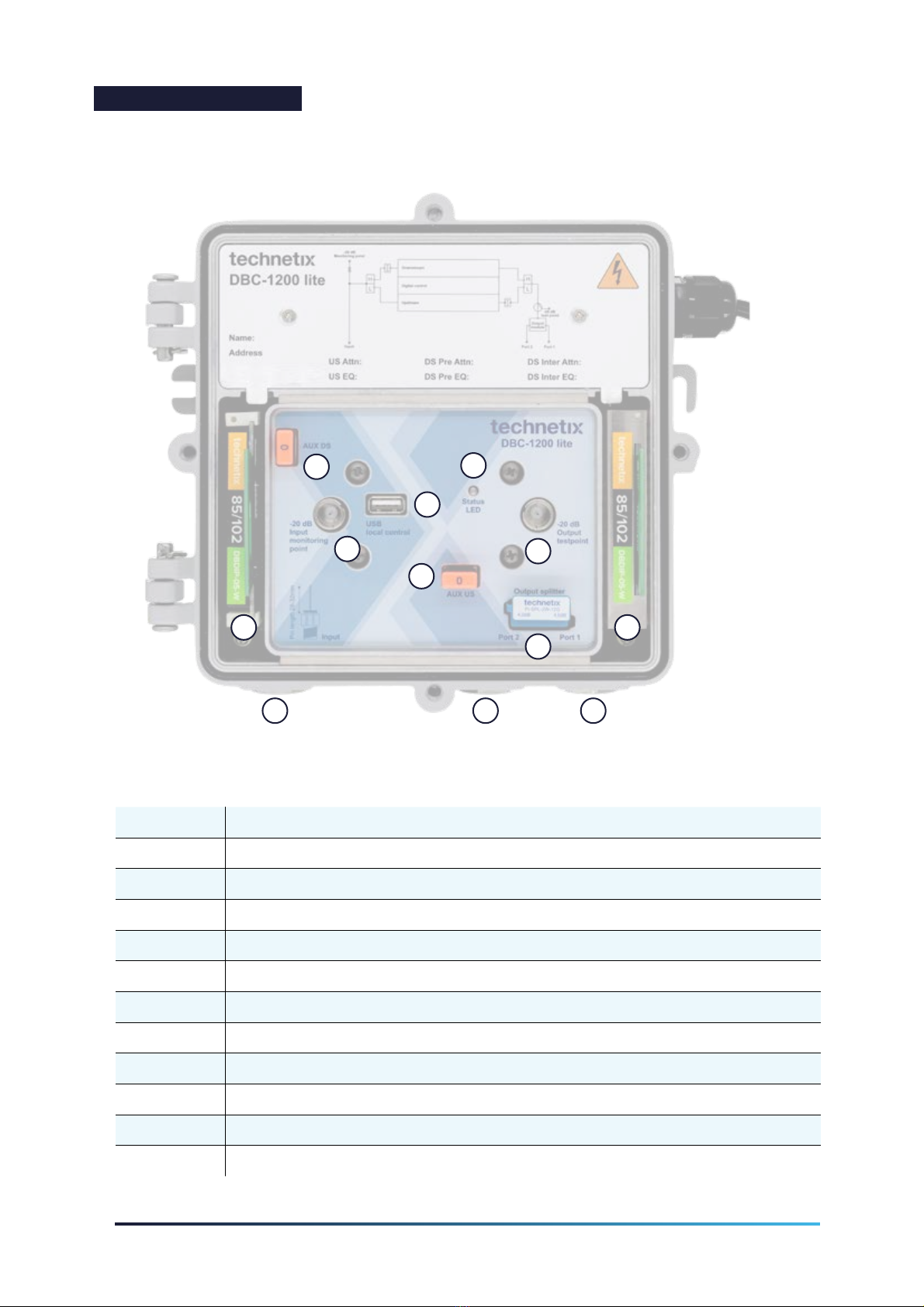

1Downstream auxiliary plug-in location for JXP cables simulator or other application

2Upstream auxiliary plug-in location for JXP attenuator/ﬁlter

3USB A local control (conﬁguring)

4Input diplex ﬁlter 65/85, 85/102, 85/105 and 204/258 options

5Screened output diplex ﬁlter 65/85, 85/102, 85/105 and 204/258 options

6Input monitoring point -20 dB (omni-directional) F-male type

7Output downstream -20 dB directional test point or upstream injection point -20 dB F-male type

8Output splitter location: 2-way splitter PI-SPL-2W-12G; directional coupler tap 8 dB TX DC-8; tap 12 dB TX DC-12

9Input RF port- PG11 thread with optional 5/8” reducing ring for 5/8” threaded connectors

10 Port 2 RF output port- PG11 thread with optional 5/8” reducing ring for 5/8” threaded connectors

11 Port 1 RF output port- PG11 thread with optional 5/8” reducing ring for 5/8” threaded connectors

12 Status LED (green or red)

9 10 11

8DBC-1200 Lite_User Manual

Chapter 3_Installing the DBC-1200 Lite

3.1 Housing mounting

There are two options for mounting the DBC-1200 Lite ampliﬁer:

1. Using integrated side brackets

Integrated side brackets can be used as shown below. The holes are suitable for bolts or screws

with maximum diameter of 6 mm.

2. Rear mounted using integrated screw holes

For mounting directly onto a cabinet back panel, the rear 6 mm bolt holes (M6) can be used with two 6 mm

threaded bolts (see following picture). Ensure when using this method of mounting that the bolt’s threaded part

is no longer than 10 mm in length when protruding through the back board that the ampliﬁer will be mounted onto.

The total length of the bolt to be used is 10mm + back board depth + washer depth. (M6 bolts are not delivered

with the ampliﬁer).

Bottom

Top

IMPORTANT: 1: Distance is 19.5 cm (including 0.25 cm - center point distance).

2: Distance is 14 cm (including 0.25 cm - center point distance).

Fig. 2

9technetix.com

3.2 Installing coaxial (RF ports)

The DBC-1200 Lite ampliﬁer has one input RF port and two non power-passing RF output ports (Port 1 and Port 2).

All RF ports are PG11 threaded and are protected by plastic dust covers which must be removed before installing

the coaxial connectors.

The ampliﬁer can be factory equipped with PG11 to 5/8” adapter rings. Unused ports must be closed with an end plug

or coaxial connector to ensure the DBC is water tight

Technetix double spring technology has the following advantages:

!BeCu spring contact with NiSn plating provides a secure, simple and repeatable installation

!Less sensitive to human error such as incorrect screw torque

!No cold ﬂow (a screw will get loose over time)

!The spring will adjust to temperature changes while maintaining a perfect connection.

Installing the coaxial connectors

1. Cut the connector pins to a length between 28-32 mm (total) as shown on the drawing of the ampliﬁer (Fig. 1).

IMPORTANT: the total pin length = pin length and connector thread length.

2. Push the connector pin ﬁrmly in the port hole (Fig. 2). The ampliﬁer is equipped with a double spring contact, so

no screw is needed to fasten the coaxial connector pin.

3. Tighten the connectors into the housing in accordance with the connector manufacturer’s speciﬁcation.

The recommended torque force for the PG-11-5/8 adapter ring is 15-16 Nm and 11-13 Nm for the coaxial connectors.

Pin length 28-32 mm

Fig. 1

10DBC-1200 Lite_User Manual

3.3 Closing ampliﬁer lid

When closing the ampliﬁer lid please ﬁrst use a hex key to tighten the four hand bolts lightly in the

following sequence:

Then, using a torque wrench set to a torque value of 6 Nm, go round again in sequence and tighten

to the ﬁnal torque setting.

Following this sequence ensures:

1. The rubber gasket between the lid and the ampliﬁer housing is sealed correctly, providing a sound, watertight seal

to prevent water ingress.

2. There is a good RF seal between the RF gasket in the lid and the ampliﬁer housing to prevent RF ingress/egress.

3. Good lid to housing contact for the dissipation of ampliﬁer heat is required. The lid acts as a radiator when

it is correctly secured, keeping the ampliﬁer operating temperature down within parameters when installed

as recommended.

Right hand bolt Left hand bolt Bottom bolt Top bolt

2 3 4
