Techly IDATA HDMI2-WL200 Manuel utilisateur

· Important safety notice

Please read below safety instructions carefully before installation

and operation:

1. Please pay attention to all the warnings and hints on this device.

2. Do not expose this unit to rain, moisture and liquid.

3. Do not put any stuff into the device.

4. Do not repaire the device or open the enclosure without professional

person guidence to avoid electronic shock.

5. Make sure good ventilation openings to avoid product overheating

damage.

6. Shut off power and make sure environment is safe before installation.

7. Do not plug-in/out the network cables and IR cables when it is in

using to avoid cables damage.

8. Use DC5V3.5A only. Make sure the specification matched if using 3rd

party DC adapters.

· Introduction

This transmitter extends HDMI signal wirelessly from source device to

display device up to 200meters with the advanced application of

HDbitT transport protocol and wireless technology. The signal

resolution up to 4Kx2K@60Hz. It requires no cables between sender (TX)

and receiver (RX) which makes the installation easy and clean.

Note:

1) Transmission distance will be different due to the environment.

2) Wall, brick or glass will shorten the signal cover range or cause big

signal loss.

· Features

1. HDMI 2.0 and HDCP2.2 compliant

2. Extend HDMI signal wirelessly

3. Strong anti-interference ability by running at

5.1~5.8GHz operation frequency

4. 200m long transmission distance

5. High resolution up to 4K×2K@60Hz ultra HD

6. IR passback with 20-60KHz wide frequency to control source device

from receiver side easily

7. Support point to point and point to multi-point configuration

(1 TX to 2 RX)

· Package contents

HDMI extender TX HDMI extender RX DC5V3.5A power

sender x1pcs receiver x1pcs adapter x2pcs

IR blaster extension IR receiver extension User manual x1pcs

cable x1pcs cable x1pcs

· Installation Requirement

1. HDMI source device (DVD, PS3, Set top box, PC etc).

2. HDMI display device (SDTV, HDTV, and projector etc ).

· Panel description

1. HDMI Extender TX sender

2. HDMI extender RX receiver

· Connection

1. Point to Point connection:

2. Point to Multi-point connection:

Connection instruction:

1) Connect HDMI input to HDMI source device and connect IR blaster

extension cable to IR OUT interface of the sender (TX).

2) Connect HDMI output to HDMI display device and connect IR

receiver extension cable to IR IN interface.

3) Power on the device (power led lights) and it works.

Note:

1) When the wireless signal transmits through wall, glass or other

obstacles, it will cause signal loss. Please install this device in

good environment with few obstacles.

2) The external environment wireless signal will affect transmission,

such as micro waver, wireless mouse and keyboard etc.

· FAQ

Q: TV display “waiting for connection...” on the bottom right corner?

A: Please check and ensure the power supply of TX (sender) and

RX(receiver) is well connected and the power indicator led turn on.

Q: TV display “Please check the TX input signal”?

A:1 ) Please check if there is an HDMI signal input of sender TX

2 ) Try to connect the signal source directly to display device to see

if there is signal output from source device or change the signal

source, HDMI cables and try again.

Q: Display not fluent and stable

A: 1) Please move the position of sender (TX) and receiver (RX) and make

sure the device is within the signal coverage.

2) Press “reset” button on the TX/RX panel, reset and reconnect.

3) Remove other wireless signal disturbance and reduce the

obstacle on the way.

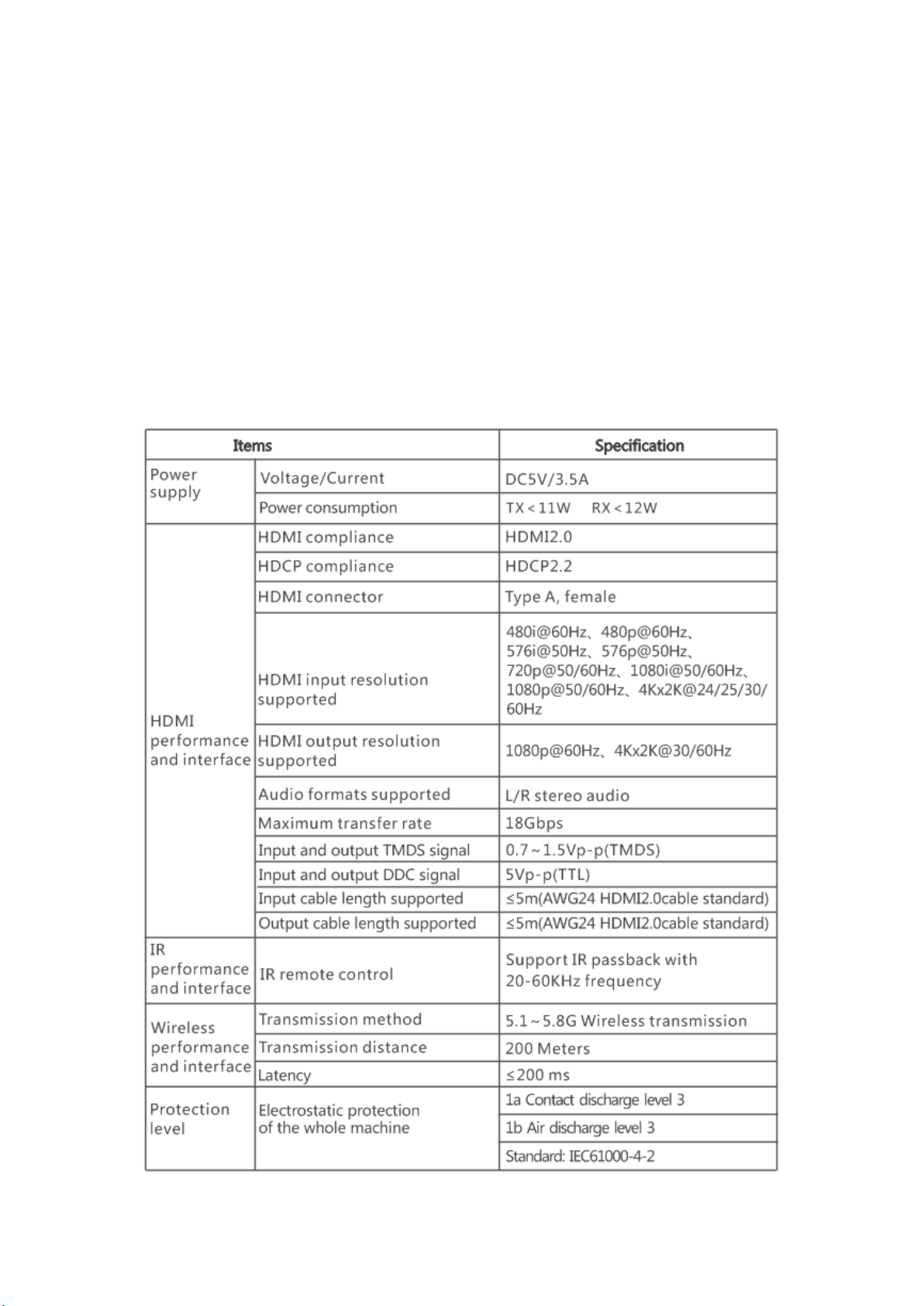

· Specification

Disclaimer

The product name and brand name may be registered trademark of

related manufacturers.TM and ® may be omitted on the user manual.

The pictures on the user manual are just for reference, and there may be

some slight difference with the real products.

We reserve the rights to make changes without further notice to a

product or system described herein to improve reliability, function or

design.
