Techkon SpectroDrive Manuel utilisateur

Manual

Scan-Measurement-System

SpectroDrive

Software

ExPresso 4

TECHKON manuals, technical documentation and programs are

copyrighted. Reproduction, translation or transfer to an electronic

medium – in whole or in parts – is prohibited.

TECHKON software is the intellectual property of TECHKON GmbH.

Purchase of the software grants the user a license for the use on one

computer only. Programs may only be copied for back-up purposes.

TECHKON can not be held liable for any damages that may occur by

the use of the software.

The TECHKON team takes great care in producing this manual. Nev-

ertheless, we can not fully guarantee the complete absence of errors.

TECHKON GmbH and the authors can not be held liable neither for

any possibly incorrect statements nor their consequences. TECHKON

can not be held liable for any damages that may occur by the use of

the software.

Products that are not made by TECHKON GmbH are mentioned for

information purposes only and such statements do not represent

trademark infringement. All registered trademarks are recognized.

TECHKON products and product names are registered internationally

under several intellectual patents and trademarks.

Specications can be subject to change without notice.

Version 3.4, January 2021

You can reach us at the following address:

TECHKON GmbH

Wiesbadener Str. 27 • D-61462 Königstein

T +49 (0) 6174/92 44 50 • F +49 (0) 6174/92 44 99

info@techkon.com • www.techkon.com

Welcome

We welcome you among the worldwide community of users of TECHKON products.

We are happy that you have selected this high-quality measurement instrument. It will

be a valuable tool for your day-to-day quality control tasks. With this manual we invite

you to learn how to use SpectroDrive, the software ExPresso 4 and SpectroConnect.

The manual is divided into four chapters:

CHAPTER 1: General description of the measurement system

CHAPTER 2: Installation of SpectroDrive and the software ExPresso 4

CHAPTER 3: How to use SpectroDrive and the software ExPresso 4

CHAPTER 4: How to use the Windows software SpectroConnect

You will be fascinated how easy the system is to use. You will know how to work with

SpectroDrive after having read this manual for only a few minutes. The second chapter

describes the assembly of SpectroDrive and the installation of the software ExPresso 4.

The third chapter describes the operation of SpectroDrive and gives detailed informa-

tion about the measurement functions.

Please get the device registered by using the registration card, which you will nd in

the appendix of this manual. That way we can keep you updated about product news.

Please visit us as well on the internet at www.techkon.com.

You will nd useful information about the complete product range and new software

versions.

Do you have any suggestions for improvements or do you require information that

goes beyond the contents of this manual? We will be glad to hear from you. Your sug-

gestions or questions make an important contribution to the continuous optimization

of our documentation and products.

Your TECHKON Team

Contents

CHAPTER 1: General description of the measurement system

1.1 Product description ............................................................................................................................5

1.2 Packing list ..............................................................................................................................................10

CHAPTER 2: Installation of SpectroDrive and the software ExPresso 4

2.1 Assembly of SpectroDrive ............................................................................................................11

2.2 Installation of the software ExPresso 4 .................................................................................12

CHAPTER 3: How to use SpectroDrive and the software ExPresso 4

3.1 Operation of SpectroDrive ...........................................................................................................13

3.2 Care and maintenance....................................................................................................................16

3.3 Software overview ExPresso 4....................................................................................................18

3.4 Software settings................................................................................................................................21

3.5 Dening and running a print job..............................................................................................41

CHAPTER 4: How to use the Windows software SpectroConnect

4.1 Software description....................................................................................................................... 64

4.2 Installation.............................................................................................................................................. 64

4.3 Overview / Software module: Compare colors.............................................................. 65

4.4 Software module: SpectroDrive settings........................................................................... 66

4.5 Device update ......................................................................................................................................67

4.6 Software module: Export ............................................................................................................. 68

4.7 Software module: ColorCatcher............................................................................................... 69

4.8 Software module: PhotoLab .......................................................................................................70

4.9 Software module: Media Wedge............................................................................................. 73

4.10 Software module: SpectroCheck .............................................................................................75

APPENDIX:

Technical specications

Manufacturer certicate

EC-Declaration of Conformity

Registration card

CHAPTER 1 – General Description

Chapter 1

General description of the measurement system

1.1 Product description

High quality and productivity

The new generation of the proven Scan-Measurement System SpectroDrive com-

bines decisive advantages: Precise measurements thanks to an ISO-compliant

measuring head, technical reliability and high measurement speed. It can be fully

integrated into the printing process. The result: a productivity and quality boost

for your printing press.

The system consists of two components: The motorized measurement device scans

the complete color bar on a printed sheet within seconds and simultaneously sends

the spectral measurement data wirelessly to the PC. Here all relevant information for

controlling the printing press is clearly displayed by the TECHKON ExPresso 4 software.

Increase protability

Due to the trend of smaller print jobs and shorter press runs the time from starting a

press to getting it “in color” and running with consistent quality is cost critical. Spectro-

Drive reduces this “non-productive” and therefore expensive set-up time dramatically.

You will increase protability thanks to substantially reducing paper and ink waste and

getting more precious time out of your printing press. The system makes your printing

jobs predictable and calculable. In addition, the complaint rate will go down signi-

cantly and your customers will appreciate the sensible gain and reliability of the print

quality. ISO-compliant printing becomes easier than ever before.

The high rate of return of investment is amazing. The relative low – and only one

time – investment will show in recurring prots almost immediately. Also older print-

ing presses get a productivity boost thanks to SpectroDrive.

Ease of use and high speed measurement

Setting up a printing press can be compared with starting a jet plane. It is a time-

critical process, where the press operator – like a pilot – must observe and perform

a multitude of important tasks at the same time. Hence, during the development of

SpectroDrive great care was taken in delivering a system that is easy to use and fast, to

make working with SpectroDrive even more intuitive and convenient.

Manual TECHKON SpectroDrive

For example, a laser beam can be activated to support the exact positioning of the

print control strip. Furthermore the measurement device has only one button to start

the measurement process. Installation is simple as well. After a few minutes the system

is operable and ready to take measurements.

Due to its aluminum unibody case the new SpectroDrive is particularly robust and

reliable. Of course SpectroDrive is able to handle variable scan lengths and ts to any

printing press format. The battery charging is inductive, fast and sustainable.

Two measurement systems in one

This statement relates not only to the technical fact that the spectral measurements

allow displaying densitometric and colorimetric data. It also points out that Spectro-

Drive can be used as a scanning device as well as a hand-held instrument for single

measurements. Just take the device from the horizontal track and position it wherever

you want to take a color measurement. SpectroDrive now also features an integrated

display that shows the measurement values of spot measurements directly at the de-

vice.

Software ExPresso

The Windows software TECHKON ExPresso 4 has a self-explanatory user interface

which can be operated via touch-screen. The software oers a comprehensive tool

set comprising measurement of spot colors, support of up to 16 print units, front-side

and reverse printing, display of color density, dot gain, gray balance, CIE L*a*b*-values

and recommendations on how to adjust the ink on the press. This is only an extract of

the complete functionality.

Thanks to its modularity TECHKON ExPresso 4 is expandable and versatile. The mea-

surement data can be exported into other software applications that connect real-

time to printing presses to enable a “closed loop” turn-key solution. In addition, the

ExPresso software can export measured data to standard applications such as Micro-

soft Excel™.

CHAPTER 1 – General Description

All advantages at a glance

Easy to handle

Fast, motorized scanning by pressing

the green measurement button on

the touch-screen or on the device

itself

Automatic white calibration

Windows-software TECHKON

ExPresso 4 can be operated with or

without the touch-screen

The device can easily be used as

hand-held device for spot measure-

ments as well

Modular and compact

Works with any sheet or press format

Horizontal track can be shipped in

any length up to 206 cm

Space-saving measurement device

ts on any table

The mounting table can be inclined

up to 45°

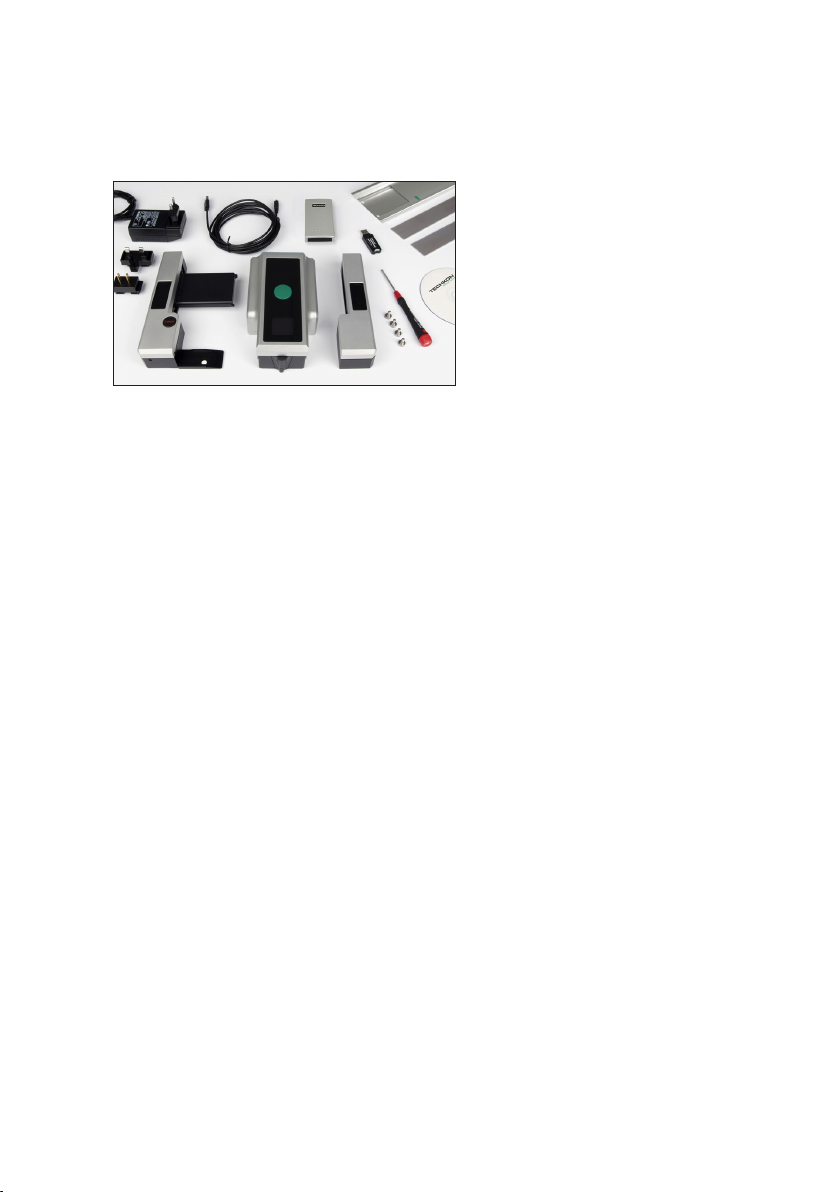

Delivery contains all components

supplied

Easy to install

Installation is made within ve min-

utes without any major assembly

eort

Complete system is maintenance free

Measurement system can be ipped

180°, if the color bar is on the opposite

side of the printed sheet

Wireless, fast data transmission per

WLAN

No vacuum air suction is necessary to

hold down the printed sheet

Complete measurement information

Any color bar can be measured

(patch size has to match aperture size)

Color bar can be at any location on

the printed sheet

No limitation in paper thickness

Automatic polarizing lter function for

densitometric and colorimetric mea-

surements

Manual TECHKON SpectroDrive

Accurate

Precise spectral engine with automa-

tically insertable polarizing lter

Patented measurement head for easy

positioning conforming to ISO 13655

Solid aluminium unibody case for reli-

able function in a harsh industrial

environment

Fast

High resolution spectral measure-

ment of a complete color bar within

seconds (e.g. 500 mm sheet length in

about 3 seconds!)

Wireless data transmission to the PC

during scan in real-time

Information overview displays all rel-

evant parameters for quality control

Using SpectroDrive as a hand-held unit is

simple. Just position the compact mea-

surement head above the sample and

press the green measurement button.

The measurement value is transmitted

instantly to the PC.

TECHKON SpectroDrive is delivered as a

complete turn-key system. Within a few

minutes the system is up and running.

One unique feature of SpectroDrive is its

exibility to be used with any press type

or format.

Formats

52: for printed sheet 00 (B3+, 370 x 520 mm)

74: for printed sheet 0B (B2+, 520 x 740 mm)

102: for printed sheet 3B (B1+, 720 x 1020 mm)

105: for printed sheet 3B+ (B1+, 780 x 1050 mm)

Special formats (up to 2100 mm system length/ 2060 mm scan length) on request

CHAPTER 1 – General Description

Dimensions

Performance packages

The scan-measurement device SpectroDrive and the Microsoft Windows software Ex-

Presso form a complete quality control system for increasing productivity and quality

of a printing press. There are two dierent versions available:

SpectroDrive + ExPresso Basic

consists of the spectral measuring

device SpectroDrive and the Microsoft

Windows software ExPresso Basic with

the following functions:

Ink zone specic density display

Color density for CMYK and spot

colors (spectral density)

Densitometric gray balance

Dot gain, dot area, printing contrast

Slur/doubling value

Target values, tolerances, OK-sheet

Front- and reverse-printing

Works with any color bar length

Display of single measurements when

used as a hand-held device

Measurement data export (e.g. JDF-

format)

Statistical analysis, report generator

Supports up to 6 printing units

SpectroDrive + ExPresso Pro

contains the same functions as the Basic

package and additionally:

Ink zone specic colorimetric CIE

L*a*b*and ∆E*a*b* display

∆L*a*b*, CIE L*C*h*, ∆L*C*h*

InkCheck: recommendation for ink

key setting

Display and evaluation according to

ISO 12647 (PSO)

GrayGuide (gray balance) according to

Gracol G7™

OBA-Check

Supports up to 16 printing units

A post-purchase software-upgrade

from the Basic- to the Pro-version can

be done easily.

52: 750 mm, 74: 970 mm,

102: 1250 mm,105: 1280 mm

96 mm

52: 370 mm

74: 530 mm

102: 720 mm

105: 780 mm

170 mm

Manual TECHKON SpectroDrive

1.2 Packing list

Contents of delivery

Measurement device SpectroDrive

Left holder incorporating charging console with white standard and

AC adapter with universal plugs

Horizontal track, right holder, two vertical bars

WLAN-module for wireless data transmission, USB cable

Manual with ISO 9000 compliant certicate (pdf on CD),

Manufacturer certicate

Screwdriver, 4 screws

Optional: Data media with Windows software TECHKON ExPresso 4,

USB-dongle (software protection key)

System requirements: for TECHKON software:

Microsoft Windows 10; 64-bit, minimum: IBM-compatible PC with Intel Core Duo

or comparable processor, 4 GB RAM, 2 USB ports; screen resolution for TECHKON

ExPresso: minimum 1280 x 1024 pixel

Optional accessories

Color reference SpectroCheck for checking the measuring accuracy

Print control strips TECHKON TCS, available as EPS- and pdf-les on CD

(can be downloaded free of charge at www.techkon.com)

Software-upgrades from ExPresso Basic to ExPresso Pro

Replacement parts

Left holder with charging console and white standard Horizontal track

AC adapter Rechargeable battery WLAN-module

(All parts are easy to exchange.)

Measurement device SpectroDrive and the supplied

system components

Autres manuels pour SpectroDrive

Table des matières

Autres manuels Techkon Instrument de mesure

Techkon

Techkon SpectroDrive Manuel utilisateur

Techkon

Techkon Spectro Jet Manuel utilisateur

Techkon

Techkon SpectroDrive Comment utiliser

Techkon

Techkon SpectroDens Manuel utilisateur

Techkon

Techkon DENS Manuel utilisateur

Techkon

Techkon SpectroDrive Manuel utilisateur

Techkon

Techkon SpectroDens Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
