TECHCON SYSTEMS TS924 Manuel d'installation

12151 Monarch Street, Garden Grove, CA 92841 •+1 714 799-9910 •+1 714 799-9533 fax •www.okinternational.com

TS924 FOOT VALVE

SETUP AND OPERATING INSTRUCTIONS

PRODUCT DESCRIPTION: The TS924 Foot Valve is a rugged and easy to use, floor mounted

dispenser

SPECIFICATIONS:

Size ……………………………………………….8” x 5” x 5” (20.3 x 12.7 x 12.7 cm)

Weight ……………………………………… 4 lbs. (1.82 kg)

Input Pressure ……………………………… 100 psi max (7 bar)

Operating Pressure ………………………………. Up to 100 psi (7 bar)

SETUP AND OPERATION

1. Connect hose assembly to foot valve, then to 100 psi maximum dry filtered air supply

2. Insert quick connect end of Receiver Head assembly (air adapter) of syringe or Production

Master Cap Cartridge assembly into Air Outlet port of the Foot Valve and turn clockwise

until secure.

3. Rotate air regulator knob clockwise to increase dispense pressure. Pressure gauge will

indicate desired pressure setting.

4. Press on the foot valve lever to activate the dispense cycle. Material should flow as long as

the pedal is depressed.

5. The amount of material dispensed per cycle depends on the combination of air pressure,

duration or dispense cycle, viscosity of material, temperature and dispense tip size.

12151 Monarch Street, Garden Grove, CA 92841 •+1 714 799-9910 •+1 714 799-9533 fax •www.okinternational.com

PARTS LIST

No Part Number Description Qty No Part Number Description Qty

1 534 Coupler 1 8 TSD1118-5 Bumper 4

2 TSD1105-24 Screw 10-32 x 1/4 6 9 TSD915-1 Reducer Nipple 1

3 TSD1124-10-8 Roll Pin 2 10 TSD1105-25 Screw 10-32 x 3/8 1

4 TSD500-29 Air Regulator 1 11 924-16 Valve Body Assy 1

5 924-10 Adjustment Button 1 12 924-19 Air Hose (not shown) 1

6 TSD1115-52 Hex Nut 1 13

7 TSD600-21 Pressure Gauge 1 14

5 6

10 90

psi

MADE IN U.S.A.

ASHCROFT

100

T9000076_A

Table des matières

Autres manuels TECHCON SYSTEMS Unité de contrôle

TECHCON SYSTEMS

TECHCON SYSTEMS TS5322 Manuel utilisateur

TECHCON SYSTEMS

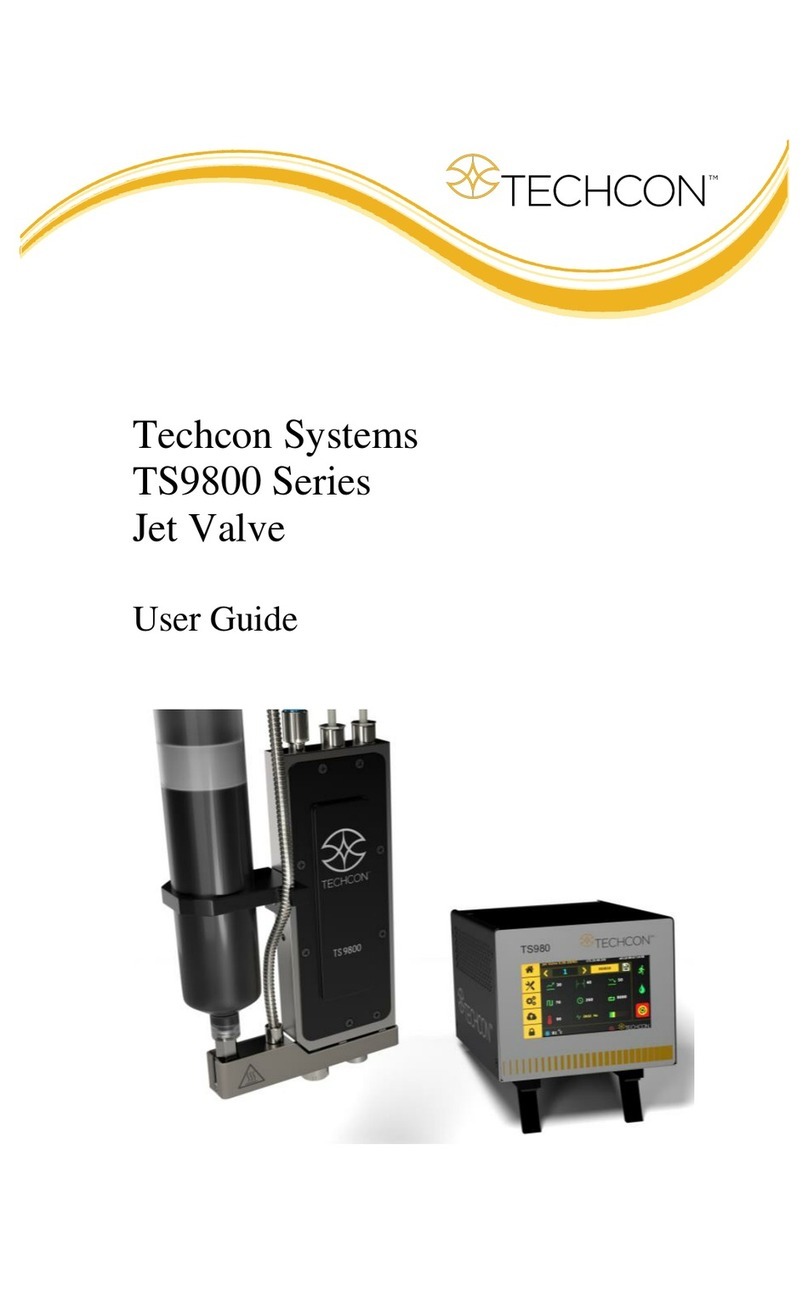

TECHCON SYSTEMS TS9800 Series Manuel utilisateur
