Product information

Pre-configured video door communication

system

video:packs color, flush-mount

PVU14x0-0010

PVU1410-0010 … PVU1440-0010

2 12/2012

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

12/2012 3

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Scope of delivery

1 x Video front-door station AVU14010, AVU14020, AVU14030 or AVU14040

x x Video indoor station(s) IVW2211-0140 (numbered 1 to 4)

1 x Power supply and control unit VBVS05

1 x Product information

Product information of the package components (enclosed in their respective pack-

aging)

Instruction manual IVW2211 (enclosed in the IVW2211 packaging)

X as the number of flats from 1 ... 4

Safety instructions

Attention! Mounting, installation, commissioning and repair of electronic devices have

to be carried out only by a qualified electrician. The standards for the prevention of

accidents must be observed.

When working in systems with mains connection 230 V AC, the safety regulations accord-

ing to DIN VDE 0100 must be observed.

When installing TCS:BUS® systems, the general safety regulations for telecommunication

systems according to VDE0800 must be observed.

Other safety instructions:

please see product information of the package components.

Intended use

PVU14x0-0010 are complete, pre-configured video door communication systems, color.

Every bell button is allocated to an video indoor station.

Particularly suitable for one-family and multi-family homes with 1 up to 4 flats.

4 12/2012

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Short description

PVUI14x0-0010 consist of three TCS package components:

one video front-door station color for customised installation (flush-mount or cavity wall),

video indoor station(s), color and one power supply and control unit.

Features of the package components:

please see product information of the package components.

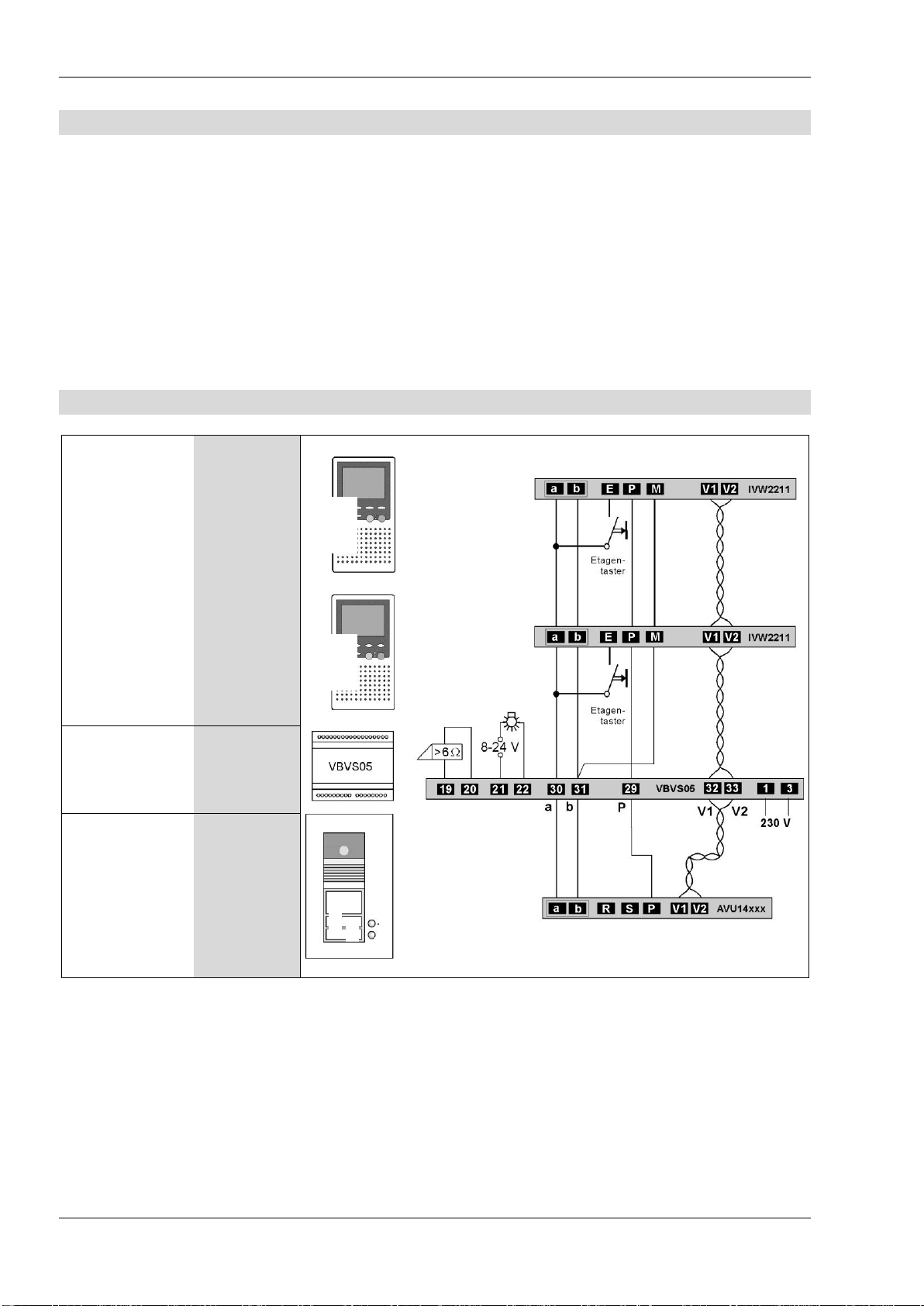

System example PVU1420-0010

Video indoor

station

IVW2211

Power supply

and control

unit

VBVS05

Video front-

door station

AVU14020

12/2012 5

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Installation

Note when unpacking

On the packaging of the indoor stations are number tags (1...4).

When installing the video indoor station, please mind the numbers (1...4) for the cor-

rect allocation to the bell buttons of the front-door station.

Connect the lines

Connect the package component according to the system example PVU1420-0010.

Use the enclosed small screwdriver to connect the lines and to prevent damaging the

device.

When additional video indoor stations (e.g. connected in parallel) are installed, the

maximum permitted number may not be exceeded.

See product information Video indoor station IVW2211.

Connecting the door release relay to a video front-door station AVU140x0

Please see product information of the video front-door station.

Commissioning

First install the system completely, then connect it to the main voltage!

Install the devices of the system completely.

V1 and V2 must not be connected with P-, a- or b-wire.

When connecting the video wires V1 (+) and V2 (-), please observe the polarity.

Check a-, b- and P-wire against each other for short circuits.

Switch ON the mains voltage.

Error detection and display

Please see product information of the package components.

6 12/2012

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Settings

Video indoor stations IVW2211

The video indoor station IVW2211 labelled with "1" is set ex works as end device. Please

mind that this video indoor station is to be placed at the end of a strand.

Further settings

Please see product information of the package components.

Configuration options

Please see product information of the package components.

Labelling the name field

Please see product information of the video front-door station.

Programming bell buttons

The video indoor stations are allocated to the bell buttons ex work. No programming is

necessary.

If a video indoor station has to be replaced, please refer to the product information of the

front-door station for programming instruction.

Repair

Please see product information of the video front-door station.

12/2012 7

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Cleaning

Please see product information of the video indoor station and video front-door station.

Conformity

Declarations of conformity are available under .tcsag.de downloads, trade infor-

mation

Information on disposal

The adjoining symbol shows that the device has to be disposed separately from

domestic waste. The materials used are recyclable. Please do help protecting our

environment and dispose the device via a collecting point for electronic scrap.

Dis- pose the parts of the packaging in collecting tanks for cardboard and

paper resp. plastics.

Warranty

We offer a simplified processing in case of warranty for electrician.

TCS offers an extended warranty period to three years. Please observe the enclosed

form!

Please observe our terms and conditions of sale and delivery, available under

www.tcsag.de, Downloads, trade information and included in our latest price list.

Please contact our TCS HOTLINE.

8 12/2012

TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.

Fax: +49 (0) 41 94/ 9 88 129 Mail: hotli[email protected] PI_PVU14x0-uk 1 A

Service

Please send your questions and inquiries to

[email protected]

Headquarters

TCS TürControlSysteme AG, Geschwister-Scholl-Str. 7, D-39307 Genthin

Fon: +49 (0) 03933/879910 Fax: +49 (0) 3933/879911, Mail: info@tcs-germany.de,

www.tcsag.de
