TCS Carus Adapto Manuel utilisateur

3 years warranty

a brand of TCS AG

Design Manufaktur Adelheid

Adelheid 41

78098 Triberg

Germany

[email protected]

www.carus-concepts.com

Tel: +49 7722 91770

Fax: +49 7722 917718

- Art. no. 0035871 Version 1 A -

Instruction manual

Carus Adapto

Design

“A simple form, a classic layout and high-end materials gua-

rantee timeless aesthetics. The Carus edition reﬂ ects the reli-

ability and sustainability of the products in perfect form and

sophisticated design. Our emphasis on traditional crafts that we

utilise to manufacture the high-quality surfaces, make the Carus

products unique items. The harmony between the traditional

and the modern element of our products enable us to design

customised and ﬁ rst-class products which reﬂ ect the user and

inspire emotions.“

Table of contents

8-11

12-13

14-17

Device overview

LED indication

Indication and operating elements

Setting the ring tone volume

Ring tone selection

Conﬁ gurable functions

Cleaning

Operating the function keys 1 - 10

Labeling the function keys 1 - 10

Notes

Your brandnew indoor station!

CAI1100

Function key

Light switch button

Call OFF-button

Door release button

Speech button

Red LED 1

Green LED

Loudspeaker

Microphone

Ring tone volume Labeling ﬁ eld

Function keys

Red LED 2

Indication and operating elementsLED indication

A ring tone signals an inco-

ming call.

The green LED is on.

Speaking

Shortly press the speech

button to accept the call

or longer than 1 second to

switch-over to simplex com-

munication during an active

voice connection.

The green LED is on.

Shortly press the speech

button again or the door

release button to end the

conversation (the call is ter-

minated after 4 seconds).

Automatic call cut-off after

2 minutes.

Door release

Shortly press the blue door

release button.

Switching lights

Shortly press the light switch

button.

Internal calls / Activate

additional functions

Press the function key to call

another indoor station or to

(de-)activate the call diver-

sion resp. the door release

automatic.

Conﬁ guration necessary, see page 5.

Ring tone mute

Press the call OFF-button. In

case of an incoming call no

acoustic signal sounds.

The red LED is on.

• Green LED is on

• incoming door or

internal call

• active voice connection

• activated additional

functions

Conﬁ gurable functions, see page 6.

• Red LED 1 is on

• Ring tone mute is acti-

vated, an incoming call

is signalled not acousti-

cally

• Red LED 1 blinks

• busy speech channel

• Red LED 2 is on

• incoming door call

• incoming internal call

• call diversion activated

• incoming control

function from sensor

• send alternately two

control functions with a

unique serial number

Function keys 1 - 10

Press one of these buttons

for a speciﬁ c connection to

a front-door, speciﬁ c internal

calling, indication of staus

information, call diversion,

sending a control function

or sending 2 control func-

tions alternately.

Conﬁ guration necessary, see

page 8-11.

•

turn down turn up

With the contoller at the bottom of the device, the ring tone volume

can be adjusted continuously.

Setting the ring tone volume

Ring tones can be adju-

sted for four different call

types.

Thus, it is possilbe to

distinguish calls from

two different front-door

stations, a ﬂ oor call or an

internal call.

You can choose between

13 different ring tones.

Proceed as follows:

1. Activate the ring tone

selection

End an eventually exisitng

conversation. Press the call

OFF-button for at least 8

seconds.

An acknowledgement

tone sounds.

2. Select a door ring tone

a... from the (ﬁ rst)

front-door station

Press the door release

button until the desired

ring tone sounds.

The ring tone selected last

will be stored.

b ... from the second

front-door station*

Press the speech button

until the desired ring

tone sounds. The ring tone

selected last will be stored.

* If no seperate ring tone is selected, the

ring tone of the ﬁ rst front-door station is

stored automatically.

c... from the ﬂ oor door

Press the light switch button

until the desired ring

tone sounds. The ring tone

selected last will be stored.

Ring tone selection

d... from another indoor

station

Press the function key

until the desired ring tone

sounds. The ring tone se-

lected last will be stored.

3. Deactivate the ring tone

selection

To end the ring tone selec-

tion shortly press the call

OFF button once.

When no button is pressed

within the next 8 seconds,

the device ends the ring

tone selection automatically.

The ring tone selection ends

with an acoustic signal.

The following functions

can be conﬁ gured on

your video indoor station

and for the use of further

indoor stations. Please

contact your qualiﬁ ed

electrician.

Call an indoor station

(internal call)*

To call another indoor

station, press the function

key . A short acknow-

ledgement tone sounds if

the call has reached its call

destination. When the called

device accepts the call a

voice connection is establis-

hed. If required, the volume

of the voice connection can

be adjusted from a qualiﬁ ed

electrician.

* max. 1 call destination

Door release automatic

An incoming door call

directly triggers the opening

of the door if this function is

activated. Press the function

key

activated,

the green LED is on,

press the function key

again

deactivated

Open the ﬂ oor door

If the ﬂ oor door call at the

ﬂ oor door is triggered, the

ﬂ oor door (instead of the

front-door) can be opened

with the door release button

within 30 seconds.

Parallel call

A second indoor station

sounds simultaneously in

case of an incoming door,

ﬂ oor or internal call. the ring

tone sounds at both devices.

Call diversion

The incomning call is di-

verted to a second indoor

station. Press the function

key

activated,

the green LED is on,

press the function key

again

deactivated

Conﬁ gurable functions

Cleaning

Clean the indoor station

with a dry or slightly wet

cloth. Remove stronger

stains with a PH-neutral

detergent.

Avoid water from entering

the device! Do not use any

abrasive detergents!

Autres manuels pour Carus Adapto

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TCS Système d'interphone

TCS

TCS PDS Series Manuel utilisateur

TCS

TCS ISH3022 Manuel utilisateur

TCS

TCS IVH4222-0140 Manuel utilisateur

TCS

TCS SKYLINE:TEN BASIC Manuel utilisateur

TCS

TCS ISH3230-0140 Manuel utilisateur

TCS

TCS PAK Manuel utilisateur

TCS

TCS AVU14 0 Series Manuel utilisateur

TCS

TCS Tasta Series Manuel utilisateur

TCS

TCS ISH3230 Manuel utilisateur

TCS

TCS AMI Series Manuel utilisateur

TCS

TCS PSC2 0 Series Manuel utilisateur

TCS

TCS ISH3030-0140 Manuel utilisateur

TCS

TCS ISW3130-0140 Manuel utilisateur

TCS

TCS ISW3330 Manuel utilisateur

TCS

TCS K30001 Manuel utilisateur

TCS

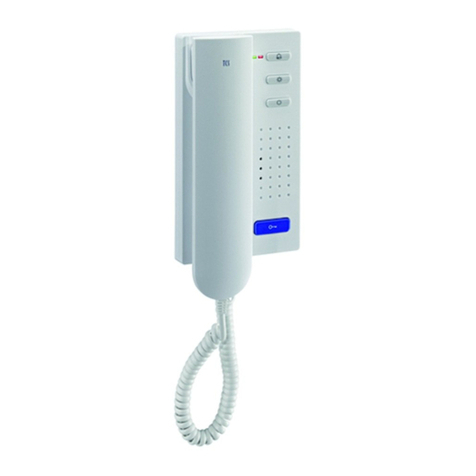

TCS PSC2120-0000 Manuel utilisateur
