TC Electronic D-TWO Manuel utilisateur

D•TWO

MULTITAP RHYTHM DELAY

UUSSEERR’’SSMMAANNUUAALL

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

8 Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that

produce heat.

9 Do not defeat the safety purpose of the

polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding

prong. The wide blade or the third prong

are provided for your safety. If the provided

plug does not fit into your outlet, consult an

electrician for replacement of the obsolete

outlet.

10 Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11 Only use attachments/accessories

specified by the manufacturer.

12 Unplug this apparatus during lightning

storms or when unused for long periods of

time.

13 Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

• This equipment should be installed near the

socket outlet and disconnection of the

device should be easily accessible.

• Do not install in a confined space.

• Do not open the unit - risk of electric shock

inside.

Caution:

You are cautioned that any change or

modifications not expressly approved in this

manual could void your authority to operate this

equipment.

Service

• There are no user-serviceable parts inside.

• All service must be performed by qualified

personnel.

Warning!

• To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or

moisture.

• This apparatus must be earthed.

• Use a three wire grounding type line cord

like the one supplied with the product.

• Be advised that different operating voltages

require the use of different types of line

cord and attachment plugs.

• Check the voltage in your area and use the

correct type. See table below:

Voltage Line plug according to standard

110-125V UL817 and CSA C22.2 no 42.

220-230V CEE 7 page VII, SR section

107-2-D1/IEC 83 page C4.

240V BS 1363 of 1984.

Specification for 13A fused

plugs and switched and

unswitched socket outlets.

The lightning flash with an arrowhead

symbol within an equilateral triangle, is

intended to alert the user to the

presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servicing)

instructions in the literature accompanying the

product.

IMPORTANT SAFETY INSTRUCTIONS

Certificate Of Conformity

TC Electronic A/S, Sindalsvej 34, 8240

Risskov, Denmark, hereby declares on own

responsibility that following products:

D•TWO Multitap Rhythm Delay

- that is covered by this certificate and

marked with CE-label conforms with

following standards:

EN 60065 Safety requirements for mains

(IEC 60065) operated electronic and

related apparatus for household

and similar general use

EN 55103-1 Product family standard for

audio,video, audio-visual and

entertainment lighting control

apparatus for professional

use. Part 1: Emission.

EN 55103-2 Product family standard for

audio, video, audio-visual and

entertainment lighting control

apparatus for professional

use. Part 2: Immunity.

With reference to regulations in following

directives:

73/23/EEC, 89/336/EEC

Issued in Risskov, November 1999

Anders Fauerskov

Chief Executive Officer

EMC / EMI.

This equipment has been tested and found to

comply with the limits for a Class B Digital

device, pursuant to part 15 of the FCC rules.

These limits are designed to provide

reasonable protection against harmful

interference in residential installations. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on. The user is

encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced

radio/TV technician for help.

For the customers in Canada:

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

TABLE OF CONTENTS

INTRODUCTION

Table of Contents . . . . . . . . . . . . . . . .3

Introduction . . . . . . . . . . . . . . . . . . . . .5

Front Panel . . . . . . . . . . . . . . . . . . . . .6

Rear Panel . . . . . . . . . . . . . . . . . . . . .8

Signal Flow Diagram . . . . . . . . . . . . . .9

Typical Setups . . . . . . . . . . . . . . . . .10

BASIC OPERATION

The D•TWO Display . . . . . . . . . . . . .11

Setup . . . . . . . . . . . . . . . . . . . . . . . .13

Recall . . . . . . . . . . . . . . . . . . . . . . . .15

Edit . . . . . . . . . . . . . . . . . . . . . . . . . .15

Store . . . . . . . . . . . . . . . . . . . . . . . . .15

ALGORITHMS

Delay Modes

Traditional Delay Mode . . . . . . . . . . .16

Straight Delay Mode . . . . . . . . . . . . .17

Rhythm Mode . . . . . . . . . . . . . . . . . .19

Rhythm Tap Edit . . . . . . . . . . . . . . . .20

PingPong . . . . . . . . . . . . . . . . . . . . .21

Dynamic . . . . . . . . . . . . . . . . . . . . . .22

Reverse . . . . . . . . . . . . . . . . . . . . . .22

Shortcuts . . . . . . . . . . . . . . . . . . . . .23

Additional Algorithms

Spatial . . . . . . . . . . . . . . . . . . . . . . .24

Filter . . . . . . . . . . . . . . . . . . . . . . . . .24

Chorus . . . . . . . . . . . . . . . . . . . . . . .24

APPENDIX

MIDI Implementation . . . . . . . . . . . . .26

MIDI Control Changes . . . . . . . . . . . .27

Technical Specifications . . . . . . . . . .28

Preset List . . . . . . . . . . . . . . . . . . . .29

TC Electronic, Sindalsvej 34, DK-8240 Risskov – [email protected] Rev 5.4 – SW – V 1.01English Version

Prod. No: E60500302

INTRODUCTION

Congratulations on the purchase of your new D•TWO Multi-tap Rhythm Delay.

The D•TWO Multi-tap Rhythm Delay is an easy to use, high quality digital Delay

unit. When it comes to Delay effects we are convinced that with this unit you are

well covered. This applies for live-sound production as well as in the studio. The

D•TWO covers not only all the traditional Delay functions, but also a few brand new

ones. With traditional Delay units it is generally only possible to control Feedback

and Level on a specified fixed Delay time. With the D•TWO you are now able to tap

actual rhythm patterns consisting of up to 10 taps directly into the unit.

Many will recognize the TC 2290 studio Delay unit as the Delay unit that introduced

the “Dynamic Delay” function. A function that allows the Delay Output level to be

actively altered by the dynamics of the Input level. A function that can be used to

leave the source material clear and undisturbed while played and delicately

accompanied by the Delay between phrases. Yes, this feature is also available in

the D•TWO.

We hope you will have as much pleasure using the D•TWO as we had making it.

For any questions left unanswered by this manual feel free to visit our online support

center; TC Support Interactive, which can be accessed via: www.tcelectronic.com

Latest manual revision can always be downloaded from www.tcelectronic.com

FRONT PANEL OVERVIEW

POWER button

Power on/off.

IN LEVEL knob

Adjusts the Input level.

At center position a relay will

switch the Input circuit

between consumer and pro

level. This will insure optimal

Input Gain range and superb

“signal to noise” ratio is

achieved.

MIX knob

Adjusts the global mix between

dry and wet signal. Fully

clockwise position is 100%

effect.

IN meters

The IN peak meter shows the

Input level of left and right

channels. The meter range is:

0, -3, -6 ,-12, -18, -24, -40dB.

OVERLOAD LEDS

The OVERLOAD LEDs

indicate one of two situations:

- The Input level is too hot

and therefore overloading.

- There is an internal DSP

overflow.

The OVERLOAD LED is lit

when 1 sample is @ 0dBFS.

DELAY TIME indicator

The DELAY TIME indicator can

display Delay time in either ms

(milliseconds) or BPM (Beats

Per Minute). This is selected in

the Setup menu. The ms or

the BPM icon next to the Delay

time will be lit accordingly.

The tempo is also indicated via

the blinking TEMPO/RHYTHM

indicator.

SUBDIVISION indicator

The selected subdivision

determines the recalculation of

the tapped tempo. Example:

At 120BPM you tap 1/4 notes.

The tapped time equals

500ms. If the Subdivision is

set to 1/8, the D•TWO now

recalculates the Delay time to

250ms.

DYNAMIC meter

Indicates the gain reduction on

the Delay Output when using

the Dynamic Delay algorithm.

EDITED icon

This icon will be lit as soon as

the current recalled preset has

been modified.

FACTORY/USER icon

Shows whether you are

operating in the Factory or the

User bank.

MIDI IN icon

Indicates the presence of

incoming MIDI information.

SAMPLE RATE indicator

The SAMPLE RATE indicator

shows the clock source and

the incoming master clock.

The “DI” icon will be blinking if

no clock or unacceptable clock

is found.

FEEDBACK %

The amount of level fed back

to the Delay line. Indicates the

Decay time of the Delay

repeats.

FEEDBACK #

The exact number of repeats.

FB FILTER LEDS

Indicates the Feedback High

and Low Cut filter setting.

FILTER LEDS

Indicates the overall High and

Low Cut filter setting.

PINGPONG LEDS

Indicates the panning currently

processed.

FRONT PANEL OVERVIEW

DELAY/TAP key

This key has two main

functions:

- When the DELAY key LED

is lit, the DELAY wheel can

be used to adjust the Delay

time.

- When the key is tapped the

D•TWO measures the time

between the last two taps

and the Delay time is

calculated according to the

selected subdivision.

FEEDBACK/RHYTHM key

This key has three main

functions:

- When the LED is lit the

DELAY wheel is changing

the Feedback level or %.

- When the key is pressed

and held, the DELAY wheel

changes the number of

repeats.

- Tap a rhythm pattern using

this key. A rhythm pattern

can consist of up to 10 taps.

DELAY & FEEDBACK wheel

Sets the Delay time or

Feedback depending on what

is selected.

SPATIAL key

Enables/disables the Spatial

function. Double click shortcuts

to the Spatial parameters.

Options are:

- Left channel offset

+/-200ms.

- Phase reverse any channel.

FILTER key

Enables/disables the Filter

functions. Double click

shortcuts to the High and Low

Cut filter parameters.

CHORUS key

Enables/disables the Chorus.

Double click shortcuts to the

Chorus parameters.

REVERSE key

Enables/disables the Reverse

Delay. Double click shortcuts

to the Reverse Delay

parameters.

DYNAMIC key

Enables/disables the Dynamic

Delay. Double click shortcuts

to the Dynamic Delay

parameters.

PING PONG key

Enables/disables the PingPong

functions. Double click

shortcuts to the PingPong

parameters.

EDIT key

Enters the general Edit list.

This is where all preset

processing parameters are

located. Use the ARROW keys

to select parameters.

RECALL key

Selects the Recall menu.

SETUP key

Enters the Setup menu.

This is where all I/O and

global parameters are located.

STORE key

Selects the Store menu.

Presets can be stored in the

User bank only. Location is

selected using the

CONTROL wheel. Operation is

confirmed using ENTER.

ARROW UP/DOWN keys

Are used to move the cursor

around in the display.

CONTROL wheel

Is used to change values.

ENTER key

Press to confirm operations.

BYPASS key

Bypasses the unit. There are

three different Bypass modes.

- 0% Mix: Input signal is

passed directly to the

Output. -

FX Input: Input bypass

allowing the effects to ring

out.

- FX Output: Kills the effect

but keeps the direct signal

level.

The Bypass mode is selected

in the Setup menu.

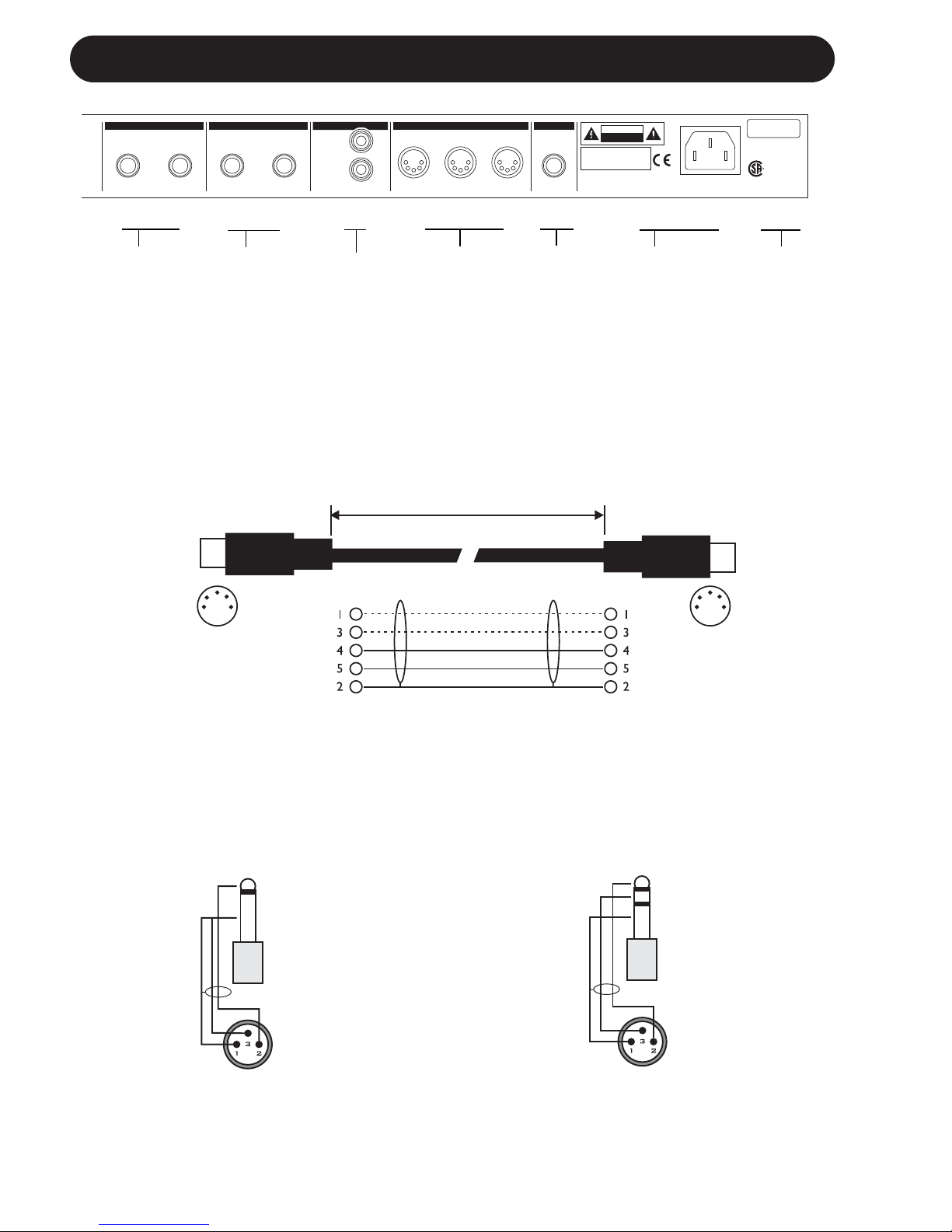

REAR PANEL

UL6500

EN/IEC 60065

PROFESSIONAL AUDIO EQUIPMENT

THRU

INLEFT LEFTRIGHT RIGHT OUT

MIDIBALANCED INPUTS BALANCED OUTPUTS DIGITAL I/O PEDAL

S/PDIF

SERIAL NO.

TYPE: MAN001

TC ELECTRONIC

MADE IN THAILAND

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE

AVI S:

RISQUE DE CHOC ELECTRIQUE-NE PAS

OUVRIR.

100-240VAC

50-60Hz, 15W

CAUTION

CUS

THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-

CAUSING EQUIPMENT REGULATIONS AND COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Balanced

Jack

Analog

Inputs

Pedal

Input

MIDI

In/Out/Thru

Balanced

Jack

Analog

Outputs

Digital

S/PDIF

Input/

Output

Power

Input

100 - 240V

Serial

Number

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Ring - Pin 3 (Cold)

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Sleeve - Pin 3 (Cold)

Jack (unbalanced) - XLR Jack (balanced) - XLR

TIP

RING

GND

TIP

GND

MIDI Cable

DIN CONNECTOR

5POLE - MALE

45 degrees

DIN CONNECTOR

5POLE - MALE

45 degrees

max. 10m

SHIELDED CABLE (3 or 5 wires + screen)

(Use Left Input

for Mono

connection)

Autres manuels pour D-TWO

Table des matières

Autres manuels TC Electronic Équipement d'enregistrement

TC Electronic

TC Electronic HALL OF FAME 2 MINI Manuel utilisateur

TC Electronic

TC Electronic FireworX Manuel utilisateur

TC Electronic

TC Electronic Konnekt 24D Manuel utilisateur

TC Electronic

TC Electronic VIBRACLONE ROTARY Manuel utilisateur

TC Electronic

TC Electronic Rusty Fuzz Manuel utilisateur

TC Electronic

TC Electronic INTONATOR Manuel utilisateur

TC Electronic

TC Electronic NOVA System Manuel utilisateur

TC Electronic

TC Electronic NR-I Nova Reverb Manuel utilisateur

TC Electronic

TC Electronic FirewarX Manuel utilisateur

TC Electronic

TC Electronic DBMAX - V 2 Manuel utilisateur

TC Electronic

TC Electronic HALL OF FAME Manuel utilisateur

TC Electronic

TC Electronic Multi-effects Processor G-Natural Manuel utilisateur

TC Electronic

TC Electronic D22 Instructions d'installation et d'utilisation

TC Electronic

TC Electronic Desktop Konnekt 6 Manuel utilisateur

TC Electronic

TC Electronic G-System Manuel utilisateur

TC Electronic

TC Electronic Konnekt 24D Manuel utilisateur

TC Electronic

TC Electronic DVR250 NATIVE Manuel utilisateur

TC Electronic

TC Electronic G-MAJOR 2 Manuel utilisateur

TC Electronic

TC Electronic G-Natural Manuel utilisateur

TC Electronic

TC Electronic Studio Konnekt 48 Manuel utilisateur

TC Electronic

TC Electronic G-MAJOR 2 Manuel utilisateur

TC Electronic

TC Electronic M-ONE Manuel utilisateur

TC Electronic

TC Electronic P2 Level Pilot Manuel d'utilisation et d'entretien

TC Electronic

TC Electronic M100 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
