Tally T9006 Manuel utilisateur

T9006

Maintenance Manual Laser Printer

HDA

HCD 13

HCD

• Parts with "•" are component parts or sub-assemblies of the

assembly appearing immediately above them.

Part. No. Description

Ref.

No.

Quantity

230V 240V

Part. No.

Ref.

No.

Spare Parts

1 397 629 UPPER COVER 1 1

2 397 571 COVER,RELEASE 1 1

3 397 630 LEVER,RELEASE 1 1

4 397 631 RETAINER,LEVER 2 2

5 397 632 JUNCTION PLATE,LED 1 1

6 397 633 LEVER B,RELEASE 1 1

7 397 634 CAUTION LABEL,HIGH TEMPERATURE (EXP) 1 1

8 397 595 GUIDE FILM B,BYPASS 1 1

9 397 635 COVER,COOLING FAN 1 1

10 397 567 COVER,MEMORY BOARD 1 1

11 397 570 KEY TOP,RESET SWITCH 1 1

12 397 636 SPACER,RELEASE LEVER 2 2

13 397 637 RIGHT SPONGE,COVER 1 1

14 397 638 LID,MEMORY BOARD 1 1

15  PIN,TP-LRM3X6 2 2

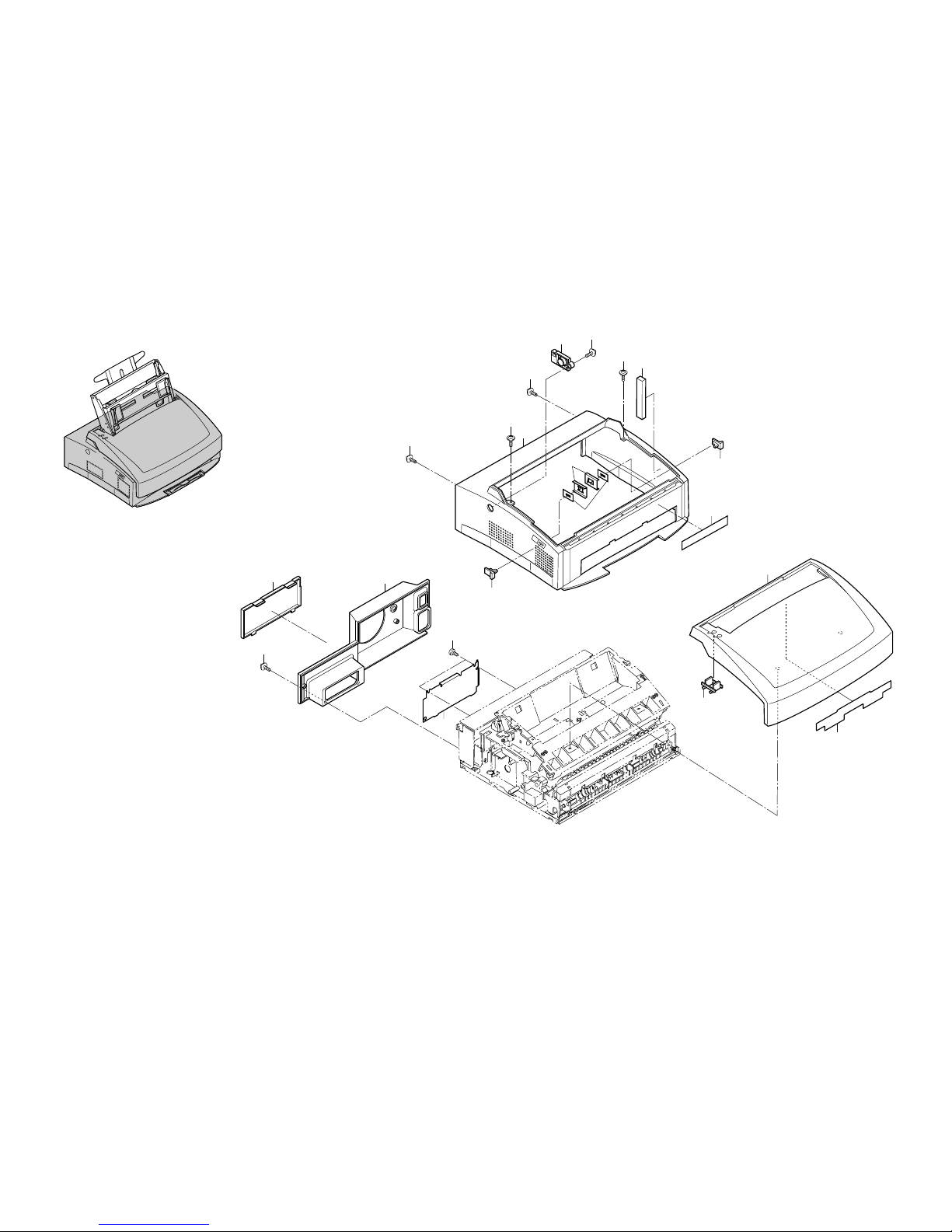

FIG. 1 EXTERIOR COVERS

5-3

Exterior Covers

12 18

40 1

41 6

15 21

BAI

38 33

BAI

BHI

BBR

BBB

BHT

BBB

BHI

GEC

BBR

EGC

BHT

BBR

BBB

BBK BBB

BBR

BHN

ADA

HBA

• Parts with "•" are component parts or sub-assemblies of the

assembly appearing immediately above them.

Part. No. Description

Ref.

No.

Quantity

230V 240V

Part. No.

Ref.

No.

Spare Parts

1397 638 FRAME,MACHINE 11

2397 639 UPPER FRAME 11

3397 640 TERMINAL,DEVELOPING BIAS 11

4397 641 TERMINAL,SUB DEVELOPING BIAS 11

5397 642 TERMINAL,TRANSFER MACHINE 11

6397 643 TERMINAL,MAIN CHARGER 11

7397 644 TERMINAL,GRID 11

8397 645 TERMINAL,BRUSH 11

9397 646 HOOK A11

10397 647 HOOK B 11

11397 648 SPRING,HOOK 11

12397 563 HOLDER,GEAR DAMPER 11

13397 649 GROUND PLATE,FRAME 11

14 397 650 SPRING,RELEASE RETAINING 22

15397 651 BASE RUBBER 22

16397 652 SPRING 2.5,RELEASE RETAINING 11

17 397 552 BASE 11

18397 653 GEAR 14,DAMPER 11

19397 654 GEAR 11/34 11

20 397 655 SPRING,HOOK 11

21397 597 SLIDER,EJECTTRAY22

22 397 656 LID,HIGH VOLTAGE TERMINAL 11

23397 657 GUIDE,DRUM SHAFT 11

24397 798 TRAYB,EJECT 11

25397 659 ACTUATOR,IU DETECTION 11

26397 660 MOUNT,IU DETECTION SWITCH 11

27397 661 SWITCH,INTERLOCK 11

28 397 662 PLATESPRING A,DRUM UNITHOLDER 11

29 397 663 PLATESPRING B,DRUM UNIT HOLDER 11

30397 664 UPPER MOUNT,FRAME SPRING 11

31 397 665 RIGHT LEVER,RELEASE RETAINING 11

32397 666 LEVER,RELEASE RETAINING 11

33 397 667 COVER,TERMINAL 11

34397 668 SWITCH,CASSETTE LIFT 11

35397 669 TERMINAL BASE,MAIN CHARGER 11

FIG. 2FRAMES

5-5

Frames

Quantity

230V 240V

Part. No. Description

Ref.

No.

Quantity

230V 240V

Spare Parts

36 397 670 SHEET,FRAME SHIELD (EUR) 11

37 397 671 PROJECTION,DRUM UNITLIMITATION (EUR) 11

38 397 672 CUSHION,TRAY22

39 397 673 PIN,MACHINE FULCRUM 22

40397 569 HOLDER,RESET SWITCH 11

41 397 790 SPRING,MAIN CHARGER 11

42 397 791 SPRING,TONER EMPTY DETECTION 22

43397 792 COVER,EJECT 11

44397 793 STRAPA,MACHINE RELEASE 11

45 397 794 MINIATURE CLAMP,UAMS-03-0 22

46397 795 GROUND WIRE,CLEANING BRUSH 22

47397 797 TRAY A,EJECT

FIG. 2FRAMES (continued)

5-6

Frames

• Parts with "•" are component parts or sub-assemblies of the

assembly appearing immediately above them.

Part. No. Description

Ref.

No.

Quantity

230V 240V

Part. No.

Ref.

No.

Spare Parts

5-7

HAX

HDA

HAX

712

HAX

HDA

• Parts with "•" are component parts or sub-assemblies of the

assembly appearing immediately above them.

Part. No. Description

Ref.

No.

Quantity

230V 240V

Part. No.

Ref.

No.

Spare Parts

FIG. 3PAPER FEED TRAYSECTION

1397 584 TRAY,PAPER FEED 11

2397 585 GUIDE,TRAY11

3397 674 TRAY,AUXILIARY11

4397 586 RIGHT CURSOR 11

5397 587 LEFT CURSOR 11

6397 588 RACK,CURSOR 44

7397 589 GEAR,CURSOR 22

8397 675 SPRING,TRAY11

9397 590 PAD,TRAY11

10 397 591 TRAY,BYPASS11

11397 573 LABEL,CASSETTE OPERATION11

12 397 592 RIGHT CURSOR,BYPASS11

13 397 593 LEFT CURSOR,BYPASS11

14 397 594 GUIDE FILM A,BYPASS11

15397 676 LEVER,CURSOR RETAINING 11

5-9

Paper Feed Tray Section

E05

24 1711

BHI

BHT

49 23

810

362

E05

KAV

KAL

38 576

BHT

BBB

27 28 3230 35

E05

54 57 5655

E05

59 40

BBB

BBA E05

BBB

BHI
