T6090
Maintenance Manual
Line Impact Printer
withT6065,T6091,
T6100 &T6101 Supplements
Paper Path
Paper Path
Appendix B
Recommended Spare Parts,
Illustrated Parts Breakdown and Components Lists
Appendix B
B-1
Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists
Recommended Spare Parts List
PART NAME PART NO.
Power Supply 081153
Personality CBA (Ser/Par) 080901
Personality CBA (4 Plex) 081086
Personality CBA (Lan) 080920
Engine Controller CBA 080873
Control Panel Assembly 075123
Hammer Bank Assembly 081144
Hammer Module Kit 081152
Control Panel Cable 079873
Paper/Shuttle Drive Motor 078259
Ribbon Drive Motor 075138
Fan 079644
Blower (Under Platform) 081095
Power Cord 730078
Shuttle Sensor 081123
Platen Sensor 080185
Tractor Kit, Upper (set w/sensors) 080878
Tractor Kit, Lower (set w/sensors) 081128
Gas Spring, (Lid) 731060
Paper Drive Belts 075127
Paper Advance Motor Pulley 080711
Paper Tractor Pulley, (Top) 080635
Paper Tractor Pulley, (Bottom) 080647
Duct (H.B.) 080727
Duct Seal 080751
Tie Block, Lower 080658
Tie Block, Upper (H.B. Shaft) 080657
Bearing Block, Right 081326
Bearing Block, Left 081327
Shuttle Drive Belt 731685
Shuttle Assembly 081149
Ribbon Shield Assembly 081298
Platen Assembly 080953
Tool Kit 081147
Sound Deadening Hood 079622
Manuals
Serial/Parallel Ops/Aps 080932
LAN Supplement 081057
FourPlex Ops/Aps 080978
Maintenance Manual 080933
Ribbons
Fabric Ribbon, 25 Million Char, Box of 4 081267
Fabric Ribbon, 50 Million Char, Box of 4 081269
Fabric Ribbon, 150 Million Char, Box of 2 081271
B-2
Maintenance Manual
Rear View
Cover Set – T6090
B-3
Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists
Reference# Description Part Number
2 Lid Cover Assembly 079616
3 Sound Deadening Hood 079622
5 Gas Spring 731060
6 Hinge Stop 079684
7 8–32 x 3/8" SEMS Screw 402524 – 42
8 Bracket – Paper Guide, closing 081098
10 Cabinet – RH End Assembly 090706
11 Cabinet – LH End Assembly 079875
14 Control Panel Assembly 075123
19 8–32 x 5/8" SEMS Screw 402524 – 51
20 8–32 x 3/8" SEMS Screw 402524 – 42
21 8–32 x 3/8" Countersunk Flathead, crosspoint 402524 – 42
B-4
Maintenance Manual
Basic Assembly – T6090
(OPTION)
B-5
Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists
Reference# Description Part Number
4 Ribbon Drive Motor 075138
6 Duct Seal 080751
15 Blower 081095
22 8–32 x 0.437 SEMS Screws (20ea) 402524 – 49
23 Belt – Flat (Shuttle) 731685
27 Front Cabinet Assembly 080702
29 Ribbon Platform 612591
35 6–32 x 0.375 SEMS Screws 730381
36 8–32 x 0.625 SEMS Screws 402524 – 51
38 8–32 x 0.375 SEMS Flathead Screws 402454 – 45
46 Nylon Twistlock Cable Support 730755
47 Clamp-on Ferrite Bead (3 ea) 730910
B-6
Maintenance Manual

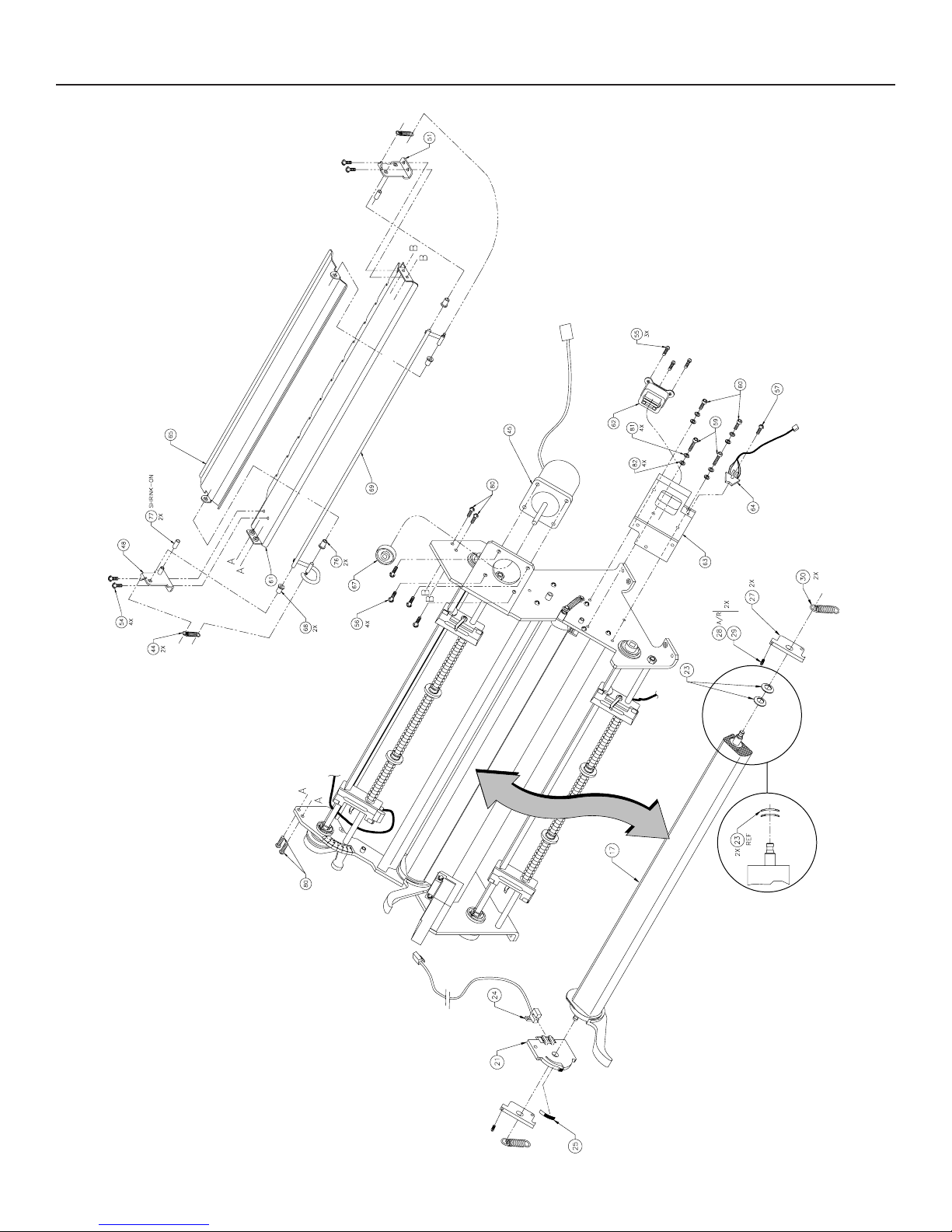

Print Mechanism – T6090
B-7
Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists
Reference # Description Part Number
17 Platen Assembly 080953
21 Platen Lever Detent Plate 080931
23 3/8" Spring Washer 400995 – 20
24 Platen Open Sensor
Cable Assembly 080185
25 Platen Position Label 081008
27 Platen Gap Adjust Plate 080618
28 242 Thread Locking Adhesive 730213
29 8–32 x 0.625 Set Screw (2 ea) 400236 – 107
30 Platen Adjust Spring 731114
44 Extension Spring 731694
45 Shuttle Drive Motor 078259
48 LH Pivot Bracket Assembly 081231
51 RH Pivot Bracket Assembly 081232
54 8–32 x 0.38 SEMS Screws (4 ea) 402524 – 41
55 6–32 x 0.25 SEMS Screws (3 ea) 402524 – 21
56 8–32 x 0.50 SEMS Scrrews (10 ea) 402524 – 43
57 4–40 x 0,50 SEMS Screw (1 ea) 402524 – 03
59 8–32 x 1.25 Socket Head
Screw (2 ea) 400512 – 254
60 8–32 x 1.0 Socket Head
Screw (2 ea) 400512 – 252
61 Lower Paper Guide Assembly 080626
62 Stabilizer Block Assembly 078549
63 Stabilizer Support Bracket 080656
64 Shuttle Sensor Cable Assembly 081123
65 Upper Paper Guide 081230
67 Flat Belt Pulley Assembly 075490
68 Nylon Linear Bearing 402898 – 01
69 Paper Guide Wire Form 080632
76 Bronze Flanged Bushing,
Oil Impregnated 400844 – 04
80 8–32 x 0.437 SEMS Screw (4 ea) 402524 – 49
81 #8 Split Lock Washer (4) 400215 – 10
82 #8 Flat Washer 400216 – 10
B-8
Maintenance Manual
Paper Movement System – T6090
