System air IAM Manuel utilisateur

Document translated from English | 254977 · v05

Internet Access Module (IAM) for SAVE residential

ventilation units

GB User Manual................................................2

SV Användarhandbok .....................................14

DE Bedienungsanleitung .................................26

NO Bruksanvisning..........................................40

FI Käyttöohje................................................52

254977 | v05

User Manual GB

E&OE

Systemair UAB reserves the rights to change their products without notice.

This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service.

254977 | v05

Contents

1 About the Internet access module.......................5

2 Installation and configuration .............................5

2.1 Connection to Internet with Ethernet

cable...................................................6

2.2 Wireless connection using WPS

function ...............................................6

2.3 Wi-Fi connection setup using a control

panel...................................................7

2.4 Wi-Fi connection setup using a mobile

application............................................7

3 Resetting to default settings ..............................8

4 Setting IAM to Modbus TCP converter

mode ...........................................................8

5 First Login to Homesolutions by

Systemair .................................................... 10

6 Declaration of Conformity ............................... 11

7 USER AGREEMENT ......................................... 12

GB About the Internet access module | 5

1 About the Internet access module

Internet access module (IAM) is a device that allows to connect to the unit and control it

via a mobile application or any internet browser. The Internet access module also pro-

vides additional features: software updates, Local Modbus TCP to RTU conversion mode,

configuration file storing/import and export functions and remote technical service

possibilities.

Note:

Internet Access module uses TCP/IP port 8989 for outgoing connections.

The package contains: Internet access module, power supply cable and adapter (230 V),

Modbus cable RJ10, CE/CD-diverting plug, Ethernet cable and 4 adhesive magnets for

easy installation.

2 Installation and configuration

Units with external control panel need a CE/CD diverting plug since both external control

panel and IAM use the same socket in the connection box and on the main circuit board.

1 Connect the Internet Access Module

(pos. 1 ) to the connection box (pos. 2)

with a cable RJ10 (pos. 3).

If the unit has more than one control

panel, disconnect one of the control

panels from the connection box.

Connect the control panel and internet

access module to CE/CD-diverting plug.

Then connect CE/DC-diverting plug to

the connection box using a cable (RJ10).

2 Connect power to the IAM (micro USB port).

After connection to power supply, green LED on the in-

ternet access module will start blinking fast.

Fast blinking indicates that the Internet Access Module

is trying to connect to the internet.

Once the IAM is physically connected to the SAVE unit, it has to be connected to the

Internet.

For IAM connection to the Internet, different options are available:

• Ethernet cable connection. See 2.1 Connection to Internet with Ethernet cable, page 6.

If Wired connection is an option (recommended).

• Wireless connection using WPS function. See 2.2 Wireless connection using WPS func-

tion, page 6.

If wired connection is not an option and home router supports WPS function.

• Wi-Fi connection setup using control panel. See 2.3 Wi-Fi connection setup using a

control panel, page 7.

If wired connection is not an option and a home router does not support WPS function.

254977 | v05

6| Installation and configuration GB

• Wi-Fi connection setup using a mobile application. See 2.4 Wi-Fi connection setup us-

ing a mobile application, page 7.

If wired connection is not an option and a home router does not support WPS function

and control panel is not available.

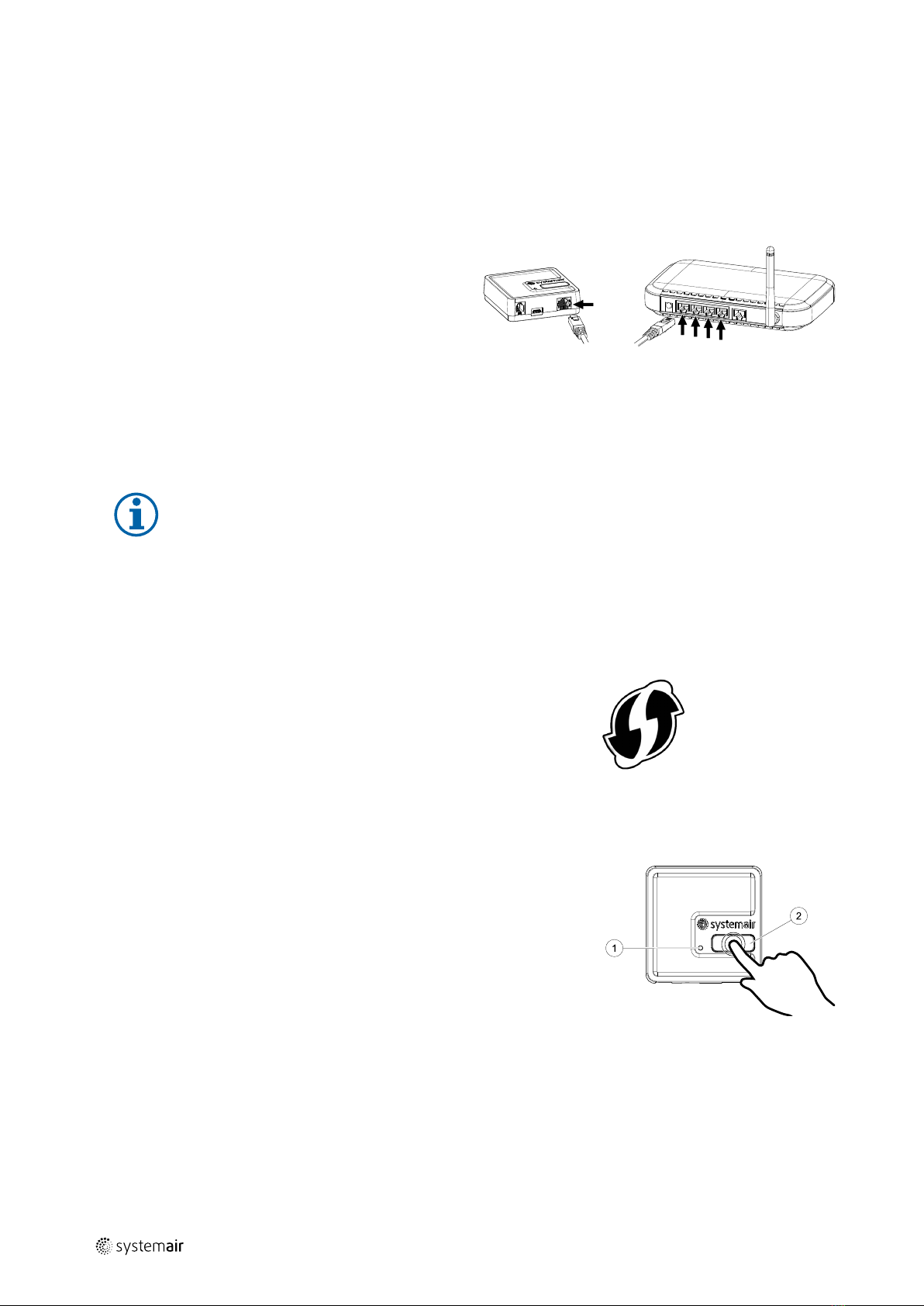

2.1 Connection to Internet with Ethernet cable

1 Plug one end of the Ethernet cable to

the RJ45 socket on IAM and the other

end to any free Ethernet socket on your

router.

2 The internet access module will auto-

matically try to establish connection to

the router and SAVE Touch Cloud. When

connection is successful, green LED on

the internet access module will start

blinking slowly.

Note:

Green LED blinking twice per second indicates failure to connect to the Cloud

server. Check the Ethernet cable or Internet connection.

Proceed to chapter 5 First Login to Homesolutions by Systemair for login

instructions.

2.2 Wireless connection using WPS function

1 Start WPS (Wi-Fi Protected Setup) on your wireless

router (see your router manual for WPS activation).

Make sure your wireless router supports WPS function.

If you router does not support WPS function, see chap-

ter for detailed information how to set up Wi–Fi con-

nection using control panel.

2 Once WPS is activated, press and hold activation button

(pos. 2) on the internet access module for 5 seconds

until the red LED starts blinking twice per second and

then release activation button.

3 When internet access module successfully connects to

the router (should not take longer than 1 minute), LED

on the internet access module will start blinking once

per second in green colour.

If LED continues to blink fast in red colour, it means Wi-

Fi connection was not established. Reset IAM to default

settings and try again.

See chapter 3 Resetting to default settings, page 8.

4 Once the internet access module is connected to the

wireless router, it will automatically establish connec-

tion with the SAVE Touch Cloud (it should not take

254977 | v05

GB Installation and configuration | 7

longer than 1 minute). The LED will continue blinking

once per second in green colour.

Proceed to chapter 5 First Login to Homesolutions by

Systemair for login instructions.

2.3 Wi-Fi connection setup using a control panel

If your wireless router does not support WPS, Wi-Fi connection should be set up manually.

Therefore you need to find Wi-Fi name and add password using control panel.

1. In control panel go to Service -> Communication -> WLAN settings menu.

2. Press Scan for networks button. IAM will search for available Wi-Fi networks

(should not take longer than one minute).

3. After search is complete, find the network name to which IAM should connect and se-

lect it. Wi-Fi network should be password protected, otherwise IAM can't connect to

Wi-Fi network.

4. After required Wi-Fi name selection, password pop-up window appears in control panel

screen. Insert your Wi-Fi network password.

5. If password is correct and connection to Wi-Fi network is successful, IAM will establish

connection to SAVE Touch cloud automatically. The LED of IAM will start blinking slowly

in green colour.

Proceed to chapter 5 First Login to Homesolutions by Systemair for login instructions.

2.4 Wi-Fi connection setup using a mobile application

If previously described connection methods are not available – Wi-Fi settings can be set

up using the Mobile Application.

1 Activate a hotspot mode of the Internet access module

by pressing the button on the IAM 3 times within 3

seconds. Orange colour LED (1) on the IAM should stop

blinking.

IAM will reboot and switch to the hotspot mode –

broadcasting its own Wireless Local Area Network

(WLAN). Name of the broadcasted WLAN matches the

IAM ID (IAM_2480000xxxxx).

2 Connect to the broadcasted IAM WLAN (IAM_

2480000xxxxx). IAM ID is printed on the backside of

IAM.

This network is open network and no password is re-

quired to connect to it. IAM WLAN will be broadcasted

for 5 minutes or until the configuration is completed.

254977 | v05

8| Resetting to default settings GB

3 Launch the Homesolutions by Systemair application

once connected to the IAM WLAN (for application

download and settings instructions refer to 5 First Log-

in to Homesolutions by Systemair).

Application will automatically scan for available Wi-Fi

networks, this process can take up to 20 seconds.

Choose desired network and enter the security pass-

word. Press SAVE.

This will enable the IAM to connect to your home

network.

Note:

The Internet access module is not allowed to

connect to unprotected networks! Make sure

your selected Wi-Fi network has a password.

4 Quit the mobile application and connect to your usual

Wi-Fi.

Proceed to chapter 5 First Login to Homesolutions by

Systemair for login instructions.

3 Resetting to default settings

In case of connection failure, the internet access module have to be reset. Disconnect the

power supply cable, press and hold the activation button and while it is pressed, recon-

nect power supply cable. The red LED will start blinking, wait until it stops blinking (~10

seconds) and then release the activation button. The internet access module is now

reset.

4 Setting IAM to Modbus TCP converter mode

The IAM is configured to work in a Cloud mode by default – allowing the customer to con-

nect to the SAVE unit using the mobile application. Alternatively, it can be switched to a

Modbus TCP converter mode. This change can be done in the IAM Interface.

254977 | v05

GB Setting IAM to Modbus TCP converter mode | 9

1 Find the IAM IP address. The IP address

is dynamic and will be different at differ-

ent installations.

2 Open your internet browser and enter

the IP address of your IAM (e.g. http://

172.16.10.50).

3 Type in the IAM interface password in

the opened login screen.

The password can be found on a back la-

bel of the IAM.

A.Main Board (MB), Control panel (HMI) and language pack (HMI resources) versions

stored in the IAM. The IAM can be used to update SAVE units with older firmware

versions.

B. Status of the IAM – If it is connected to the unit and the Cloud.

C. Connection mode:

• Homesolutions Cloud mode allows the IAM to connect to Homesolutions Cloud ena-

bling the user to use the mobile APP (default selection).

254977 | v05

10 | First Login to Homesolutions by Systemair GB

• Modbus Gateway TCP-RTU/RS485 mode switches the IAM to Modbus TCP converter

mode.

D. Indicates IAM modbus device ID.

E. Choose between automatically generated IP or static IP.

F. Allow the IAM to connect to the router directly by providing your local Wi-Fi network

name and password. This can be used if the router does not support WPS function. The

device supports WPA-PSK and WPA2–PSK only.

G.You can disable web interface by ticking Confirm selection.

H.Software and hardware version of the IAM.

Detailed Modbus parameter list can be found at product description on systemair.com

website (Item Number: 323606).

Use device ID "1" to read/write Main Board Modbus registers and device ID "2" to read

the IAM Modbus registers.

5 First Login to Homesolutions by Systemair

Download and install Home solutions by Systemair mobile application on your device. Application is

available for both Android and iOS operating systems.

Application also be accessed directly through the website (https://homesolutions.systemair.com) by using any web

browser.

1. Launch the application. In the login screen (pos. 1) enter your unique UNIT ID which can be found on the back label of

IAM or on additional label. It is important to add “iam_” before IAM number in the login field.

2. Press LOG IN button (pos. 2).

3. When you connect to your IAM for the first time, you must set your own unique password. In the next screen press

CHANGE PASSWORD (pos. 3).

4. Enter your new password twice (minimum 8 symbols, of which at least 1 is number) and touch SET PASSWORD but-

ton (pos. 4).

5. Confirm change by pressing IAM activation button for 2–3 seconds. You should be able to login with your new

password.

254977 | v05

Autres manuels pour IAM

Table des matières

Langues :

Autres manuels System air Unité de contrôle

System air

System air SAVE CONNECT Manuel utilisateur

System air

System air AM-PKI Manuel utilisateur

System air

System air PCA 1000D Manuel utilisateur

System air

System air SYSCONTROL CWC 02 Manuel utilisateur

System air

System air Villavent Manuel utilisateur

System air

System air fantech ECO-FEEL 414729 Manuel utilisateur

System air

System air PKI-C Series Manuel utilisateur

System air

System air TCA 150D2 Manuel utilisateur

System air

System air TControl POD glass 3s white Manuel utilisateur

System air

System air SPLIT-AHU Kit 0-10V LNS Manuel utilisateur

System air

System air HHFlex C Manuel utilisateur

System air

System air IAM Manuel utilisateur

System air

System air BOR-S Series Manuel utilisateur

System air

System air Topvex Series Manuel utilisateur

System air

System air SPI Manuel utilisateur

System air

System air EC Vent Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
