Synology RX6022sas Manuel

Expansion Unit RX6022sas

Hardware Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents 3

Synology RX6022sas at a Glance 4

LED Indicator Table 6

Hardware Specication 7

Spare Parts 8

Optional Accessories 8

Safety Instructions 9

Chapter 2: Hardware Setup

Tools and Parts for Component Installation 10

Install Storage Drives 10

Install and Remove Rail Kits 13

Connect with Synology NAS 22

Chapter 3: System Maintenance

Replace System Fan 28

Replace Power Supply Unit (PSU) 30

Synology_HIG_RX6022sas_20210728

Thank you for purchasing this Synology product! Before setting up your new expansion unit, please check the

package contents to verify that you have received the items below. Also, make sure to read the safety instructions

carefully to avoid harming yourself or damaging your expansion unit.

Note: All images below are for illustrative purposes only, and may di󰀨er from the actual product.

Package Contents

Main unit x 1 RKS-03 (Rail kit) x 1

AC power cord x 2

Expansion cable x 2

Before You Start 1

Chapter

4Chapter 1: Before You Start

Synology RX6022sas at a Glance

Front

Rear

No. Article Name Location Description

1 POWER Indicator

Front

Displays the power status.1

2 ALERT Indicator Displays warnings regarding fan or temperature. For more

information, see "LED Indicator Table".

3 Beep O󰀨 Button Press to deactivate the beep that sounds when a malfunction

occurs.

4 Drive Status Indicator Displays the status of drive. For more information, see "LED

Indicator Table".

1RX6022sas automatically powers on when the power cord is plugged into the power source. For more information, please see "Connect with

Synology NAS".

5Chapter 1: Before You Start

No. Article Name Location Description

5 PSU Fan

Rear

Disposes of excess heat and cools the PSU.

6 Power Port Connect power cord here.

7 PSU Indicator Displays the status of the power supply unit (PSU). For more

information, see "LED Indicator Table."

8 STATUS Indicator Displays the status of the system. For more information, see

"LED Indicator Table."

9 ALERT Indicator Displays warnings regarding fan or temperature. For more

information, see "LED Indicator Table".

10 Expansion Unit ID

Indicator Indicates the ID number of the expansion unit.

11 SAS IN Port and

Indicator

Connects to the SAS OUT port of a Synology NAS or another

expansion unit. For more information, please see "Connect with

Synology NAS".

12 SAS OUT Port and

Indicator

Connects to the SAS IN port of another expansion unit. For more

information, please see "Connect with Synology NAS".

1For more information about Synology Expansion Unit supported by your Synology NAS, please visit www.synology.com.

6Chapter 1: Before You Start

LED Indicator Table

LED Indicator Color Status Description

POWER

Blue Static Powered on

O󰀨 Powered o󰀨

Drive Status Indicator

(on tray)

Blue

Static Drive ready and idle

Blinking Accessing drive

Red Static Drive error/Port disabled1

O󰀨 No internal Drive

ALERT

Orange Blinking System error2

O󰀨 System normal

PSU Indicator

Green

Static Power supply unit normal

Blinking Power standby/AC present

Orange Static Power supply unit fail/No AC power

O󰀨 Power supply unit o󰀨

Rear Status

Green Static Powered on

O󰀨 Powered o󰀨

Rear Alert

Orange Blinking System error2

O󰀨 System normal

SAS IN/OUT

Green Static Synology NAS/Expansion unit

connected

O󰀨 Synology NAS/Expansion unit

disconnected

Note:

1 Please try to restart your Synology NAS or re-insert the drives, then run the HDD/SSD manufacturer's

diagnostic tool to check the health status of the drives. If you can sign in to DSM, please run the built-in

S.M.A.R.T. test to scan the drives. If the problem remains unresolved, please contact Synology Technical

Support for help.

2 If the ALERT LED continuously blinks orange, this indicates there are system errors such as fan failure,

system overheating, or volume degrade. Please sign in to DSM for detailed information.

7Chapter 1: Before You Start

Hardware Specication

Item RX6022sas

Compatible Drive Type 3.5" SAS x 60

Expansion Port

• SAS IN x 1

• SAS OUT x 1

Size (H x W x D) (mm)

• 176 x 438 x 985

• 176 x 482 x 1020 (with server ears)

Weight (kg) 33.9

Agency Certication • FCC Class A • CE Class A • UKCA • BSMI Class A

• EAC • VCCI • RCM • KC • UL • RoHS Compliant

Environment Requirement

• Line voltage: 200 V to 240 V AC

• Frequency: 50/60 Hz

• Operating Temperature: 32 to 95˚F (0 to 35˚C)

• Storage Temperature: -5 to 140˚F (-20 to 60˚C)

• Relative Humidity: 5% to 95% RH

Note: Model specications are subject to change without notice. Please refer to www.synology.com for the latest information.

8Chapter 1: Before You Start

Spare Parts

Visit www.synology.com/products/spare_parts if you need to replace system fans, disk trays, or power supply

units

Model Name Picture Description

Disk Tray (Type R9) 3.5" Drive Tray

FAN 80*38_1 System Fan 80*80*38 mm

PSU 1200W-RP Module_1 Redundant PSU Module

1200W

RKS-03 Sliding rails solutions

Cable MiniSASHD_EXT_1 x 1 External MiniSAS HD Cable

100 cm

Cable MiniSASHD_EXT_2 x 1 External MiniSAS HD Cable

200 cm

Optional Accessories

With Synology accessories, you can customize your expansion unit to t di󰀨erent business environments without

worrying about compatibility and stability. Visit www.synology.com/compatibility for more information.

9Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Ensure a stable environment

with no abrupt changes in temperature or humidity.

Place the unit right side up at all times.

Keep the unit away from liquids.

Before cleaning, unplug the power cord. Do not use chemical or aerosol cleaners. Wipe

with damp paper towels.

To prevent the unit from falling over, do not place it on carts or any unstable surfaces.

The power cord must plug into the correct supply voltage. Ensure the supplied AC voltage

is correct and stable.

Warning, electric shock hazard. To remove all electrical current from the device, ensure

that all power cords are disconnected from the power source.

Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries

appropriately.

Power cord must be plugged into a socket-outlet with earthing connection.

Keep body parts away from moving fan.

This product must be installed by qualied personnel in a restricted access location (like

dedicated equipment rooms, service closets).

Tools and Parts for Component Installation

Please prepare below tools and parts before setting up your expansion unit:

• A screwdriver

• At least one 3.5" SAS drive (please visit www.synology.com/compatibility for compatible drive models)

Warning: If you install a drive that contains data, the system will format the drive and erase all existing data.

Please back up any important data before installation.

• Rail mounting kit (please see the Optional Accessories section to nd out the suitable rail kit for cabinet

installation)

Warning: We suggest mounting your expansion unit on a cabinet before installing any drives since the heavy

weight will increase the installation di󰀩culty.

Install Storage Drives

Please follow the steps below for drive installation:

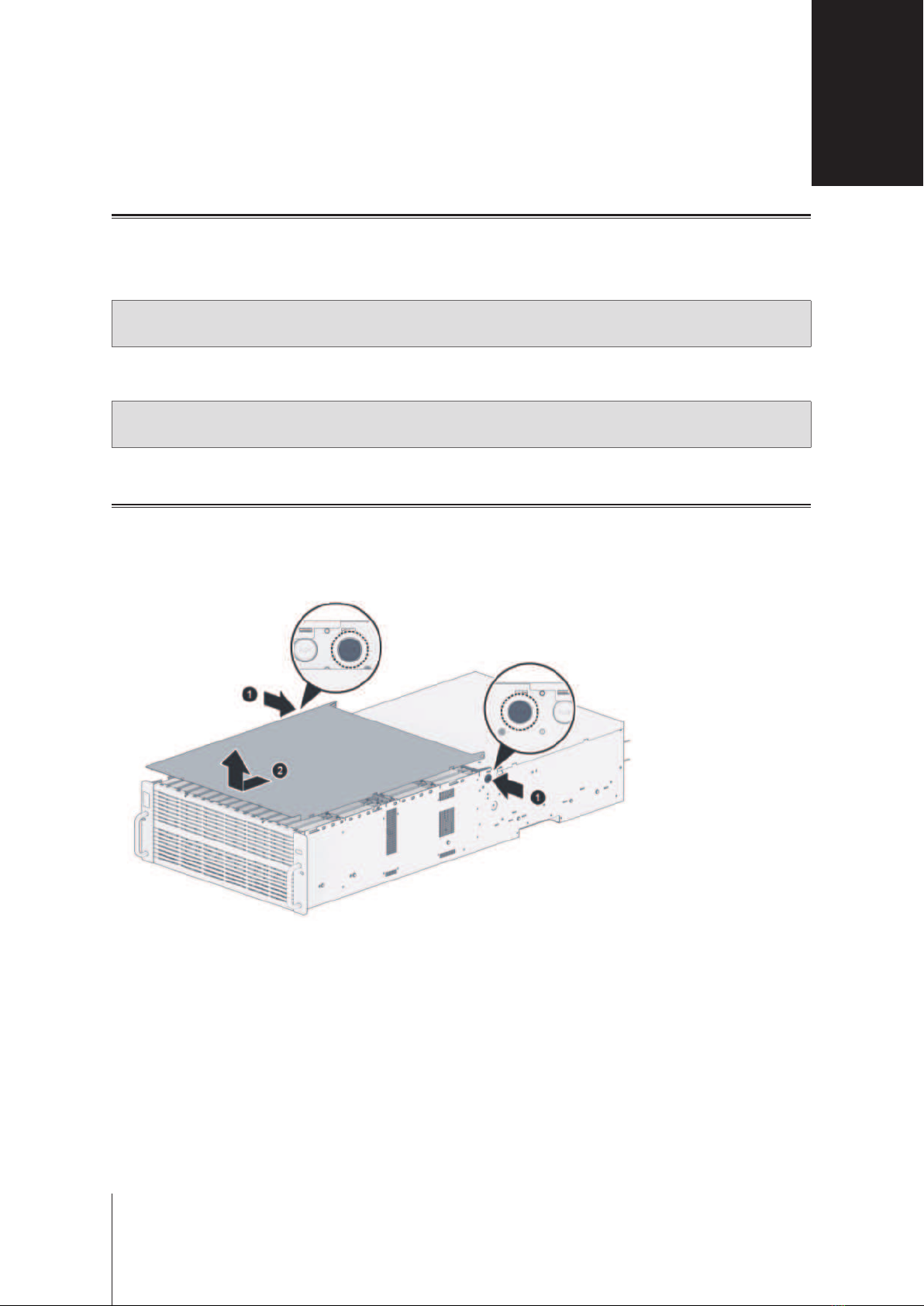

1 Open the front top cover.

Press the small buttons located on both sides of RX6022sas.

Slide open the front top cover, then lift it up and put it aside.

Hardware Setup 2

Chapter
