Symbol P470 Manuel utilisateur

P370/470 Keyless RF Scanners

Quick Reference Guide

2 P370/470 Keyless RF Scanners

Symbol reserves the right to make changes to any product to improve reliability,

function, or design.

Symbol does not assume any product liability arising out of, or in connection with,

the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise

under any patent right or patent, covering or relating to any combination, system,

apparatus, machine, material, method, or process in which Symbol products

might be used. An implied license exists only for equipment, circuits, and

subsystems contained in Symbol products.

Symbol and the Symbol logo are registered trademarks of Symbol Technologies,

Inc. Other product names mentioned in this manual may be trademarks or

registered trademarks of their respective companies and are hereby

acknowledged.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

http://www.symbol.com

Warranty

For the complete Symbol hardware product warranty statement, go to:

http://www.symbol.com/warranty.

Patents

This product is covered by one or more patents. For patent information go to:

http://www.symbol.com/patents.

Quick Reference Guide 3

Introduction

The Phaser P370/P470 Keyless Radio Frequency (RF) scanners bring new

flexibility and economy to data capture and data management in both industrial

and retail operations. The scanners communicate with the host computer through

radio transmission instead of through a cable. The RF scanner can scan and

transmit without a physical cable from as far away as 100 feet (30.5 meters)

without a direct line of sight. This allows the scanner to be taken where the work

is, whether on the loading dock, the plant floor, the warehouse, or the POS

checkout area. There are several versions available:

-P370: cordless industrial scanner.

-P370 ALR: cordless industrial long range scanner.

-P470: cordless retail scanner.

This Quick Reference Guide provides basic instruction on the set up and use of

the Phaser P370/P470 Keyless RF scanners.

For detailed information on the P370/P470 scanners, refer to the P370/P470

Keyless RF Scanners Product Reference Guide, p/n 72-61496-xx, available at

www.symbol.com/manuals. Refer to PL370/470 RF Cradle Quick Reference

Guide, p/n 72-38494-xx, for information on setting up the PL370/470 RF cradle.

Charging the Scanner in the Cradle

Powering Up the Scanner

To turn the scanner on pull the trigger. The scanner is brought out of sleep mode

and into scanning mode.

Scanning

To charge the scanner, insert the scanner into

the cradle so the nose of the scanner and tip of

the handle seat into the receptacles.

The battery charges automatically. A full charge

of a depleted battery takes approximately 3-1/2

hours. The charge status indicator light on the

back of the cradle blinks then becomes solid

when the battery is fully charged.

Charge Status

Indicator Light

4 P370/470 Keyless RF Scanners

Consult the P370/P470 Keyless RF Scanners Product Reference Guide for

programming instructions. If you need assistance, contact your local supplier or

the Symbol Support Center.

To scan:

1. Ensure the battery is charged.

2. Ensure the bar code is in the correct scanning range.

3. Aim and press the trigger. When the scanner has read the symbol:

-a beep sounds.

-the LED turns green.

-the red laser turns off.

Aiming

Hold at an Angle

Do not hold the scanner directly over the bar code. Laser light reflecting directly

back into the scanner from the bar code is known as specular reflection. Specular

reflection can make decoding difficult.

The scanner can tilt up to 65° forward or back and achieve a successful decode.

Simple practice quickly shows what tolerances to work within.

Scan the Entire Symbol

-The scan beam must cross every bar and space on the symbol (as in the

left bar code below).

-Hold the scanner farther away for larger symbols.

Scan

Beam

1.Successful

Scanning 2.Possible Specular

Reflection 3.Successful

Scanning

65° 65°

Scan

Beam

Shaded area

represents

dead zone (+-2°)

Bar Code Bar Code Bar Code

Quick Reference Guide 5

-Hold the scanner closer for symbols with bars that are close together.

Commonly Used Programming Bar Codes

Below are commonly used programming bar codes. For convenience, cut this

page out of the guide, or make a copy of the bar codes using a high quality

copying machine.

Load New MCL-Designer Application

Firmware Version

6 P370/470 Keyless RF Scanners

Commonly Used Programming Bar Codes (continued).

Changing the Battery

When a battery is fully charged, it generally lasts up to 10 hours without being

returned to the cradle. By returning it to the cradle during the day, this time is

extended.

If a significant decrease in battery life is noticed and does not correspond to

increased usage, consider replacing the battery.

Removing the Battery

1. Slide the battery release latch down using the center indent on the latch and

remove the battery compartment cover. It may be useful to use a coin for extra

leverage.

2. Slide the battery toward the bottom of the scanner and then, using the pull tab,

pull the bottom of the battery back and out of the scanner.

Reset Default Application

(Clears previously programmed ADF rules

and/or MCL-Designer applications)

Load 123Scan File

Quick Reference Guide 7

Replacing the Battery

1. Place the top portion of the battery (curved side up, contacts toward top) into

the scanner and then slide it up the handle.

2. Replace the battery compartment cover.

3. Slide the release latch up to secure the cover in place.

Quick Startup Instructions

The table that follows includes an index of startup instructions to help get you

started quickly. The index is listed in a step-by-step order beginning with step 1,

Setting up the System. This index references pages in the P370/P470 Keyless RF

Scanners Product Reference Guide. The Product Reference Guide is included on

the CD shipped with the scanner. It is also available on the Symbol Web site at:

http://www.symbol.com/manuals.

Mandatory steps are designated by an asterisk (*). If an item has multiple pages

referenced, the most important reference is in bold.

Topic PRG Page

1. Setting Up the System

• Connecting the cradle to a host * 2-1

-RS-232 connection 2-2

-Synapse connection (keyboard wedge, USB, etc.) 2-3

• Charging the battery * 1-3, 2-8

• Pairing the scanner with the cradle * 2-6

-RF channel 2-4, 4-13, C-1

-Coexisting in Spectrum24 environments 2-7

Battery

Compartment

Cover Battery

Release

Latch

Pull Tab

Battery

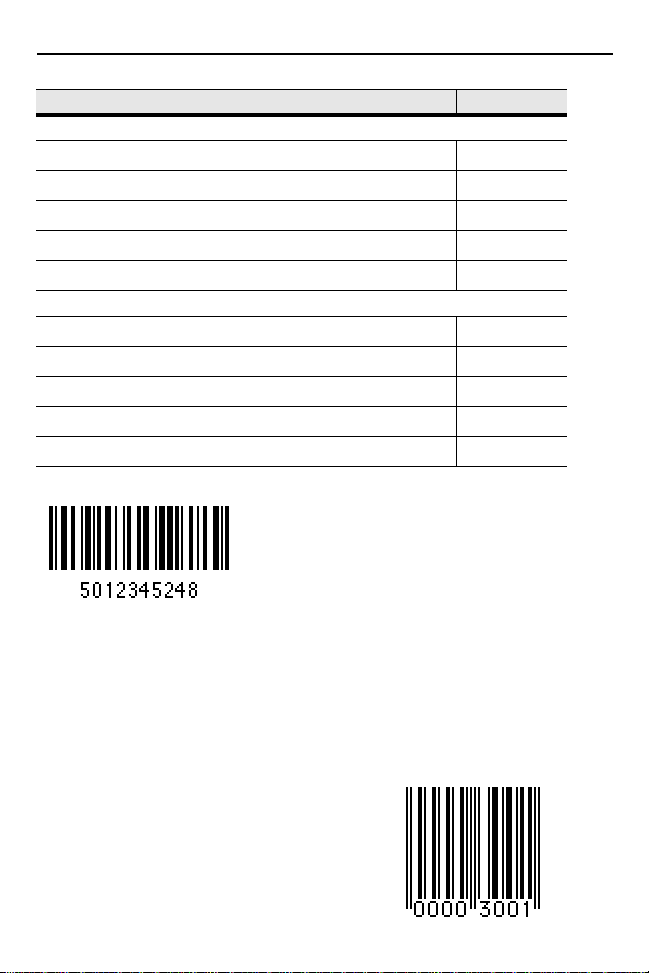

8 P370/470 Keyless RF Scanners

Test Symbols

2. Using the Default Applications

• Overview of Scan and Transmit application* 2-1

• Selecting the host communication protocol 2-1, 2-3, 4-8

-- RS-232 baud rate 4-78

3. Programming an ADF Rule Using 123Scan

2-8

• Suffix values (appending Enter key and Tab) 2-10

4. Troubleshooting Problems

• Troubleshooting table 3-2

• Communication errors 2-2, C-2

• MCL-Code Errors C-4

• Beeper indications 3-5

• Cradle LED indications 2-10

Topic PRG Page

Code 128

EAN-8

Quick Reference Guide 9

Test Symbols (continued)

Regulatory Information

All Symbol devices are designed to be compliant with rules and regulations in locations they are sold

and are labeled as required.

Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol

Technologies, could void the user's authority to operate the equipment.

Do NOT attempt to charge damp/wet mobile computers or batteries. All components must be dry

before connecting to an external power source.

Country Approvals

Regulatory markings are applied to the device signifying the radio (s) are approved for use in the

following countries: United States, Canada, Australia, Japan and Europe.

Please refer to the Symbol Declaration of Conformity (DoC) for details of other country markings.

This is available at http://www2.symbol.com/doc/.

Operation of the device without regulatory approval is illegal.

CAUTION Only use Symbol approved and UL Listed accessories, battery packs and

battery chargers.

Code 39

13 Mil UPC



10 P370/470 Keyless RF Scanners

Health and Safety Recommendations

Ergonomic Recommendations

-Reduce or eliminate repetitive motion.

-Maintain a natural position.

-Reduce or eliminate excessive force.

-Keep objects that are used frequently within easy reach.

-Perform tasks at correct heights.

-Reduce or eliminate vibration.

-Reduce or eliminate direct pressure.

-Provide adjustable workstations.

-Provide adequate clearance.

-Provide a suitable working environment.

-Improve work procedures.

Vehicle or Forklift Installation

RF signals may affect improperly installed or inadequately shielded electronic systems in motor

vehicles (including safety systems). Check with the manufacturer or its representative regarding your

vehicle. You should also consult the manufacturer of any equipment that has been added to your

vehicle.

Position your device within easy reach. Be able to access your device without removing your eyes

from the road.

Warnings for Use of Wireless Devices

Please observe all warning notices with regard to the usage of wireless devices.

Potentially Hazardous Atmospheres

You are reminded of the need to observe restrictions on the use of radio devices in fuel depots,

chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or

metal powders) and any other area where you would normally be advised to turn off your vehicle

engine.

Safety in Hospitals

Wireless devices transmit radio frequency energy and may affect medical electrical equipment.

Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or

health care facilities. These requests are designed to prevent possible interference with sensitive

medical equipment.

Pacemakers

Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between

a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker.

These recommendations are consistent with independent research and recommendations by

Wireless Technology Research.

Persons with Pacemakers:

-Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when

turned ON

-Should not carry the device in a breast pocket

-Should use the ear furthest from the pacemaker to minimize the potential for interference.

CAUTION In order to avoid or minimize the potential risk of ergonomic injury follow the

recommendations below. Consult with your local Health & Safety Manager to

ensure that you are adhering to your company's safety programs to prevent

employee injury.



Autres manuels pour P470

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Symbol Lecteur de codes-barres

Symbol

Symbol P 370 Manuel utilisateur

Symbol

Symbol LS 3603 Manuel d'installation et d'exploitation

Symbol

Symbol DS 3408 Manuel d'installation et d'exploitation

Symbol

Symbol LS 2000MX series Manuel utilisateur

Symbol

Symbol LS 4800 Mode d'emploi

Symbol

Symbol US AUTOMATION EP-1 Manuel utilisateur

Symbol

Symbol LS 4208 Manuel utilisateur

Symbol

Symbol LS 4208 Manuel utilisateur

Symbol

Symbol LS 4208 Manuel utilisateur

Symbol

Symbol LS 4208 Manuel utilisateur

Symbol

Symbol SYMBOL MINISCAN MSXX04 Guide de configuration rapide

Symbol

Symbol ORG SPT 1550 Manuel d'installation et d'exploitation

Symbol

Symbol MicroKiosk MK1000 Manuel d'installation et d'exploitation

Symbol

Symbol LS 4208 Manuel utilisateur

Symbol

Symbol Symbol LS2208 Manuel d'installation et d'exploitation

Symbol

Symbol LS4000P Series Manuel d'installation et d'exploitation

Symbol

Symbol PSM20i Manuel utilisateur

Symbol

Symbol LS 6005i Manuel d'installation et d'exploitation

Symbol

Symbol MicroKiosk MK1000 Manuel d'installation et d'exploitation

Symbol

Symbol LS 2106 Manuel d'installation et d'exploitation

Symbol

Symbol LS 3070 Manuel d'installation et d'exploitation

Symbol

Symbol DS3578 Manuel utilisateur

Symbol

Symbol LS3008 Manuel utilisateur

Symbol

Symbol LS 4208 Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
