Sylvania SDVD1332 Manuel utilisateur

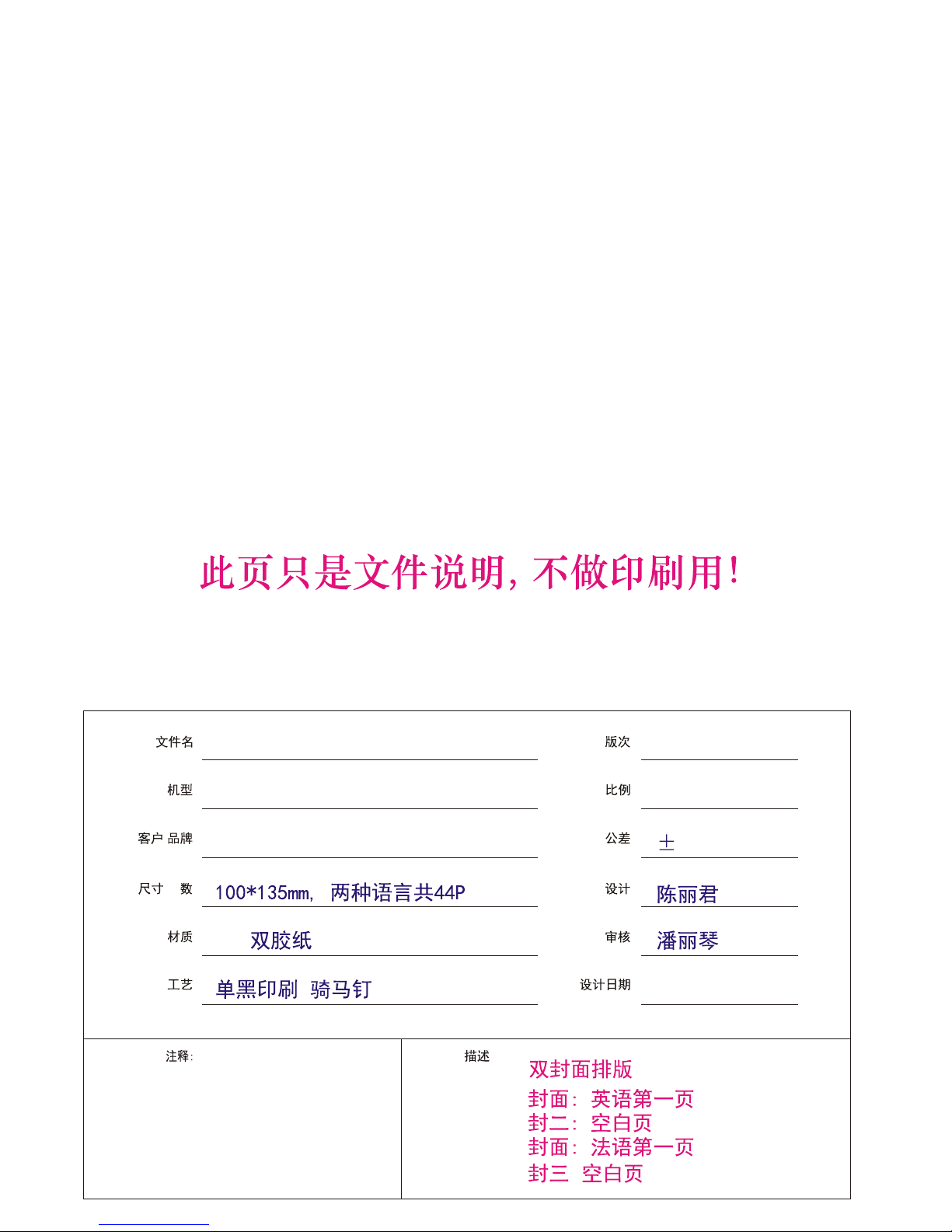

File Name

Designer

Checked

Customer

Material

technique

Size

Scale

Tolerance

Project#

Rivision

Design Date

17PHZ161-IM-V1.1

P1401-QD

CTIS

80g

1:1

V1.1

3mm

2017.09.13

Description

Remarks:

SDVD1332

Table Of Contents

Safety Precaution

Package

Main Features

Main Unit Controls

System Connection

The Remote Control

Basic operation

System Setup

Specification

Troubleshooting

Safety Precaution

Warning: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements

of safe operation to operate the device.

2) Do not use or leave the device in direct sunlight or a hot environment such as

a vehicle etc. that is in hot environment. Overheating can damage the device

3) Do not overcharge the device do not leave the device on the charger for very

long after the battery has been fully charged

4) Device should be protected from any physical impact or damage and care

should be taken not to drop the device

5) Only use the factory supplied charger. The use of unapproved charger or cable

may cause the battery to fail, explode and/or damage the device.

6) Do not disassemble, puncture, crush or expose your device to temperatures

above 40 °C / 104 °F

7) Keep your device away from fire or water.

8) Keep your device from moisture and extreme temperatures.

9) Should your battery swell or expand, please immediately discontinue use of

your device. A probable cause is it having been overheated at some point or

overcharged. Please contact us for support .

10) Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

11) Unplug this unit during lightning storms or when unused for long time.

12) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use

liquid detergent or aerosol.

13) Refer all servicing to qualified service personnel, servicing is required when

the unit has been damaged in any way, such as power supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the unit,

exposed to moisture, does not operate normally. Don't try to repair the

machine by yourself because of the danger of high voltage and electric shock.

14) Do not use irregular shaped discs such as heart or star-shaped discs as

they may cause the unit to malfunction.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user's authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Package

Main Features

DVD Player

Remote Control with battery

Audio/Video Cable

User Manual

Earphone

Swiveling LCD Screen

You can swivel the LCD screen of this player clockwise a maximum of 180

for use.

High brightness color 13.3” LCD screen

Compatible with disc of DVD, VCD, MP3, CD, JPEG, etc.

Built-in stereo speaker

Built-in rechargeable Lithium ion battery

Support PAL or NTSC system

Support Multi-language OSD, speed forward/backward, repeat function

Zoom in/out function

Text to speech

AC power Wall adapter

DC power car adapter

Main Unit Controls

SETUP

MUTE MODE

112

510 611

( )/( )

1. SETUP

2. MENU

3. MODE (Press MODE to

show DVD, SD, USB option)

4. MUTE

5. PLAY/PAUSE

6. STOP

9. OK BUTTON

10. Volume-

11. Volume+

12. DC IN 9-12V

13. POWER ON/OFF SWITCH

14. AV OUT

15. EARPHONE

16. SD Card slot

17. USB port

18. OPEN

19. Rating label

System Connection

Powering And Installation

Using SD card

Upon using an SD card, insert it into the corresponding slot flatly with label

side upward until you hear a click.

Using USB

Upon using an USB, insert it into the USB slot directly.

Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the

right of the machine, then plug the other end into the AC power receptacle.

Please refer to the following illustration.

If using DC power car adapter to connect to the power: Plug one end of

the DC power car adapter into the DC IN 9-12V jack on the unit, plug the

other end into the car cigarette lighter socket. See illustration below.

Note

1. DC power car adapter is available to use only when the car cigarette

lighter with DC 12V negative grounding.

2. The mains plug is used as the disconnect device, the disconnect device

should remain readily operable.

Connecting With External Speaker

Note:

There is no 5.1 channel in the unit, however, after connecting to APM it is

available to output audio in 5.1 channel.

AMPLIFIERTV

SUBWOOFER

Left front

speaker

Right front

speaker

Center speaker

Left rear speaker Right rear speaker

AUDIO INVIDEO IN

AV CABLE

Not supplied

The unit can be connected with external speaker. Please see the following

illustration.

The Remote Control

1. Number button

2. TITLE (To display title

information)

3. AUDIO (To select audio

language)

4. SETUP (To go to or exit

setup menu)

5. / Previous/Next

button (To go to previous/

next chapter or scene

during playing)

6. / Fast forward/

backward button (To scan

forward/backward at 2, 4,

8, 16, or 32 times )

7. OSD (To display disc

information during playing

such as elapsed and

remaining time)

8. Play / pause

9. STOP ( Press once to

stop playback, then press

to resume playback

from the point where you

stopped; press stop button

twice to stop playback completely.)

10. ENTER (To confirm)

11. MODE (Press MODE to show DVD, SD, USB option)

12. ZOOM(To zoom in the image during the playback)

13. MENU (To enter menu root)

14. SUBTITLE (To select subtitle language when playing DVD disc)

15. ANGLE (To change viewing angle when playing disc with multi-angle)

16. A-B (Repeat a specific portion from point Ato B, press it again to cancel

repeat playing)

17. REPEAT (To repeat playing title, chapter or track)

18. RETURN (To return to the main menu)

19. MUTE (To turn to mute)

20. VOL +/- (To adjust the volume)
