Swann Alert DVR Camera Kit Manuel utilisateur

DVR Quick Start Guide

• Getting to know your DVR

• What does this mean?

• Connect your Cameras

• Connect the DVR to your Home Network

• Connect the Mouse

• Connect the DVR to your HDTV

• Connect the DVR to your Monitor (optional)

• Connect the Power Adapter

QH8_8050V2280515E | © Swann 2015

Welcome! Lets get started.

READ ME

FIRST

Congratulations on the purchase of your Swann DVR. This quick start guide will assist you on getting your DVR up and

running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent

installation, to make sure nothing was damaged during shipping. On the other side is a detailed connection map which

illustrates the various connections on the DVR.

1) Video In

2) VGA

3) HDMI

4) Audio In

5) Audio Out

6) LAN

7) USB

8) Power Input

9) PWR LED

10) HDD LED

11) NET LED

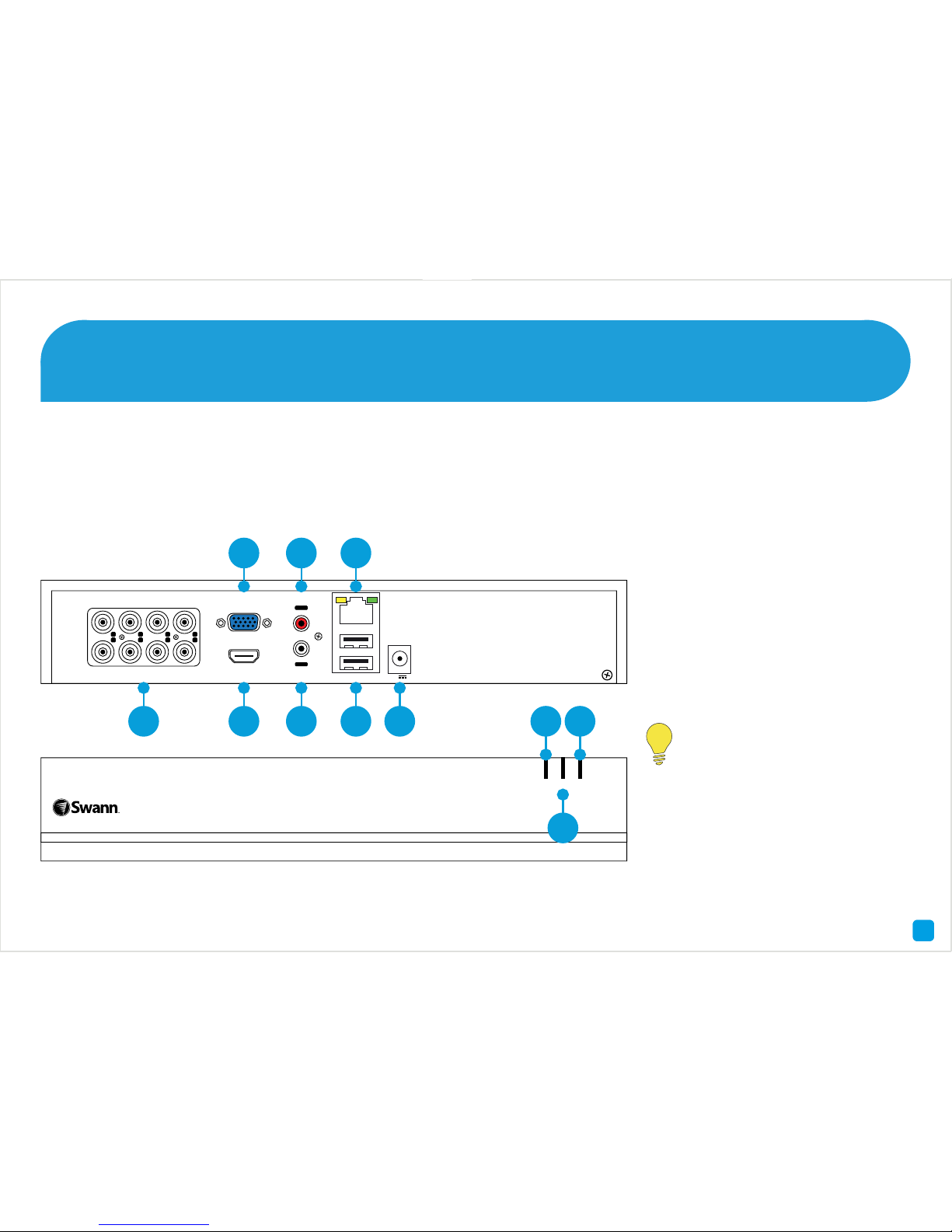

Getting to know your DVR

Look out for the light bulb icon,

as this provides information on

the operation of your DVR.

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

1 3 5 7 8

2 4 6

PWR HDD NET

8 Channel HD Digital Video Recorder

Here are explanations for the various connections and

lights on the DVR -

1) Video In - Connect the included cameras here.

2) VGA (optional) - If you have a digital TV or a monitor

with a VGA connection, connect this to an available input.

3) HDMI - Connect this to your digital TV with a HDMI input

(HDMI cable included).

4) Audio In - For connecting a microphone or some other

audio device.

5) Audio Out - For connecting speakers.

6) LAN - Connect this to your home network so your DVR

can connect to the Internet.

7) USB - Connect the mouse here. Also able to connect

a storage device such as a USB flash drive to backup

recorded events or to perform a firmware upgrade.

8) Power Input - This is where you connect the power

adapter.

9) PWR LED - This indicates the DVR has power.

10) HDD LED - This will flash when the hard drive is

working.

11)NETLED- This will flash when there is network activity.

What does this mean?

Connect your Cameras 1

1. Connect the Video Output and Power

Input connections on the camera to

the corresponding connections on the

supplied Video & Power cable.

2. Connect the supplied Inline Filter to

the corresponding power connection

on the Video & Power cable.

3. Connect the supplied Power Splitter

cable to the other end of the Inline

Filter. Repeat the above steps for each

camera included with your DVR.

4. Connectthe supplied PowerAdapter

to the other end of the Power Splitter

then connect the Power Adapter to

a spare wall socket. Press the wall

socket’s switch to the on position to

supply power to the cameras.

2 3 4

Twist to lock

video connectors

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

Video Input

Video & Power Cable

Connect this to the DVR

Inline Filter

connects here

Power Adapter

connects here

Power Splitter

Power Input

Video Output

Power Output

This connects to the

Video & Power Cable

Inline Filter

This connects to the

Power Splitter Inline Filter

connects here

Connect the supplied Ethernet cable (1) to the LAN connection on the DVR then connect the other end to a spare port

on your router or wireless access point.

It’s important that you do this as this allows you to access the DVR from your smartphone or tablet and to send

you email notifications. It also allows the DVR to connect to the Internet to update its internal clock.

Connect the DVR to your Home Network 2

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

USB Int ern et 432

Connect the supplied mouse (1) to one of the available USB ports. You can connect a USB storage device such as a

flash drive to the other port, to back up your video recordings and to perform a firmware upgrade.

Connect the Mouse 3

Please note, Bluetooth and wireless mice and trackpad devices are not supported. Not all USB storage devices

are supported.

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

Connect the supplied HDMI cable to the HDMI output on the DVR then connect the other end to a spare HDMI input (1)

on your HDTV. Make sure the video input on the HDTV matches the physical connection used to connect the DVR.

Connect the DVR to your HDTV 4

HDMI IN 2

HDMI IN 1

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

If you have a Monitor with a VGA connection, connect a VGA cable (not supplied) to the VGA output on the DVR then

connect the other end to the VGA input (1) on your Monitor.

Connect the DVR to your Monitor (optional) 5

A VGA cable and monitor

are not required when

using the HDMI cable.

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V

Connect the supplied power adapter’s power connection (1) to the power input on the DVR first (this will minimise

sparking) then connect the power adapter to a spare wall socket.

All the connections have now been completed. You’re now ready to run through “The Setup Wizard” quick start guide

to configure the DVR.

Connect the Power Adapter 6

ININININ

OUT

VIDEO IN HDMI

VGA

AUDIO LAN & USB 12V
