Swann SWNVW-500CAM-EU Manuel utilisateur
Wi-Fi NVR
Security Camera
Heat & motion-sensing video transmitted wirelessly, sensor spot-
lights, sirens, 2-way audio & color night vision
Instruction Manual
Security Made Smarter
EN
Introduction
Congratulations on the purchase of your Swann Wi-Fi
NVR Security Camera.
• 1080p Full HD video transmitted wirelessly to
your NVR
• SwannNet™ technology for the best available
Wi-Fi signal
• Controllable sensor spotlights & sirens
• True Detect™ heat & motion sensing
Important instructions
1. Make sure the camera is fixed correctly and stable
if fastened in place.
2. Never place strain of any kind on the power con-
nection and/or power adapter.
3. Do not operate if wires and terminals are exposed.
Important Note: All jurisdictions have specific laws
and regulations relating to the use of cameras. Be-
fore using any camera for any purpose, it is the buy-
er’s responsibility to be aware of all applicable laws
and regulations that limit the use of cameras.
About this Manual: The content in this manual is for
information purposes only and is subject to change
without notice. While every effort is made to ensure
that this manual is accurate at the time of printing,
no liability is assumed for any errors that occurred.
1
For instructions on how to configure your camera
for motion detection, changing image settings,
and other functions available, please consult the
manual for your NVR. Go to support.swann.com,
search for your model, then download.

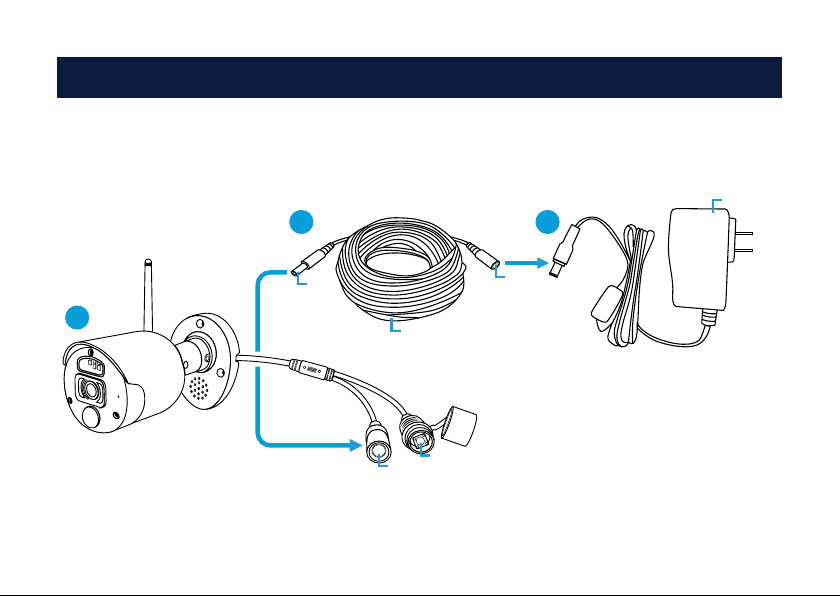

Connect the output on the power cable to the power input on the camera then connect the input on the power
cable to the power adapter. The pair/reset button is used to restore factory default settings and to pair the
camera to your NVR (if network settings are changed or when adding a new camera).
Connecting the Camera2
2
Power
Output
Power
Input
Power Cable
Power Adapter
3
1
Power
Input
Pair/Reset
Leave the antenna in a vertical
position for best reception.
Connect the power adapter to
a power outlet then press the
outlet’s switch to the ON posi-
tion to supply power.
Pairing the Camera3
1. In Live View mode, click a channel that you want to pair the camera to.
2. A Pair button appears. Press this button to commence pairing. A message will appear stating that you need
to press the pair button on the camera.
3. Remove the cap covering the pair button. Press and hold the pair button for 3 seconds then release. The
camera will commence pairing and the camera’s IR LEDs will start flashing.
4. After a short moment the camera will be paired and you will see the camera’s image on-screen. If the camera
fails to pair, repeat the above instructions and try again.
Channel 2 28/04/2021 01:14:41 PM
Channel 3 28/04/2021 01:14:41 PM Channel 4 28/04/2021 01:14:41 PM
Off-line
Press the Pair button to
commence pairing.
The camera can be mounted onto a flat surface using the screws and wall plugs provided. The surface must
have sufficient strength to hold the camera (the camera illustrated is for instructional purposes only).
→ Position the camera in the location you want to mount it, and mark the screw holes on the surface to
position the screws (a mounting template has been included). Then, using the appropriate screws for the
surface you’re fixing the camera to, secure the camera in place.
→ If you’re mounting to a wooden surface, then screw the camera directly to the surface.
→ If you’re mounting to a masonry surface (bricks, concrete or similar), then you’ll need to use wall plugs.
Mounting the Camera4

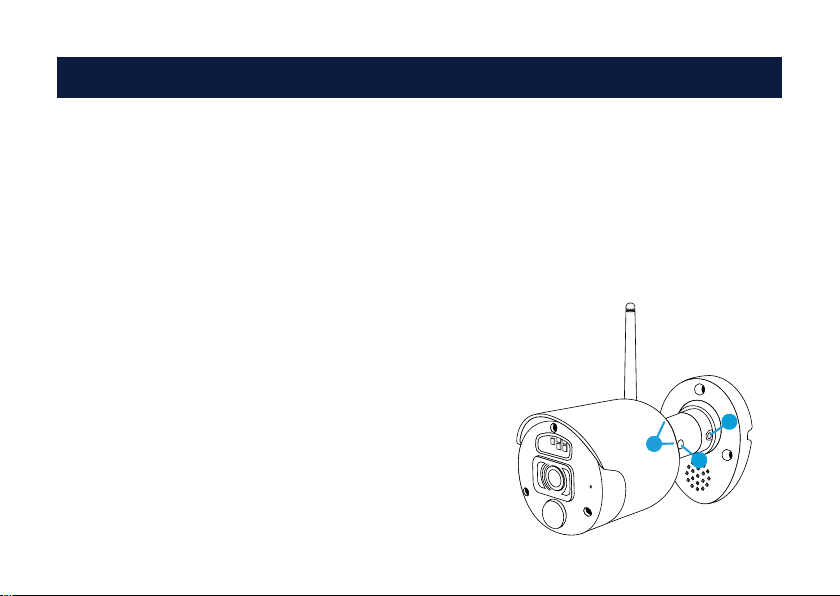

Aiming the camera
1. Loosen both screws (use a Phillips head screwdriver) to ad-
just the camera’s orientation. This enables you to rotate the
camera so no matter what direction it is facing, your images
will be the right way up. Tighten each screw to secure in place.
2. Loosen the screw to tilt the camera up or down. Tighten the
screw to secure in place.
3. To pan the camera left or right, loosen the screw and position
accordingly. Tighten the screw to secure in place.
2
1
3
1. Take into consideration what you want to monitor
and where you’ll get the best view of it.
2. How you’re going to connect the camera to your
monitoring system; remember that cables and con-
nections should be kept out of the weather.
3. How to keep the camera out of harm’s way. It’s
recommended to mount your camera at an elevated
position.
4. Place your camera as close to the area of inter-
est as practicable. The best position is from about
13ft/4m above looking slightly down, keeping in mind
the details you are looking for.
5. Although the sky looks nice when you look at the
live view from your camera, it is an unlikely direction
for an offender to approach. Make sure your camera
has minimal sky in it as the light in daylight can make
the foreground of the image darker.
6. Think about the most likely way a potential offend-
er may approach your home, use your camera to give
you the best coverage of these areas.
7. The camera’s casing is resistant to different weath-
er conditions and tampering. It would take an over-
whelming event to damage the housing.
8. Even though the camera is weather and water-
resistant, prolonged exposure to adverse weather
conditions such as sunlight or excessive moisture,
may eventually damage the internal components of
the camera and adversely affect its performance.
9. Run cables inside a wall cavity or other protected
enclosure, and ensure that all wiring and connectors
are insulated and protected from moisture.
10. Don’t put your cable near live electrical wiring. AC
electricity generates radio “noise” which can inter-
fere with the signal from your camera.
Camera Location Tips5
MNVW500CAMREV1E | © Swann 2022
