USER MANUAL

SVAN 974

VIBRATION

ANALYSER

Warsaw, 2017-03-26

Rev. 1.01

SVANTEK 974 User Manual

Note: Because of continuous product improvement SVANTEK reserves the right to make

changes to product specifications without notice. To download the most up to date user's manual please visit

our web site at www.svantek.com. This user’s manual presents the firmware revision named 1.21.1 and

bootstrap revision named 2.05 (see the Unit Label review to check version details).

The succeeding software revisions (marked with the higher numbers) can change the view of some displays

presented in the text of the manual.

WEEE Notice: Do not throw the device away with the unsorted municipal waste at the end of its life.

Instead, hand it in at an official collection point for recycling. By doing this you will help to preserve

the environment.

The software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

Trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the

part of Svantek.

Svantek provides this document “as is,” without warranty of any kind, either expressed or implied, including,

but not limited to, its particular purpose. Svantek reserves the right to make improvements and/or changes to

this manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Svantek assumes no

responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to

the information herein to correct such errors, and these changes are incorporated into new editions of the

publication.

Technical Support Contact Information:

web: www.svantek.com

e-mail: office@svantek.com.pl

SVANTEK 974 User Manual

CONTENTS

1. INTRODUCTION 6

1.1. SVAN 974 - Vibration Level Meter & Analyser 6

1.2. General features of SVAN 974 6

1.3. Accessories included 7

1.4. Accessories available 7

1.5. Software options available 7

1.6. General parameters 7

2. MANUAL CONTROL OF THE INSTRUMENT 8

2.1 Control push-buttons on the front panel 8

2.2 Input and output sockets of the instrument 11

3. GENERAL INFORMATION 12

3.1. Basis of the instrument’s control 12

3.2. Powering of the instrument 15

3.3. Getting started 16

3.4. Description of icons 17

3.5. Data saving 18

3.6. Files downloading and uploading 22

3.7. Activation of the optional functions 22

4. FUNCTIONS OF THE INSTRUMENT –Function 23

4.1. Selection of the instrument mode –Mode 23

4.2. Measurement functions of the instrument - Measurement Function 23

4.3. Instrument’s calibration – Calibration 24

4.3.1. System Check 24

4.3.2. Calibration by Sensitivity 25

4.3.3. Calibration By Measurement 25

4.3.4. History of performed calibrations –Calibration History 26

4.3.5. Clearing calibration records - Clear Calibr. History 27

4.3.6. Post measurement calibration –Post Calibration 27

5. SETTING UP THE MEASUREMENT –Measurement 28

5.1 Setting up the main measurement parameters - General Settings 28

5.2 Setting up the measurement trigger –Measurement Trigger 30

5.3 Setting up the parameters for profiles –Profiles 31

5.4 Setting up the data logging –Logging 32

5.4.1 Setting up the logger general parameters –Logger Setup 33

5.4.2 Selection of results for logging –Logger Results 34

5.4.3 Selection of additional summary results for saving –Summary Results 35

5.4.4 Setting up the logger trigger parameters –Logger Trigger 35

5.4.5 Setting up the event recording –Event Recording 36

5.4.6 Setting up the markers –Marker Setup 38

SVANTEK 974 User Manual

5.4.7 Setting up the wave recording –Wave Recording 39

5.5 Setting up the 1/1 Octave and 1/3 Octave spectra –Spectrum 40

5.6 Checking the measurement range –Range 41

5.7 Setting up the RPM measurements –RPM 41

5.8 Programming the instrument’s internal timer –Timer 42

5.8.1 Example of timer execution 43

6. SETTING UP THE DATA VIEW –Display 44

6.1 Selection of the view modes - Display Modes 44

6.2 Setting up the units and scale of results presentation - Display Scale 48

6.3 Setting up the view of the logger plot - Logger View 49

6.4 Setting up the display brightness and power saver - Screen Setup 49

7. MANAGING THE FILES –File 51

7.1 Managing files saved in the memory –File Manager 52

7.1.1 Assigning the directory for files saving –Set as Working Dir. 52

7.1.2 Opening file –Open 53

7.1.3 Deleting file/directory –Delete 53

7.1.4 Erasing all files in a directory –Delete All 53

7.1.5 Renaming files –Rename 54

7.1.6 Viewing information about files –Info 54

7.2 Managing the setup files –Setup Manager 54

8. SETTING UP THE HARDWARE PARAMETERS –Instrument 56

8.1. Measurement auto start - Auto Start 56

8.2. Checking the instrument powering –Battery 56

8.3. Selection of the IEPE current supply - IEPE Current 57

8.4. Programming the keyboard –Keyboard Settings 57

8.5. Setting up the parameters of the I/O port - Multifunction I/O 57

8.6. Setting up the instrument’s internal Real Time Clock – RTC 59

8.7. Checking of the instrument specification - Unit Label 60

9. AUXILIARY SETTINGS –Auxiliary Setup 61

9.1. Selecting the language of the user interface –Language 61

9.2. Restoring the factory settings –Factory Settings 61

9.3. Setting up the reference levels - Reference Levels 62

9.4. Selection of the units for vibration results - Vibration Units 62

9.5. Warnings setup –Warnings 62

10. 1/1 AND 1/3 OCTAVE ANALYSER 64

10.1. Selection of 1/1 Octave or 1/3 Octave functions 64

10.2. Configuring 1/1 Octave or 1/3 Octave analyser 64

10.2.1. Checking the measurement range for 1/1 Octave and 1/3 Octave - Range 65

10.2.2. Setting up the parameters of 1/1 Octave and 1/3 Octave analysis - Spectrum 65

SVANTEK 974 User Manual

10.3. Saving the 1/1 or 1/3 Octave spectra as a time history –Logger Results 66

10.4. Setting up the 1/1 Octave and 1/3 Octave spectra view 66

10.4.1. Presentation of 1/1 Octave and 1/3 Octave spectra 67

10.4.2. Setting up the scale of the spectrum plot - Scale 67

10.4.3. Selection of the spectra to be viewed - Spectrum View 68

10.4.4. Selection of the spectrum type - Spectrum Type 69

11. FFT ANALYSER 70

11.1. Selection of FFT function 70

11.2. Configururing FFT analyser 70

11.2.1. Checking the measurement range of FFT analisys - Range 71

11.2.2. Setting up the parameters of FFT analysis - FFT 71

11.3. Saving the FFT spectra as a time history - Logger Results 72

11.4. Setting up the FFT spectra view 72

11.4.1. Presentation of FFT spectra 73

11.4.2. Setting up the scale of spectrum plot - Scale 74

11.4.3. Selection of the spectra to be viewed - Spectrum View 75

11.4.4. Selection of the spectrum type - Spectrum Type 75

12. MAINTENANCE 76

12.1. Powering the instrument 76

12.2. Memory card extraction and insertion 76

12.3. Transducers 77

12.4. Resetting the instrument 77

12.5. Firmware upgrade 78

12.6. Storing the instrument 78

12.7. Transportation and carrying 78

12.8. Cleaning 78

12.9. Troubleshooting 78

APPENDIXES

A. REMOTE CONTROL

B. DATA FILE STRUCTURES

C. TECHNICAL SPECIFICATIONS

D. DEFINITIONS AND FORMULAE OF MEASURED VALUES

SVANTEK 974 User Manual

1. INTRODUCTION

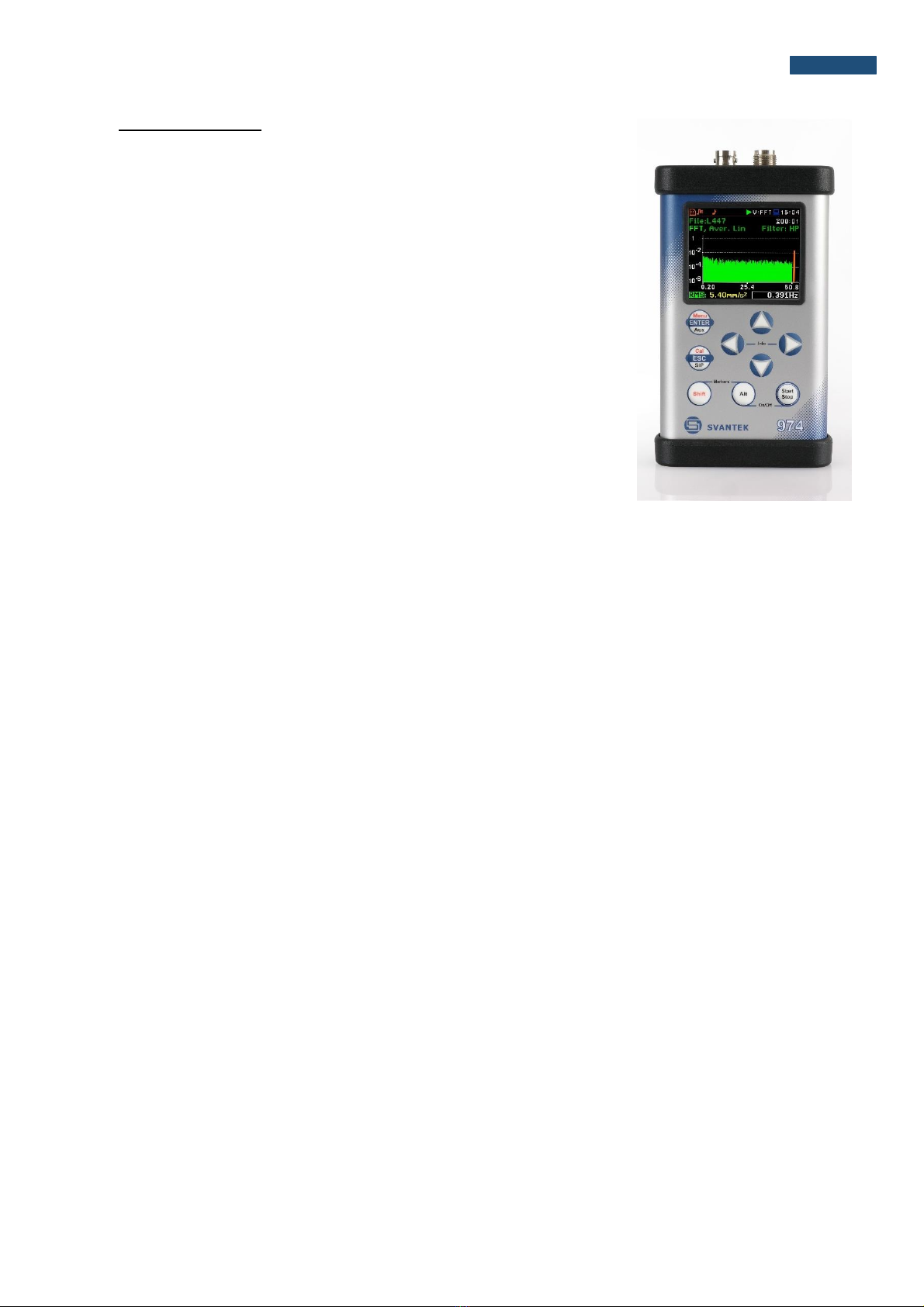

The SVAN 974 is an all-digital Vibration level meter (VLM) as well as a real

time 1/1 or 1/3 octave and FFT analyser. The instrument is designed for

general vibration measurements, industrial machinery monitoring,

occupational health and safety monitoring. The accelerometer input supports

differenttypesofvibration sensors, includingIEPE,Charge and Direct. Parallel

to the vibration measurement, the RPM measurement with dedicated

tachometer can be performed.

Three vibration user configurable profiles allow parallel measurements with

independently defined frequency filters and RMS detector time constants.

Each profile provides significant number of results (like RMS,Ovl,Peak,P-P

and MTVV). Advanced time history logging for each profile provides complete

information about the measured signal using the SD-card fitted in the bottom

of the meter and can be easy downloaded to any PC using the USB interface

and SvanPC++ software.

All required weightingfilters: HP1,HP3,HP10,Vel1,Vel3,Vel10,VelMF,Dil1,

Dil3,Dil10 and Wh for general vibration measurements (like acceleration,

velocity and displacement), including the latest ISO 20816-1:2016 standard,

are available with this instrument.

Using the computational power of its digital signal processor the SVAN 974

instrument can, simultaneously to the meter mode, perform the real time

1/1 Octave or 1/3 Octave analysis including calculations of statistical levels.

Time domainwaveform signal recording on theSD-card is available asan option and advanced trigger and alarm

functions are available in the standard version of this instrument.

A fast USB 1.1 interface (12 MHz) creates a real-time link for the PC "front-end" application of the SVAN 974

instrument. The measurement results can be downloaded to PC using all the interfaces mentioned above.

The instrument is powered from four AA standard alkaline or rechargeable batteries (i.e. NiMH –a separate

charger is required) or from the USB interface. Robust and lightweight design enhances the exceptional features

of this instrument.

1.1. SVAN 974 - Vibration Level Meter & Analyser

•General Vibration measurements (acceleration, velocity and displacement) and optionally HVM meeting

ISO 20816-1:2016 standard in the frequency range depending on the parameters of the attached

accelerometer, i.e. with SV 80 general purpose transducer is equal to 0.5 Hz ÷ 14 kHz.

•Parallel RMS, MTVV or Max, Peak, Peak–Peak measurements.

•HP, HP1, HP3, HP10, Vel1,Vel3,Vel10,VelMF,Dil1,Dil3,Dil10 and Wh weighting filters.

•1/1 Octave and 1/3 Octave real time analysis - 15 filters with centre frequencies 1 Hz ÷16 kHz, and 45

filters with centre frequencies 0.8 Hz ÷ 20 kHz, Type 1 IEC 61260-1: 2014.

1.2. General features of SVAN 974

•Advanced Data Logger function

•FFT analyser

•1/1 and 1/3 octave band analyser (option)

•Time domain waveform signal recording (option)

•Advanced trigger and alarm functions

•USB 1.1 Client interface (real time PC "front end" application supported)

•Integration time programmable up to 24 h

•Power supply by four AA rechargeable or standard batteries

•Hand held, light weight and robust case

•Easy to use with menu driven user interface

•Dedicated input for a Tachometer

SVANTEK 974 User Manual

1.3. Accessories included

•SV 80 general purpose vibration accelerometer 100 mV/g (10 mV/ms-2)

•SA 27 mounting magnet for the accelerometer

•SC 27 TNC (plug) to TNC (plug) coil cable (2 m)

•SA 74 waterproof carrying case

•SC 56 USB cable

•SA 62 8 GB micro SDcard

•SV 974_4 FFT analysis option

•four AA alkaline batteries

•SvanPC++ download and viewing software.

1.4. Accessories available

•SVRPM_PROB Laser Tachometer with SC 69 cable

•SA 47 carrying bag for SVAN 95x and accessories (fabric material)

•SA 54 Power supply unit by USB interface using cables SC 16 or SC 56 (cables not included)

•SA 31 external charger for four AA rechargeable batteries.

1.5. Software options available

•SV 974_1 1/1 & 1/3 octave analysis option

•SV 974_8 Rotation measurement option without Laser Tachometer

•SV 977_15 Time domain waveform signal recording (to the micro SD card: *.srt or *.wav format).

Note: The software options for the instrument can be purchased at any time as only the introduction

of a special unlock code is required for their activation in a specific instrument. Contact your local

Svantek distributor for further information and costs for these options.

1.6. General parameters

Input IEPE, Charge amplifier or Direct with TNC connector

IEPE Current Selectable: 1.5 mA, 3.0 mA, 4.5 mA

Dynamic Range More than 100 dB in single range

Internal Noise Level Less than 10 µV RMS (IEPE input & HP1 filter)

Frequency Range (-3 dB) 0.7 Hz ÷ 22.6 kHz, sampling rate 48 kHz

Display Colour OLED 2.4”, 320 x 240 pixels

Memory MicroSD flash card slot (supports 4 GB ÷ 16 GB cards)

Interfaces USB 1.1 Client, Extended I/O - AC output 1 V RMS Sine (1.41 V Peak) or Digital

Input/Output (Trigger - Pulse)

Power Supply Four AA batteries (alkaline) operation time > 12 h (6.0 V / 1.6 Ah)1

Four AA rechargeable batteries (not included) operation time > 16 h (4.8 V / 2.6

Ah)1

USB interface 500 mA HUB

Environmental Conditions Temperature from -10 oC to 50 oC

Humidity up to 90 % RH, non-condensed

Dimensions 140 x 83 x 33 mm (without accelerometer)

Weight Approx. 390 grams including batteries (without accelerometer)

SVANTEK 974 User Manual

2. MANUAL CONTROL OF THE INSTRUMENT

Control of the instrument has been developed in a fully interactive manner. The user can operate the instrument

by selecting the appropriate position from the selected Menu list. Thanks to that, the number of push-buttons for

control of the instrument has been reduced to nine for ease of use and convenience.

2.1 Control push-buttons on the front panel

The following control push-buttons are located on the front panel of the

instrument:

•<ENTER>,<Menu>,<Save>,

•<ESC>, <Cal.>,<S/P>,

•<Shift>, [Markers]

•<Alt>, [Markers]

•▲, ▼, ◄, ►

•<Start/Stop>.

The name given in (...) brackets denotes the second push-button function which

is available after pressing it in conjunction (or in sequence) with the <Shift>

push-button. For the first two push-buttons the name given in square brackets

[…] denotes also the third push-button function which is available after pressing

it in conjunction (or in sequence) with the <Alt> push-button.

<Shift>

The second function of a push-button (written in red colour on a push-button) can be

used when the <Shift> push-button is pressed. This push-button can be used in two

different ways:

•as Shift like with a computer keyboard (e.g. while typing the filename); both

<Shift> and the second push-button must be pressed together (two finger

operation);

•as 2nd Fun; this push-button can be pressed and released before pressing the

second one or pressed in parallel (while operating in “2nd Fun”mode, see the

following notice) with the second push-button (one finger operation).

The <Shift> push-button pressed in conjunction with <Alt> enables the user to activate

the Markers on the plots during the measurement.

<Alt>

This push-button enables the user to choose the third push-button function in case of

[<Save>] and [<Pause>] push-buttons. To select the third function, the user must press

the <Alt> and the second push-button simultaneously.

Note: Simultaneously pressing the <Alt> and <Start/Stop> push-buttons switches the instrument on

or off.

This push-button enables the user to start the measurement process when the

instrument is not measuring or to stop it when the instrument is in course of the

measurement. It is also possible to set the mode of this push-button such that to start or

stop the measurements the user should press it simultaneously with the <Shift> push-

button. This can prevent accidentally starting or stopping a measurement at the wrong

time by just brushing against the Start/Stop button on its own.

Note: Changing the <Start/Stop> push-button mode is performed in the Keyboard Settings window

of the Instrument list (see description of the Instrument list).

<ENTER>

This push-button enables the user to enter the selected position shown on the screen

Menu list or to confirm selected settings. Some additional functions of this push-button

will be described in the following chapters of this manual.

SVANTEK 974 User Manual

<Menu>

This push-button (<ENTER> pressed together with <Shift>) enables the user to enter

the main list containing seven sub-lists: Function, Measurement, Display, File,

Instrument and Auxiliary Setup. Each of the above-mentioned menu lists consists of

sub-lists, elements and data windows. These main sub-lists will be described in detail in

the following chapters of the manual. Double pressing the <Menu> push-button enters

a list containing the last eight opened sub-lists. It often speeds up the control of the

instrument as the user has faster access to the most frequently used sub-lists for easy

navigation.

<Save>

This push-button (<ENTER> pressed together with <Alt>) enables the user to save the

measurement results (see description in chapter 3.5).

<ESC>

This push-button closes the control lists, sub-lists or windows. It acts in an opposite way

to the <ENTER> push-button. When the window is closed after pressing the <ESC>

push-button, any changes made in it are ignored in almost all cases.

<Cal.>

This push-button (<ESC> pressed together with <Shift>) opens the Calibration sub-

list.

<S/P>

This push-button (<ESC> pressed together with <Alt>) enables the user to pause or

break the measurement process temporarily during the measurement or to save the

setup file if the instrument is not running the measurement.

◄, ►

These push-buttons enable the user specifically to:

•select the column in a multi column parameter list;

•select the parameters value in an active position (e.g. Start Delay period: 1s, 2s, 3s,

… etc.);

•control the cursor in Spectrum and Logger modes of result presentation;

•select the position of the character in the text editing screen;

•activate markers 2 and 3;

•speed up changing the numerical values of the parameters when pressed and held.

(◄, ►)

The ◄or ► push-buttons pressed together with <Shift> enable the user specifically to:

•change the parameters value with double step (e.g. Start Delay period: form 1s to

11s, 21s, … etc.);

•to shift cursor from the first to the last position and back on the graphical view mode.

[◄, ►]

The ◄or ► push-buttons pressed together with <Alt> enable the user specifically to:

•select the parameters value in an active position in the matrix parameter list;

•scroll the parameters in an active field on the result view screen;

•insert or delete a character in the text edition screen.

▲, ▼

These push-buttons enable the user specifically to:

•select line in the list;

•select the active field on the result view screen;

•select the correct character from the list in the text edition screen;

•activate markers 1 and 4.

(▲,▼)

The ▲ or ▼ push-buttons pressed together with <Shift> enable the user specifically to:

•shift the cursor from the first to the last position and back on the menu list;

•change the relationship between the Y-axis and X-axis of all plots presented on the

screen.

[▲, ▼]

The ▲ or ▼ push-buttons pressed together with <Alt> enable the user specifically to:

•change the mode of result presentation;

•programme the Real-Time Clock (RTC) and Timer.

SVANTEK 974 User Manual

[Info]

The <Info> push-button (simultaneous pressing the ◄

and ► push-buttons) opens the window with the help

information in the measurement display modes. Press

<ESC> or <ENTER> to exit the Info screen.

The <Markers> push-button (<Alt> pressed together with <Shift>) enables the user to

mark special events, which occurred during the performed measurements. To activate

the markers, the logger should be switched on (path: <Menu> / Measurement / Logging

/ Logger Setup) and one or more logger results (Peak, P–P, Max, RMS) in profiles have

to be activated (path: <Menu> / Measurement / Logging / Logger Results).

To enter the marker mode, the user must press <Shift> and <Alt> push-buttons

simultaneously duringthe measurement.Thenfour available markers appear on

the screen. To switch on marker number 1 the user must press ▲push button

(number 2 - ◄, number 3 - ►and number 4 - ▼). Active marker number will be

highlighted. To switch off the marker the user should press the appropriate

arrow-button second time.

The markers disappear from the screen after pressing <Shift> and <Alt>, but

the status of markers doesn’t change. To continue working with the markers, the

user should press <Shift> and <Alt> again.

The current state of the markers is indicated in the logger file (cf. App. B for

details) and can be used to show them with the help of the dedicated

presentation software.

An example presentation of the markers on the time history plot is shown below

(to view a plot with markers the user should transfer data to the appropriate

software such as SvanPC++).

▲

13:30:00 13:30:09 13:30:17 13:30:26 13:30:35 13:30:43 13:30:52

Leq

Marker 1

Marker 2

Marker 3

Marker 4

Table des matières

Autres manuels Svantek Instrument de mesure

Svantek

Svantek SV 973 Manuel utilisateur

Svantek

Svantek SV 104BIS Manuel utilisateur

Svantek

Svantek SV 271 LITE Manuel utilisateur

Svantek

Svantek Shawcity SVAN 977C Manuel utilisateur

Svantek

Svantek SV 971A Manuel utilisateur

Svantek

Svantek SV 279 PRO Manuel utilisateur

Svantek

Svantek SV 103 Manuel utilisateur

Svantek

Svantek SV 277 PRO Manuel utilisateur

Svantek

Svantek SV 104 Manuel utilisateur

Svantek

Svantek SVAN 953 Manuel utilisateur

Svantek

Svantek SV 106 Manuel utilisateur

Svantek

Svantek SV 106A Manuel utilisateur

Svantek

Svantek SVAN 979 Manuel utilisateur

Svantek

Svantek SVAN 977W Manuel utilisateur

Svantek

Svantek SV 104A Manuel utilisateur

Svantek

Svantek SVAN 977A Manuel utilisateur

Svantek

Svantek SVAN 106 Manuel utilisateur

Svantek

Svantek SV 307 Manuel utilisateur

Svantek

Svantek SV105 Manuel utilisateur

Svantek

Svantek SV 258PRO Manuel utilisateur

Svantek

Svantek SVAN 971 Manuel utilisateur

Svantek

Svantek SV 106 Manuel utilisateur

Svantek

Svantek SVAN 979 Manuel utilisateur

Svantek

Svantek SV 200 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
