The SV

258

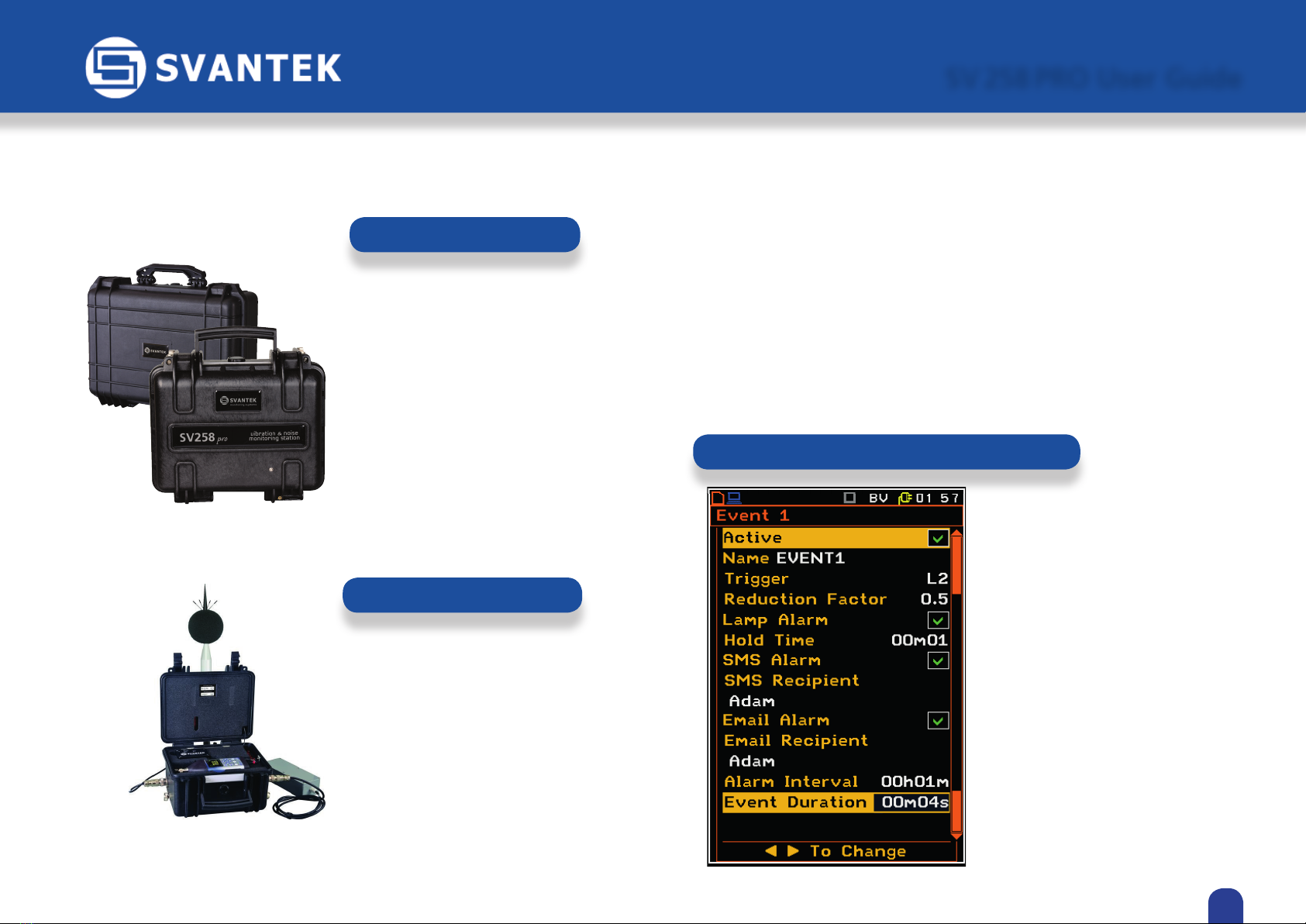

PRO kit consists of two carrying

cases. The main unit is a waterproof carrying

case with internal 17 Ah battery and internal

charging unit supporting powering from exter-

nal DC or solar panel.

The SVAN

958A

Class

1 sound and vibration

level meter is installed inside.

The outdoor charger and vibration accelerom-

eter kit are packed inside the second transpor-

tation case.

The kit includes license for SvanPC++ software

and a basic SvanNET account. Each kit has its

factory calibration certificate and 36 months

warranty card.

What's inside?

From September 2018 the SV

258 PRO can be

used with a new firmware for building vibra-

tion.

The new firmware simplifies setting up the sta-

tion in accordance to international and local

standards such as DIN 4150-3 or BS 7385-2.

The biggest advantage of the new firmware

is the real-time vibration events analysis in the

unit either with FFT or 1/3 octave and direct

comparison to criterion curves on-site.

In practise this means that station can gener-

ate alarms within a couple of seconds.

Dedicated Firmware

Trigger is set to DIN 4150-2, the build-

ing type, marked as Line 2 (L2).

When the trigger condition is met, the

Alarm Lamp will turn on and stay on

for 1 second according to the setting

Hold Time.

When the trigger condition is met, one

SMS and one E-mail will be sent to Re-

cipient: Adam at the time of alarm.

Alarm Interval is set to 1 minute, so

the next SMS or E-mail would be sent

after 1 minute.

Event Duration is set to 4 seconds,

which means that the event will last 4

seconds starting from the trigger.

When the curve selected for a given type of building is used as the event trigger,

the Peak Particle Velocity (PPV) and Dominant Frequency (DF) is compared against

the curve. If the PPV value exceeds the curve limit, the event starts and lasts in

accordance with the Event Duration setting. The Event Duration parameter should

be set accordingly to observed vibration type.

At the Event Start the Alarm Lamp, E-mail Alarm and SMS Alarm are activated. It

is necessary to activate at least one action: Lamp, SMS or E-mail in order to Start

an Event. The option Alarm Interval allows to set up a break-time before next SMS

or E-mail will be sent. The reduction factor works as the curve multiplying factor

and allows the curve to be moved up or down, so the alarm can be started earlier

or be postponed.

Building Vibration Events

Example Event Settings

Reduction Factor is set to multiplying

factor of 0.5 to shift down the L2 curve.

258

PRO User Guide

At the given example the Event has been started by the PPV of 5.278 mm/s at

33 Hz. The PPV value meets the condition of Reduction Factor that has been set to

0.5 as the value of 5.278 mm/s is at 50% of the L2 curve height at this point (the

L2 at 32.9 Hz is around 10.5 mm/s). The SVAN

958A stores the value that triggered

the Event as the Alarm value that can be displayed in SvanPC++:

According to the Event Duration setting, the Event lasted 4 seconds (Stop at

19:22:09.600). At the Stop point the system analyses the 4 seconds of previous

data to determine the Event maximum PPV in each axis, which in this example is

the value of 8.306 mm/s at 32 Hz at the X axis

Event Trigger (Alarm)

Event PPV

Event Value on the SVAN

958A display

Event Value in SvanPC++ software

Note: When station is exchanging data with SvanNET the Criterion Curve view is

not accessible due to limited computational power of the instruments.

258

PRO User Guide

258 PRO uses an advanced FFT moving window that analyses all vibration peaks

to determine their dominant frequencies. This solution enables comparison of the

vibration values to DIN 4150-3 curves in real-time.

DIN

4150-3 Events

DIN

4150-3 Application

258 PRO can be easily configured to measure building vibration in accordance

to DIN 4150-3, both for short-term as well as continuous measurements.

1) Go to Menu then Application and select standard DIN 4150-3. Select one of the

criterion curves for the given building type (L1/L2/L3).

DIN

45669-1 specifies two filters 1-80 Hz and 1-315Hz for vibration measure-

ments in the vicinity of railway traffic routes or blasts.

Once the application is selected then 2 types of DIN 4150-3 results view will be

available on the display. Use Alt+UP / DOWN to switch view:

1) Go to Menu then Events and activate up to 5 events. Select the L2 criterion

curve as the event trigger. You can shift up/down the L2 curve using the reduction

factor (multiply factor).

Event can trigger Alarm Lamp, Email or SMS. It is important to set up the event

duration for the length of observed vibration activity - for example 10s for train

passage. To browse events on the screen use UP/DOWN arrow in DIN 4150-3 view.

Note: When station is exchanging data with SvanNET the Criterion Curve view is

not accessible due to limited computational power of the SVAN 958A instrument.

258

PRO User Guide

258 PRO uses an advanced FFT moving window that analyses all vibration peaks

to determine their dominant frequencies. This solution enables comparison of the

vibration values to BS

7385-2 curves in real-time.

7385-2 Events

7385-2 Application

SV 258 PRO can be easily configured to measure building vibration in accordance

to BS

7385-2. In addition the station can measure VDV simultaneously.

1) Go to Menu then Application and select standard BS

7385-2. Select one of

the criterion curves for the given building type (L1/L2). The sampling rate will be

adjusted automatically. To enable VDV recording select Human Vibration option.

Once the application is selected then 2 types of BS 7385-2 results view will be

available on the display. Use Alt+UP / DOWN to switch view:

1) Go to Menu then Events and activate up to 5 events. Select the L2 criterion curve

as the event trigger. You can shift up/down the L2 curve usng the reduction factor

(multiply factor).

Event can trigger Alarm Lamp, Email or SMS. It is important to set up the event du-

ration for the length of observed vibration activity - for example 5 to 10s for train

passage. To browse events on the screen use UP/DOWN arrow in BS

7385-2 view.

Note: When station is exchanging data with SvanNET the Criterion Curve view is

not accessible due to limited computational power of the SVAN 958A instrument.

258

PRO User Guide

1) The station is programmed to automatically establish a 3G connection with

SvanNET. It takes up to 5 minutes to connect. The most important parameter of

the connection is the APN (Access Point Name). The default setting for the APN is

"internet".

It is possible that your Internet provider is using a different APN, in which case the

APN must be entered manually, either via the PC software or the SVAN

958A menu

- Remote/Modem Connection.

Access Point Name

1) Insert a normal SIM card into the slot in the modem. The SIM card PIN pro-

tection must be disabled. A click sound indicates that the SIM card is in the right

orientation. If necessary use a tool (e.g. pen) to push the SIM right in.

It is strongly recommended to configure the remote communication before going

on site. Start from opening the SV 258

PRO station. Locate the 3G modem on the

right-hand side of the case.

Before you go on site

Getting started

Connection to SvanNET

1) Successful connection to SvanNET is indicated by an icon on a SVAN 958A

display:

Connection to SvanNET

258 PRO User Guide

SvanNET enables an easy configuration of

remote connection, monitors connection

stability, measurements and station status

(e.g. powering). The advanced architecture

of SvanNET is hidden behind a new user-

friendly web interface accessible from

all devices with web-browsers. The web

interface allows viewing of the current

measurement results, editing settings and

downloading measurement data from

multiple noise & vibration monitoring

stations

About SvanNET

2) To access SvanNET, log in to your account at:

https://www.svannet.com/panel-login.php

3) Once logged in you can use the web interface to manage the monitoring sta-

tion:

1) The system consists of 2 carrying cases. Before use check the serial numbers on

labels located on the side of both cases and ensure they are a set.

Assembling the hardware

258 PRO User Guide

2) Open the case with accessories and take out the SV 207B accelerometer kit.

Firmly connect the SC 278 cable to the SV 84 accelerometer and mount it on the

SA 207 metal base using the hex tool provided in the kit.

3) For direct connection to the building wall use the mounting hole of SV 84 ac-

celerometer.

258 PRO User Guide

4) To connect the microphone extension cable start by lining up mark on the plug

and INPUT 1-3 socket, then lock the connector by turning the ring clockwise (only

the ring close to the socket will rotate).

5) Connect the power supply cable to the DC Supply socket in the same way.

258 PRO User Guide

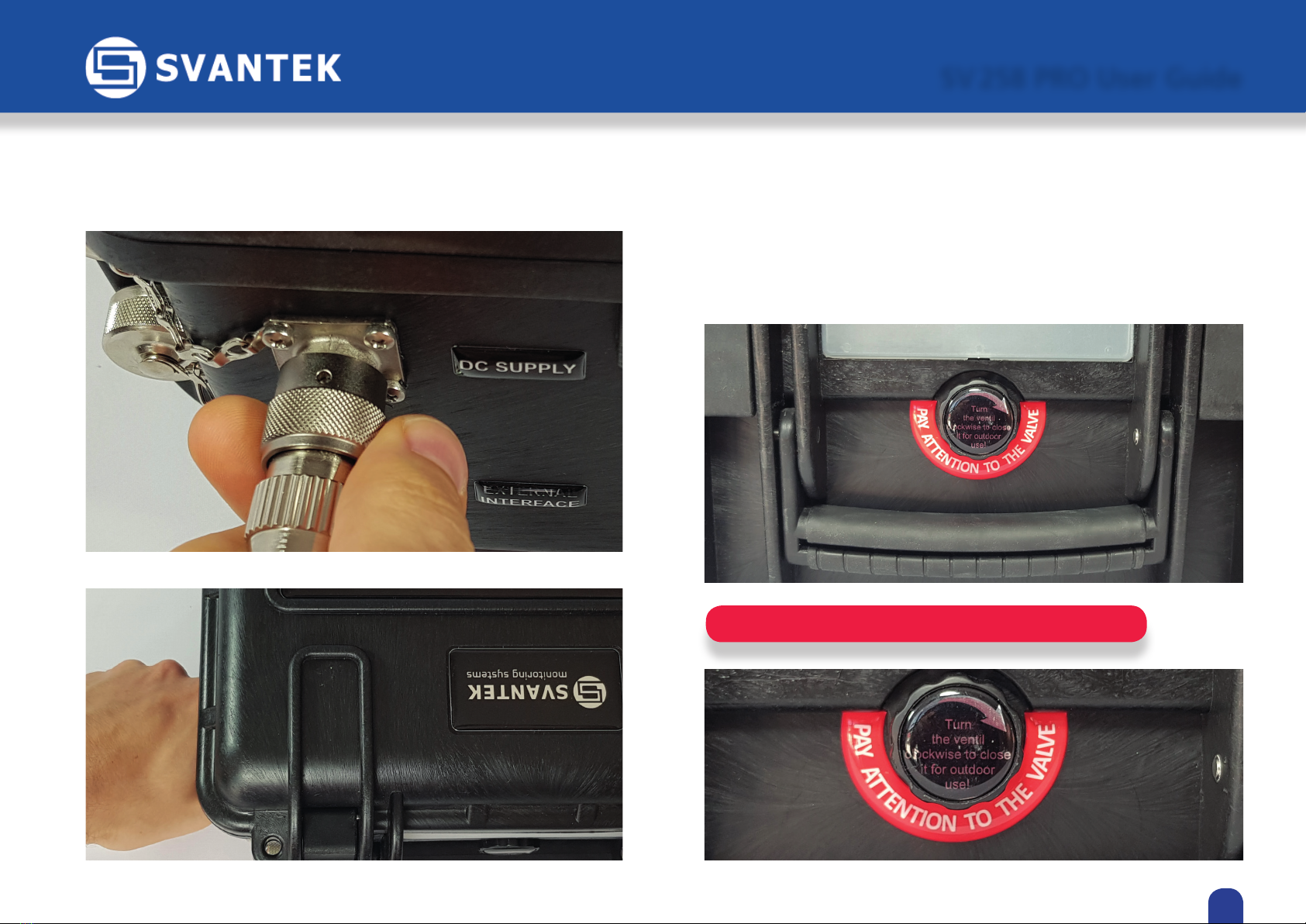

6) To disconnect cables push the connector towards the station and turn it coun-

ter-clockwise. New connectors require more force so using a closed hand is more

effective than using just fingers.

Air pressure compensation valve

Each case monitoring system is equipped with an air pressure compensation valve

that must be closed when station is used outdoors, otherwise the system is not

sealed against moisture ingress. The lower pressure inside the case may cause

difficulty when opening the lid. In such cases the relief valve needs to be turned

slightly counter clockwise before opening the case lid. The valve is located at the

front of the case.

Close the valve before you leave

258 PRO User Guide

271 Solar Panel (option) or

272 External Battery (option)

It is advised to charge the batteries of SV

258 PRO and SB

272 before going on

site. Each unit has its own charger: SB

270 is a waterproof charger for SV 258 PRO,

SB 273 is an indoor charger for SB

272.

The SB

271 solar panel (40 W, 17.5 V

DC) extends the

working time of the monitoring station. The SB 271 solar

panel does not require additional batteries or external

controllers.

SB 271 is equipped with a military standard connector

cable for direct connection to the monitoring station.

The SB 272 battery pack capacity of 33 Ah enables twice

the operating time of the monitoring station in comparison

to the built in battery pack.

A cable with military connectors for connection between

258 PRO and solar panel or external battery is provided.

The SB

272 is rechargeable with a SB

273 indoor charger.

To connect the solar panel or the external battery use the 4-pin socket marked as

DC supply on the SV 258 Pro case. Once connected, the SV 258 Pro will recognize

the external powering source automatically.

To connect the solar panel or the external battery use the 4-pin socket marked as

In case AC mains powering is not available, the battery life of the SV 258 Pro

can be extended either with use of SB 271 solar panel or SB 272 external battery

pack.

272 Alarm Lamp (option)

SP 272 is an LED alarm lamp with a buzzer function activated

by an internal switch. SP 272 is powered and activated from

the SV 258 Pro station – switching on the lamp whenever

the Event trigger condition is met.

To use Alarm Lamp simply connect the connector of SP

272

to the External Interface socket on the SV 258 PRO case:

Autres manuels pour SV258 PRO

Table des matières

Autres manuels Svantek Instrument de mesure

Svantek

Svantek SV 258PRO Manuel utilisateur

Svantek

Svantek SV 104 Manuel utilisateur

Svantek

Svantek SV105 Manuel utilisateur

Svantek

Svantek Shawcity SVAN 977C Manuel utilisateur

Svantek

Svantek SV 200A Manuel utilisateur

Svantek

Svantek SV 106 Manuel utilisateur

Svantek

Svantek SVAN 971 Manuel utilisateur

Svantek

Svantek SVAN 958 Manuel utilisateur

Svantek

Svantek SV 971A Manuel utilisateur

Svantek

Svantek SV 104A Manuel utilisateur

Svantek

Svantek SV 977D Manuel utilisateur

Svantek

Svantek SVAN 971 Manuel utilisateur

Svantek

Svantek SV100A Manuel utilisateur

Svantek

Svantek SV 104BIS Manuel utilisateur

Svantek

Svantek SV 106A Manuel utilisateur

Svantek

Svantek SV 104IS Manuel utilisateur

Svantek

Svantek SVAN 953 Manuel utilisateur

Svantek

Svantek SV 103 Manuel utilisateur

Svantek

Svantek SV 102 Manuel utilisateur

Svantek

Svantek SVAN 977W Manuel utilisateur

Svantek

Svantek SVAN 958A Manuel utilisateur

Svantek

Svantek SV 279 PRO Manuel utilisateur

Svantek

Svantek SVAN 979 Manuel utilisateur

Svantek

Svantek SV 200 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
