Supermicro P3TDLR Plus Manuel utilisateur

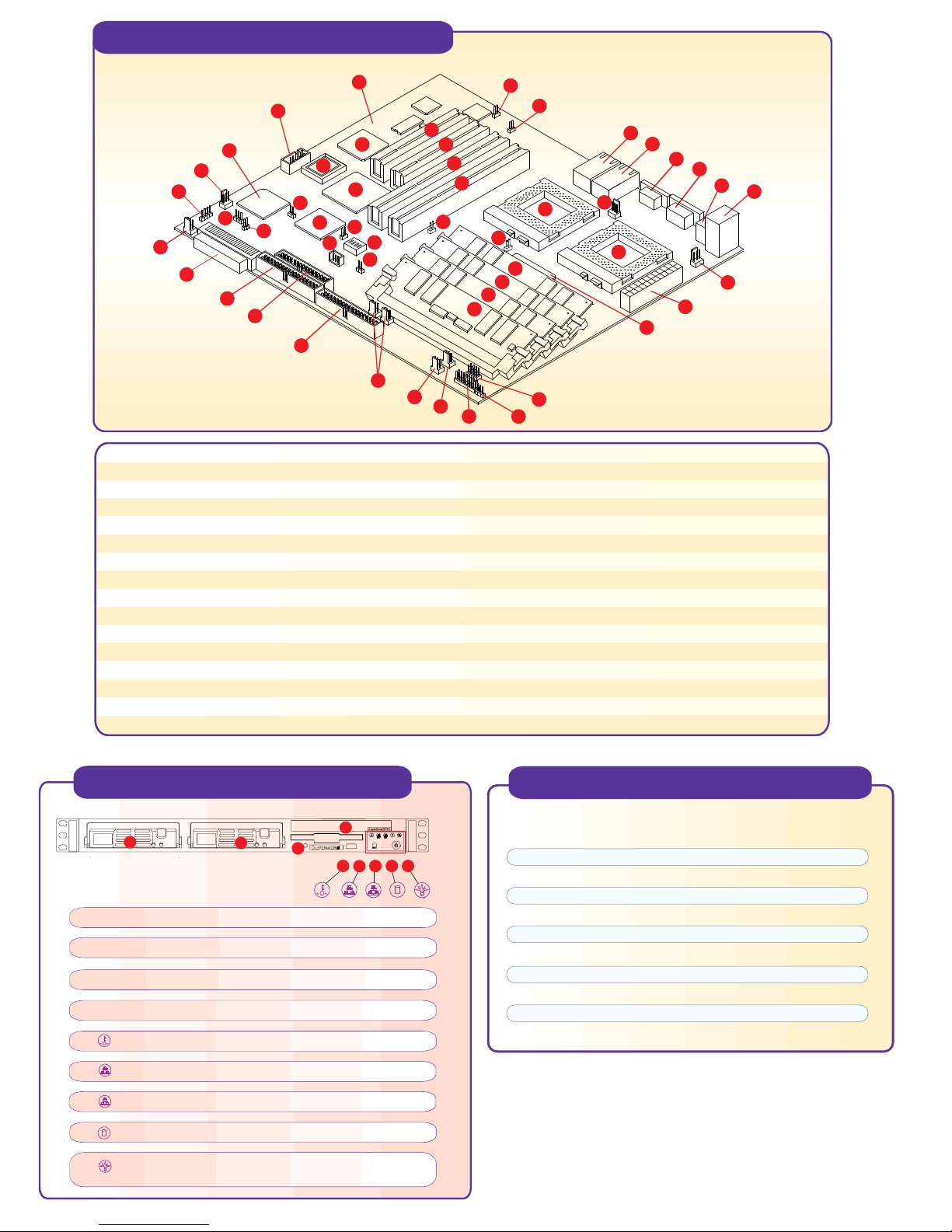

Motherboard Components

P3TDLR+ Quick Reference

Front Panel Functions

1. Hot-plug SCSI hard drive, SCSI ID 0

2. Hot-plug SCSI hard drive, SCSI ID 1

3. CD-ROM/disketle drive assembly

4. Floopy Drive

5. Overheat: Indicates an overheat condition in the system

6. NIC2: Indicates network activity on LAN2 when flashing

7. NIC1: Indicates network activity on LAN1 when flashing

8. HDD: Indicates IDE channel activity.

9. Power: Indicates power is being supplied to the system's

power supply units

124

56789

Note: E.C.C. registered memory type must be installed.

1 System Board

2 ATI Rage XL

3BIOS

4 South Bridge

5 COM2

6 Super I/O

7WOL

8 SLED1

9JBT1

10 WOM

11 Overheat Fan

12 Ultra160 LVD SCSI

13 IDE#2 Connector

14 Floppy Connector

15 IDE #1 connector

16 J210

17 Chassis Fan

18 Blower Fan

19 Chassis Fan

20 JF1

21 JP61

22 J105/J106 (USB4/USB3)

23 Mouse and Keyboard Connectors

24 2 USB

25 COM1

26 VGA

27 NIC1

28 NIC2

29 JP24

30 JP8

31 PCI 2

32 PCI 1

33 PCI64#2

34 PCI64#1

35 JP13

36 AIC-7892

37 JP1

38 SW1

39 JP11, JP12

40 JP7

41 JP2

42 North Bridge

43, 44, 45, 46 DIMM 0, 1, 2, 3

47 CPU 1

48 CPU 2

49 ATX Power

51 CPU Fan

52 CPU Fan

19 21

28 27

Jumpers Description Default Setting

JBT1  CMOS Clear Pin 1-2 (Normal)

JP1 SCSI Pin 1-2 (Enabled)

JP2  Front Side Bus Speed Pin 1-2 (CPU Select)

JP7  Overheat Alarm Closed (Enabled)

JP8  NIC1 Enable/Disable Open (Enabled)

JP11 Power Supply Fail Pin 4 (Reset)

JP12 Power Supply Fail Closed (Enabled)

JP13 Speed for 64-bit PCI Closed (33 MHz)

JP24  NIC2 Enable/Disable Open (Enabled)

JP62 Onboard VGA Pin 1-2 (Enabled)

J210 Watchdog Reset Open (Enabled)

CPU Core/Bus Ratio Selection

(DIP Switch 1)

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

Due to the fact that adequate air flow and

proper thermal control are very critical in

maintaining 1U system's stability and

performance, it is imperative that the proper

installation procedures listed below be

followed in order to maximize system

performance.This is especially critical for 1U

Dual Processor Servers with speeds of 1

GHz and above.

Warning !

CPU Heat Sink Installation Procedures

(For Supermicro SuperServer 1U Systems)

1) Only those CPU heat sinks that are provided by Supermicro should be used.

2) Apply proper amount of silicon compound on the CPU's die.

3) Place the CPU heat sink on top of the CPU.

4) Place the heat sink spring on top of the CPU heat sink and lock the backside of the spring into its notch.

5) Lock the front side of the heat sink spring into its notch.

= >

CPU

600/450

667/500

733/550

800/600

866/650

933/700

1G/750

1.06G/800

1.13G/850

1.20G/900

1.26G/950

1.4G/1G

SW1

OFF

SW1

OFF

SW1

OFF

SW1

OFF

1 2 3 4 5

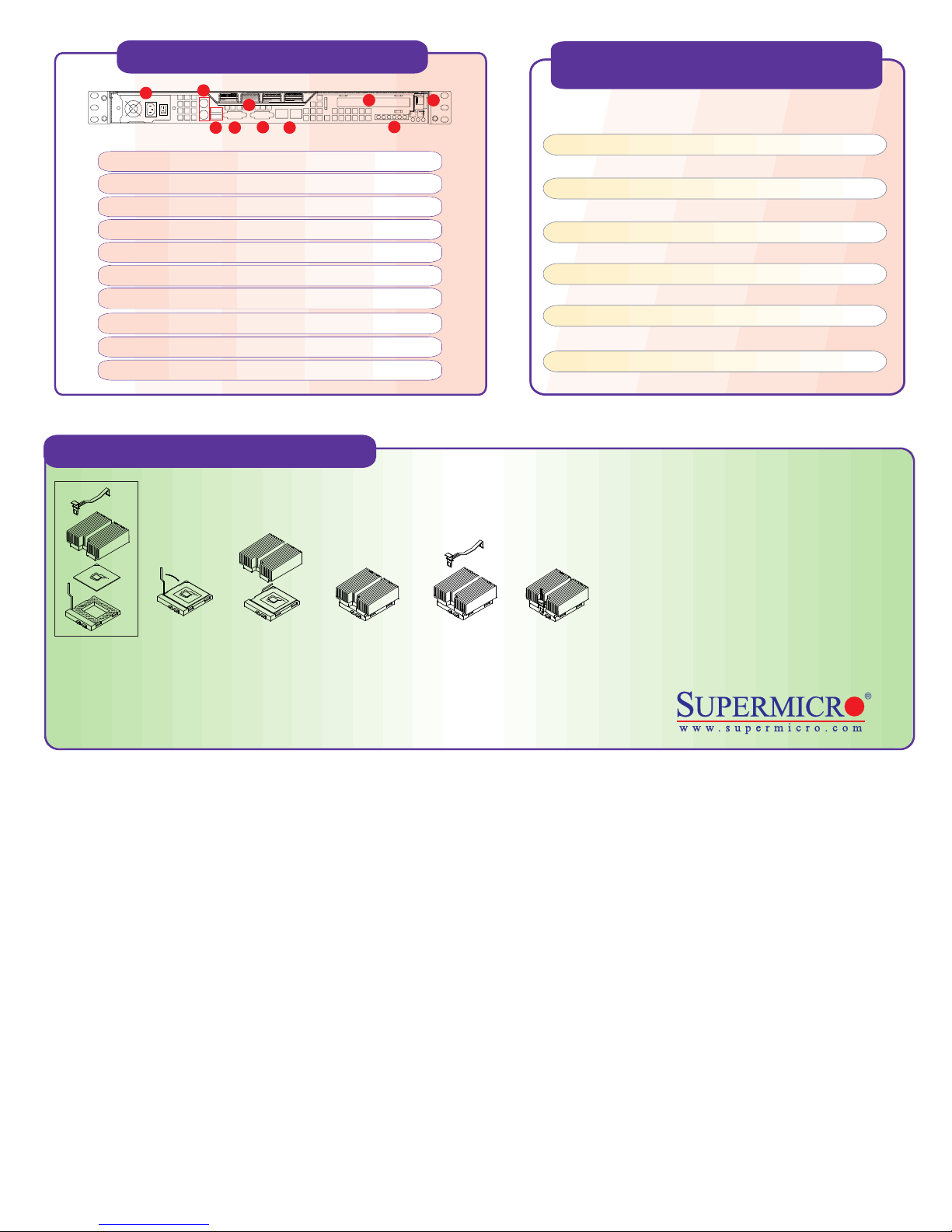

Cooling Fan Installation

Rear Panel Functions

345

1. AC Power connector

2. PS/2 Mouse and Keyboard port

3. 2 USB ports

4. 2 COM ports ( 1 internal)

5. 1 VGA port

6. 1 Parallel port

7. 2 x Intel 82559 LAN port

8. 64/32-bit Expansion slot

9. External SCSI port

10. PCI Card Release Latch
